Beveled Shim Plate

3 pages · 9 crops · ×8 · superstructure

⚠ No class in the bridge ontology fits this itemAdd a class

The ontology would need a shim-plate class.

How the sheets named it

BEVELBevel blockBeveled shim platesBeveled Shim Plates9

Every dimension read for it1

  • 3 inBeveled shim plate hole diameterp12 · p12_r03 section a a

Notes on the sheets that carry it

  • p10BEVEL TOP FLANGE PARALLEL TO B.F.P.R. OR BENT
  • p11TOP PARALLEL TO BENT
  • p11TOP FLANGE PARALLEL TO BENT
  • p12PREFORMED FOAM JOINT FILLER SHALL BE IN ACCORDANCE WITH SUB-SECTION 833.2.10 OF THE GEORGIA DOT SPECIFICATIONS.
  • p1290°-00'-00", TYP.
  • p123/16" SEALING RIB, ALL AROUND
  • p129. BEVELED SHIM PLATES SHALL BE ASTM A709 GRADE 36 AND SHALL BE GALVANIZED IN ACCORDANCE WITH ASTM A123.

Every crop it was read in — the drawing beside what the model took off it

Page 10

crop

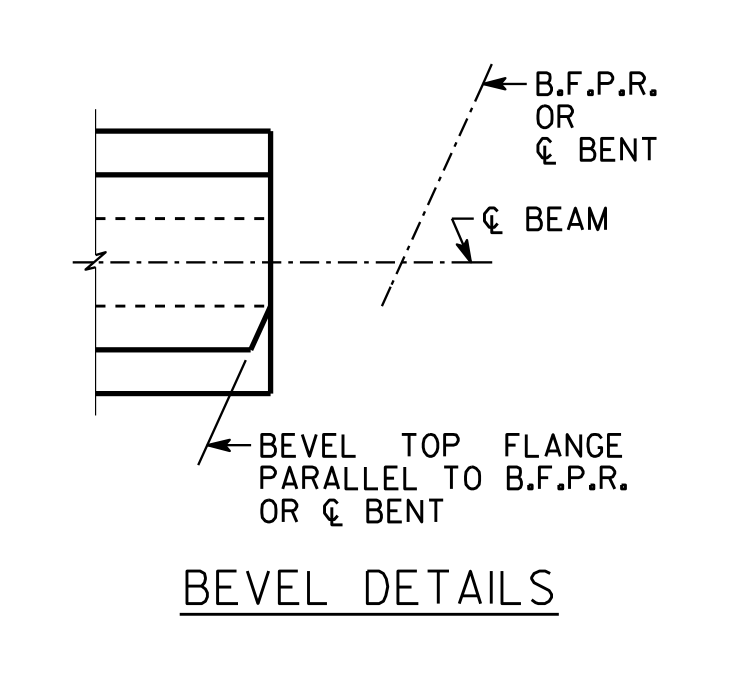

p10_r14 bevel details

page 10 · gdot_drawing_0a6d24ffdd874879a37c7122f1fd8bef_p10_r14_bevel_details
Original
p10_r14 bevel details
{
  "view": "Detail",
  "objects": [
    {
      "name": "BEAM",
      "tag": "",
      "shape": "rectangular",
      "material": "",
      "count": 1,
      "note": "rectangular beam end cross-section"
    },
    {
      "name": "BEVEL",
      "tag": "",
      "shape": "diagonal",
      "material": "",
      "count": 1,
      "note": "bevel feature on top flange"
    }
  ],
  "measurements": [],
  "notes": [
    "BEVEL TOP FLANGE PARALLEL TO B.F.P.R. OR BENT"
  ],
  "labels": [
    "BEVEL DETAILS"
  ],
  "description": "Detail showing bevel details for a beam end, with a bevel on the top flange and a note about top flange parallelism to B.F.P.R. or bent."
}

p10_r14 bevel detailsDetail

  • BEVEL×1diagonalbevel feature on top flange
crop

p10_r14

page 10 · other_p10_r14
Original
p10_r14
{
  "view": "Detail",
  "objects": [
    {
      "name": "BEVEL",
      "tag": "",
      "shape": "rectangular",
      "material": "",
      "count": 1,
      "note": "Bevel (top flange) shown; bevel top flange parallel to B.F.P.R. or"
    }
  ],
  "measurements": [],
  "notes": [],
  "labels": [
    "BEVEL DETAILS"
  ],
  "description": "Detail drawing fragment titled BEVEL DETAILS showing a rectangular element with internal lines and a bevel note indicating the top flange bevel alignment relative to B.F.P.R. or bent."
}

p10_r14Detail

  • BEVEL×1rectangularBevel (top flange) shown; bevel top flange parallel to B.F.P.R. or

Page 11

crop

p11_r12 bevel details

page 11 · gdot_drawing_0a6d24ffdd874879a37c7122f1fd8bef_p11_r12_bevel_details
Original
p11_r12 bevel details
{
  "view": "Detail",
  "objects": [
    {
      "name": "Bevel block",
      "tag": "",
      "shape": "rectangular",
      "material": "unknown",
      "count": 1,
      "note": "leftmost vertical block with internal lines (part of bevel details)"
    },
    {
      "name": "Bent",
      "tag": "",
      "shape": "dashed diagonal line",
      "material": "unknown",
      "count": 1,
      "note": ""
    },
    {
      "name": "Beam",
      "tag": "",
      "shape": "short line with angle symbol",
      "material": "unknown",
      "count": 1,
      "note": ""
    }
  ],
  "measurements": [],
  "notes": [
    "TOP PARALLEL TO BENT",
    "TOP FLANGE PARALLEL TO BENT"
  ],
  "labels": [
    "BEVEL DETAILS",
    "BENT",
    "BEAM",
    "FLANGE"
  ],
  "description": "Detail page showing bevel details. It includes a left bevel-block element, a dashed diagonal line representing a bent member, and a short beam element with callouts BENT, BEAM, and FLANGE. Notes indicate the top features are parallel to the bent."
}

p11_r12 bevel detailsDetail

  • Bevel block×1rectangularunknownleftmost vertical block with internal lines (part of bevel details)
crop

p11_r12

page 11 · other_p11_r12
Original
p11_r12
{
  "view": "Detail",
  "objects": [
    {
      "name": "BEAM",
      "tag": "",
      "shape": "dashed horizontal line",
      "material": "unknown",
      "count": 1,
      "note": ""
    },
    {
      "name": "BENT",
      "tag": "",
      "shape": "dashed diagonal line",
      "material": "unknown",
      "count": 1,
      "note": ""
    },
    {
      "name": "BEVEL",
      "tag": "",
      "shape": "slanted line with leader",
      "material": "unknown",
      "count": 1,
      "note": ""
    }
  ],
  "measurements": [],
  "notes": [],
  "labels": [
    "BEVEL DETAILS",
    "BEVEL TOP FLANGE PARALLEL TO BENT"
  ],
  "description": "Detail view titled BEVEL DETAILS showing a BEAM and a BENT with a BEVEL indication; includes the note that the BEVEL TOP FLANGE is parallel to the BENT."
}

p11_r12Detail

  • BEVEL×1slanted line with leaderunknown

Page 12

crop

p12_r01 in accordance with sub section 833 2 10

page 12 · gdot_drawing_0a6d24ffdd874879a37c7122f1fd8bef_p12_r01_in_accordance_with_sub_section_833_2_10
Original
p12_r01 in accordance with sub section 833 2 10
{
  "view": "Detail",
  "objects": [
    {
      "name": "BEARING PAD",
      "tag": "",
      "shape": "rectangular",
      "material": "",
      "count": 1,
      "note": ""
    },
    {
      "name": "BEVELED SHIM PLATE",
      "tag": "",
      "shape": "rectangular",
      "material": "",
      "count": 1,
      "note": ""
    },
    {
      "name": "BEARING",
      "tag": "",
      "shape": "rectangular",
      "material": "",
      "count": 1,
      "note": ""
    },
    {
      "name": "BEAM",
      "tag": "",
      "shape": "rectangular",
      "material": "",
      "count": 1,
      "note": ""
    },
    {
      "name": "ENDWALL",
      "tag": "",
      "shape": "irregular",
      "material": "",
      "count": 1,
      "note": ""
    },
    {
      "name": "1/2\" DIAMETER SMOOTH DOWEL",
      "tag": "",
      "shape": "cylindrical",
      "material": "",
      "count": 1,
      "note": ""
    },
    {
      "name": "PREFORMED FOAM JOINT FILLER",
      "tag": "",
      "shape": "rectangular",
      "material": "",
      "count": 1,
      "note": ""
    }
  ],
  "measurements": [
    {
      "label": "BEARING PAD THICKNESS",
      "value": "1\"",
      "unit": "in",
      "appliesTo": "BEARING PAD"
    },
    {
      "label": "DOWEL DIAMETER",
      "value": "1/2\"",
      "unit": "in",
      "appliesTo": "DOWEL"
    }
  ],
  "notes": [
    "PREFORMED FOAM JOINT FILLER SHALL BE IN ACCORDANCE WITH SUB-SECTION 833.2.10 OF THE GEORGIA DOT SPECIFICATIONS."
  ],
  "labels": [
    "BEARING PAD",
    "BEVELED SHIM PLATE",
    "BEARING",
    "BEAM",
    "ENDWALL",
    "1/2\" DIAMETER SMOOTH DOWEL",
    "PREFORMED FOAM JOINT FILLER"
  ],
  "description": "This crop shows a detail set for a bearing arrangement: a plan-like view on the left indicating endwall, bearing pad, beveled shim plate, and beam; and a cross-section on the right detailing the beveled shim plate, bearing pad, bearing, a 1/2 inch diameter smooth dowel, and a note about foam joint filler per Georgia DOT specs."
}

p12_r01 in accordance with sub section 833 2 10Detail

  • BEVELED SHIM PLATE×1rectangular

1" in BEARING PAD THICKNESS1/2" in DOWEL DIAMETER

crop

p12_r03 section a a

page 12 · gdot_drawing_0a6d24ffdd874879a37c7122f1fd8bef_p12_r03_section_a_a
Original
p12_r03 section a a
{
  "view": "Plan",
  "objects": [
    {
      "name": "Bent 1",
      "tag": "BENT 1",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 1,
      "note": "Shown in plan"
    },
    {
      "name": "Bent 4",
      "tag": "BENT 4",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 1,
      "note": "Similar to Bent 1"
    },
    {
      "name": "Bearing pad hole",
      "tag": "",
      "shape": "circle",
      "material": "void",
      "count": 1,
      "note": "3\" diameter hole in bearing pad"
    },
    {
      "name": "Beveled shim plate",
      "tag": "",
      "shape": "rectangle",
      "material": "",
      "count": 1,
      "note": "3\" diameter hole"
    },
    {
      "name": "Sealing rib",
      "tag": "",
      "shape": "strip around perimeter",
      "material": "concrete",
      "count": 1,
      "note": "3/16\" sealing rib all around"
    }
  ],
  "measurements": [
    {
      "label": "Bearing pad hole diameter",
      "value": "3",
      "unit": "in",
      "appliesTo": "Bearing pad hole"
    },
    {
      "label": "Beveled shim plate hole diameter",
      "value": "3",
      "unit": "in",
      "appliesTo": "Beveled shim plate"
    },
    {
      "label": "Sealing rib thickness",
      "value": "3/16",
      "unit": "in",
      "appliesTo": "Sealing rib"
    }
  ],
  "notes": [
    "90°-00'-00\", TYP.",
    "3/16\" SEALING RIB, ALL AROUND"
  ],
  "labels": [
    "PLAN",
    "BENT 1 SHOWN",
    "BENT 4 SIMILAR",
    "ENDWALL NOT SHOWN",
    "SECTION A-A"
  ],
  "description": "Plan view showing Bent 1 and Bent 4 with bearing pad hole and beveled shim plate; includes a 3\" diameter bearing pad hole and a 3/16\" sealing rib around the perimeter. Endwall is not shown; Bent 4 is similar to Bent 1."
}

p12_r03 section a aPlan

  • Beveled shim plate×1rectangle3" diameter hole

3 in Bearing pad hole diameter3 in Beveled shim plate hole diameter3/16 in Sealing rib thickness

crop

p12_r06 notes

page 12 · gdot_drawing_0a6d24ffdd874879a37c7122f1fd8bef_p12_r06_notes
Original
p12_r06 notes
{
  "view": "Notes",
  "objects": [
    {
      "name": "Beveled shim plates",
      "tag": "9",
      "shape": "",
      "material": "galvanized steel (ASTM A709 Grade 36) with galvanizing per ASTM A123",
      "count": null,
      "note": "Beveled shim plates shall be ASTM A709 Grade 36 and galvanized in accordance with ASTM A123."
    }
  ],
  "measurements": [],
  "notes": [
    "9. BEVELED SHIM PLATES SHALL BE ASTM A709 GRADE 36 AND SHALL BE GALVANIZED IN ACCORDANCE WITH ASTM A123."
  ],
  "labels": [],
  "description": "A single note (9) specifying beveled shim plates with material and galvanizing requirements per ASTM standards."
}

p12_r06 notesNotes

  • Beveled shim plates9galvanized steel (ASTM A709 Grade 36) with galvanizing per ASTM A123Beveled shim plates shall be ASTM A709 Grade 36 and galvanized in accordance with ASTM A123.
crop

p12_r07 table

page 12 · gdot_drawing_0a6d24ffdd874879a37c7122f1fd8bef_p12_r07_table
Original
p12_r07 table
{
  "view": "Table",
  "objects": [
    {
      "name": "Bent",
      "tag": "1",
      "shape": "rectangular",
      "material": "",
      "count": 1,
      "note": ""
    },
    {
      "name": "Bent",
      "tag": "2 BACK",
      "shape": "rectangular",
      "material": "",
      "count": 1,
      "note": ""
    },
    {
      "name": "Bent",
      "tag": "2 AHEAD",
      "shape": "rectangular",
      "material": "",
      "count": 1,
      "note": ""
    },
    {
      "name": "Bent",
      "tag": "3 BACK",
      "shape": "rectangular",
      "material": "",
      "count": 1,
      "note": ""
    },
    {
      "name": "Bent",
      "tag": "3 AHEAD",
      "shape": "rectangular",
      "material": "",
      "count": 1,
      "note": ""
    },
    {
      "name": "Bent",
      "tag": "4",
      "shape": "rectangular",
      "material": "",
      "count": 1,
      "note": ""
    },
    {
      "name": "Beveled Shim Plates",
      "tag": "",
      "shape": "rectangular",
      "material": "shim plate",
      "count": 1,
      "note": ""
    }
  ],
  "measurements": [
    {
      "label": "Bent 1 - W",
      "value": "16",
      "unit": "in",
      "appliesTo": "1"
    },
    {
      "label": "Bent 1 - L",
      "value": "12",
      "unit": "in",
      "appliesTo": "1"
    },
    {
      "label": "Bent 1 - T",
      "value": "4",
      "unit": "in",
      "appliesTo": "1"
    },
    {
      "label": "Bent 1 - Number of internal plate(s)",
      "value": "3",
      "unit": "",
      "appliesTo": "1"
    },
    {
      "label": "Bent 1 - Design shear deflection",
      "value": "3/8",
      "unit": "in",
      "appliesTo": "1"
    },
    {
      "label": "Bent 1 - Dead load",
      "value": "55",
      "unit": "kips",
      "appliesTo": "1"
    },
    {
      "label": "Bent 1 - Live load (no impact)",
      "value": "63",
      "unit": "kips",
      "appliesTo": "1"
    },
    {
      "label": "Bent 1 - Total design loads",
      "value": "118",
      "unit": "kips",
      "appliesTo": "1"
    },
    {
      "label": "Beveled shim plate Ti",
      "value": "1/4",
      "unit": "in",
      "appliesTo": "1"
    },
    {
      "label": "Beveled shim plate T2",
      "value": "1/2",
      "unit": "in",
      "appliesTo": "1"
    },
    {
      "label": "Bent 2 BACK - W",
      "value": "16",
      "unit": "in",
      "appliesTo": "2 BACK"
    },
    {
      "label": "Bent 2 BACK - L",
      "value": "12",
      "unit": "in",
      "appliesTo": "2 BACK"
    },
    {
      "label": "Bent 2 BACK - T",
      "value": "4",
      "unit": "in",
      "appliesTo": "2 BACK"
    },
    {
      "label": "Bent 2 BACK - Number of internal plate(s)",
      "value": "3",
      "unit": "",
      "appliesTo": "2 BACK"
    },
    {
      "label": "Bent 2 BACK - Design shear deflection",
      "value": "0",
      "unit": "in",
      "appliesTo": "2 BACK"
    },
    {
      "label": "Bent 2 BACK - Dead load",
      "value": "47",
      "unit": "kips",
      "appliesTo": "2 BACK"
    },
    {
      "label": "Bent 2 BACK - Live load (no impact)",
      "value": "61",
      "unit": "kips",
      "appliesTo": "2 BACK"
    },
    {
      "label": "Bent 2 BACK - Total design loads",
      "value": "108",
      "unit": "kips",
      "appliesTo": "2 BACK"
    },
    {
      "label": "Bent 2 AHEAD - W",
      "value": "18",
      "unit": "in",
      "appliesTo": "2 AHEAD"
    },
    {
      "label": "Bent 2 AHEAD - L",
      "value": "10",
      "unit": "in",
      "appliesTo": "2 AHEAD"
    },
    {
      "label": "Bent 2 AHEAD - T",
      "value": "1 3/4",
      "unit": "in",
      "appliesTo": "2 AHEAD"
    },
    {
      "label": "Bent 2 AHEAD - Number of internal plate(s)",
      "value": "1",
      "unit": "",
      "appliesTo": "2 AHEAD"
    },
    {
      "label": "Bent 2 AHEAD - Design shear deflection",
      "value": "0",
      "unit": "in",
      "appliesTo": "2 AHEAD"
    },
    {
      "label": "Bent 2 AHEAD - Dead load",
      "value": "79",
      "unit": "kips",
      "appliesTo": "2 AHEAD"
    },
    {
      "label": "Bent 2 AHEAD - Live load (no impact)",
      "value": "71",
      "unit": "kips",
      "appliesTo": "2 AHEAD"
    },
    {
      "label": "Bent 2 AHEAD - Total design loads",
      "value": "150",
      "unit": "kips",
      "appliesTo": "2 AHEAD"
    },
    {
      "label": "Bent 3 BACK - W",
      "value": "18",
      "unit": "in",
      "appliesTo": "3 BACK"
    },
    {
      "label": "Bent 3 BACK - L",
      "value": "10",
      "unit": "in",
      "appliesTo": "3 BACK"
    },
    {
      "label": "Bent 3 BACK - T",
      "value": "1 3/4",
      "unit": "in",
      "appliesTo": "3 BACK"
    },
    {
      "label": "Bent 3 BACK - Number of internal plate(s)",
      "value": "1",
      "unit": "",
      "appliesTo": "3 BACK"
    },
    {
      "label": "Bent 3 BACK - Design shear deflection",
      "value": "1/2",
      "unit": "in",
      "appliesTo": "3 BACK"
    },
    {
      "label": "Bent 3 BACK - Dead load",
      "value": "79",
      "unit": "kips",
      "appliesTo": "3 BACK"
    },
    {
      "label": "Bent 3 BACK - Live load (no impact)",
      "value": "71",
      "unit": "kips",
      "appliesTo": "3 BACK"
    },
    {
      "label": "Bent 3 BACK - Total design loads",
      "value": "150",
      "unit": "kips",
      "appliesTo": "3 BACK"
    },
    {
      "label": "Bent 3 AHEAD - W",
      "value": "16",
      "unit": "in",
      "appliesTo": "3 AHEAD"
    },
    {
      "label": "Bent 3 AHEAD - L",
      "value": "12",
      "unit": "in",
      "appliesTo": "3 AHEAD"
    },
    {
      "label": "Bent 3 AHEAD - T",
      "value": "4",
      "unit": "in",
      "appliesTo": "3 AHEAD"
    },
    {
      "label": "Bent 3 AHEAD - Number of internal plate(s)",
      "value": "3",
      "unit": "",
      "appliesTo": "3 AHEAD"
    },
    {
      "label": "Bent 3 AHEAD - Design shear deflection",
      "value": "1/2",
      "unit": "in",
      "appliesTo": "3 AHEAD"
    },
    {
      "label": "Bent 3 AHEAD - Dead load",
      "value": "47",
      "unit": "kips",
      "appliesTo": "3 AHEAD"
    },
    {
      "label": "Bent 3 AHEAD - Live load (no impact)",
      "value": "61",
      "unit": "kips",
      "appliesTo": "3 AHEAD"
    },
    {
      "label": "Bent 3 AHEAD - Total design loads",
      "value": "108",
      "unit": "kips",
      "appliesTo": "3 AHEAD"
    },
    {
      "label": "Bent 4 - W",
      "value": "16",
      "unit": "in",
      "appliesTo": "4"
    },
    {
      "label": "Bent 4 - L",
      "value": "12",
      "unit": "in",
      "appliesTo": "4"
    },
    {
      "label": "Bent 4 - T",
      "value": "4",
      "unit": "in",
      "appliesTo": "4"
    },
    {
      "label": "Bent 4 - Number of internal plate(s)",
      "value": "3",
      "unit": "",
      "appliesTo": "4"
    },
    {
      "label": "Bent 4 - Design shear deflection",
      "value": "7/8",
      "unit": "in",
      "appliesTo": "4"
    },
    {
      "label": "Bent 4 - Dead load",
      "value": "55",
      "unit": "kips",
      "appliesTo": "4"
    },
    {
      "label": "Bent 4 - Live load (no impact)",
      "value": "63",
      "unit": "kips",
      "appliesTo": "4"
    },
    {
      "label": "Bent 4 - Total design loads",
      "value": "118",
      "unit": "kips",
      "appliesTo": "4"
    },
    {
      "label": "Beveled shim plate Ti (Bent 4)",
      "value": "1/2",
      "unit": "in",
      "appliesTo": "4"
    },
    {
      "label": "Beveled shim plate T2 (Bent 4)",
      "value": "1/4",
      "unit": "in",
      "appliesTo": "4"
    }
  ],
  "notes": [],
  "labels": [
    "BEARING PADS",
    "BEVELED SHIM PLATES"
  ],
  "description": "Sheet page 12 crop shows a Bearing Pads table for six bent configurations with W, L, T, number of internal plates, design shear deflection, and design loads (dead, live) including total design loads. The Beveled Shim Plates section on the right provides Ti and T2 thicknesses for Bent 1 and Bent 4 where shown."
}

p12_r07 tableTable

  • Beveled Shim Plates×1rectangularshim plate

16 in Bent 1 - W12 in Bent 1 - L4 in Bent 1 - T3 Bent 1 - Number of internal plate(s)3/8 in Bent 1 - Design shear deflection55 kips Bent 1 - Dead load63 kips Bent 1 - Live load (no impact)118 kips Bent 1 - Total design loads+44 more

crop

p12_r01

page 12 · other_p12_r01
Original
p12_r01
{
  "view": "Detail",
  "objects": [
    {
      "name": "ENDWALL",
      "tag": "",
      "shape": "rectangular",
      "material": "unknown",
      "count": 1,
      "note": ""
    },
    {
      "name": "BEARING PAD",
      "tag": "",
      "shape": "rectangular",
      "material": "unknown",
      "count": 1,
      "note": ""
    },
    {
      "name": "BEVELED SHIM PLATE",
      "tag": "",
      "shape": "rectangular",
      "material": "unknown",
      "count": 1,
      "note": ""
    },
    {
      "name": "BEARING",
      "tag": "",
      "shape": "rectangular",
      "material": "unknown",
      "count": 1,
      "note": ""
    },
    {
      "name": "BEAM",
      "tag": "",
      "shape": "rectangular",
      "material": "unknown",
      "count": 1,
      "note": ""
    },
    {
      "name": "1 INCH DIAMETER SMOOTH DOWEL",
      "tag": "",
      "shape": "circular",
      "material": "unknown",
      "count": 1,
      "note": ""
    },
    {
      "name": "PREFORMED FOAM JOINT FILLER",
      "tag": "",
      "shape": "rectangular",
      "material": "unknown",
      "count": 1,
      "note": ""
    }
  ],
  "measurements": [
    {
      "label": "DOWEL DIAMETER",
      "value": "1",
      "unit": "in",
      "appliesTo": "DOWEL"
    }
  ],
  "notes": [
    "PREFORMED FOAM JOINT FILLER SHALL BE IN ACCORDANCE WITH SUB-SECTION 833.2.10 OF THE GEORGIA DOT SPECIFICATIONS."
  ],
  "labels": [],
  "description": "Detail showing a beam-end connection bearing assembly. Left view presents plan/arrangement with endwall, bearing pad, and beveled shim plate; right view shows a cross-section through the bearing, dowel, and foam joint filler."
}

p12_r01Detail

  • BEVELED SHIM PLATE×1rectangularunknown

1 in DOWEL DIAMETER
