Matched toDeck Slabbridge.superstructure.deck_system.deck_slabon “Deck Slab”
| The class asks for | Value | How | From |
|---|---|---|---|
| LengthLwants m/mm | 44'-1 1/16" ft-inThe elevation shows one Deck Slab and states a total length of 44'-1 1/16". The total-length dimension is not explicitly tagged to the slab, but it is shown on the deck-slab elevation. | readcheck | p17 · p17_r02 at eq sps |
| WidthWwants m/mm | 43'-7" ft-inThe section through slab states an OUT TO OUT dimension of 43'-7". The dimension is not explicitly assigned to the slab boundary, but it is the overall transverse dimension on the slab section. | readcheck | p7 · p07_r01 section thru slab |
| ThicknessTwants m/mm | 7 3/4" between beams; 8" in overhangs inThe slab thickness is directly labeled 7 3/4". The accompanying note states: maintain a constant slab thickness of 7 3/4" between beams and 8" in the overhangs. | read | p7 · p07_r01 section thru slab |
| Instance CountNwants count | 1 countThe SLAB object in the section through slab is listed with count 1. | read | p7 · p07_r01 section thru slab |
| Concrete Gradefck | not establishedThe readings identify the deck slab as reinforced concrete but do not state a concrete grade or specified compressive strength. | not found |
Worked out by openai/gpt-5.6-terra from the readings below, which are the source. A derived value shows its arithmetic — check it against the drawing before it is priced.
How the sheets named it
Every dimension read for it50
- 7 3/4" inSLAB THICKNESSp7 · p07_r01 section thru slab
- 2 1/4" inCENTERLINEp7 · p07_r01 section thru slab
- 2 %slab slopep7 · p07_r05 section thru slab
- 43'-7" ftOUT TO OUTnot attributedp7 · p07_r01
- 40'-0" ftGUTTER TO GUTTERnot attributedp7 · p07_r01
- 34'-0" ftLEFT GUTTER TO CENTERLINEnot attributedp7 · p07_r01
- 22'-0" ftTOP WIDTHnot attributedp7 · p07_r01
- 14'-2 1/2" ftOVERHANG DIMnot attributedp7 · p07_r01
- 7'-6" ftBEAM SPACING (typ)not attributedp7 · p07_r01
- 3'-0" ftMIN. DECK OPENINGnot attributedp7 · p07_r01
- 7 3/4" inSLAB THICKNESSp7 · p07_r01
- 2 1/4" CL. inCLEAR SLAB THICKNESSp7 · p07_r01
- 4 3/8" inWALL/BEAM EDGE DIMnot attributedp7 · p07_r01
- 2% percentslopep7 · p07_r05
- 8" in8"not attributedp7 · p07_r06
- 2" in2"not attributedp7 · p07_r06
- 189.16EL left abutment topnot attributedp13 · p13_r02 at eq sps
- 189.23EL near left abutment topnot attributedp13 · p13_r02 at eq sps
- 185.75EL deck center near Anot attributedp13 · p13_r02 at eq sps
- 185.65EL deck midspannot attributedp13 · p13_r02 at eq sps
- 185.52EL deck midspannot attributedp13 · p13_r02 at eq sps
- 185.39EL deck midspannot attributedp13 · p13_r02 at eq sps
- 185.26EL deck midspannot attributedp13 · p13_r02 at eq sps
- 185.10EL deck midspannot attributedp13 · p13_r02 at eq sps
- 188.39EL right abutment topnot attributedp13 · p13_r02 at eq sps
- 188.45EL far right topnot attributedp13 · p13_r02 at eq sps
- 183.75EL interior piernot attributedp13 · p13_r02 at eq sps
- 182.98EL interior pier rightnot attributedp13 · p13_r02 at eq sps
- 2'-10 1/8"2'-10 1/8"not attributedp13 · p13_r02 at eq sps
- 10"10" (bay spacing)not attributedp13 · p13_r02 at eq sps
- 7'-7 1/16"7'-7 1/16"not attributedp13 · p13_r02 at eq sps
- 44'-1 1/16"44'-1 1/16" total lengthnot attributedp13 · p13_r02 at eq sps
- 3'-3 5/8"3'-3 5/8"not attributedp13 · p13_r02 at eq sps
- 5'-4 3/4" ft-inOverall widthp16 · p16_r07 detail 2
- 5'-4 3/4" ft-inoverall widthnot attributedp16 · p16_r07
- 5'-4 3/4" ft-inTop overall widthp16 · p16_r13
- 189.42 ftEL. 189.42not attributedp17 · p17_r02 at eq sps
- 189.50 ftEL. 189.50not attributedp17 · p17_r02 at eq sps
- 186.04 ftEL. 186.04not attributedp17 · p17_r02 at eq sps
- 185.93 ftEL. 185.93not attributedp17 · p17_r02 at eq sps
- 185.80 ftEL. 185.80not attributedp17 · p17_r02 at eq sps
- 185.67 ftEL. 185.67not attributedp17 · p17_r02 at eq sps
- 185.53 ftEL. 185.53not attributedp17 · p17_r02 at eq sps
- 185.37 ftEL. 185.37not attributedp17 · p17_r02 at eq sps
- 188.71 ftEL. 188.71not attributedp17 · p17_r02 at eq sps
- 188.67 ftEL. 188.67not attributedp17 · p17_r02 at eq sps
- 184.04 ftEL. 184.04not attributedp17 · p17_r02 at eq sps
- 183.25 ftEL. 183.25not attributedp17 · p17_r02 at eq sps
- 44'-1 1/16" ftTotal lengthnot attributedp17 · p17_r02 at eq sps
- 10" inFirst spannot attributedp17 · p17_r02 at eq sps
Notes on the sheets that carry it
- p7DIMENSION 'D' IS MEASURED FROM TOP OF SLAB TO TOP OF BEAMS AT CENTERLINE BEARING. VARY 'D' BETWEEN BEARINGS TO COMPENSATE FOR DEAD LOAD DEFLECTION, AND VERTICAL CURVE.
- p7MAINTAIN A CONSTANT SLAB THICKNESS OF 7 3/4" BETWEEN BEAMS AND 8" IN THE OVERHANGS.
- p7FENCE NOT SHOWN, TYP.
- p73/4" TRIANGULAR DRIP BEAD FULL LENGTH OF BRIDGE, TYP.
- p7NOTE: BEARING PADS NOT SHOWN
- p7POUR EDGE BEAM FLUSH WITH OUTSIDE FACE OF BEAM, TYP.
- p7SR 21 WB = PGL
- p7"D" = 8 3/4" INTERIOR BEAMS
- p7"D" = 9 1/8" EXTERIOR BEAMS
- p7REQUIRED CONSTRUCTION JOINT PARALLEL WITH DECK, TYP.
- p8FENCE NOTES:
- p81. FENCE SHALL BE 9 GAGE CHAIN LINK ZINC COATED TWO INCH SECURITY FENCE.
- p82. CAST 4" DIA. GALVANIZED SLEEVE IN THE PARAPET. ALLOW NON-SHRINK, NON-METALLIC GROUT TO CURE FOR THREE DAYS BEFORE FENCE FABRIC IS INSTALLED.
- p83. APPLY GALVANIZING REPAIR COMPONENT, IN ACCORDANCE WITH GEORGIA DOT SPECIFICATIONS SECTIONS 645, TO ENDS OF 4" DIA. GALVANIZED SLEEVES.
- p9DIMENSION 'D' IS MEASURED FROM TOP OF SLAB TO TOP OF BEAMS AT CENTERLINE BEARING. VARY 'D' BETWEEN BEARINGS TO COMPENSATE FOR DEAD LOAD DEFLECTION, AND VERTICAL CURVE. MAINTAIN A CONSTANT SLAB THICKNESS OF 7 3/4" BETWEEN BEAMS AND 8" IN THE OVERHANGS. 'D' = 8 3/4" INTERIOR BEAMS, 'D' = 9 1/4" EXTERIOR BEAMS
- p9DO NOT REMOVE FENCE FORMS
- p134-4I0 OVER EACH PILE
- p132-4I2
- p132-4I5A, TYP.
- p137-4II AT EQ. SPS. TYP. EA. BAY
- p13AT EQ. SPACES
- p134-4II AT EQ. SPACES
- p14ELEVATION (BENT 2 RIGHT LOOKING AHEAD)
- p174-441 AT EQ. SPACES
- p177'-7 1/16"
- p1710"
- p1710", TYP.
- p172'-10 1/8"
- p174-440 OVER EACH PILE
- p17AT EQ. SPS. TYP. EA. BAY
Every crop it was read in — the drawing beside what the model took off it
Page 7
p07_r01 section thru slabSection
- SLAB×1rectangular slabreinforced concrete7 3/4" slab thickness; 2 1/4" centerline? (centerline note present in drawing)
43'-7" ft-in OUT TO OUT40'-0" ft-in GUTTER TO GUTTER1'-8" ft-in EDGE LEFT OVERHANG8" in OVERHANG (left)7 3/4" in SLAB THICKNESS2 1/4" in CENTERLINE7'-6" ft-in SPACING BETWEEN BEAMS7'-6" ft-in PIER SPACING+2 more
p07_r03 400 bars in top of slab overDetail
- Deck slab×1rectangularreinforced concrete
p07_r05 section thru slabSection
- Slab×1rectangularSection through slab (deck)
2 % slab slope5 in spacing for 7-403A at equal spaces1 in diameter
p07_r06 8 typElevation
- Deck slab×1slabconcrete
8 in Left abutment height8-404 8-4042 in Spacing (equal spaces)2 % Deck slope
p07_r01Cross Section
- DECK SLAB×1slabreinforced concrete7 3/4\" SLAB
43'-7" ft OUT TO OUT40'-0" ft GUTTER TO GUTTER34'-0" ft LEFT GUTTER TO CENTERLINE22'-0" ft TOP WIDTH14'-2 1/2" ft OVERHANG DIM7'-6" ft BEAM SPACING (typ)3'-0" ft MIN. DECK OPENING7 3/4" in SLAB THICKNESS+3 more
p07_r03Section
- deck slab×1rectangularreinforced concretetop of slab supporting reinforcement bars
58-600 58-600 spacing note
p07_r05Section
- slab×1rectangularreinforced concretesection through slab
5" in left end spacing5" in right end spacing2% percent slope
p07_r06Section
- deck slab×1rectangularreinforced concretelongitudinal section of deck
8" in 8"2" in 2"2" in 2" at equal spaces2% % 2%
Page 8
p08_r01 for further details see georgia dot specSection
- SLAB×1rectangularconcreteSLAB
34'-0" 34'-0"6'-8" 6'-8"3'-0" ENDWALL 3'-0" ENDWALL1'-6" ENDWALL 1'-6" ENDWALL2% 2% slope
Page 9
p09_r02 section thru slabSection
- Deck Slab×1rectangular slabreinforced concrete7 3/4" slab thickness (as labeled); section through slab
43'-7" ft-in 43'-7"22'-0" ft-in 22'-0"40'-0" ft-in 40'-0"34'-0" ft-in 34'-0"6'-0" ft-in 6'-0"7'-6" ft-in 7'-6"3'-0" ft-in 3'-0"1'-8" ft-in 1'-8"
p09_r06 face of beam typSection
- Deck slab×1slabreinforced concrete
8-404 8-404 AT EQUAL SPACES2 in Left spacing2 in Right spacing2-800 Edge beam tag
p09_r06Section
- Deck slab×1rectangularreinforced concrete
2 in left spacing2 in right spacing2 % slope
Page 13
p13_r02 at eq spsElevation
- Deck slab×1rectangularreinforced concretetop deck element between abutments
189.16 EL left abutment top189.23 EL near left abutment top185.75 EL deck center near A185.65 EL deck midspan185.52 EL deck midspan185.39 EL deck midspan185.26 EL deck midspan185.10 EL deck midspan+9 more
p13_r03 at eq spsCross Section
- Deck slab×1slabtop deck slab
2'-10 1/8" ft-in Left edge to first pile7'-7/16" ft-in Bay spacing 17'-7/16" ft-in Bay spacing 27'-7/16" ft-in Bay spacing 37'-7/16" ft-in Bay spacing 43'-3 5/8" ft-in Right edge to last pile44'-1/16" ft-in Total length10" in Spacing between features (typical)
p13_r02Elevation
- Deck slab×1slabreinforced concrete
189.16 ft EL. 189.16189.23 ft EL. 189.23185.75 ft EL. 185.75185.65 ft EL. 185.65185.52 ft EL. 185.52185.39 ft EL. 185.39185.26 ft EL. 185.26185.10 ft EL. 185.10+3 more
p13_r03Elevation
- Deck slab×1rectangularreinforced concretecontinuous deck slab
188.03 ft EL. 188.03188.10 ft EL. 188.10184.75 ft EL. 184.75184.96 ft EL. 184.96185.13 ft EL. 185.13185.30 ft EL. 185.30185.47 ft EL. 185.47185.62 ft EL. 185.62+9 more
Page 14

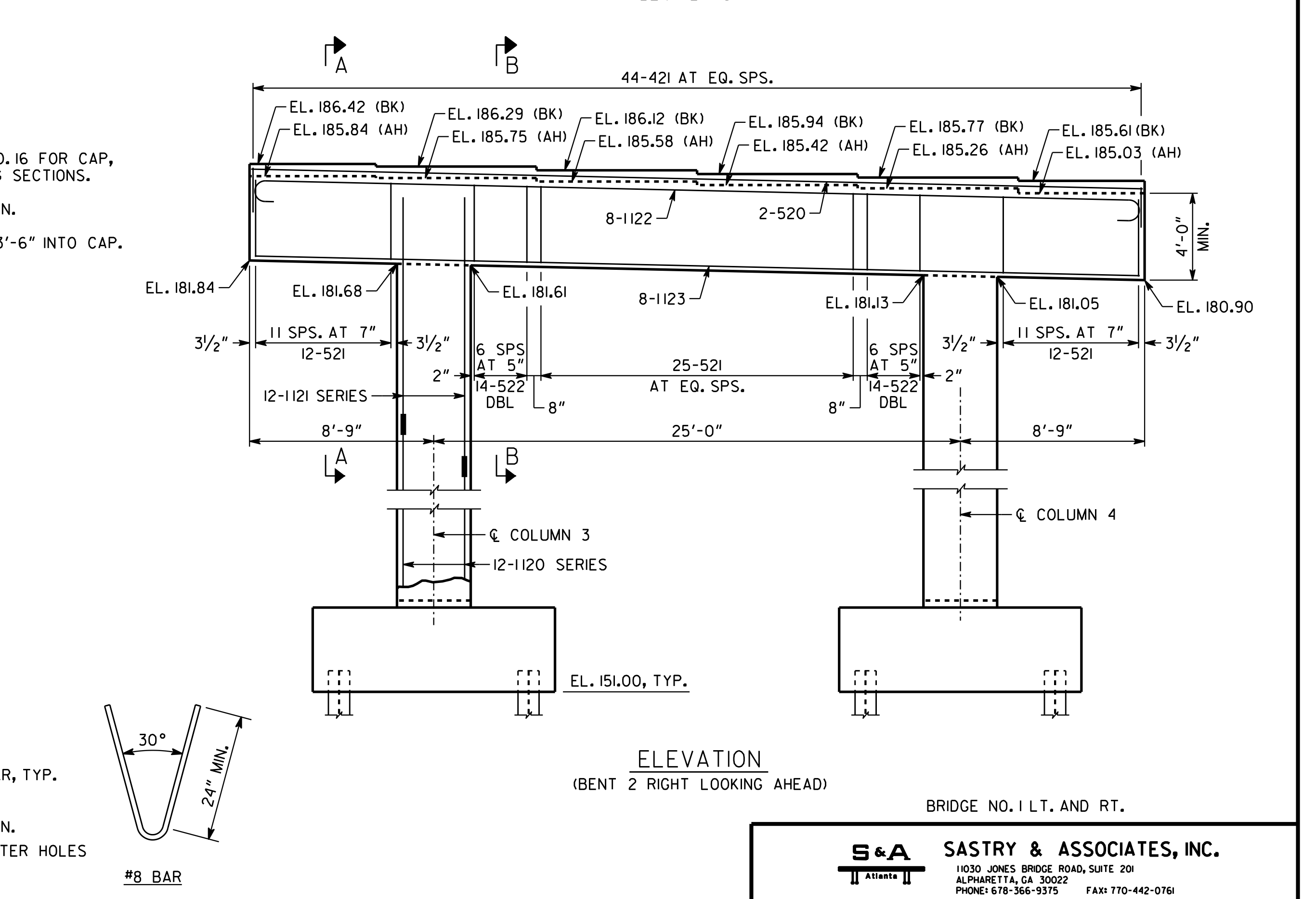

p14_r03Elevation
- Deck slab×1rectangularreinforced concrete
25'-0" Span4'-0" Min vertical clearance186.42 EL. 186.42 (BK)185.75 EL. 185.75 (AH)181.84 EL. 181.84
Page 16

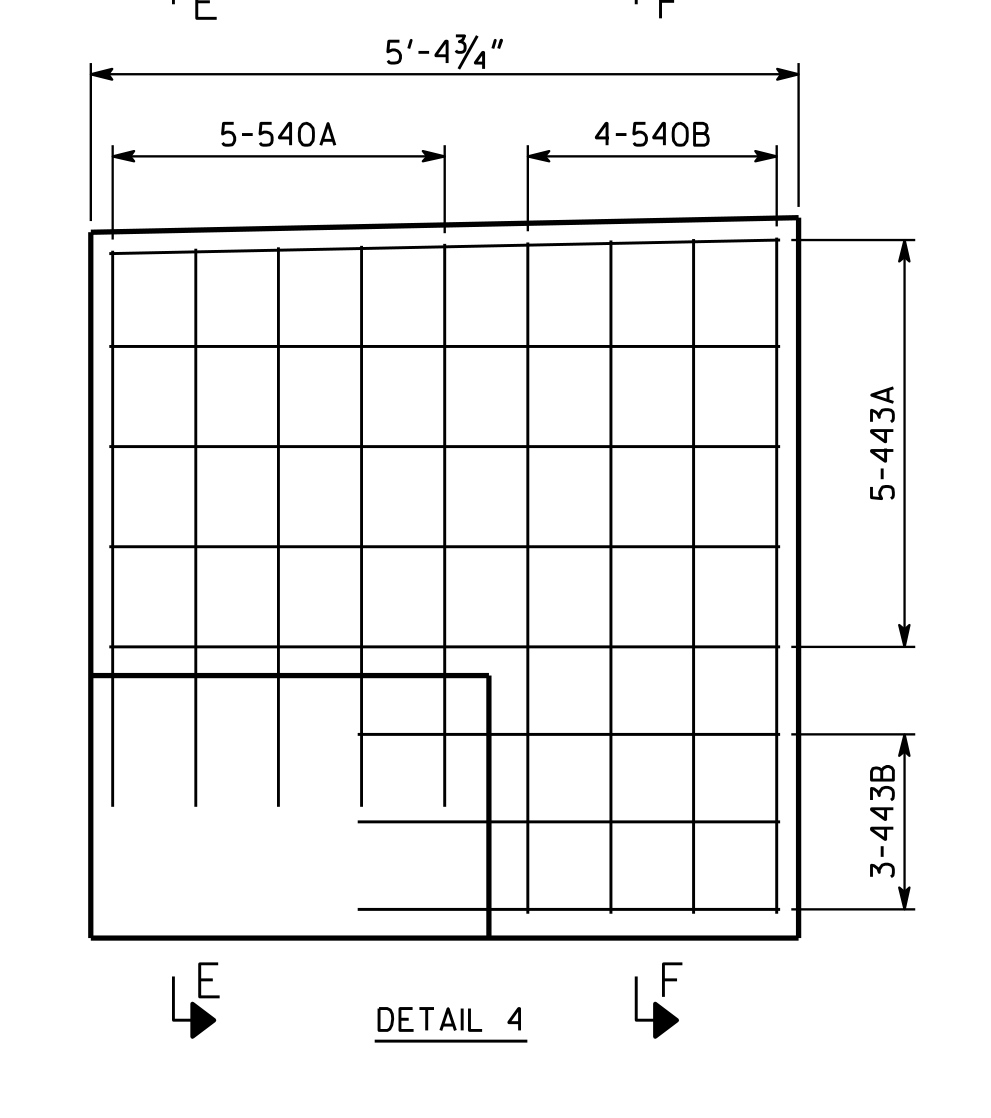

p16_r07 detail 2Detail
