Expansion Joint Seal

3 pages · 6 crops · ×9 · deck

⚠ No class in the bridge ontology fits this itemAdd a class

The ontology would need a silicone expansion-joint seal class.

How the sheets named it

Preformed silicone joint sealSilicone adhesiveLOW MODULUS SILICONE SEALANT (TYPE A)silicone sealantSilicone sealant joint sealer

Every dimension read for it5

  • 1 3/8 inopening width between sidewallsp4 · p04_r03
  • 3/4 in3/4\" CHAMFERnot attributedp5 · p05_r02 details of 1 expansion joint in barrier
  • 1/4" in1/4"not attributedp9 · p09_r05
  • 1/2" in1/2"not attributedp9 · p09_r05
  • 3/4" in3/4"not attributedp9 · p09_r05

Notes on the sheets that carry it

  • p4* PREFORMED SILICONE JOINT SEAL AS PER SPECIAL PROVISION SECTION 449
  • p4FILLER MATERIAL IN ACCORDANCE WITH SUB-SECTION 833.2.01 OF THE GEORGIA DOT SPECIFICATIONS, HOLD IN PLACE WITH 10d GALV. NAILS
  • p5HOLD IN PLACE WITH 10d GALV. NAILS.
  • p5NO SCALE
  • p9SILICONE SEALANT TYPE JOINT SEALER (TYPE B, C OR D)
  • p9ROUND TO 1/4" R
  • p9REQUIRED CONST. JOINT., TYP.
  • p9SLAB REINFORCEMENT NOT SHOWN

Every crop it was read in — the drawing beside what the model took off it

Page 4

crop

p04_r03 expansion joint details

page 4 · gdot_drawing_0a6d24ffdd874879a37c7122f1fd8bef_p04_r03_expansion_joint_details
Original
p04_r03 expansion joint details
{
  "view": "Detail",
  "objects": [
    {
      "name": "Concrete wall",
      "tag": "",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 2,
      "note": ""
    },
    {
      "name": "Filler material",
      "tag": "",
      "shape": "rectangular",
      "material": "filler material",
      "count": 1,
      "note": ""
    },
    {
      "name": "Silicone adhesive",
      "tag": "",
      "shape": "layer",
      "material": "silicone adhesive",
      "count": 1,
      "note": ""
    },
    {
      "name": "Preformed silicone joint seal",
      "tag": "",
      "shape": "U-shaped profile",
      "material": "silicone",
      "count": 1,
      "note": "PREFORMED SILICONE JOINT SEAL"
    }
  ],
  "measurements": [
    {
      "label": "Top spacing between inner surfaces",
      "value": "1 3/8\"",
      "unit": "in",
      "appliesTo": "joint opening"
    },
    {
      "label": "Left vertical offset",
      "value": "1/2\"",
      "unit": "in",
      "appliesTo": "left side dimension"
    },
    {
      "label": "Inner corner radius",
      "value": "1/4\" R",
      "unit": "in",
      "appliesTo": "inner corner"
    }
  ],
  "notes": [
    "* PREFORMED SILICONE JOINT SEAL AS PER SPECIAL PROVISION SECTION 449",
    "FILLER MATERIAL IN ACCORDANCE WITH SUB-SECTION 833.2.01 OF THE GEORGIA DOT SPECIFICATIONS, HOLD IN PLACE WITH 10d GALV. NAILS"
  ],
  "labels": [
    "XPANSION JOINT DETAILS"
  ],
  "description": "Detail of expansion joint cross-section showing left and right concrete walls with a bottom filler material, silicone adhesive, and a preformed silicone joint seal spanning the joint. Dimensional callouts show a 1 3/8 in top spacing, a 1/2 in left offset, and a 1/4 in corner radius. Filler material is to be held in place with 10d galvanized nails per Georgia DOT specs."
}

p04_r03 expansion joint detailsDetail

  • Silicone adhesive×1layersilicone adhesive
  • Preformed silicone joint seal×1U-shaped profilesiliconePREFORMED SILICONE JOINT SEAL

1 3/8" in Top spacing between inner surfaces1/2" in Left vertical offset1/4" R in Inner corner radius

crop

p04_r03

page 4 · other_p04_r03
Original
p04_r03
{
  "view": "Detail",
  "objects": [
    {
      "name": "Preformed silicone joint seal",
      "tag": "",
      "shape": "unknown (cross-section of seal in channel)",
      "material": "preformed silicone",
      "count": 1,
      "note": ""
    },
    {
      "name": "Filler material",
      "tag": "",
      "shape": "rectangular block (hatched)",
      "material": "filler material",
      "count": 1,
      "note": ""
    },
    {
      "name": "Silicone adhesive",
      "tag": "",
      "shape": "layer/line along interface",
      "material": "silicone adhesive",
      "count": 1,
      "note": ""
    }
  ],
  "measurements": [
    {
      "label": "opening width between sidewalls",
      "value": "1 3/8",
      "unit": "in",
      "appliesTo": "Preformed silicone joint seal"
    },
    {
      "label": "left vertical lip height",
      "value": "1/2",
      "unit": "in",
      "appliesTo": "Left side dimension"
    },
    {
      "label": "top-right corner radius",
      "value": "1/4",
      "unit": "in",
      "appliesTo": "R"
    }
  ],
  "notes": [
    "PREFORMED SILICONE JOINT SEAL AS PER SPECIAL PROVISION SECTION 449",
    "FILLER MATERIAL IN ACCORDANCE WITH SUB-SECTION 833.2.01 OF THE GEORGIA DOT SPECIFICATIONS, HOLD IN PLACE WITH 10d GALV. NAILS"
  ],
  "labels": [
    "EXPANSION JOINT DETAILS",
    "END BENTS 1 AND 4"
  ],
  "description": "Detail view of an expansion joint showing a preformed silicone joint seal, silicone adhesive, and filler material in a cross-section. Includes dimension callouts for opening width (1 3/8 in), left lip height (1/2 in), and a 1/4 in radius."
}

p04_r03Detail

  • Preformed silicone joint seal×1unknown (cross-section of seal in channel)preformed silicone
  • Silicone adhesive×1layer/line along interfacesilicone adhesive

1 3/8 in opening width between sidewalls1/2 in left vertical lip height1/4 in top-right corner radius

Page 5

crop

p05_r02 details of 1 expansion joint in barrier

page 5 · gdot_drawing_0a6d24ffdd874879a37c7122f1fd8bef_p05_r02_details_of_1_expansion_joint_in_barrier
Original
p05_r02 details of 1 expansion joint in barrier
{
  "view": "Detail",
  "objects": [
    {
      "name": "PREFORMED JOINT FILLER",
      "tag": "",
      "shape": "rectangular",
      "material": "preformed joint filler",
      "count": 2,
      "note": ""
    },
    {
      "name": "LOW MODULUS SILICONE SEALANT (TYPE A)",
      "tag": "",
      "shape": "layer",
      "material": "silicone sealant",
      "count": 2,
      "note": ""
    }
  ],
  "measurements": [
    {
      "label": "3/4\\\" CHAMFER",
      "value": "3/4",
      "unit": "in",
      "appliesTo": ""
    },
    {
      "label": "1\\\" PREFORMED JOINT FILLER THICKNESS",
      "value": "1",
      "unit": "in",
      "appliesTo": "PREFORMED JOINT FILLER"
    },
    {
      "label": "SIDE ELEVATION BASE THICKNESS",
      "value": "3",
      "unit": "in",
      "appliesTo": "SIDE ELEVATION"
    }
  ],
  "notes": [
    "HOLD IN PLACE WITH 10d GALV. NAILS.",
    "NO SCALE"
  ],
  "labels": [
    "PLAN",
    "ELEVATION",
    "SIDE ELEVATION",
    "DETAILS OF 1\" EXPANSION JOINT IN BARRIER"
  ],
  "description": "Detail drawing showing the 1 inch expansion joint in a barrier with plan, elevation, and side elevation views. It specifies a 3/4 inch chamfer, 1 inch preformed joint filler, low modulus silicone sealant (Type A), and nails for holding the joint in place; no scale."
}

p05_r02 details of 1 expansion joint in barrierDetail

  • LOW MODULUS SILICONE SEALANT (TYPE A)×2layersilicone sealant

3/4 in 3/4\" CHAMFER1 in 1\" PREFORMED JOINT FILLER THICKNESS3 in SIDE ELEVATION BASE THICKNESS

crop

p05_r02

page 5 · other_p05_r02
Original
p05_r02
{
  "view": "Detail",
  "objects": [
    {
      "name": "CHAMFER",
      "tag": "",
      "shape": "edge bevel",
      "material": "",
      "count": 1,
      "note": ""
    },
    {
      "name": "PREFORMED JOINT FILLER",
      "tag": "",
      "shape": "rectangular",
      "material": "",
      "count": 1,
      "note": ""
    },
    {
      "name": "LOW MODULUS SILICONE SEALANT (TYPE A)",
      "tag": "",
      "shape": "sealant bead",
      "material": "low modulus silicone",
      "count": 1,
      "note": ""
    },
    {
      "name": "BARRIER",
      "tag": "",
      "shape": "trapezoidal/building barrier section",
      "material": "",
      "count": 1,
      "note": ""
    }
  ],
  "measurements": [
    {
      "label": "CHAMFER",
      "value": "3/4",
      "unit": "in",
      "appliesTo": "PLAN"
    },
    {
      "label": "PREFORMED JOINT FILLER",
      "value": "1",
      "unit": "in",
      "appliesTo": "PLAN / ELEVATION"
    },
    {
      "label": "BASE WIDTH",
      "value": "3",
      "unit": "in",
      "appliesTo": "SIDE ELEVATION"
    }
  ],
  "notes": [
    "NO SCALE"
  ],
  "labels": [
    "PLAN",
    "ELEVATION",
    "SIDE ELEVATION",
    "DETAILS OF 1 EXPANSION JOINT IN BARRIER",
    "NO SCALE"
  ],
  "description": "Detail showing the expansion joint in a barrier with plan, elevation, and side elevation views. Features include a 3/4 inch chamfer, 1 inch preformed joint filler, and low modulus silicone sealant (Type A). No scale."
}

p05_r02Detail

  • LOW MODULUS SILICONE SEALANT (TYPE A)×1sealant beadlow modulus silicone

3/4 in CHAMFER1 in PREFORMED JOINT FILLER3 in BASE WIDTH

Page 9

crop

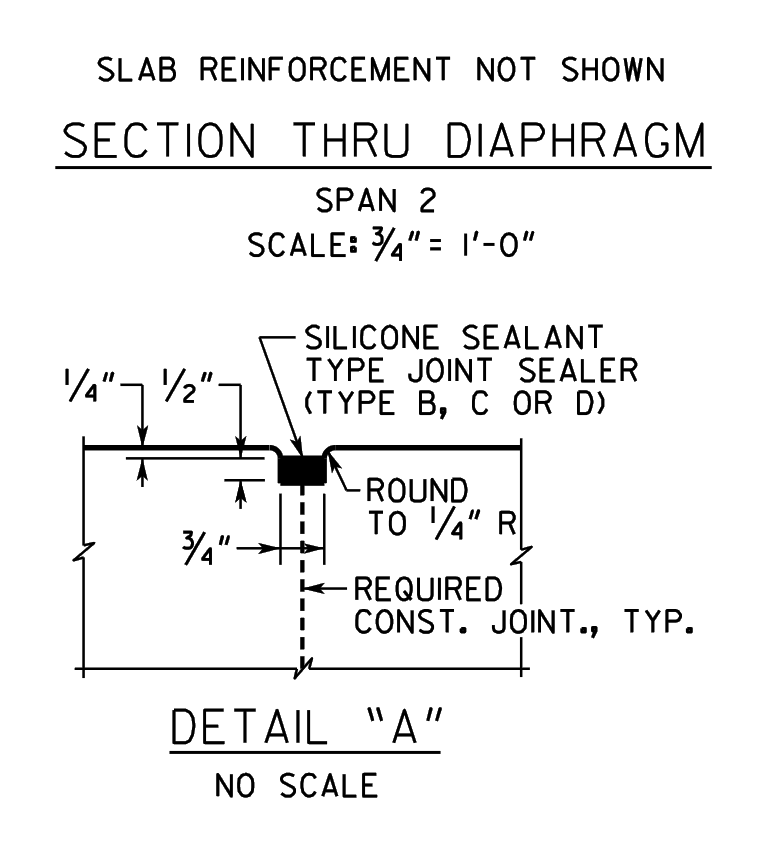

p09_r05 detail a

page 9 · gdot_drawing_0a6d24ffdd874879a37c7122f1fd8bef_p09_r05_detail_a
Original
p09_r05 detail a
{
  "view": "Detail",
  "objects": [
    {
      "name": "silicone sealant",
      "tag": "",
      "shape": "rectangular",
      "material": "silicone sealant",
      "count": 1,
      "note": "TYPE JOINT SEALER (TYPE B, C OR D)"
    }
  ],
  "measurements": [
    {
      "label": "3/4\"",
      "value": "3/4\"",
      "unit": "in",
      "appliesTo": "left dimension to joint area"
    },
    {
      "label": "1/4\"",
      "value": "1/4\"",
      "unit": "in",
      "appliesTo": "gap near top left"
    },
    {
      "label": "1/2\"",
      "value": "1/2\"",
      "unit": "in",
      "appliesTo": "gap near top left"
    },
    {
      "label": "3/4\"",
      "value": "3/4\"",
      "unit": "in",
      "appliesTo": "bottom dimension from left edge to centerline"
    },
    {
      "label": "1/4\" R",
      "value": "1/4\"",
      "unit": "in",
      "appliesTo": "radius around joint corner"
    }
  ],
  "notes": [
    "SILICONE SEALANT TYPE JOINT SEALER (TYPE B, C OR D)",
    "ROUND TO 1/4\" R",
    "REQUIRED CONST. JOINT., TYP.",
    "SLAB REINFORCEMENT NOT SHOWN"
  ],
  "labels": [
    "SECTION THRU DIAPHRAGM",
    "SPAN 2",
    "SCALE: 3/4\" = 1'-0\"",
    "DETAIL 'A'",
    "NO SCALE"
  ],
  "description": "Detail A shows a section through the diaphragm for span 2. It highlights the silicone sealant joint between the slab and diaphragm with a rounded corner radius and notes that the slab reinforcement is not shown; the scale is no scale for this detail."
}

p09_r05 detail aDetail

  • silicone sealant×1rectangularsilicone sealantTYPE JOINT SEALER (TYPE B, C OR D)

3/4" in 3/4"1/4" in 1/4"1/2" in 1/2"3/4" in 3/4"1/4" in 1/4" R

crop

p09_r05

page 9 · other_p09_r05
Original
p09_r05
{
  "view": "Detail",
  "objects": [
    {
      "name": "Silicone sealant joint sealer",
      "tag": "",
      "shape": "rectangular with rounded edge",
      "material": "silicone sealant",
      "count": 1,
      "note": "TYPE B, C OR D"
    },
    {
      "name": "Construction joint",
      "tag": "",
      "shape": "line",
      "material": "concrete",
      "count": 1,
      "note": "TYP."
    }
  ],
  "measurements": [
    {
      "label": "SCALE",
      "value": "3/4\" = 1'-0\"",
      "unit": "",
      "appliesTo": "Detail A"
    },
    {
      "label": "1/4\"",
      "value": "1/4\"",
      "unit": "in",
      "appliesTo": ""
    },
    {
      "label": "1/2\"",
      "value": "1/2\"",
      "unit": "in",
      "appliesTo": ""
    },
    {
      "label": "3/4\"",
      "value": "3/4\"",
      "unit": "in",
      "appliesTo": ""
    },
    {
      "label": "ROUND TO",
      "value": "1/4\"",
      "unit": "in",
      "appliesTo": "radius of sealant corner"
    }
  ],
  "notes": [
    "SLAB REINFORCEMENT NOT SHOWN",
    "REQUIRED CONST. JOINT., TYP.",
    "NO SCALE"
  ],
  "labels": [
    "SECTION THRU DIAPHRAGM",
    "DETAIL A",
    "NO SCALE"
  ],
  "description": "Detail A cross-section through a diaphragm showing a silicone sealant joint sealer at a construction joint, with a rounded corner radius and specified offsets. Slab reinforcement is not shown. The detail is labeled DETAIL A and is NO SCALE."
}

p09_r05Detail

  • Silicone sealant joint sealer×1rectangular with rounded edgesilicone sealantTYPE B, C OR D

3/4" = 1'-0" SCALE1/4" in 1/4"1/2" in 1/2"3/4" in 3/4"1/4" in ROUND TO
