Preformed Joint Filler

5 pages · 12 crops · ×15 · material

⚠ No class in the bridge ontology fits this itemAdd a class

The ontology would need a preformed joint-filler material class.

How the sheets named it

Filler materialPREFORMED FOAM JOINT FILLER1/2 inch Preformed Joint FillerJoint Filler1/2" Preformed Joint FillerJoint filler

Every dimension read for it7

  • 3/4 in3/4\" CHAMFERnot attributedp5 · p05_r02 details of 1 expansion joint in barrier
  • 1 in1\" PREFORMED JOINT FILLER THICKNESSp5 · p05_r02 details of 1 expansion joint in barrier
  • 34'-0" ftOverall lengthnot attributedp8 · p08_r01
  • 6'-8" ftTop right offsetnot attributedp8 · p08_r01
  • 1'-1" ftRightmost clearancenot attributedp8 · p08_r01
  • 1'-8" ftLeft offsetnot attributedp8 · p08_r01
  • 1/2" inJoint filler thicknessp8 · p08_r01

Notes on the sheets that carry it

  • p4* PREFORMED SILICONE JOINT SEAL AS PER SPECIAL PROVISION SECTION 449
  • p4FILLER MATERIAL IN ACCORDANCE WITH SUB-SECTION 833.2.01 OF THE GEORGIA DOT SPECIFICATIONS, HOLD IN PLACE WITH 10d GALV. NAILS
  • p5HOLD IN PLACE WITH 10d GALV. NAILS.
  • p5NO SCALE
  • p8FENCE NOTES:
  • p81. FENCE SHALL BE 9 GAGE CHAIN LINK ZINC COATED TWO INCH SECURITY FENCE.
  • p82. CAST 4" DIA. GALVANIZED SLEEVE IN THE PARAPET. ALLOW NON-SHRINK, NON-METALLIC GROUT TO CURE FOR THREE DAYS BEFORE FENCE FABRIC IS INSTALLED.
  • p83. APPLY GALVANIZING REPAIR COMPONENT, IN ACCORDANCE WITH GEORGIA DOT SPECIFICATIONS SECTIONS 645, TO ENDS OF 4" DIA. GALVANIZED SLEEVES.
  • p8WATERPROOFING, SEE SECTION 530 OF THE GEORGIA DOT SPECIFICATIONS
  • p8SLAB REINFORCEMENT NOT SHOWN
  • p8BEARING PAD NOT SHOWN
  • p81/2" PREFORMED JOINT FILLER
  • p8SCALE: 3/4" = 1'-0"
  • p81. FENCE SHALL BE 9 GAUGE CHAIN LINK ZINC COATED TWO INCH SECURITY FENCE.
  • p83. APPLY GALVANIZING REPAIR COMPOUND, IN ACCORDANCE WITH GEORGIA DOT SPECIFICATIONS SECTIONS 645, TO ENDS OF 4" DIA. GALVANIZED SLEEVES.
  • p84. PROVIDE EXPANSION SLEEVE FOR ALL RAILS TO MATCH SUPERSTRUCTURE JOINTS.
  • p85. FASTEN FABRIC TO POSTS AT INTERVALS NOT GREATER THAN 14".
  • p86. SPACE POSTS AT A MINIMUM OF 7'-0" AND A MAXIMUM OF 10'-0". PLACE POSTS 1'-0" MINIMUM FROM JOINTS IN BARRIER. SEE DECK PLAN FOR POST SPACING.
  • p87. FOR FURTHER DETAILS, SEE GEORGIA DOT SPECIFICATIONS SECTIONS 643 AND 894.

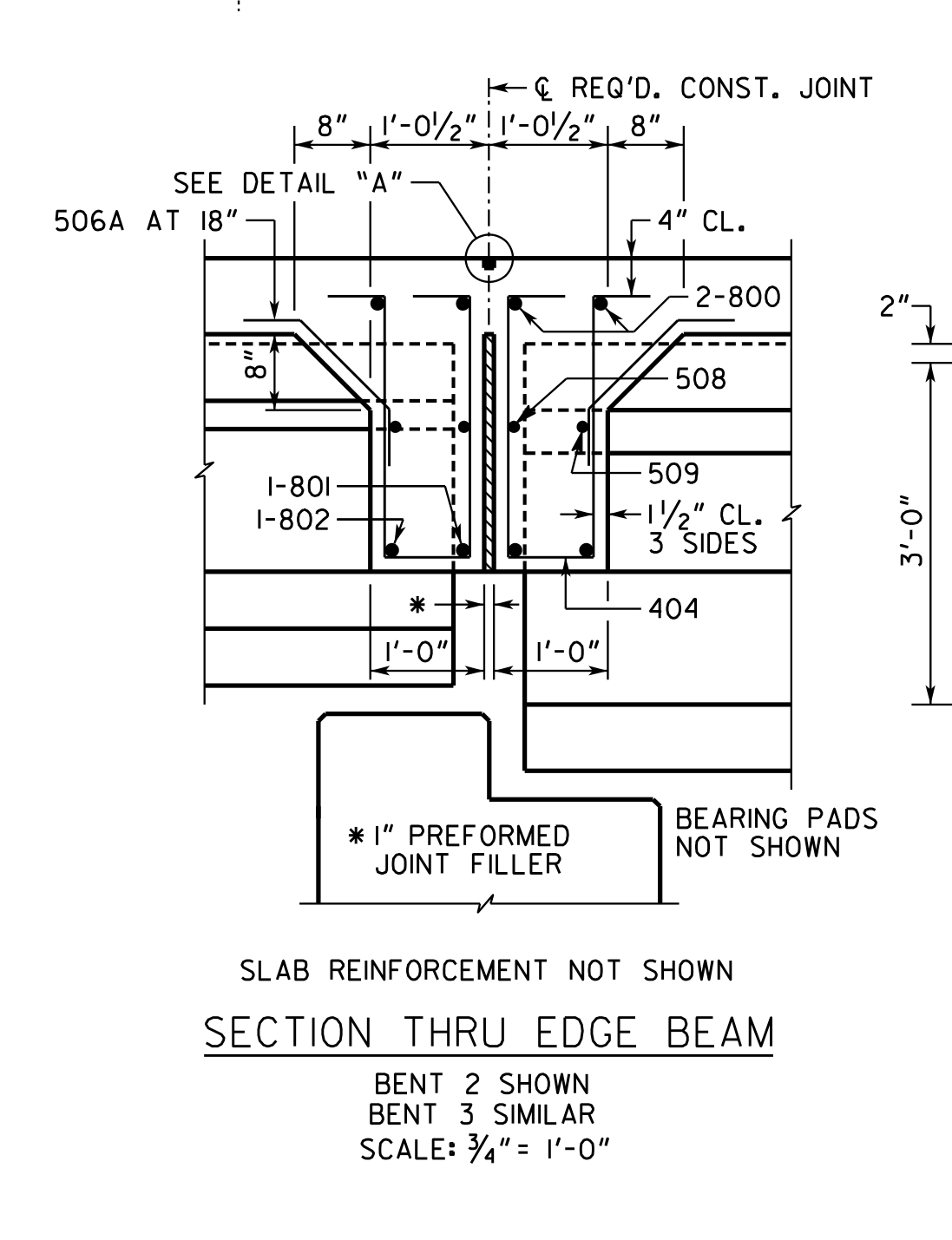

  • p9SEE DETAIL A
  • p9BEARING PADS NOT SHOWN
  • p9BENT 2 SHOWN
  • p9BENT 3 SIMILAR
  • p12PREFORMED FOAM JOINT FILLER SHALL BE IN ACCORDANCE WITH SUB-SECTION 833.2.10 OF THE GEORGIA DOT SPECIFICATIONS.

Every crop it was read in — the drawing beside what the model took off it

Page 4

crop

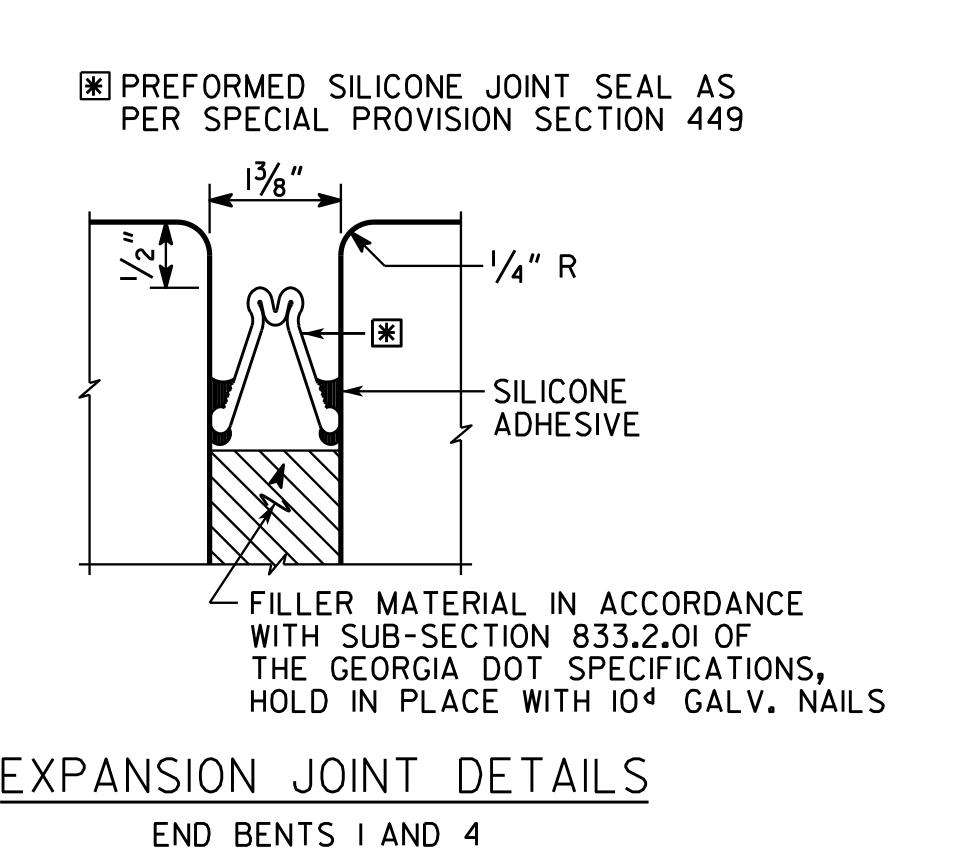

p04_r03 expansion joint details
