Bearing

5 pages · 7 crops · ×29 · superstructure

Matched toBridge Bearing Systembridge.superstructure.bearing_systemon “bearing”

This class asks for no measurements, so there is no take-off to do against it.

How the sheets named it

expansion bearingfixed bearingEXP.FIX℄ BEARING

Every dimension read for it4

  • 11 1/2"left cap edge to CL BRNG.p16 · p16_r01 section a a
  • 1'-2"left CL BRNG. to CL BENTp16 · p16_r01 section a a
  • 1'-2"CL BENT to right CL BRNG.p16 · p16_r01 section a a
  • 11 1/2"right CL BRNG. to cap edgep16 · p16_r01 section a a

Notes on the sheets that carry it

  • p1CHAIN LINK WIRE FENCE, TYP.
  • p1FRONT FACE OF WALL NO. 1
  • p1FRONT FACE OF WALL NO. 2
  • p1EL. 151.00, TYP.
  • p1APPROXIMATE EXISTING GROUNDLINE
  • p1FUTURE GROUNDLINE
  • p8REQUIRED CONSTRUCTION JOINT PARALLEL WITH DECK, TYP.
  • p8NOTE: BARS 401, 504 SERIES, 505, AND 506 SERIES NOT SHOWN
  • p8FENCE NOTES:
  • p81. FENCE SHALL BE 9 GAGE CHAIN LINK ZINC COATED TWO INCH SECURITY FENCE.
  • p82. CAST 4" DIA. GALVANIZED SLEEVE IN THE PARAPET. ALLOW NON-SHRINK, NON-METALLIC GROUT TO CURE FOR THREE DAYS BEFORE FENCE FABRIC IS INSTALLED.
  • p83. APPLY GALVANIZING REPAIR COMPOUND, IN ACCORDANCE WITH GEORGIA DOT SPECIFICATION 645, TO ENDS OF 4" DIA. GALVANIZED SLEEVES.
  • p84. PROVIDE EXPANSION SLEEVE FOR ALL RAILS TO MATCH SUPERSTRUCTURE JOINTS.
  • p85. FASTEN FABRIC TO POSTS AT INTERVALS NOT GREATER THAN 14".
  • p86. SPACE POSTS AT A MINIMUM OF 7'-0" AND A MAXIMUM OF 10'-0". PLACE POSTS 1'-0" MINIMUM FROM JOINTS IN BARRIER. SEE DECK PLAN FOR POST SPACING.
  • p87. FOR FURTHER DETAILS, SEE GEORGIA DOT SPECIFICATIONS SECTIONS 643 AND 894.
  • p8WATERPROOFING, SEE SECTION 530 OF THE GEORGIA DOT SPECIFICATIONS
  • p8SLAB REINFORCEMENT NOT SHOWN
  • p8BEARING NOT SHOWN

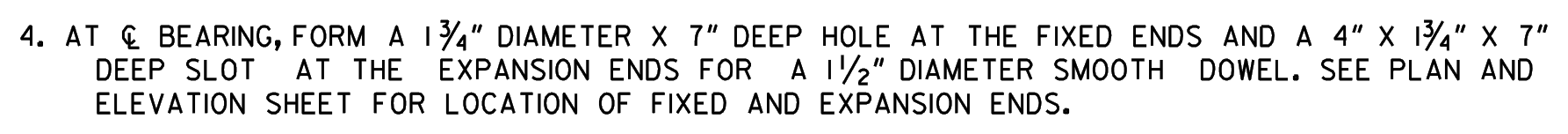

  • p114. AT ℄ BEARING, FORM A 1¾” DIAMETER X 7” DEEP HOLE AT THE FIXED ENDS AND A 4” X 1¾” X 7” DEEP SLOT AT THE EXPANSION ENDS FOR A 1½” DIAMETER SMOOTH DOWEL. SEE PLAN AND ELEVATION SHEET FOR LOCATION OF FIXED AND EXPANSION ENDS.
  • p11MIDPOINT, DETAILS SYMMETRICAL ABOUT MIDPOINT UNLESS NOTED
  • p11ΔNC = 1/4"
  • p11ΔC = 1/8"
  • p11℄ 2" DIAMETER HOLE FOR DIAPHRAGM BAR
  • p11OMIT HOLE AT BEAMS 6 AND 12
  • p11OMIT HOLE AT BEAMS 1 AND 7
  • p11ALL DIMENSIONS ARE ALONG ℄ BEAM
  • p14FORM 3” DIA. X 12” DEEP HOLE FOR 1 1/2” DIA. SMOOTH DOWEL BAR, TYP.
  • p162" MIN. CL., TYP.
  • p165-#22 OR 5-#32 EACH FACE
  • p162" CL. 3 SIDES

Every crop it was read in — the drawing beside what the model took off it

Page 1

crop

p01_r07 plan

page 1 · gdot_drawing_83a3db2262b94086918a1e232d2b9607_p01_r07_plan
Original
p01_r07 plan
{
  "view": "Elevation",
  "objects": [
    {
      "name": "bridge superstructure",
      "tag": "",
      "shape": "continuous horizontal deck/girder profile",
      "material": "",
      "count": 1,
      "note": "Three-span bridge shown in elevation."
    },
    {
      "name": "bent",
      "tag": "B.F.P.R. BENT 1",
      "shape": "vertical end support",
      "material": "",
      "count": 1,
      "note": "Located at left bridge end; adjacent callout identifies FRONT FACE OF WALL NO. 1."
    },
    {
      "name": "bent",
      "tag": "BENT 2",
      "shape": "rectangular column with rectangular cap and pile-supported footing",
      "material": "",
      "count": 1,
      "note": "Interior bent with two visible vertical columns and four visible piles."
    },
    {
      "name": "bent",
      "tag": "BENT 3",
      "shape": "rectangular column with rectangular cap and pile-supported footing",
      "material": "",
      "count": 1,
      "note": "Interior bent with two visible vertical columns and four visible piles."
    },
    {
      "name": "bent",
      "tag": "B.F.P.R. BENT 4",
      "shape": "vertical end support",
      "material": "",
      "count": 1,
      "note": "Located at right bridge end; adjacent callout identifies FRONT FACE OF WALL NO. 2."
    },
    {
      "name": "wall",
      "tag": "WALL NO. 1",
      "shape": "vertical rectangular wall face",
      "material": "",
      "count": 1,
      "note": "Only the front face is indicated."
    },
    {
      "name": "wall",
      "tag": "WALL NO. 2",
      "shape": "vertical rectangular wall face",
      "material": "",
      "count": 1,
      "note": "Only the front face is indicated."
    },
    {
      "name": "bearing",
      "tag": "EXP.",
      "shape": "bearing symbol",
      "material": "",
      "count": 4,
      "note": "Four visible locations labeled EXP."
    },
    {
      "name": "bearing",
      "tag": "FIX",
      "shape": "bearing symbol",
      "material": "",
      "count": 2,
      "note": "Two visible locations labeled FIX."
    },
    {
      "name": "chain link wire fence",
      "tag": "",
      "shape": "fence panels",
      "material": "chain link wire",
      "count": 3,
      "note": "Shown along the bridge deck; labeled TYP."
    },
    {
      "name": "pile",
      "tag": "",
      "shape": "vertical slender pile",
      "material": "",
      "count": 8,
      "note": "Four visible below each of BENT 2 and BENT 3 footings."
    },
    {
      "name": "existing track",
      "tag": "",
      "shape": "vertical dashed alignment lines",
      "material": "",
      "count": 1,
      "note": "Center alignment is shown beneath the bridge."
    },
    {
      "name": "future track",
      "tag": "",
      "shape": "vertical dashed alignment lines",
      "material": "",
      "count": 1,
      "note": "Shown to the right of the existing track."
    }
  ],
  "measurements": [
    {
      "label": "TOTAL LENGTH OF BRIDGE",
      "value": "192’-0” ***",
      "unit": "ft-in",
      "appliesTo": "bridge superstructure"
    },
    {
      "label": "span length",
      "value": "55’-0” ***",
      "unit": "ft-in",
      "appliesTo": "B.F.P.R. BENT 1 to BENT 2"
    },
    {
      "label": "span length",
      "value": "82’-0” ***",
      "unit": "ft-in",
      "appliesTo": "BENT 2 to BENT 3"
    },
    {
      "label": "span length",
      "value": "55’-0” ***",
      "unit": "ft-in",
      "appliesTo": "BENT 3 to B.F.P.R. BENT 4"
    },
    {
      "label": "elevation",
      "value": "151.00",
      "unit": "",
      "appliesTo": "future groundline"
    }
  ],
  "notes": [
    "CHAIN LINK WIRE FENCE, TYP.",
    "FRONT FACE OF WALL NO. 1",
    "FRONT FACE OF WALL NO. 2",
    "EL. 151.00, TYP.",
    "APPROXIMATE EXISTING GROUNDLINE",
    "FUTURE GROUNDLINE"
  ],
  "labels": [
    "PLAN",
    "PGL",
    "℄ FUTURE ACCESS ROAD",
    "℄ EXISTING TRACK",
    "℄ FUTURE TRACK"
  ],
  "description": "This crop shows an elevation of a three-span bridge, with end bents at B.F.P.R. BENT 1 and B.F.P.R. BENT 4 and interior pile-supported BENT 2 and BENT 3. It documents the bridge length and span dimensions, deck-mounted chain link wire fence, bearing designations, wall-face callouts, and existing/future track and groundline references."
}

p01_r07 planElevation

  • bearingEXP.×4bearing symbolFour visible locations labeled EXP.
  • bearingFIX×2bearing symbolTwo visible locations labeled FIX.

192’-0” *** ft-in TOTAL LENGTH OF BRIDGE55’-0” *** ft-in span length82’-0” *** ft-in span length55’-0” *** ft-in span length151.00 elevation

crop

p01_r07

page 1 · other_p01_r07
Original
p01_r07
{
  "view": "Elevation",
  "objects": [
    {
      "name": "bridge deck/superstructure",
      "tag": "",
      "shape": "continuous rectangular longitudinal member",
      "material": "",
      "count": 1,
      "note": "Shown across the full bridge length."
    },
    {
      "name": "chain link wire fence",
      "tag": "",
      "shape": "rectangular fenced panels",
      "material": "",
      "count": 3,
      "note": "Called out as typical."
    },
    {
      "name": "end bent / wall",
      "tag": "B.F.P.R. BENT 1",
      "shape": "vertical rectangular wall",
      "material": "",
      "count": 1,
      "note": "Front face identified as Wall No. 1."
    },
    {
      "name": "bent",
      "tag": "BENT 2",
      "shape": "two-column bent with rectangular pile cap",
      "material": "",
      "count": 1,
      "note": "Three piles are visible below the pile cap."
    },
    {
      "name": "bent",
      "tag": "BENT 3",
      "shape": "two-column bent with rectangular pile cap",
      "material": "",
      "count": 1,
      "note": "Three piles are visible below the pile cap."
    },
    {
      "name": "end bent / wall",
      "tag": "B.F.P.R. BENT 4",
      "shape": "vertical rectangular wall",
      "material": "",
      "count": 1,
      "note": "Front face identified as Wall No. 2."
    },
    {
      "name": "bent columns",
      "tag": "",
      "shape": "rectangular vertical columns",
      "material": "",
      "count": 4,
      "note": "Two columns are shown at each of BENT 2 and BENT 3."
    },
    {
      "name": "pile cap",
      "tag": "",
      "shape": "rectangular",
      "material": "",
      "count": 2,
      "note": "One shown at each interior bent."
    },
    {
      "name": "pile",
      "tag": "",
      "shape": "vertical slender member",
      "material": "",
      "count": 6,
      "note": "Three visible below each interior-bent pile cap."
    },
    {
      "name": "fixed bearing",
      "tag": "FIX",
      "shape": "",
      "material": "",
      "count": 2,
      "note": "Shown at BENT 2."
    },
    {
      "name": "expansion bearing",
      "tag": "EXP.",
      "shape": "",
      "material": "",
      "count": 4,
      "note": "Shown at the end bents and BENT 3."
    }
  ],
  "measurements": [
    {
      "label": "TOTAL LENGTH OF BRIDGE",
      "value": "192’-0” ***",
      "unit": "ft-in",
      "appliesTo": "bridge deck/superstructure"
    },
    {
      "label": "span length",
      "value": "55’-0” ***",
      "unit": "ft-in",
      "appliesTo": "between B.F.P.R. BENT 1 and BENT 2"
    },
    {
      "label": "span length",
      "value": "82’-0” ***",
      "unit": "ft-in",
      "appliesTo": "between BENT 2 and BENT 3"
    },
    {
      "label": "span length",
      "value": "55’-0” ***",
      "unit": "ft-in",
      "appliesTo": "between BENT 3 and B.F.P.R. BENT 4"
    },
    {
      "label": "elevation",
      "value": "151.00",
      "unit": "",
      "appliesTo": "EL. 151.00, TYP."
    }
  ],
  "notes": [
    "CHAIN LINK WIRE FENCE, TYP.",
    "FRONT FACE OF WALL NO.1",
    "FRONT FACE OF WALL NO.2",
    "EL. 151.00, TYP.",
    "APPROXIMATE EXISTING GROUNDLINE",
    "FUTURE GROUNDLINE"
  ],
  "labels": [
    "PLAN",
    "PGL",
    "℄ FUTURE ACCESS ROAD",
    "℄ EXISTING TRACK",
    "℄ FUTURE TRACK"
  ],
  "description": "This crop shows an elevation of a three-span bridge, with end bents/walls at B.F.P.R. BENT 1 and B.F.P.R. BENT 4 and interior pile-supported BENT 2 and BENT 3. Chain link wire fence is shown along portions of the deck, with future and approximate existing groundlines and track/access-road centerlines below."
}

p01_r07Elevation

  • fixed bearingFIX×2Shown at BENT 2.
  • expansion bearingEXP.×4Shown at the end bents and BENT 3.

192’-0” *** ft-in TOTAL LENGTH OF BRIDGE55’-0” *** ft-in span length82’-0” *** ft-in span length55’-0” *** ft-in span length151.00 elevation
