The ontology would need a construction joint component class.
How the sheets named it
Every dimension read for it33
- 2"Clearancep5 · p05_r03 bar bending details at skewed joints
- 3/4partial dimensionnot attributedp5 · p05_r03
- 3" inConstruction-joint offsetp7 · p07_r01
- 2" inDimension, partial lower-right viewnot attributedp7 · p07_r01
- 1”gap minimump8 · p08_r01
- 8" "horizontal dimensionnot attributedp9 · p09_r03 section thru edge beam
- 1'-0½" "horizontal dimensionnot attributedp9 · p09_r03 section thru edge beam
- 1'-0½" "horizontal dimensionnot attributedp9 · p09_r03 section thru edge beam
- 8" "horizontal dimensionnot attributedp9 · p09_r03 section thru edge beam
- 4" "clearancenot attributedp9 · p09_r03 section thru edge beam
- 8" "vertical dimensionnot attributedp9 · p09_r03 section thru edge beam
- 1½" "clearance, 3 sidesnot attributedp9 · p09_r03 section thru edge beam
- 1'-0" "horizontal dimensionnot attributedp9 · p09_r03 section thru edge beam
- 1'-0" "horizontal dimensionnot attributedp9 · p09_r03 section thru edge beam
- 1" "preformed joint filler thicknessnot attributedp9 · p09_r03 section thru edge beam
- 2" "partial horizontal dimensionnot attributedp9 · p09_r03 section thru edge beam
- 3'-0" "partial vertical dimensionnot attributedp9 · p09_r03 section thru edge beam
- ¾" = 1'-0"scalenot attributedp9 · p09_r03 section thru edge beam
- 3/4"unlabelledp9 · p09_r05 detail a
- 1/4" RROUND TOp9 · p09_r05 detail a
- 8”horizontal dimensionnot attributedp9 · p09_r03
- 1’-0½”horizontal dimensionnot attributedp9 · p09_r03
- 1’-0½”horizontal dimensionnot attributedp9 · p09_r03
- 8”horizontal dimensionnot attributedp9 · p09_r03
- 8”vertical dimensionnot attributedp9 · p09_r03
- 1½”clear dimension, 3 sidesnot attributedp9 · p09_r03
- 1’-0”horizontal dimensionnot attributedp9 · p09_r03
- 1’-0”horizontal dimensionnot attributedp9 · p09_r03
- 1”preformed joint filler thicknessnot attributedp9 · p09_r03
- 3’-0”vertical dimensionnot attributedp9 · p09_r03
- 2”vertical dimensionnot attributedp9 · p09_r03
- 3/4"joint widthp9 · p09_r05
- 1/4" Rroundp9 · p09_r05
Notes on the sheets that carry it
- p5BARS ARE DETAILED IN BAR DETAILS AS EQUIVALENT FULL LENGTH BARS.
- p5* SEE SUBSECTION 511.3.05.G.5 OF THE GEORGIA DOT SPECIFICATION FOR PLACEMENT OF 500B BAR.
- p5B.F.P.R. OR CONST. JOINT
- p5MAIN SLAB REINF.
- p52" CL.
- p7DIMENSION “D” IS MEASURED FROM TOP OF SLAB TO TOP OF BEAMS AT CENTERLINE BEARING. VARY “D” BETWEEN BEARINGS TO COMPENSATE FOR DEAD LOAD DEFLECTION, AND VERTICAL CURVE.
- p7MAINTAIN A CONSTANT SLAB THICKNESS OF 7 3/4" BETWEEN BEAMS AND 8" IN THE OVERHANGS.
- p7“D” = 8 3/4" INTERIOR BEAMS
- p7“D” = 9 5/8" EXTERIOR BEAMS
- p7FENCE NOT SHOWN, TYP.
- p7502 AT EVERY 500A, TYP.
- p730-400A SPACED AS SHOWN
- p7500A AT 6 1/2"
- p7501 UNDER EVERY 500A
- p76-400A AT EQ. SPS.
- p714-400A AT EQUAL SPACES, TYP.
- p7REQUIRED CONSTRUCTION JOINT PARALLEL WITH DECK, TYP.
- p73/4" TRIANGULAR DRIP BEAD FULL LENGTH OF BRIDGE, TYP.
- p81” GAP, MIN.
- p8NOTE: BARS 401, 504 SERIES, 505, AND 506 SERIES NOT SHOWN
- p8FENCE NOTES:
- p81. FENCE SHALL BE 9 GAGE CHAIN LINK ZINC COATED TWO INCH SECURITY FENCE.
- p82. CAST 4” DIA. GALVANIZED SLEEVE IN THE PARAPET. ALLOW NON-SHRINK, NON-METALLIC GROUT TO CURE 7 DAYS BEFORE FENCE FABRIC IS INSTALLED.
- p83. APPLY GALVANIZING REPAIR COMPOUND, IN ACCORDANCE WITH GEORGIA DOT SPECIFICATION 645, TO ENDS OF 4” DIA. GALVANIZED SLEEVES.
- p84. PROVIDE EXPANSION SLEEVE FOR ALL RAILS TO MATCH SUPERSTRUCTURE JOINTS.
- p85. FASTEN FABRIC TO POSTS AT INTERVALS NOT GREATER THAN 14”.
- p86. SPACE POSTS AT A MINIMUM OF 7’-0” AND A MAXIMUM OF 10’-0”. PLACE POSTS 1’-0” MINIMUM FROM JOINTS IN BARRIER. SEE DECK PLAN FOR POST SPACING.
- p87. FOR FURTHER DETAILS, SEE GEORGIA DOT SPECIFICATIONS SECTIONS 643 AND 894.
- p8WATERPROOFING, SEE SECTION 530 OF THE GEORGIA DOT SPECIFICATIONS
- p8SLAB REINFORCEMENT NOT SHOWN
- p9MAINTAIN A CONSTANT SLAB THICKNESS OF 7¾″ BETWEEN BEAMS AND 8″ IN THE OVERHANGS.
- p9“D” = 8¾″ INTERIOR BEAMS
- p9“D” = 9¼″ EXTERIOR BEAMS
- p9¾″ TRIANGULAR DRIP BEAD FULL LENGTH OF BRIDGE, TYP.
- p930-400B AND C SPACED AS SHOWN
- p96-400B AND C AT EQ. SPS.
- p913-400B AND C AT EQUAL SPACES, TYP.
- p97-403B AT EQUAL SPACES
- p91″ DIAMETER PLAIN BAR
- p9SEE DETAIL “A”
Every crop it was read in — the drawing beside what the model took off it
Page 5

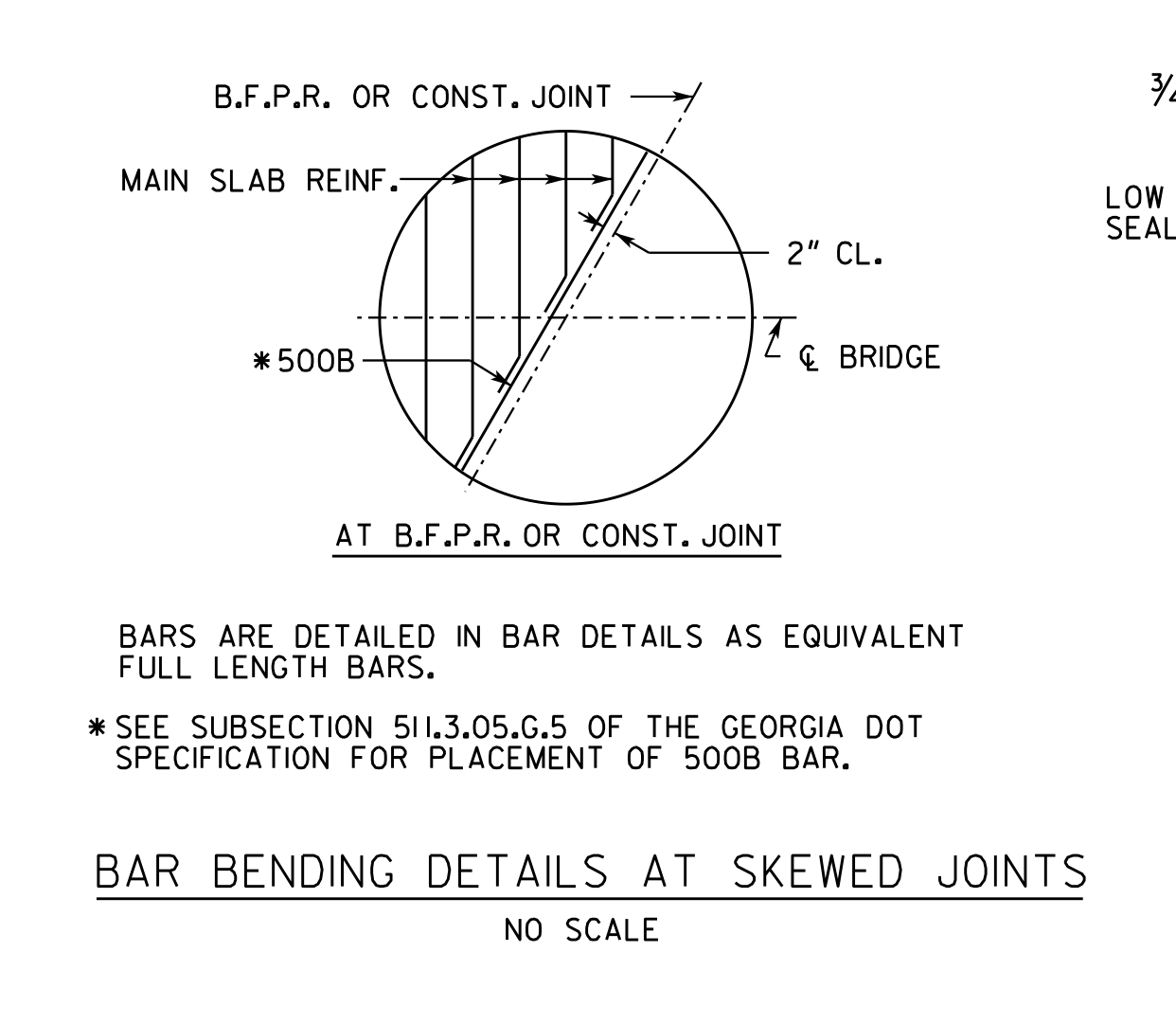

p05_r03 bar bending details at skewed jointsDetail
- B.F.P.R. or construction joint×1skewed linear jointShown crossing the main slab reinforcement at a skew.
2" Clearance
p05_r03Detail
- construction joint×1skewed lineIdentified as B.F.P.R. or construction joint.
2" clearance3/4 partial dimension
Page 7
p07_r01Section
- construction jointlinearRequired parallel with deck, typ.
8 3/4" in Dimension D, interior beams9 5/8" in Dimension D, exterior beams7 3/4" in Constant slab thickness between beams8" in Slab thickness in overhangs43'-7" ft-in Overall width, out to out40'-0" ft-in Gutter to gutter width34'-0" ft-in Width6'-0" ft-in Width+17 more
Page 8
p08_r01Detail
- construction jointlinear jointRequired construction joint parallel with deck, typical.
1 1/2” horizontal dimension1’-8” horizontal dimension34’-0” horizontal dimension6’-8” horizontal dimension1’-1” horizontal dimension3’-6” endwall height2% deck slope1” gap minimum+41 more
Page 9
p09_r02 section thru slabSection
- construction joint×1vertical jointShown at the right exterior edge; called required parallel with deck.
7¾″ slab thickness between beams8″ slab thickness in overhangs8¾″ D, interior beams9¼″ D, exterior beams43′-7″ out to out width22′-0″ width40′-0″ gutter to gutter width34′-0″ width+26 more

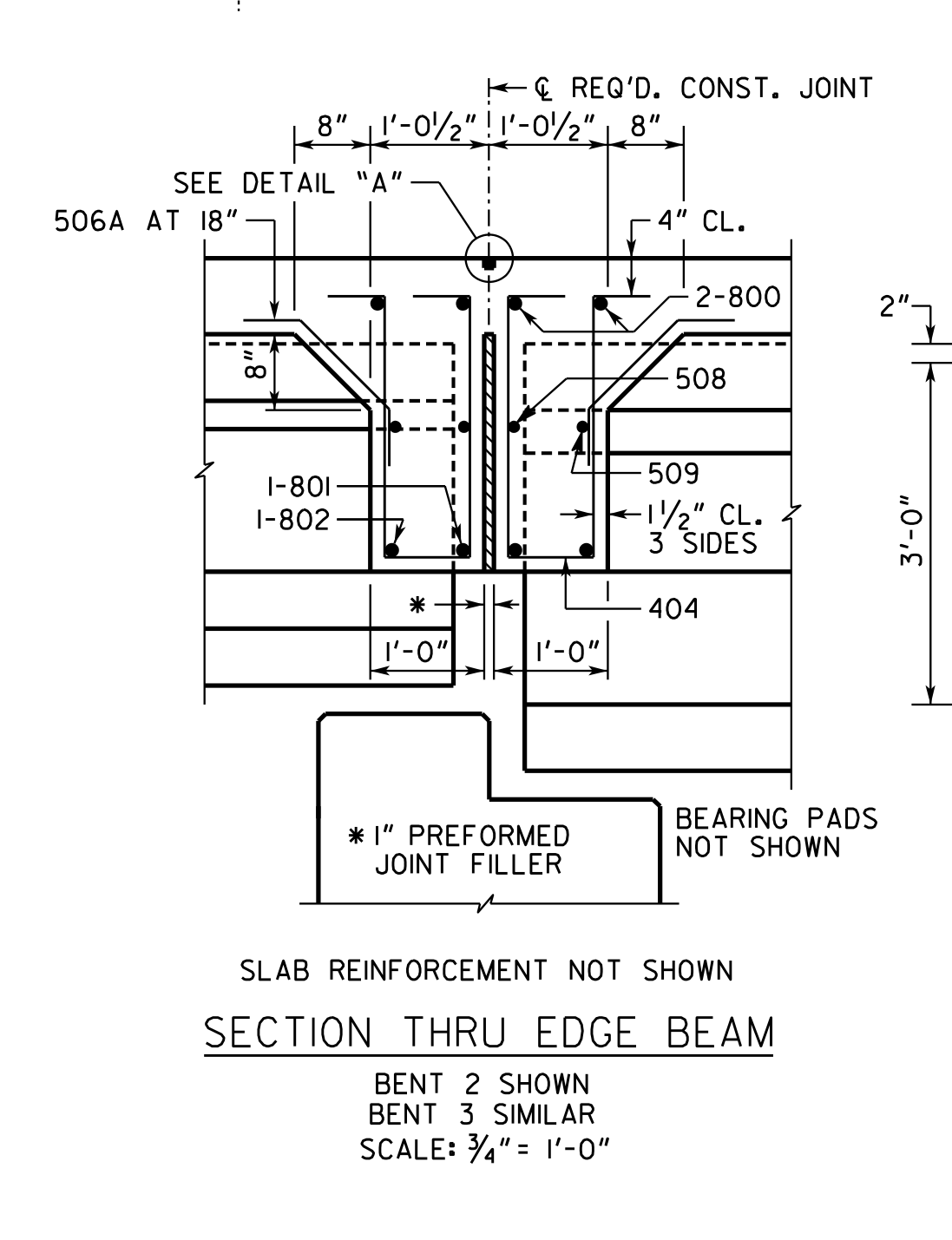

p09_r03 section thru edge beamSection
- construction joint×1vertical jointMarked at centerline as required construction joint.
8" " horizontal dimension1'-0½" " horizontal dimension1'-0½" " horizontal dimension8" " horizontal dimension18" " reinforcement spacing4" " clearance8" " vertical dimension1½" " clearance, 3 sides+6 more

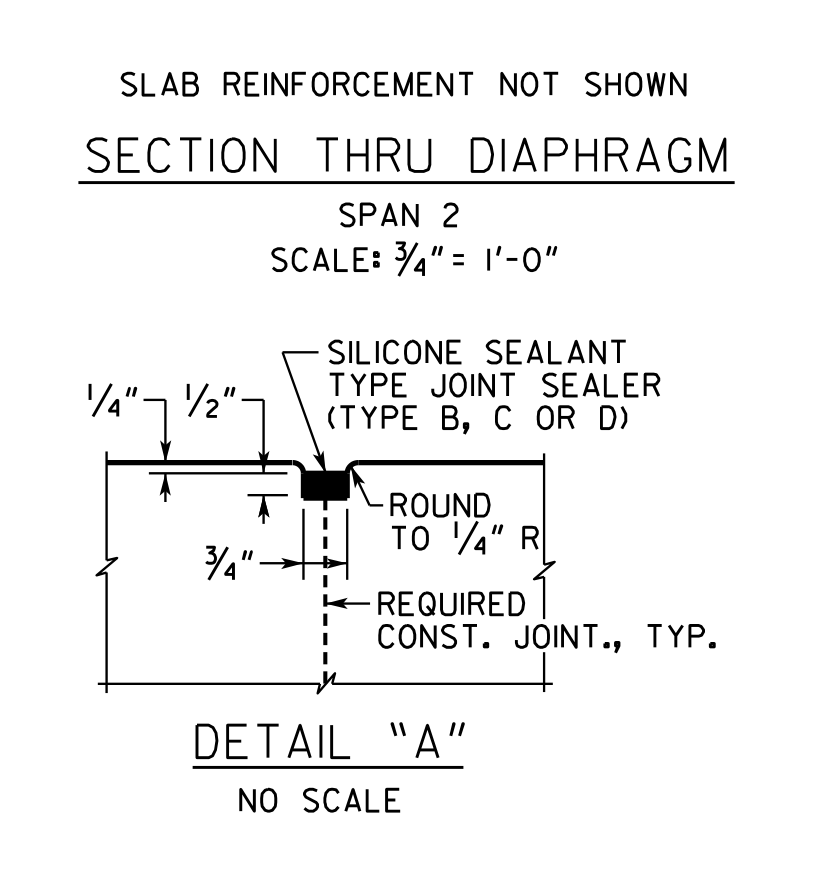

p09_r05 detail aDetail
- construction joint×1keyed jointRequired construction joint, typical.
1/4"1/2"3/4"1/4" R ROUND TO3/4" = 1'-0" SCALE
p09_r03Section
- construction joint×1vertical jointRequired construction joint at center of section.
18” bar spacing8” horizontal dimension1’-0½” horizontal dimension1’-0½” horizontal dimension8” horizontal dimension4” clear cover8” vertical dimension1½” clear dimension, 3 sides+6 more

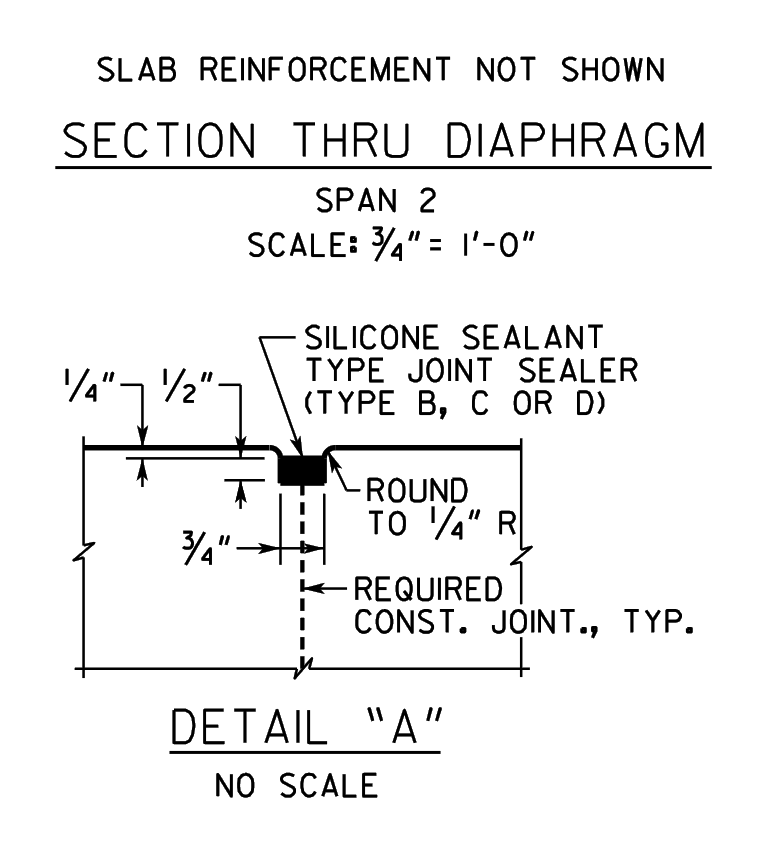

p09_r05Detail
- construction joint×1vertical jointRequired construction joint, typical.
1/4" joint recess depth1/2" joint recess width3/4" joint width1/4" R round3/4" = 1'-0" scale
Page 14
p14_r02 title blockElevation
- construction jointhorizontalRequired construction joint at contractor's option.
44-421 cap reinforcement spacingAT EQ. SPS. cap reinforcement spacingEL. 185.78 elevationEL. 185.23 elevationEL. 185.96 elevationEL. 185.41 elevationEL. 186.10 elevationEL. 185.55 elevation+63 more
p14_r02Elevation
- construction jointCONST. JT.×1horizontal jointRequired construction joint shown at footing/cap detail.
44-421 cap reinforcement spacing4'-10" minimum cap depth9" vertical dimension4'-8" vertical dimension8'-9" cap/column horizontal dimension25'-0" cap/column horizontal dimension8'-9" cap/column horizontal dimension6" bar spacing+61 more
Page 15
p15_r02 title blockUnclear
- Construction jointhorizontal jointRequired construction joint is indicated at the column/footing region.
44-431 AT EQ. SPS. Cap reinforcing8-1132 Cap reinforcing2-530 Cap reinforcing8-1133 Cap reinforcing4'-0" MIN. Cap depth25'-0" Cap length between indicated column regions8'-9" End dimension12-531 Column reinforcing+65 more
p15_r02Detail
- Construction jointhorizontal jointConstruction-joint locations are indicated in the elevation.
44-43I AT EQ. SPS. Cap reinforcing-bar spacingEL. 185.79 (AH) ElevationEL. 185.24 (BK) ElevationEL. 185.98 (AH) ElevationEL. 185.43 (BK) ElevationEL. 186.14 (AH) ElevationEL. 185.60 (BK) ElevationEL. 186.30 (AH) Elevation+84 more
