Footing

5 pages · 24 crops · ×54 · foundation

Matched toSpread Footingbridge.foundation_system.shallow_foundation.spread_footingon “Footings”

3 read off the drawings · 1 derived · 2 not established
The class asks forValueHowFrom
LengthLwants m/mm11'-6" (Bent 2); 13'-0" (Bent 3) ftThe Bent 2 footing plan directly states an overall footing length of 11'-6". The Bent 3 footing plan directly states an overall footing plan length of 13'-0". The drawings establish two footing sizes rather than one uniform item length.readp16 · p16_r08 footing plan bent 2p16 · p16_r02 footing plan bent 3
WidthWwants m/mm11'-6" (Bent 2); 13'-0" (Bent 3) ftThe Bent 2 footing plan directly states an overall footing width of 11'-6". The Bent 3 footing plan directly states an overall footing plan width of 13'-0". Both footing plans are square, so their stated plan length and width match.readp16 · p16_r08 footing plan bent 2p16 · p16_r02 footing plan bent 3
HeightHwants m/mm4'-0" ftThe Bent 2 elevation gives a 4'-0" dimension for the Column 2 footing. The Bent 3 detail explicitly states "Footing depth 4'-0\" TYP.", confirming this is the footing height.readp14 · p14_r02 title blockp15 · p15_r02 title block
Instance CountNwants count8 count2 FOOTING 1 + 2 FOOTING 2 + 2 FOOTING 3 + 2 FOOTING 4 = 8 footings.The foundation and bent layout identifies two instances each of FOOTING 1, FOOTING 2, FOOTING 3, and FOOTING 4.derivedp18 · p18_r01 footing 3
Concrete Gradefcknot establishedThe supplied footing detail and plan readings state geometry, reinforcement, cover, and elevations but do not state a concrete strength class or grade for footings.not found
Founding LevelFLwants mnot establishedThe pile schedules include a "BOTTOM OF FOOTING ELEVATION" field, but all visible cells are blank. EL. 151.00 is stated as a footing elevation elsewhere, but the readings do not identify it specifically as the bottom/founding level.not found

Worked out by openai/gpt-5.6-terra-pro from the readings below, which are the source. A derived value shows its arithmetic — check it against the drawing before it is priced.

How the sheets named it

FootingsBENT 3BENT 2FOOTING 1FOOTING 2FOOTING 3FOOTING 4FOOTING 1–FOOTING 4

Every dimension read for it42

  • 2'-0"Addition to plan footing dimensionsp2 · p02_r09 notes
  • 12-420 AT EQ. SPS.bar quantity and spacingp14 · p14_r02 title block
  • 4"dimensionp14 · p14_r02 title block
  • 3"clear coverp14 · p14_r02 title block
  • EL. 151.00elevationp14 · p14_r02 title block
  • 16-920 AT EQ. SPS.bar quantity and spacingp14 · p14_r02 title block
  • 11'-6"dimensionp14 · p14_r02 title block
  • EL. 151.00elevationp14 · p14_r03 title block
  • 4"typical dimensionp14 · p14_r02
  • 3"typical clear coverp14 · p14_r02
  • 4'-0"vertical dimensionp14 · p14_r02
  • 4'-0"typical horizontal dimensionp14 · p14_r02
  • 3'-6"typical horizontal dimensionp14 · p14_r02
  • 11'-6" SQUAREtypical footing sizep14 · p14_r02
  • EL. 151.00, TYP.elevationp14 · p14_r02
  • EL. 151.00footing elevationp14 · p14_r03
  • 3" CL., TYP.Clear coverp15 · p15_r02 title block
  • 4'-0" TYP.Footing depthp15 · p15_r02 title block
  • 13'-0" SQUARE TYP.Footing plan dimensionp15 · p15_r02 title block
  • 18-930 AT EQ. SPS.Footing reinforcingp15 · p15_r02 title block
  • 18-930Footing pile reinforcingp15 · p15_r02 title block
  • EL. 151.00, TYP.Footing elevationp15 · p15_r02 title block
  • 14-430 AT EQ. SPS.Pile reinforcingp15 · p15_r02 title block
  • EL. 151.00, TYP.Elevationp15 · p15_r02
  • 13'-0"overall footing plan widthp16 · p16_r02 footing plan bent 3
  • 13'-0"overall footing plan lengthp16 · p16_r02 footing plan bent 3
  • 1'-3"end spacingp16 · p16_r02 footing plan bent 3
  • 5'-3"pile-line spacingp16 · p16_r02 footing plan bent 3
  • 5'-3"pile-line spacingp16 · p16_r02 footing plan bent 3
  • 1'-3"end spacingp16 · p16_r02 footing plan bent 3
  • 1'-3"end spacingp16 · p16_r02 footing plan bent 3
  • 5'-3"pile-line spacingp16 · p16_r02 footing plan bent 3
  • 5'-3"pile-line spacingp16 · p16_r02 footing plan bent 3
  • 1'-3"end spacingp16 · p16_r02 footing plan bent 3
  • 3/8" = 1'-0"drawing scalenot attributedp16 · p16_r08 footing plan bent 2
  • 11'-6"Overall footing widthp16 · p16_r08
  • 1'-3"Footing width segmentp16 · p16_r08
  • 1'-3"Footing width segmentp16 · p16_r08
  • 11'-6"Overall footing lengthp16 · p16_r08
  • 1'-3"Footing length segmentp16 · p16_r08
  • 1'-3"Footing length segmentp16 · p16_r08
  • 3/8" = 1'-0"Scalenot attributedp16 · p16_r08

Notes on the sheets that carry it

  • p2FOUNDATION BACKFILL MATERIAL - PLACE 1’-0” OF TYPE II FOUNDATION BACKFILL MATERIAL UNDER EACH FOOTING AT BENTS 2, AND. THE QUANTITY IS BASED ON THE PLAN FOOTING DIMENSIONS PLUS 2’-0”. USE OF THIS MATERIAL MAY BE ELIMINATED BY THE ENGINEER IF THE FOOTING AREA IS DRY.
  • p2PLAN DRIVING OBJECTIVE - SEE SUBSTRUCTURE DETAILS.
  • p14NOTES:
  • p141. SEE BRIDGE SHEET NO. 16 FOR CAP, COLUMN AND FOOTING SECTIONS.
  • p142. BARS 422 NOT SHOWN.
  • p143. EXTEND BARS 1121A 3'-6" INTO CAP.
  • p14MECHANICAL COUPLER, TYP. SEE SPECIAL PROVISION 511
  • p14* REQUIRED CONSTRUCTION JOINT. AT CONTRACTOR'S OPTION, CONSTRUCTION JOINT MAY BE RELOCATED TO TOP OF FOOTING.
  • p14PILES ARE DESIGNED FOR A MAXIMUM FACTORED AXIAL LOAD OF 237 KIPS.
  • p14"I6 FOR CAP, SECTIONS." (partial text at left crop edge)
  • p14"-6” INTO CAP." (partial text at left crop edge)
  • p14", TYP." (partial text at lower-left crop edge)
  • p14"ER HOLES" (partial text at lower-left crop edge)
  • p141. SEE BRIDGE SHEET NO.16 FOR CAP, COLUMN AND FOOTING REINFORCEMENT AND FOOTING NOTES.
  • p1444-#21 AT EQ. SPS.
  • p1411 SPS. AT 7"
  • p1412-#21 SERIES
  • p146 SPS AT 5"
  • p1414-#22 DBL
  • p1425-#21 AT EQ. SPS.
  • p14EL. 151.00, TYP.
  • p152. BARS 432 NOT SHOWN.
  • p153. EXTEND BARS 131A 3'-9" INTO CAP.
  • p15* REQUIRED CONSTRUCTION JOINT. AS CONTRACTOR'S OPTION, CONSTRUCTION JOINT MAY BE RELOCATED TO TOP OF FOOTING.
  • p15MECHANICAL COUPLER, TYP. SEE SPECIAL PROVISION.
  • p15PILES ARE DESIGNED FOR A MAXIMUM FACTORED AXIAL LOAD OF 222 KIPS.
  • p151. SEE BRIDGE SHEET NO. 16 FOR CAP, COLUMN AND FOOTING DETAILS.
  • p15MECHANICAL COUPLER, TYP. SEE SPECIAL PROVISION 51.
  • p15* CONST. JT., TYP.
  • p15PILES ARE DESIGNED FOR A MAXIMUM FACTORED AXIAL LOAD OF 220 KIPS.
  • p15ALL PILES SHALL BE STEEL H-PILES HP 12 X 53. partial
  • p162" MIN. CL., TYP.
  • p162" CL., 3 SIDES
  • p165-422 OR 5-432 EACH FACE

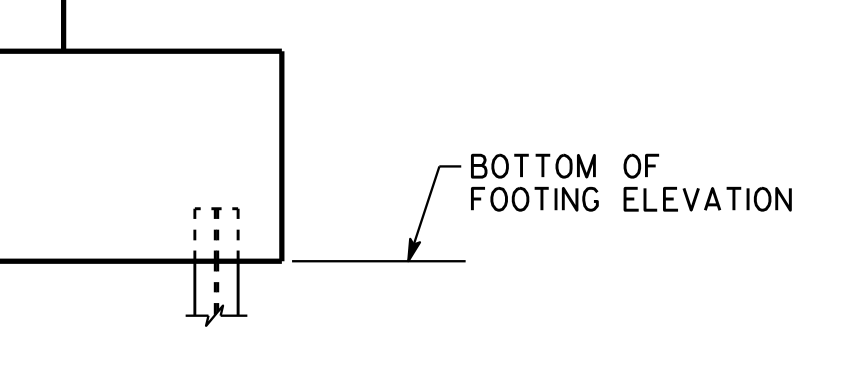

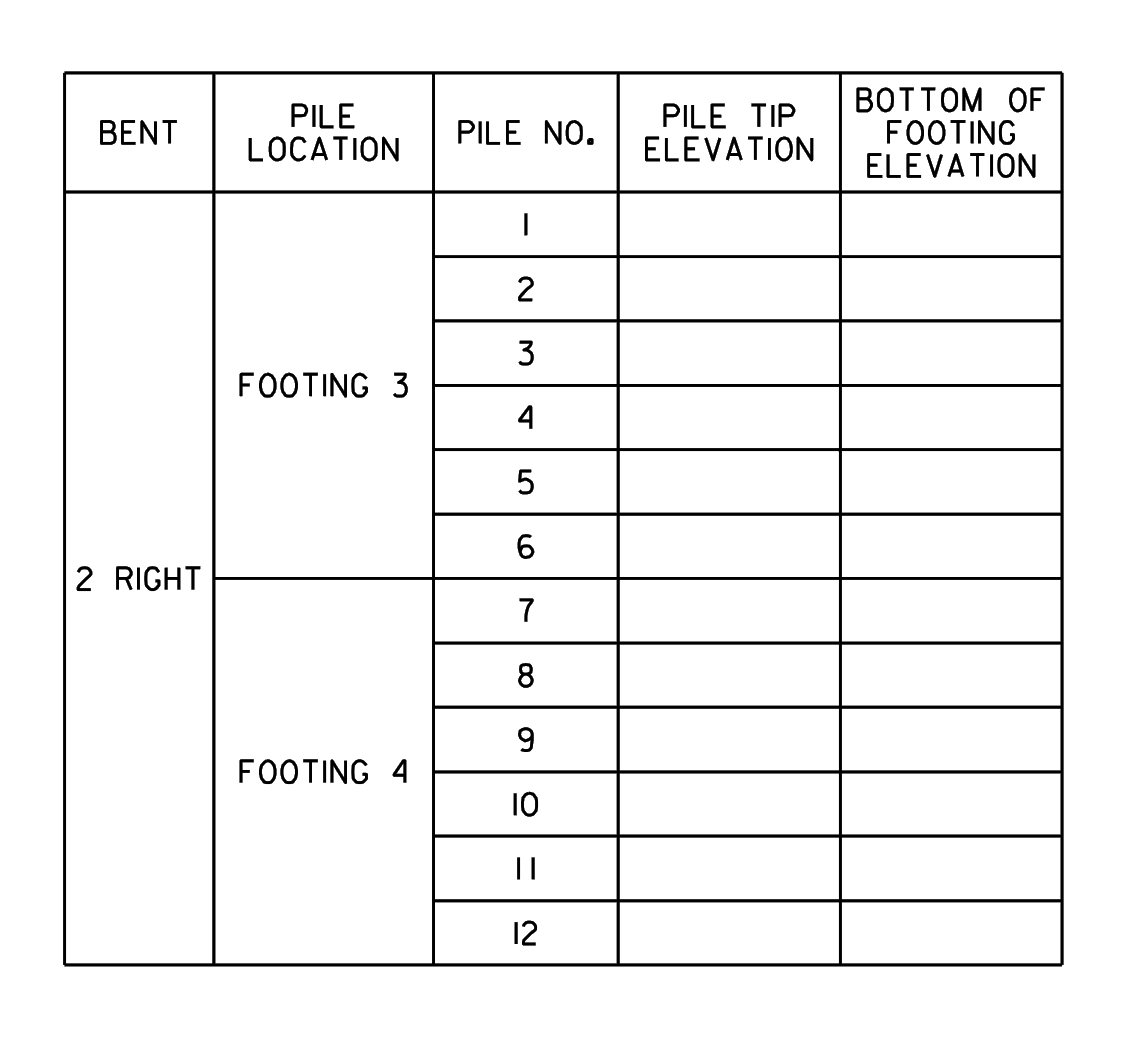

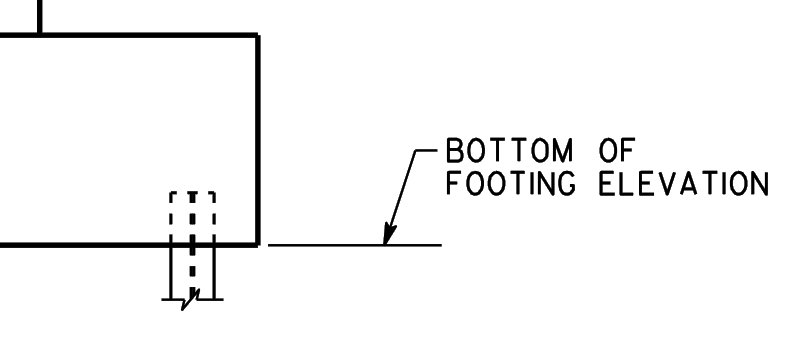

  • p18BOTTOM OF FOOTING ELEVATION

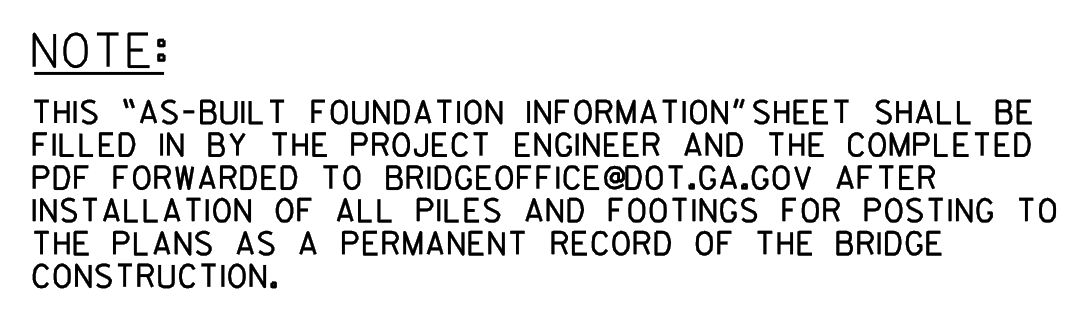

  • p18THIS “AS-BUILT FOUNDATION INFORMATION” SHEET SHALL BE FILLED IN BY THE PROJECT ENGINEER AND THE COMPLETED PDF FORWARDED TO BRIDGEOFFICE@DOT.GA.GOV AFTER INSTALLATION OF ALL PILES AND FOOTINGS FOR POSTING TO THE PLANS AS A PERMANENT RECORD OF THE BRIDGE CONSTRUCTION.
