Drawing → BOQ
← Mindmapwhat the drawings said

Internal Plate

1 page · 3 crops · ×14 · superstructure

⚠ No class in the bridge ontology fits this itemAdd a class

The ontology would need an internal structural plate component class.

How the sheets named it

internal plate(s)internal plates

Every dimension read for it5

  • 12 gageinternal plate gagep12 · p12_r04 notes
  • 12 GAGEinternal plate gaugep12 · p12_r08 load plates
  • Tvertical dimensionnot attributedp12 · p12_r08 load plates
  • 12 GAGEINTERNAL PLATESp12 · p12_r08
  • Tvertical dimensionnot attributedp12 · p12_r08

Notes on the sheets that carry it

  • p126. 3/16” LOAD PLATES AND 12 GAGE INTERNAL PLATE(S) (IF REQUIRED) SHALL BE ASTM A709 GRADE 36 OR ASTM A1011 GRADE 36.
  • p123/16" LOAD PLATES, TOP AND BOTTOM
  • p123/16" SEALING RIB, TOP AND BOTTOM
  • p1212 GAGE INTERNAL PLATES

Every crop it was read in — the drawing beside what the model took off it

Page 12

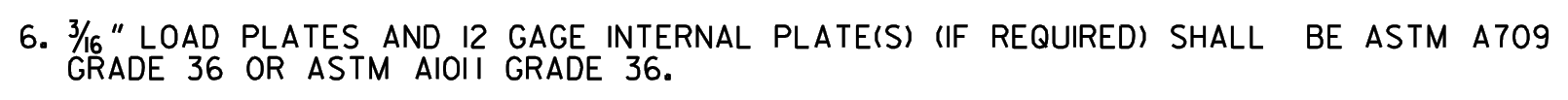

crop

p12_r04 notes

page 12 · gdot_drawing_83a3db2262b94086918a1e232d2b9607_p12_r04_notes
Original
p12_r04 notes
{
  "view": "Notes",
  "objects": [
    {
      "name": "load plates",
      "tag": "",
      "shape": "",
      "material": "ASTM A709 Grade 36 or ASTM A1011 Grade 36",
      "count": null,
      "note": "3/16” load plates; 12 gage internal plate(s) if required."
    },
    {
      "name": "internal plate(s)",
      "tag": "",
      "shape": "",
      "material": "ASTM A709 Grade 36 or ASTM A1011 Grade 36",
      "count": null,
      "note": "12 gage; if required."
    }
  ],
  "measurements": [
    {
      "label": "load plate thickness",
      "value": "3/16”",
      "unit": "",
      "appliesTo": "load plates"
    },
    {
      "label": "internal plate gage",
      "value": "12",
      "unit": "gage",
      "appliesTo": "internal plate(s)"
    }
  ],
  "notes": [
    "6. 3/16” LOAD PLATES AND 12 GAGE INTERNAL PLATE(S) (IF REQUIRED) SHALL BE ASTM A709 GRADE 36 OR ASTM A1011 GRADE 36."
  ],
  "labels": [],
  "description": "This crop contains note 6 specifying material requirements for load plates and internal plate(s). It states the plate thickness/gage and permitted ASTM Grade 36 material specifications."
}

p12_r04 notesNotes

  • internal plate(s)ASTM A709 Grade 36 or ASTM A1011 Grade 3612 gage; if required.

3/16” load plate thickness12 gage internal plate gage

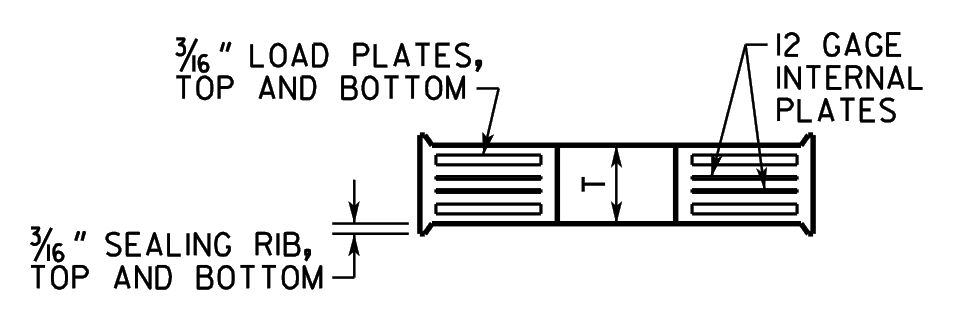

crop

p12_r08 load plates

page 12 · gdot_drawing_83a3db2262b94086918a1e232d2b9607_p12_r08_load_plates
Original
p12_r08 load plates
{
  "view": "Detail",
  "objects": [
    {
      "name": "load plates",
      "tag": "",
      "shape": "rectangular plates",
      "material": "",
      "count": 2,
      "note": "Top and bottom."
    },
    {
      "name": "sealing rib",
      "tag": "",
      "shape": "linear rib",
      "material": "",
      "count": 2,
      "note": "Top and bottom."
    },
    {
      "name": "internal plates",
      "tag": "",
      "shape": "rectangular plates",
      "material": "",
      "count": 8,
      "note": "Shown as four horizontal plates at each end of the detail."
    }
  ],
  "measurements": [
    {
      "label": "load plate thickness",
      "value": "3/16\"",
      "unit": "",
      "appliesTo": "load plates"
    },
    {
      "label": "sealing rib thickness",
      "value": "3/16\"",
      "unit": "",
      "appliesTo": "sealing rib"
    },
    {
      "label": "internal plate gauge",
      "value": "12 GAGE",
      "unit": "",
      "appliesTo": "internal plates"
    },
    {
      "label": "vertical dimension",
      "value": "T",
      "unit": "",
      "appliesTo": ""
    }
  ],
  "notes": [
    "3/16\" LOAD PLATES, TOP AND BOTTOM",
    "3/16\" SEALING RIB, TOP AND BOTTOM",
    "12 GAGE INTERNAL PLATES"
  ],
  "labels": [],
  "description": "This crop shows a detail of a rectangular plate assembly with load plates at the top and bottom and sealing ribs at the top and bottom. Internal plates are shown at both ends of the assembly, with a vertical dimension identified only as T."
}

p12_r08 load platesDetail

  • internal plates×8rectangular platesShown as four horizontal plates at each end of the detail.

3/16" load plate thickness3/16" sealing rib thickness12 GAGE internal plate gaugeT vertical dimension

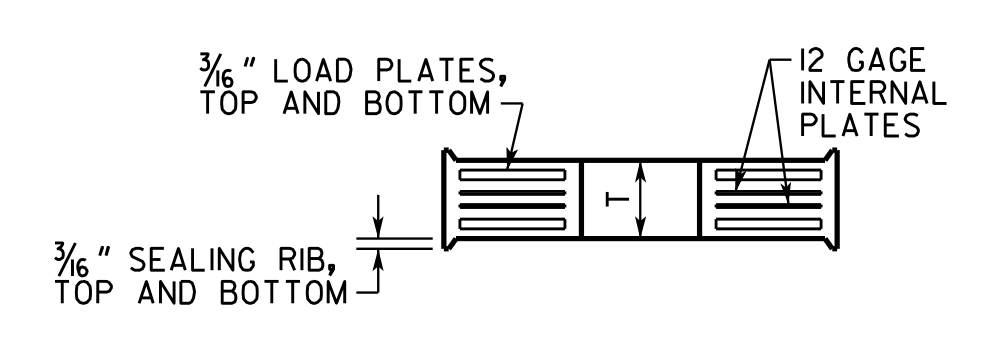

crop

p12_r08

page 12 · other_p12_r08
Original
p12_r08
{
  "view": "Detail",
  "objects": [
    {
      "name": "load plate",
      "tag": "",
      "shape": "rectangular plate",
      "material": "",
      "count": 2,
      "note": "Top and bottom load plates are called out."
    },
    {
      "name": "sealing rib",
      "tag": "",
      "shape": "rib",
      "material": "",
      "count": 2,
      "note": "Top and bottom sealing ribs are called out."
    },
    {
      "name": "internal plate",
      "tag": "",
      "shape": "rectangular plate",
      "material": "",
      "count": 6,
      "note": "Six internal plates are visibly shown, three at each end of the detail."
    }
  ],
  "measurements": [
    {
      "label": "LOAD PLATES, TOP AND BOTTOM",
      "value": "3/16″",
      "unit": "",
      "appliesTo": "load plate"
    },
    {
      "label": "SEALING RIB, TOP AND BOTTOM",
      "value": "3/16″",
      "unit": "",
      "appliesTo": "sealing rib"
    },
    {
      "label": "INTERNAL PLATES",
      "value": "12 GAGE",
      "unit": "",
      "appliesTo": "internal plate"
    },
    {
      "label": "vertical dimension",
      "value": "T",
      "unit": "",
      "appliesTo": ""
    }
  ],
  "notes": [
    "3/16″ LOAD PLATES, TOP AND BOTTOM",
    "3/16″ SEALING RIB, TOP AND BOTTOM",
    "12 GAGE INTERNAL PLATES"
  ],
  "labels": [],
  "description": "This crop shows a sectional detail of a rectangular plated assembly with ribs at the top and bottom edges. It documents 3/16-inch load plates and sealing ribs, 12-gage internal plates, and a vertical dimension identified as T."
}

p12_r08Detail

  • internal plate×6rectangular plateSix internal plates are visibly shown, three at each end of the detail.

3/16″ LOAD PLATES, TOP AND BOTTOM3/16″ SEALING RIB, TOP AND BOTTOM12 GAGE INTERNAL PLATEST vertical dimension
