Reinforcement Layout Boundary

1 page · 2 crops · ×2 · other

⚠ No class in the bridge ontology fits this itemAdd a class

The ontology would need a reinforcement layout boundary reference class.

How the sheets named it

rectangular reinforcement layout

Every dimension read for it2

  • 5'-4¾"overall horizontal dimensionp16 · p16_r07
  • 5'-4¾"overall horizontal dimensionp16 · p16_r10

Every crop it was read in — the drawing beside what the model took off it

Page 16

crop

p16_r07

page 16 · other_p16_r07
Original

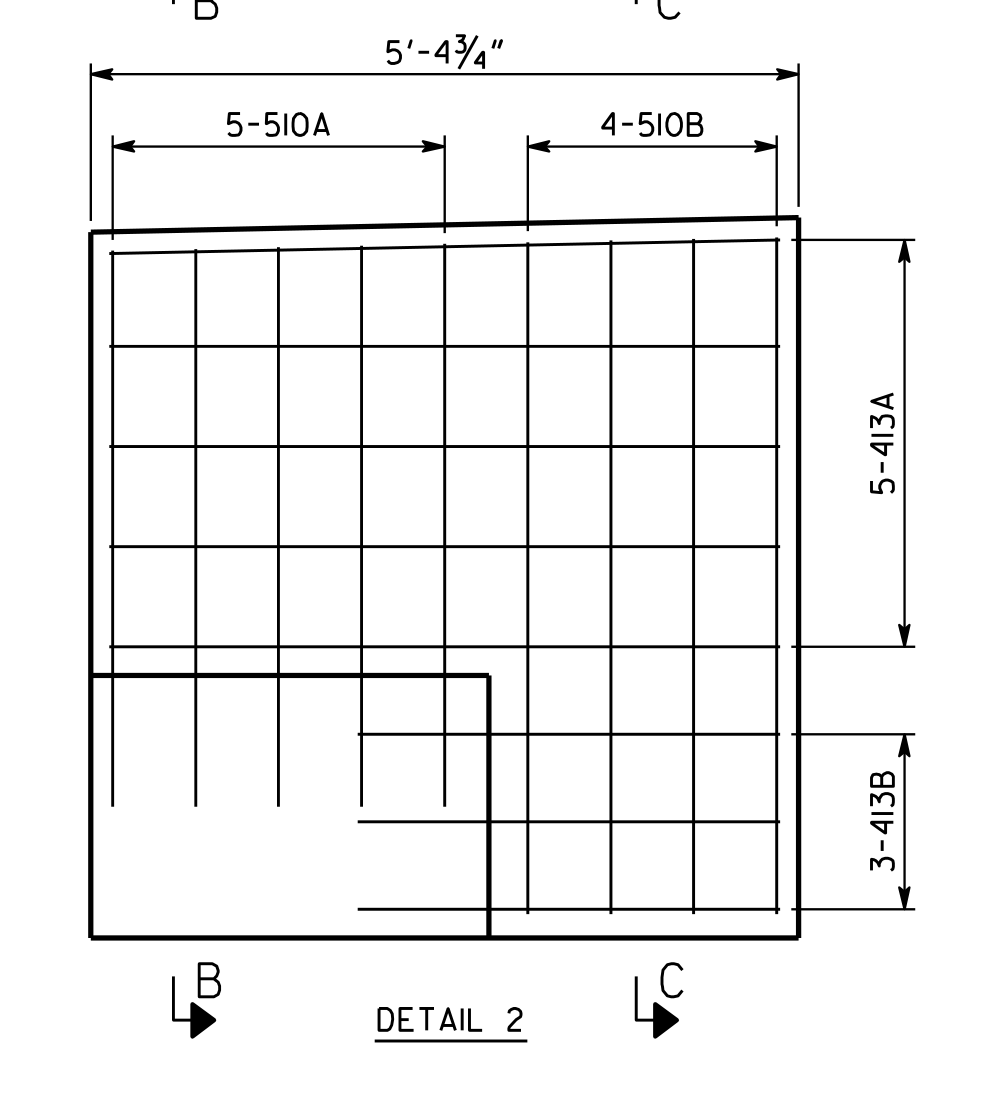

p16_r07
{
  "view": "Detail",
  "objects": [
    {
      "name": "reinforcement bar",
      "tag": "5-#10A",
      "shape": "straight",
      "material": "",
      "count": 5,
      "note": "Bar callout shown at upper left portion of detail."
    },
    {
      "name": "reinforcement bar",
      "tag": "4-#10B",
      "shape": "straight",
      "material": "",
      "count": 4,
      "note": "Bar callout shown at upper right portion of detail."
    },
    {
      "name": "reinforcement bar",
      "tag": "5-#13A",
      "shape": "straight",
      "material": "",
      "count": 5,
      "note": "Bar callout shown along right side of detail."
    },
    {
      "name": "reinforcement bar",
      "tag": "3-#13B",
      "shape": "straight",
      "material": "",
      "count": 3,
      "note": "Bar callout shown along lower right side of detail."
    },
    {
      "name": "reinforcement layout boundary",
      "tag": "",
      "shape": "stepped rectangular",
      "material": "",
      "count": 1,
      "note": "Heavy outline enclosing the reinforcement grid; element type is not identified in this crop."
    }
  ],
  "measurements": [
    {
      "label": "overall horizontal dimension",
      "value": "5'-4¾\"",
      "unit": "",
      "appliesTo": "reinforcement layout boundary"
    },
    {
      "label": "reinforcement callout",
      "value": "5-#10A",
      "unit": "",
      "appliesTo": "5-#10A"
    },
    {
      "label": "reinforcement callout",
      "value": "4-#10B",
      "unit": "",
      "appliesTo": "4-#10B"
    },
    {
      "label": "reinforcement callout",
      "value": "5-#13A",
      "unit": "",
      "appliesTo": "5-#13A"
    },
    {
      "label": "reinforcement callout",
      "value": "3-#13B",
      "unit": "",
      "appliesTo": "3-#13B"
    }
  ],
  "notes": [],
  "labels": [
    "DETAIL 2",
    "B",
    "C"
  ],
  "description": "This crop shows DETAIL 2, a plan-type reinforcement layout within a stepped rectangular heavy outline. The detail includes orthogonal reinforcing-bar grids and four bar callouts, with an overall horizontal dimension of 5'-4¾\" and section/detail reference arrows B and C."
}

p16_r07Detail

  • reinforcement layout boundary×1stepped rectangularHeavy outline enclosing the reinforcement grid; element type is not identified in this crop.

5'-4¾" overall horizontal dimension5-#10A reinforcement callout4-#10B reinforcement callout5-#13A reinforcement callout3-#13B reinforcement callout

crop

p16_r10

page 16 · other_p16_r10
Original
p16_r10
{
  "view": "Detail",
  "objects": [
    {
      "name": "reinforcement bar",
      "tag": "540A",
      "shape": "straight",
      "material": "",
      "count": 5,
      "note": "Callout shown as \"5-540A\"."
    },
    {
      "name": "reinforcement bar",
      "tag": "540B",
      "shape": "straight",
      "material": "",
      "count": 4,
      "note": "Callout shown as \"4-540B\"."
    },
    {
      "name": "rectangular reinforcement layout",
      "tag": "",
      "shape": "rectangular",
      "material": "",
      "count": 1,
      "note": "Only the upper portion of the layout is visible in this crop."
    }
  ],
  "measurements": [
    {
      "label": "overall horizontal dimension",
      "value": "5'-4¾\"",
      "unit": "",
      "appliesTo": "rectangular reinforcement layout"
    }
  ],
  "notes": [],
  "labels": [
    "NO SCALE",
    "E",
    "F"
  ],
  "description": "This crop shows a no-scale reinforcement detail with a rectangular grid-like bar layout, only partly visible below the crop edge. It includes section/detail reference arrows E and F, an overall horizontal dimension, and bar callouts for 540A and 540B."
}

p16_r10Detail

  • rectangular reinforcement layout×1rectangularOnly the upper portion of the layout is visible in this crop.

5'-4¾" overall horizontal dimension
