Bridge And Railroad Alignment
not analysedbridge_and_railroad_alignment_p01_r01Substructure
Not read yet. Press Analyse crops, or read this one on its own.
Mindmap builder
SR21 Bridge Widening new
1Read the crops21 crops · 0 readconfigured openai/gpt-5.6-terra-pro · about 12¢ for 21 crops · default
Every cropped image from the cropping run, page by page, with what the model read off it: view, objects, measurements, notes and labels. Click a crop to see it beside its JSON.
21 crops, none read yet.
Page 121 crops · 0 read
item · 2480 × 1276
Bridge No. 1
not analysedbridge_bents_and_girder_p01_r10SubstructureElevation
Not read yet. Press Analyse crops, or read this one on its own.
item · 2841 × 1625
Bridge Bents And Superstructure
not analysedbridge_bents_and_superstructure_p01_r09SubstructureElevation
Not read yet. Press Analyse crops, or read this one on its own.
item · 1026 × 600
Construction Clearance Envelope
not analysedconstruction_clearance_envelope_p01_r06Substructurecross section
Not read yet. Press Analyse crops, or read this one on its own.
item · 1331 × 630

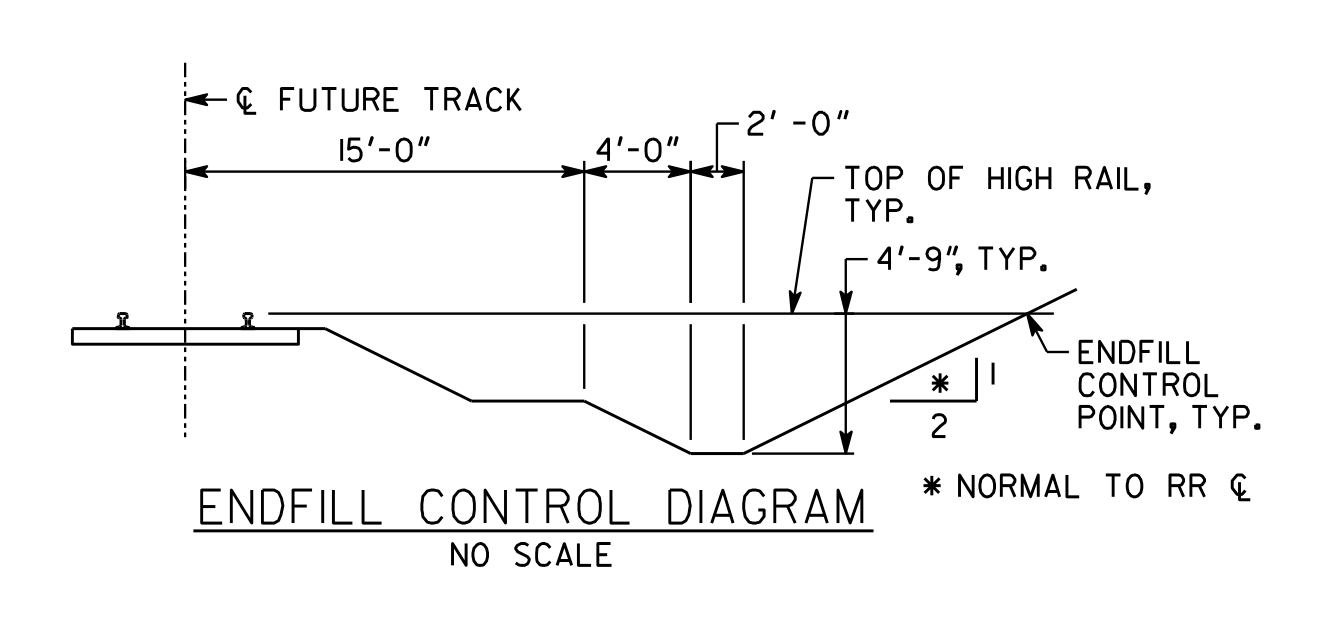

Endfill Track Control
not analysedendfill_track_control_p01_r03Substructurecross section
Not read yet. Press Analyse crops, or read this one on its own.
crop · 3278 × 2285

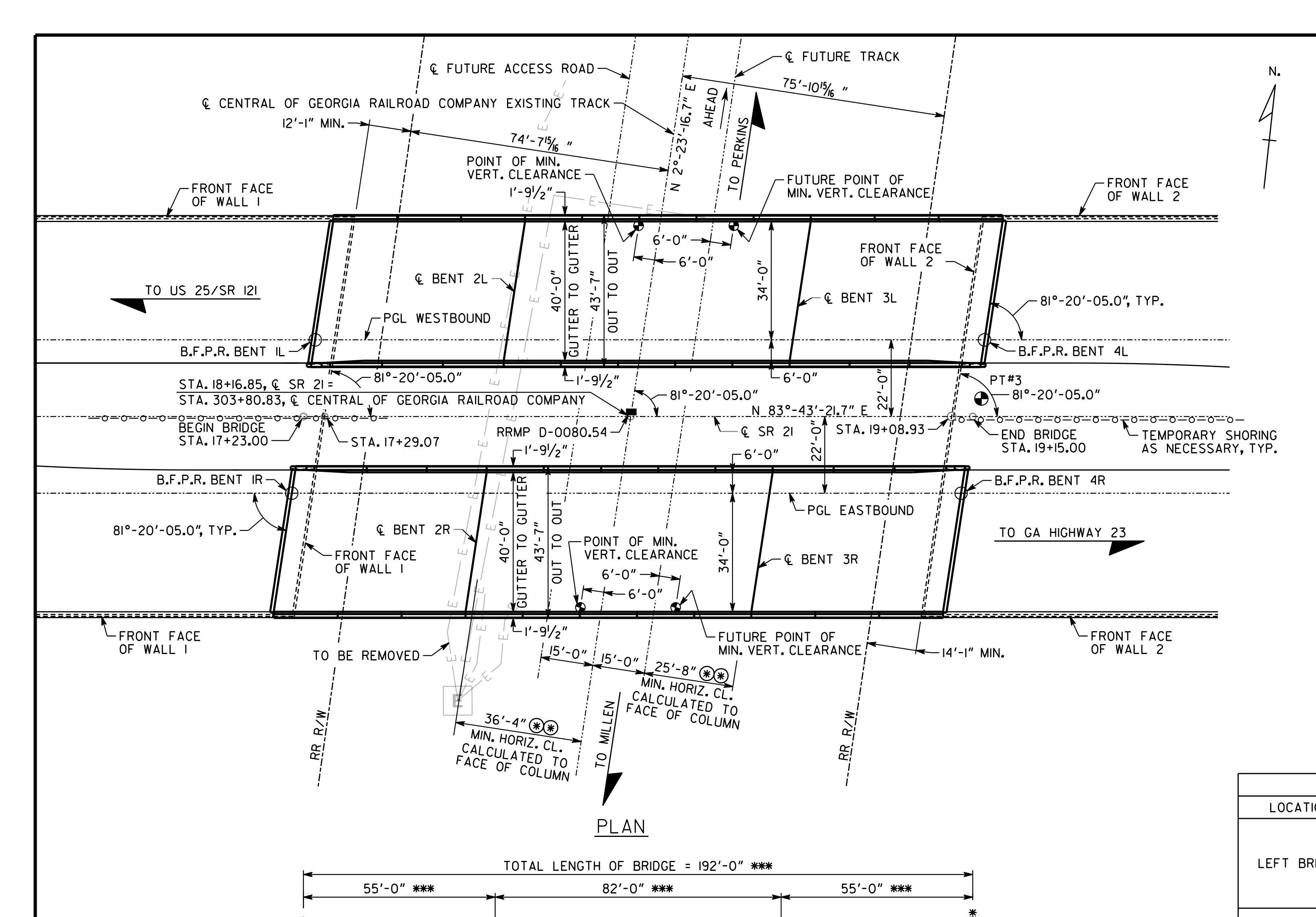

p01_r01 plan of twin bridges over railroad with bent layout
not analysedgdot_plan_1247178f82574c7e92a44f645bd15ef3_p01_r01_plan_of_twin_bridges_over_railroad_with_bent_layout
Not read yet. Press Analyse crops, or read this one on its own.
crop · 961 × 660
p01_r02 proposed vertical curve data
not analysedgdot_plan_1247178f82574c7e92a44f645bd15ef3_p01_r02_proposed_vertical_curve_data
Not read yet. Press Analyse crops, or read this one on its own.
crop · 1283 × 599
p01_r03 endfill control diagram
not analysedgdot_plan_1247178f82574c7e92a44f645bd15ef3_p01_r03_endfill_control_diagram
Not read yet. Press Analyse crops, or read this one on its own.
crop · 1174 × 661
p01_r04 vertical curve profile diagram for eastbound pgl
not analysedgdot_plan_1247178f82574c7e92a44f645bd15ef3_p01_r04_vertical_curve_profile_diagram_for_eastbound_pgl
Not read yet. Press Analyse crops, or read this one on its own.
crop · 957 × 657

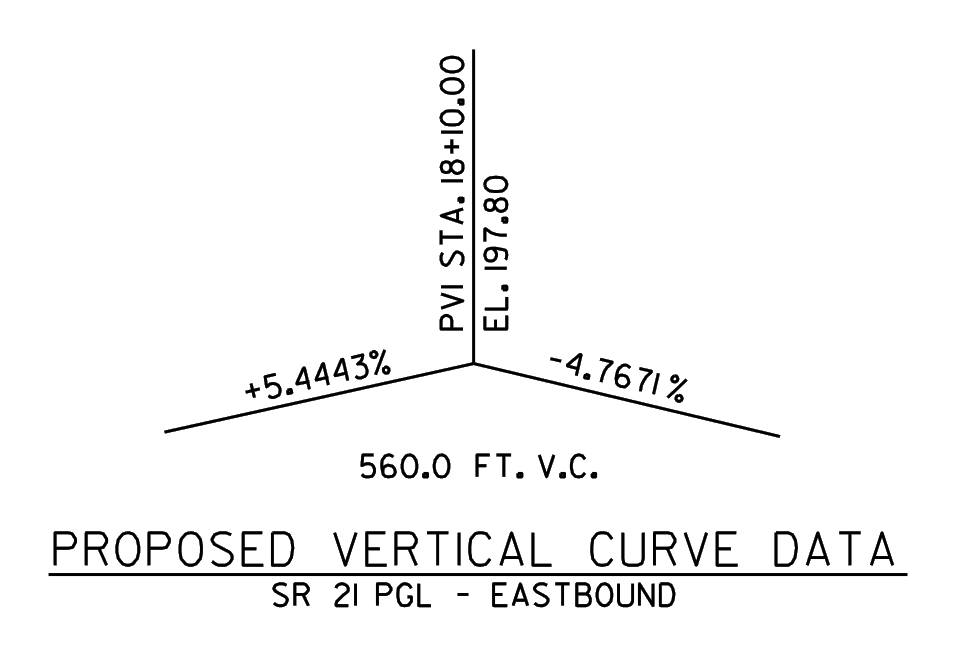

p01_r05 proposed vertical curve data
not analysedgdot_plan_1247178f82574c7e92a44f645bd15ef3_p01_r05_proposed_vertical_curve_data
Not read yet. Press Analyse crops, or read this one on its own.
crop · 979 × 570

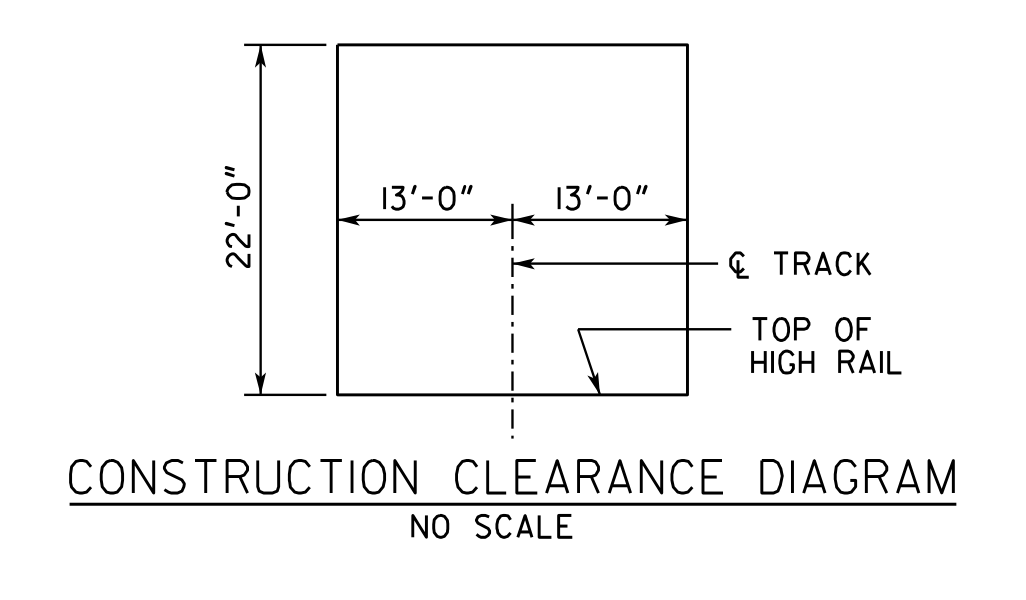

p01_r06 construction clearance diagram
not analysedgdot_plan_1247178f82574c7e92a44f645bd15ef3_p01_r06_construction_clearance_diagram
Not read yet. Press Analyse crops, or read this one on its own.
crop · 1056 × 667
BENT ELEVATIONS **
not analysedgdot_plan_1247178f82574c7e92a44f645bd15ef3_p01_r07_bent_elevations
Not read yet. Press Analyse crops, or read this one on its own.
crop · 868 × 667
BENT ELEVATIONS
not analysedgdot_plan_1247178f82574c7e92a44f645bd15ef3_p01_r08_table_of_bent_station_and_pgl_elevations_left_right_bridge
Not read yet. Press Analyse crops, or read this one on its own.
crop · 2818 × 1595

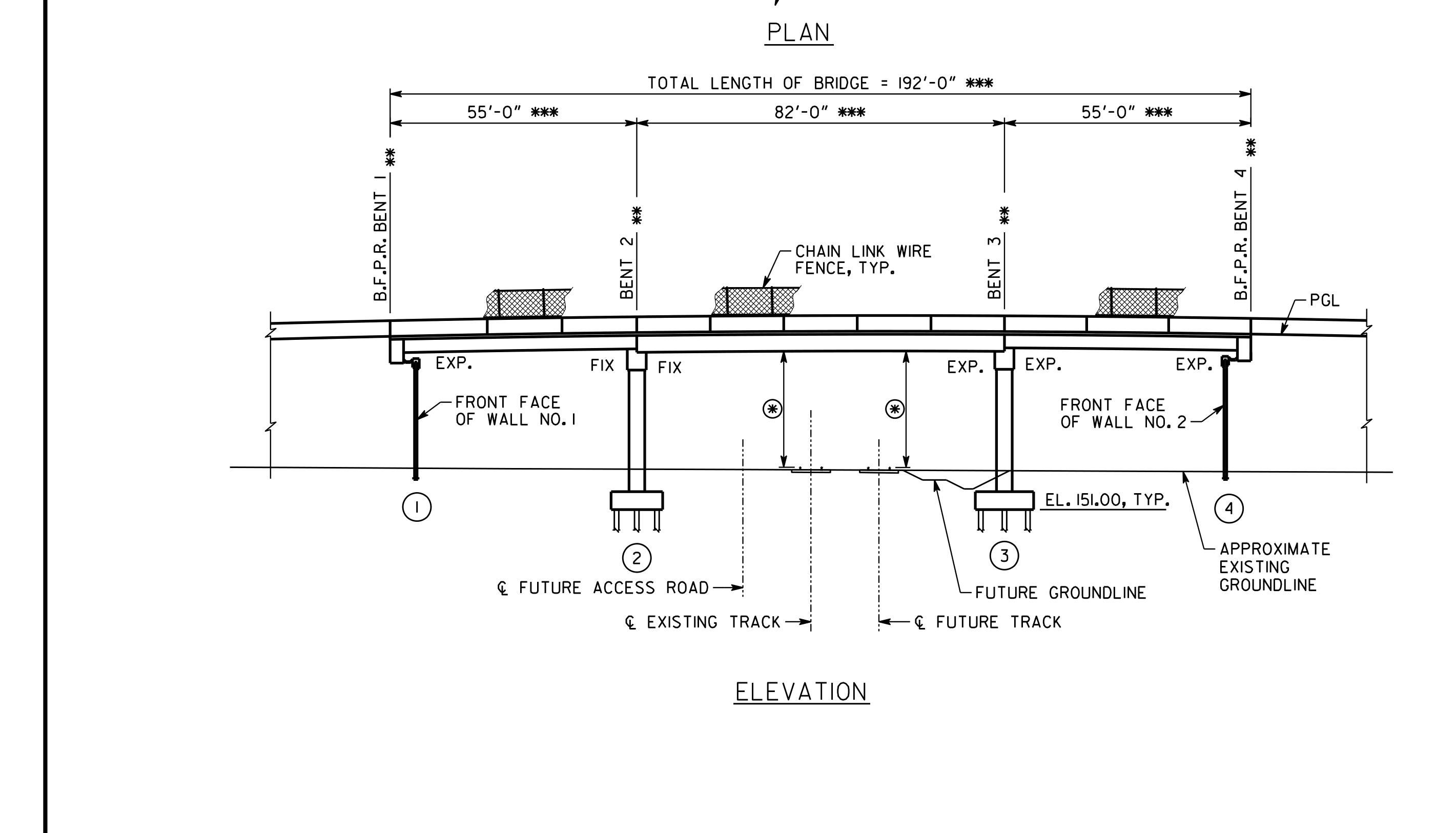

p01_r09 elevation of bridge spans showing bents and clearances
not analysedgdot_plan_1247178f82574c7e92a44f645bd15ef3_p01_r09_elevation_of_bridge_spans_showing_bents_and_clearances
Not read yet. Press Analyse crops, or read this one on its own.
crop · 2432 × 1246

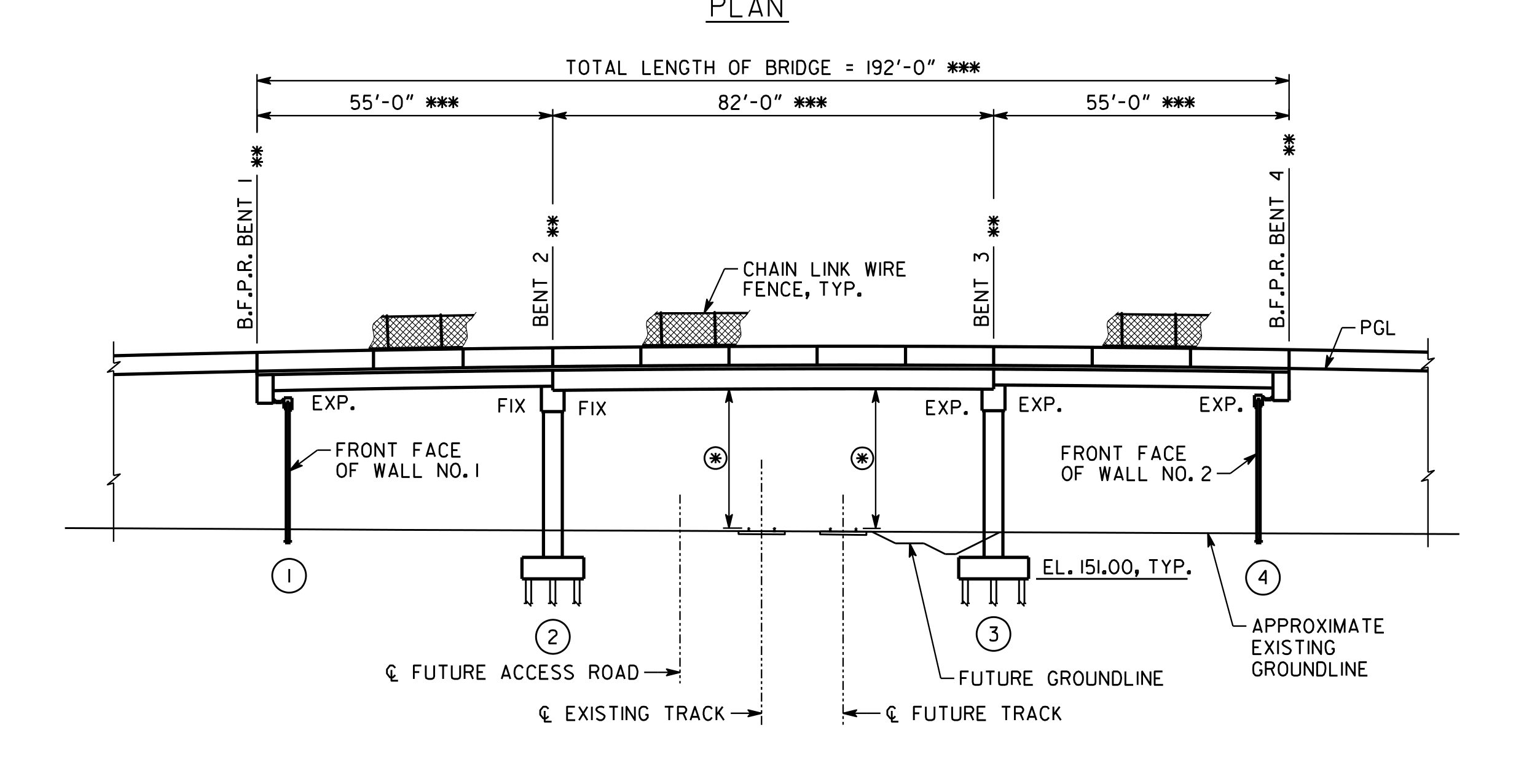

p01_r10 elevation of bridge bents and girder bridge no 1
not analysedgdot_plan_1247178f82574c7e92a44f645bd15ef3_p01_r10_elevation_of_bridge_bents_and_girder_bridge_no_1
Not read yet. Press Analyse crops, or read this one on its own.
crop · 1043 × 697
DOT INVENTORY CROSSING NO. 620272Y
not analysedgdot_plan_1247178f82574c7e92a44f645bd15ef3_p01_r11_project_pi_number_and_bridge_crossing_identifiers
Not read yet. Press Analyse crops, or read this one on its own.
crop · 1730 × 1214

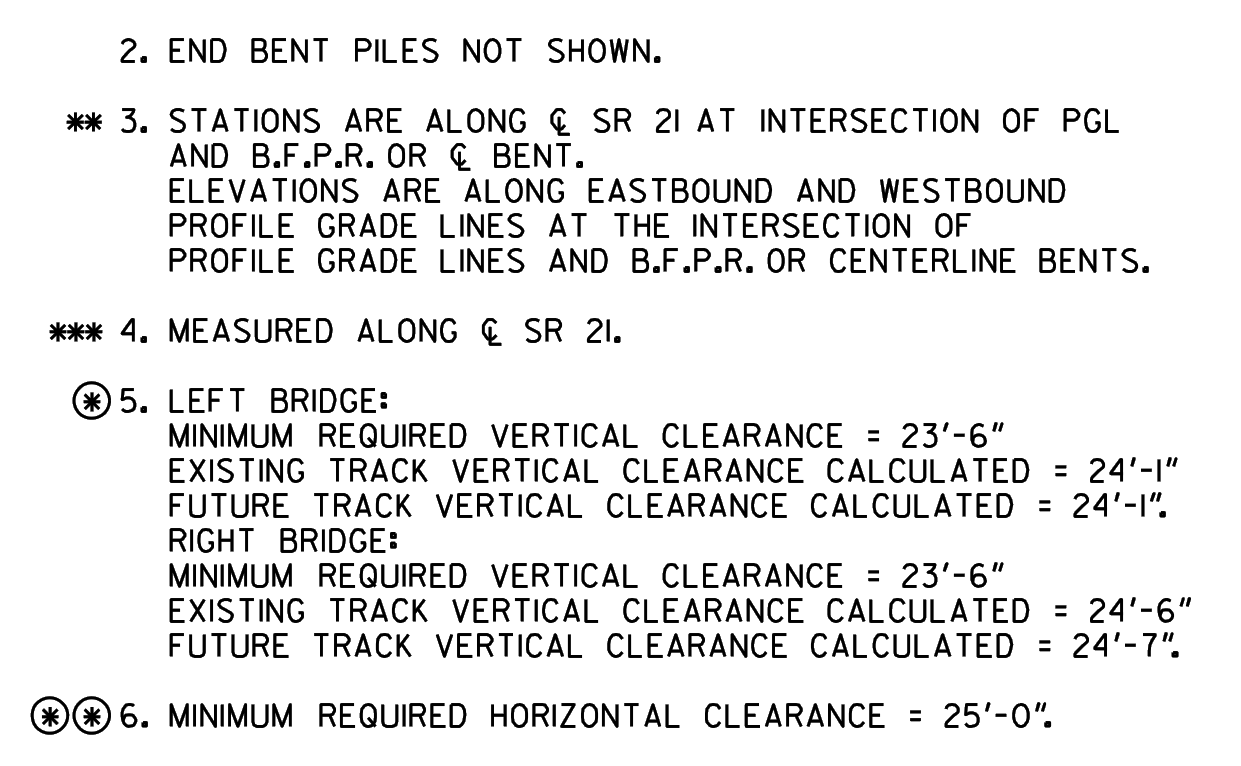

NOTES:
not analysedgdot_plan_1247178f82574c7e92a44f645bd15ef3_p01_r12_general_notes_on_bent_alignment_and_clearance_requirementsNotes
Not read yet. Press Analyse crops, or read this one on its own.
crop · 1872 × 1151

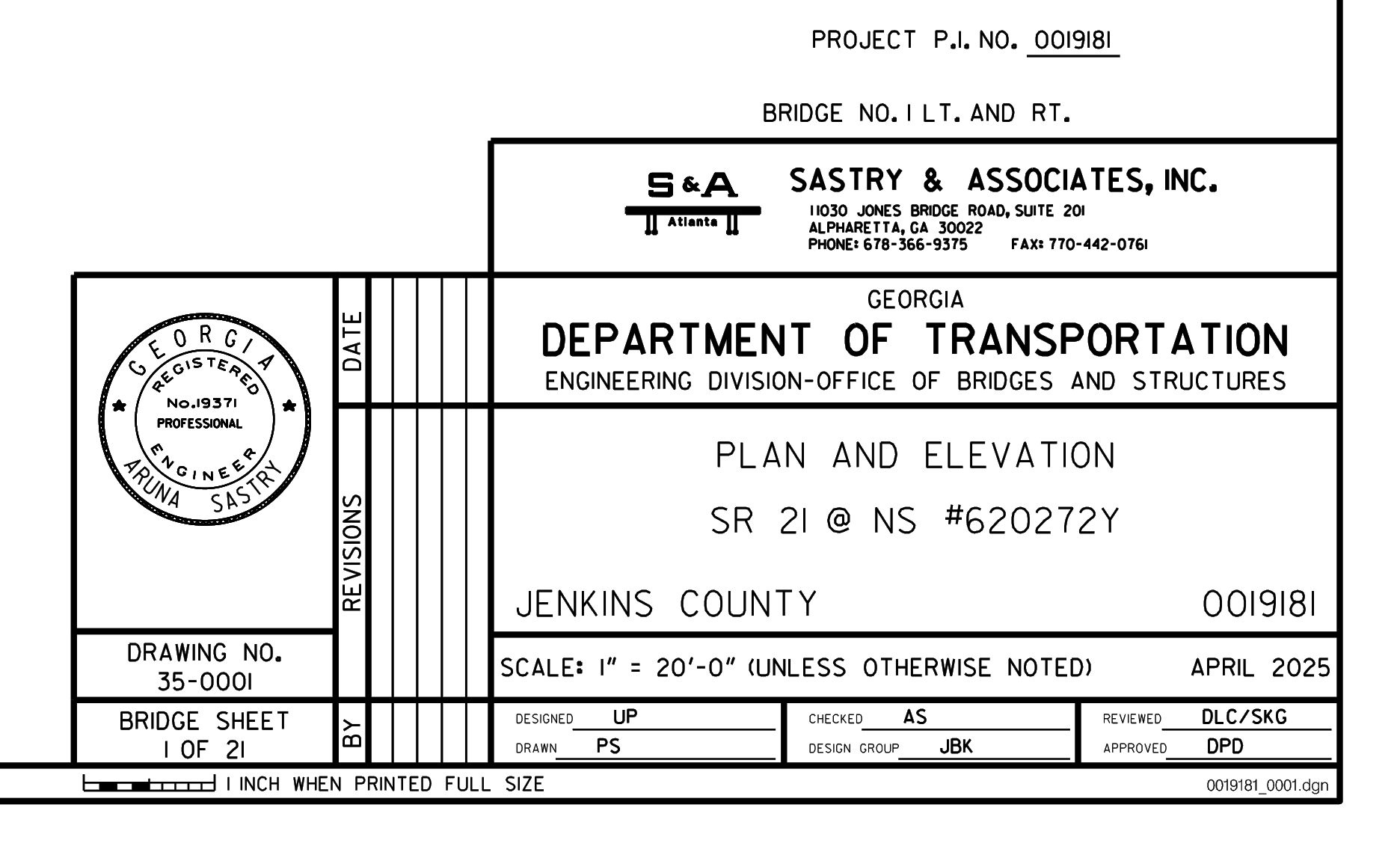

DEPARTMENT OF TRANSPORTATION - PLAN AND ELEVATION
not analysedgdot_plan_1247178f82574c7e92a44f645bd15ef3_p01_r13_firm_seal_gdot_title_block_drawing_sheet_data_table
Not read yet. Press Analyse crops, or read this one on its own.
crop · 1241 × 766
NOTES
not analysedgdot_plan_1247178f82574c7e92a44f645bd15ef3_p01_r14_notes_of_general_notes_note_3Notes
Not read yet. Press Analyse crops, or read this one on its own.
item · 1220 × 691
Sr 21 Profile Grade Line Eastbound
not analysedsr_21_profile_grade_line_eastbound_p01_r04Earthworks
Not read yet. Press Analyse crops, or read this one on its own.
item · 1009 × 1408

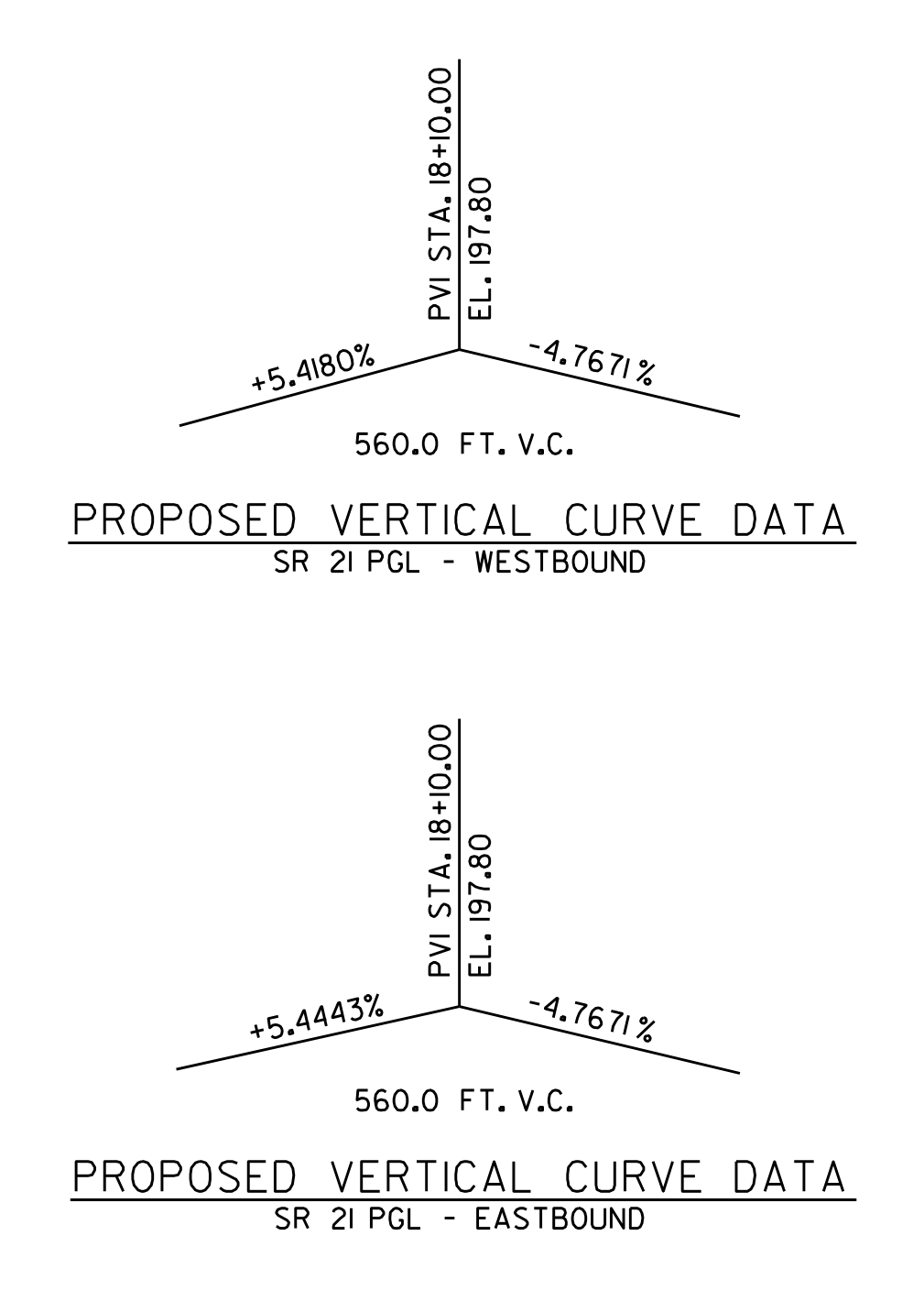

SR 21 PGL Westbound
not analysedvertical_curve_p01_r02Earthworks
Not read yet. Press Analyse crops, or read this one on its own.
