Deck Continuity

1 page · 7 crops · ×7 · deck

⚠ No class in the bridge ontology fits this itemAdd a class

Deck continuity slab/joint is a distinct concept from expansion joints; ontology has no matching continuity-slab class.

How the sheets named it

Deck continuity slab/jointDeck slab / deck continuityDeck Continuity JointDeck slab with deck continuity jointDeck Continuity Slab

Notes on the sheets that carry it

  • p21. ALL DIMENSIONS ARE ... OTHERWISE SPECIFIED.
  • p22. DIMENSIONS ARE NOT FOLLOWED.
  • p23. THIS DRAWING SHALL ALIGNMENT DRAWINGS
  • p24. THE BRIDGE HAS PER... (text cut off)
  • p21. ALL DIMENSIONS ARE IN MILLIMETERS AND LEVELS ARE IN...OTHERWISE SPECIFIED.
  • p22. DIMENSIONS ARE NOT TO BE SCALED. ONLY WRITTEN DIM...FOLLOWED.
  • p23. THIS DRAWING SHALL BE READ IN CONJUNCTION WITH RES...ALIGNMENT DRAWINGS.
  • p24. THE BRIDGE HAS BEEN DESIGNED FOR FOUR LANE OF CLA...CLASS 70R + TWO LANE OF CLASS A, ONE LANE OF 70R...70R OR SV LOADING WHICHEVER GOVERNS, IS CONSIDERED.
  • p25. GRADE OF CONCRETE FOR VARIOUS STRUCTURAL COMPONE...FOLLOWS:-
  • p21. ALL DIMENSIONS ARE (text cut off, partial) OTHERWISE SPECIFIED.
  • p22. DIMENSIONS ARE N... (text cut off) FOLLOWED.
  • p23. THIS DRAWING SHAL... (text cut off) ALIGNMENT DRAWING... (text cut off)
  • p2RCC CRASH BARRIER
  • p2FRL
  • p2DECK CONTINUITY
  • p2PRECAST PSC GIRDER (TYP.)
  • p2RCC SEISMIC STOPPER
  • p2POT-PTFE BEARING (TYP.)
  • p2RCC COLUMN PIER
  • p2RCC PILECAP
  • p21200 DIA BORED CAST-IN-SITU PILES
  • p2CHAMFER

Every crop it was read in — the drawing beside what the model took off it

Page 2

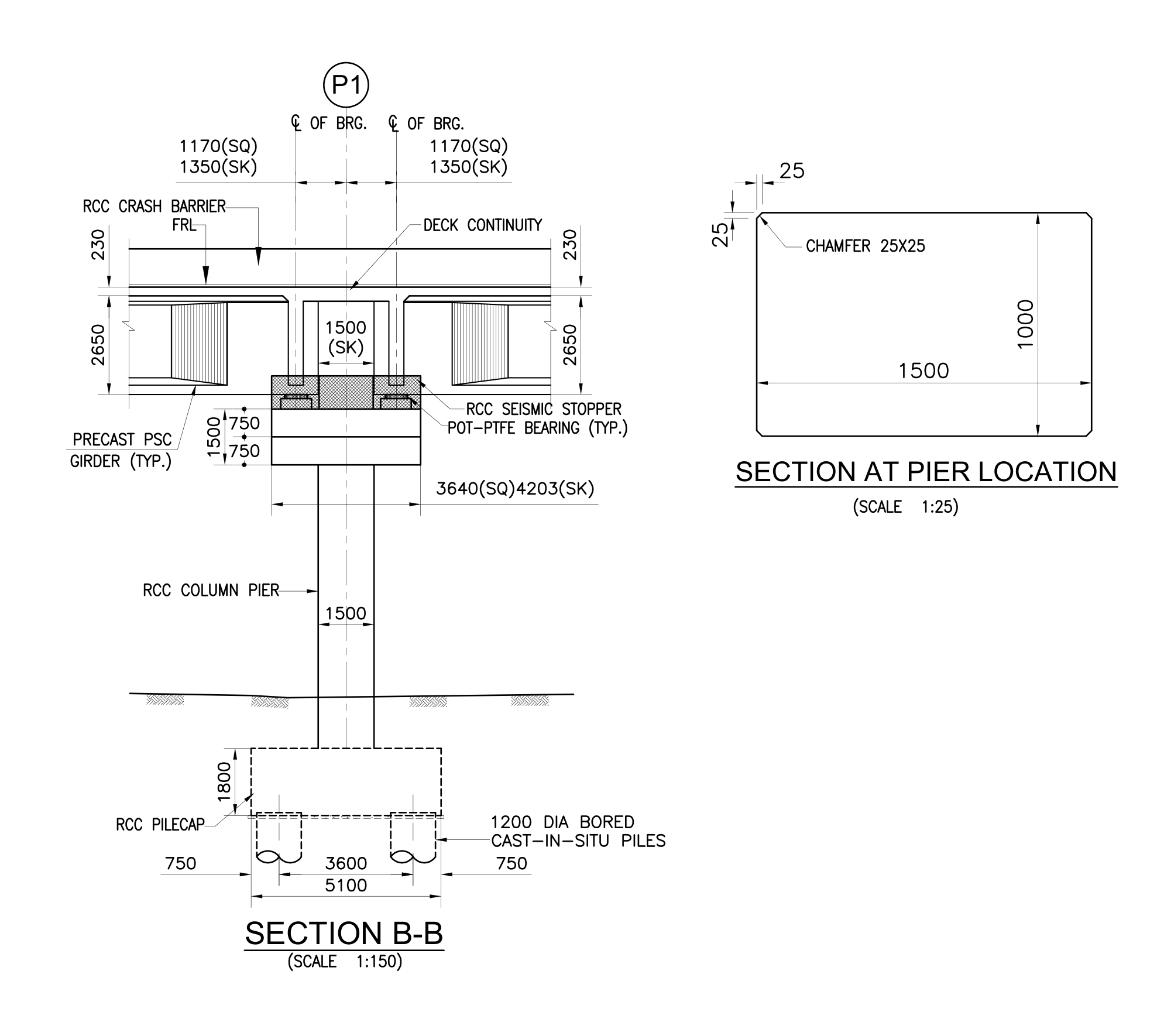

crop

p02_r10

page 2 · bridge_pier_and_foundation_p02_r10
Original
p02_r10
{
  "view": "Cross Section",
  "objects": [
    {
      "name": "Pier",
      "tag": "P1",
      "shape": "column, circular in elevation (rectangular cap)",
      "material": "reinforced concrete",
      "count": 1,
      "note": "Labelled RCC COLUMN PIER, shown as single circular/cylindrical shaft below pier cap"
    },
    {
      "name": "Pier cap / bearing pedestal",
      "tag": "",
      "shape": "rectangular, stepped",
      "material": "reinforced concrete",
      "count": 1,
      "note": "Supports bearings, dimensioned 1500 depth split into 750+750"
    },
    {
      "name": "Crash barrier",
      "tag": "",
      "shape": "rectangular profile",
      "material": "reinforced concrete",
      "count": 2,
      "note": "RCC CRASH BARRIER at each edge of deck, 230 height shown both sides"
    },
    {
      "name": "PSC Girder",
      "tag": "",
      "shape": "I-girder (tapered flange, shown in section as vertical hatched webs)",
      "material": "precast concrete",
      "count": 2,
      "note": "PRECAST PSC GIRDER (TYP.), one on each side of pier centerline"
    },
    {
      "name": "Bearing",
      "tag": "",
      "shape": "rectangular, pot type",
      "material": "elastomeric/PTFE composite",
      "count": 4,
      "note": "POT-PTFE BEARING (TYP.), two pairs shown symmetric about centerline"
    },
    {
      "name": "Seismic stopper",
      "tag": "",
      "shape": "rectangular block",
      "material": "reinforced concrete",
      "count": 2,
      "note": "RCC SEISMIC STOPPER shown at bearing locations"
    },
    {
      "name": "Deck continuity slab/joint",
      "tag": "",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 1,
      "note": "DECK CONTINUITY labelled at top center over pier"
    },
    {
      "name": "Pile cap",
      "tag": "",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 1,
      "note": "RCC PILECAP, dashed outline, depth 1800"
    },
    {
      "name": "Bored cast-in-situ pile",
      "tag": "",
      "shape": "circular",
      "material": "reinforced concrete",
      "count": 2,
      "note": "1200 DIA BORED CAST-IN-SITU PILES, shown in section with hooked reinforcement ends"
    }
  ],
  "measurements": [
    {
      "label": "Distance from centerline to bearing",
      "value": "1170",
      "unit": "",
      "appliesTo": "square span layout"
    },
    {
      "label": "Distance from centerline to bearing (skew)",
      "value": "1350",
      "unit": "",
      "appliesTo": "skew span layout"
    },
    {
      "label": "Bearing gap at centerline of pier",
      "value": "1500",
      "unit": "",
      "appliesTo": "skew (SK) dimension between bearings"
    },
    {
      "label": "Crash barrier height",
      "value": "230",
      "unit": "",
      "appliesTo": "RCC crash barrier, both sides"
    },
    {
      "label": "Girder depth",
      "value": "2650",
      "unit": "",
      "appliesTo": "PRECAST PSC GIRDER, both sides"
    },
    {
      "label": "Pier cap total depth",
      "value": "1500",
      "unit": "",
      "appliesTo": "pier cap"
    },
    {
      "label": "Pier cap depth split (upper)",
      "value": "750",
      "unit": "",
      "appliesTo": "pier cap"
    },
    {
      "label": "Pier cap depth split (lower)",
      "value": "750",
      "unit": "",
      "appliesTo": "pier cap"
    },
    {
      "label": "Pier cap width square",
      "value": "3640",
      "unit": "",
      "appliesTo": "pier cap (SQ)"
    },
    {
      "label": "Pier cap width skew",
      "value": "4203",
      "unit": "",
      "appliesTo": "pier cap (SK)"
    },
    {
      "label": "Pier shaft width",
      "value": "1500",
      "unit": "",
      "appliesTo": "RCC column pier"
    },
    {
      "label": "Pile cap depth",
      "value": "1800",
      "unit": "",
      "appliesTo": "RCC pilecap"
    },
    {
      "label": "Edge distance from pile to pile cap edge",
      "value": "750",
      "unit": "",
      "appliesTo": "pile cap, both sides"
    },
    {
      "label": "Pile spacing center to center",
      "value": "3600",
      "unit": "",
      "appliesTo": "between piles"
    },
    {
      "label": "Total pile cap width",
      "value": "5100",
      "unit": "",
      "appliesTo": "pile cap"
    },
    {
      "label": "Pile diameter",
      "value": "1200",
      "unit": "DIA",
      "appliesTo": "bored cast-in-situ piles"
    }
  ],
  "notes": [],
  "labels": [
    "P1",
    "℄ OF BRG.",
    "FRL",
    "RCC CRASH BARRIER",
    "DECK CONTINUITY",
    "PRECAST PSC GIRDER (TYP.)",
    "RCC SEISMIC STOPPER",
    "POT-PTFE BEARING (TYP.)",
    "RCC COLUMN PIER",
    "RCC PILECAP",
    "1200 DIA BORED CAST-IN-SITU PILES",
    "SECTION P-P"
  ],
  "description": "This crop is a cross section through bridge pier P1, showing the deck/girder arrangement, pot-PTFE bearings with seismic stoppers atop a stepped pier cap, a single circular RCC column pier shaft, and below-ground an RCC pile cap supported on two 1200mm diameter bored cast-in-situ piles. It documents the substructure geometry and key dimensions (bearing spacing, pier cap and shaft sizes, pile cap depth, pile spacing) for pier P1, distinguishing square (SQ) and skew (SK) dimensions where the bridge is skewed.  The section title 'SECTION P-P' appears partially cut off at the bottom edge."
}

p02_r10Cross Section

  • Deck continuity slab/joint×1rectangularreinforced concreteDECK CONTINUITY labelled at top center over pier

1170 Distance from centerline to bearing1350 Distance from centerline to bearing (skew)1500 Bearing gap at centerline of pier230 Crash barrier height2650 Girder depth1500 Pier cap total depth750 Pier cap depth split (upper)750 Pier cap depth split (lower)+8 more

crop

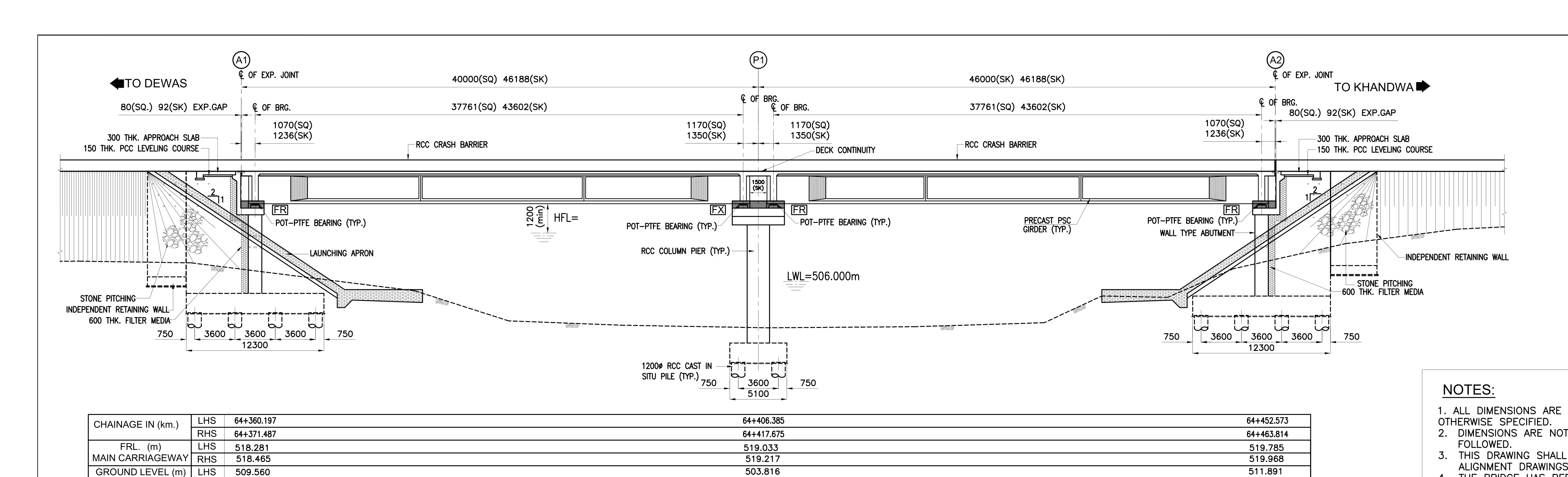

p02_r02
