Step 1 sends drawing crops, so it needs a model that can see them. Steps 2 and 3 send step 1’s readings as text — a text-only model with a large context is a fair answer there.

1Read the crops37 crops · 4 read · 48 objects · 81 measurementsconfigured openai/gpt-5.6-terra-pro · about 19¢ for 33 crops · default

Every cropped image from the cropping run, page by page, with what the model read off it: view, objects, measurements, notes and labels. Click a crop to see it beside its JSON.

4 of 37 crops read.

37crops4read48objects found81measurements16,861tokens in6,817tokens out
Page 118 crops · 2 read
item · 3790 × 3622

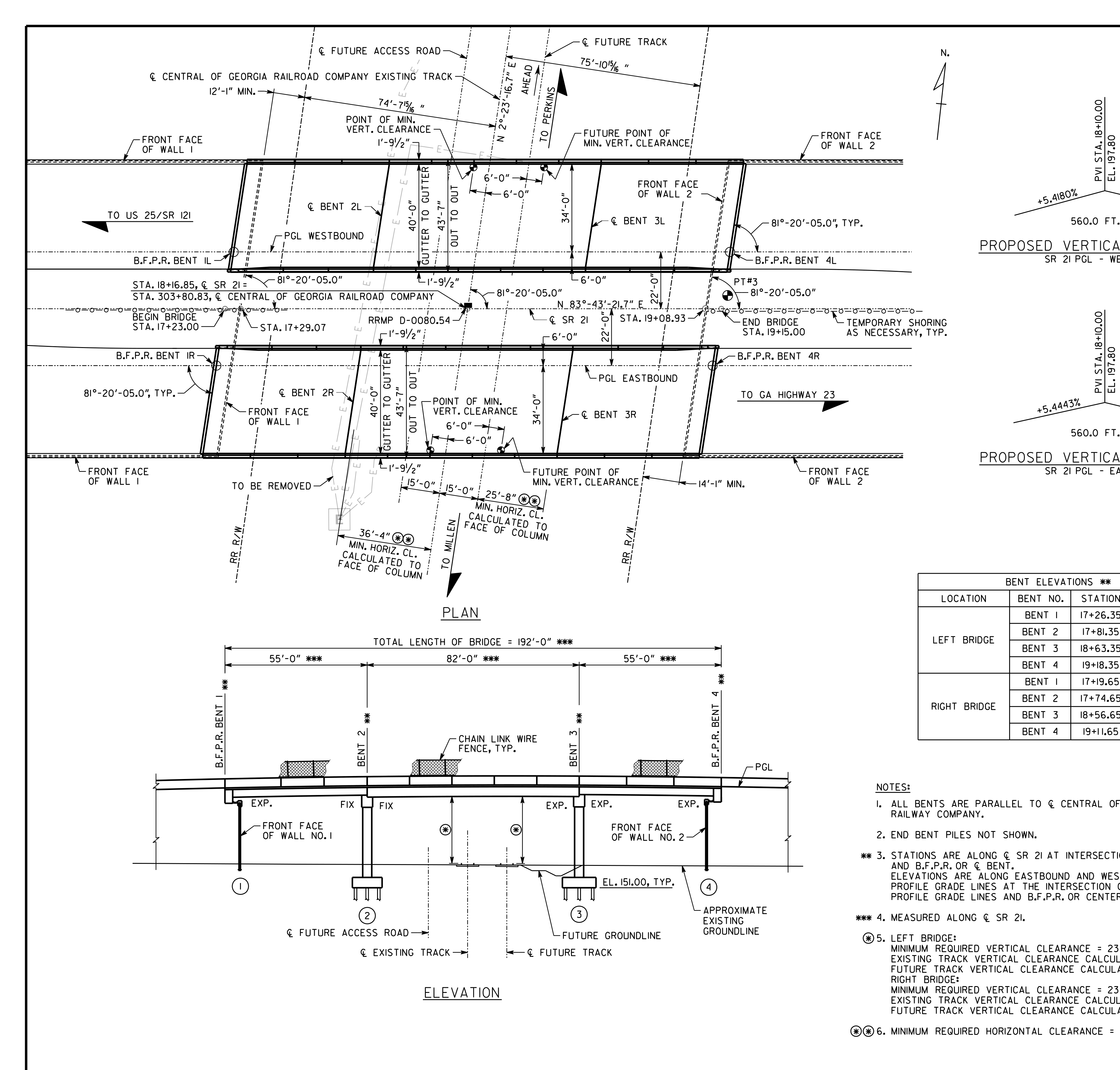

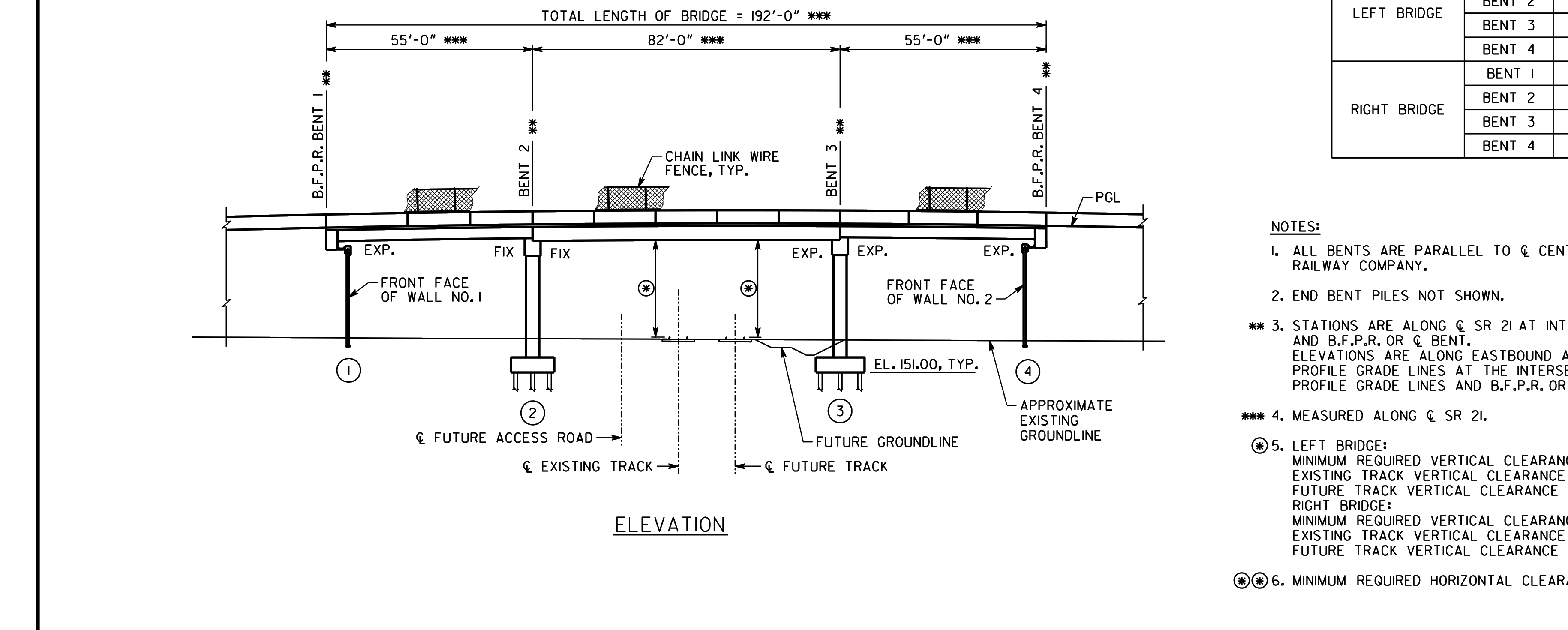

Bridge No. 1 Lt and Rt

page 1 · bridge_1_right
Original
Bridge No. 1 Lt and Rt
{
  "view": "Unclear",
  "objects": [
    {
      "name": "Wall",
      "tag": "WALL 1",
      "shape": "rectangular",
      "material": "",
      "count": 2,
      "note": "Front face shown in plan and elevation."
    },
    {
      "name": "Wall",
      "tag": "WALL 2",
      "shape": "rectangular",
      "material": "",
      "count": 4,
      "note": "Front face shown in plan and elevation."
    },
    {
      "name": "Bent",
      "tag": "BENT 1L / BENT 1R",
      "shape": "",
      "material": "",
      "count": 2,
      "note": "B.F.P.R. end bent locations shown; end bent piles not shown."
    },
    {
      "name": "Bent",
      "tag": "BENT 2L / BENT 2R",
      "shape": "",
      "material": "",
      "count": 2,
      "note": "Interior bent locations shown."
    },
    {
      "name": "Bent",
      "tag": "BENT 3L / BENT 3R",
      "shape": "",
      "material": "",
      "count": 2,
      "note": "Interior bent locations shown."
    },
    {
      "name": "Bent",
      "tag": "BENT 4L / BENT 4R",
      "shape": "",
      "material": "",
      "count": 2,
      "note": "B.F.P.R. end bent locations shown; end bent piles not shown."
    },
    {
      "name": "Pile cap and piles",
      "tag": "",
      "shape": "rectangular pile cap with vertical piles",
      "material": "",
      "count": 2,
      "note": "Shown below Bents 2 and 3 in elevation."
    },
    {
      "name": "Bridge deck",
      "tag": "",
      "shape": "straight deck slab/profile",
      "material": "",
      "count": 1,
      "note": "Shown in elevation with PGL."
    },
    {
      "name": "Expansion joint",
      "tag": "EXP.",
      "shape": "",
      "material": "",
      "count": 4,
      "note": "Locations shown in elevation."
    },
    {
      "name": "Fixed bearing",
      "tag": "FIX",
      "shape": "",
      "material": "",
      "count": 2,
      "note": "Locations shown in elevation."
    },
    {
      "name": "Chain link wire fence",
      "tag": "",
      "shape": "mesh panel",
      "material": "wire",
      "count": 3,
      "note": "Labeled TYP."
    },
    {
      "name": "Existing track",
      "tag": "℄ EXISTING TRACK",
      "shape": "alignment",
      "material": "",
      "count": 1,
      "note": "Shown below bridge in elevation and in plan."
    },
    {
      "name": "Future track",
      "tag": "℄ FUTURE TRACK",
      "shape": "alignment",
      "material": "",
      "count": 1,
      "note": "Shown below bridge in elevation and in plan."
    },
    {
      "name": "Future access road",
      "tag": "℄ FUTURE ACCESS ROAD",
      "shape": "alignment",
      "material": "",
      "count": 1,
      "note": "Shown in plan and elevation."
    },
    {
      "name": "Future groundline",
      "tag": "",
      "shape": "irregular line",
      "material": "",
      "count": 1,
      "note": ""
    },
    {
      "name": "Approximate existing groundline",
      "tag": "",
      "shape": "irregular line",
      "material": "",
      "count": 1,
      "note": ""
    },
    {
      "name": "Temporary shoring",
      "tag": "",
      "shape": "",
      "material": "",
      "count": null,
      "note": "As necessary, TYP."
    }
  ],
  "measurements": [
    {
      "label": "Minimum dimension",
      "value": "12'-1\" MIN.",
      "unit": "",
      "appliesTo": "℄ CENTRAL OF GEORGIA RAILROAD COMPANY EXISTING TRACK"
    },
    {
      "label": "Plan dimension",
      "value": "74'-7 15/16\"",
      "unit": "",
      "appliesTo": ""
    },
    {
      "label": "Plan dimension",
      "value": "75'-10 15/16\"",
      "unit": "",
      "appliesTo": "℄ FUTURE TRACK"
    },
    {
      "label": "Plan dimension",
      "value": "N. 2°-23'-16.7\"",
      "unit": "",
      "appliesTo": "AHEAD"
    },
    {
      "label": "Minimum vertical clearance",
      "value": "1'-9 1/2\"",
      "unit": "",
      "appliesTo": ""
    },
    {
      "label": "Gutter-to-gutter dimension",
      "value": "40'-0\"",
      "unit": "",
      "appliesTo": ""
    },
    {
      "label": "Gutter-out-to-out dimension",
      "value": "43'-7\"",
      "unit": "",
      "appliesTo": ""
    },
    {
      "label": "Plan dimension",
      "value": "6'-0\"",
      "unit": "",
      "appliesTo": ""
    },
    {
      "label": "Plan dimension",
      "value": "34'-0\"",
      "unit": "",
      "appliesTo": ""
    },
    {
      "label": "Angle",
      "value": "81°-20'-05.0\"",
      "unit": "",
      "appliesTo": "Bents"
    },
    {
      "label": "Station",
      "value": "STA. 18+16.85",
      "unit": "",
      "appliesTo": "℄ SR 21"
    },
    {
      "label": "Station",
      "value": "STA. 303+80.83",
      "unit": "",
      "appliesTo": "℄ CENTRAL OF GEORGIA RAILROAD COMPANY"
    },
    {
      "label": "Begin bridge station",
      "value": "STA. 17+23.00",
      "unit": "",
      "appliesTo": "BEGIN BRIDGE"
    },
    {
      "label": "Station",
      "value": "STA. 17+29.07",
      "unit": "",
      "appliesTo": "RRMP D-0080.54"
    },
    {
      "label": "Station",
      "value": "STA. 19+08.93",
      "unit": "",
      "appliesTo": "℄ SR 21"
    },
    {
      "label": "End bridge station",
      "value": "STA. 19+15.00",
      "unit": "",
      "appliesTo": "END BRIDGE"
    },
    {
      "label": "Bearing",
      "value": "N. 83°-43'-21.7\" E.",
      "unit": "",
      "appliesTo": "℄ SR 21"
    },
    {
      "label": "Plan dimension",
      "value": "22'-0\"",
      "unit": "",
      "appliesTo": ""
    },
    {
      "label": "Minimum dimension",
      "value": "14'-1\" MIN.",
      "unit": "",
      "appliesTo": ""
    },
    {
      "label": "Plan dimension",
      "value": "15'-0\"",
      "unit": "",
      "appliesTo": ""
    },
    {
      "label": "Plan dimension",
      "value": "25'-8\"",
      "unit": "",
      "appliesTo": "MIN. HORIZ. CL. CALCULATED TO FACE OF COLUMN"
    },
    {
      "label": "Plan dimension",
      "value": "36'-4\"",
      "unit": "",
      "appliesTo": "MIN. HORIZ. CL. CALCULATED TO FACE OF COLUMN"
    },
    {
      "label": "Total bridge length",
      "value": "192'-0\"",
      "unit": "",
      "appliesTo": "Bridge"
    },
    {
      "label": "Span length",
      "value": "55'-0\"",
      "unit": "",
      "appliesTo": ""
    },
    {
      "label": "Span length",
      "value": "82'-0\"",
      "unit": "",
      "appliesTo": ""
    },
    {
      "label": "Span length",
      "value": "55'-0\"",
      "unit": "",
      "appliesTo": ""
    },
    {
      "label": "Elevation",
      "value": "EL. 151.00",
      "unit": "",
      "appliesTo": "Pile caps"
    },
    {
      "label": "Station",
      "value": "17+26.35",
      "unit": "",
      "appliesTo": "LEFT BRIDGE BENT 1"
    },
    {
      "label": "Station",
      "value": "17+81.35",
      "unit": "",
      "appliesTo": "LEFT BRIDGE BENT 2"
    },
    {
      "label": "Station",
      "value": "18+63.35",
      "unit": "",
      "appliesTo": "LEFT BRIDGE BENT 3"
    },
    {
      "label": "Station",
      "value": "19+18.35",
      "unit": "",
      "appliesTo": "LEFT BRIDGE BENT 4"
    },
    {
      "label": "Station",
      "value": "17+19.65",
      "unit": "",
      "appliesTo": "RIGHT BRIDGE BENT 1"
    },
    {
      "label": "Station",
      "value": "17+74.65",
      "unit": "",
      "appliesTo": "RIGHT BRIDGE BENT 2"
    },
    {
      "label": "Station",
      "value": "18+56.65",
      "unit": "",
      "appliesTo": "RIGHT BRIDGE BENT 3"
    },
    {
      "label": "Station",
      "value": "19+11.65",
      "unit": "",
      "appliesTo": "RIGHT BRIDGE BENT 4"
    },
    {
      "label": "PVI station",
      "value": "PVI STA. 18+10.00",
      "unit": "",
      "appliesTo": "SR 21 PGL profile fragment"
    },
    {
      "label": "PVI elevation",
      "value": "EL. 197.80",
      "unit": "",
      "appliesTo": "SR 21 PGL profile fragment"
    },
    {
      "label": "Grade",
      "value": "+5.4180%",
      "unit": "",
      "appliesTo": "SR 21 PGL profile fragment"
    },
    {
      "label": "Grade length",
      "value": "560.0 FT.",
      "unit": "FT.",
      "appliesTo": "SR 21 PGL profile fragment"
    },
    {
      "label": "Grade",
      "value": "+5.4443%",
      "unit": "",
      "appliesTo": "SR 21 PGL profile fragment"
    }
  ],
  "notes": [
    "1. ALL BENTS ARE PARALLEL TO ℄ CENTRAL OF GEORGIA RAILWAY COMPANY.",
    "2. END BENT PILES NOT SHOWN.",
    "** 3. STATIONS ARE ALONG ℄ SR 21 AT INTERSECTI... AND B.F.P.R. OR ℄ BENT. ELEVATIONS ARE ALONG EASTBOUND AND WES... PROFILE GRADE LINES AT THE INTERSECTION OF ... PROFILE GRADE LINES AND B.F.P.R. OR CENTER...",
    "*** 4. MEASURED ALONG ℄ SR 21.",
    "* 5. LEFT BRIDGE: MINIMUM REQUIRED VERTICAL CLEARANCE = 23... EXISTING TRACK VERTICAL CLEARANCE CALCULA... FUTURE TRACK VERTICAL CLEARANCE CALCULA... RIGHT BRIDGE: MINIMUM REQUIRED VERTICAL CLEARANCE = 23... EXISTING TRACK VERTICAL CLEARANCE CALCUL... FUTURE TRACK VERTICAL CLEARANCE CALCULA...",
    "** 6. MINIMUM REQUIRED HORIZONTAL CLEARANCE = ...",
    "TEMPORARY SHORING AS NECESSARY, TYP.",
    "CHAIN LINK WIRE FENCE, TYP.",
    "TO BE REMOVED"
  ],
  "labels": [
    "PLAN",

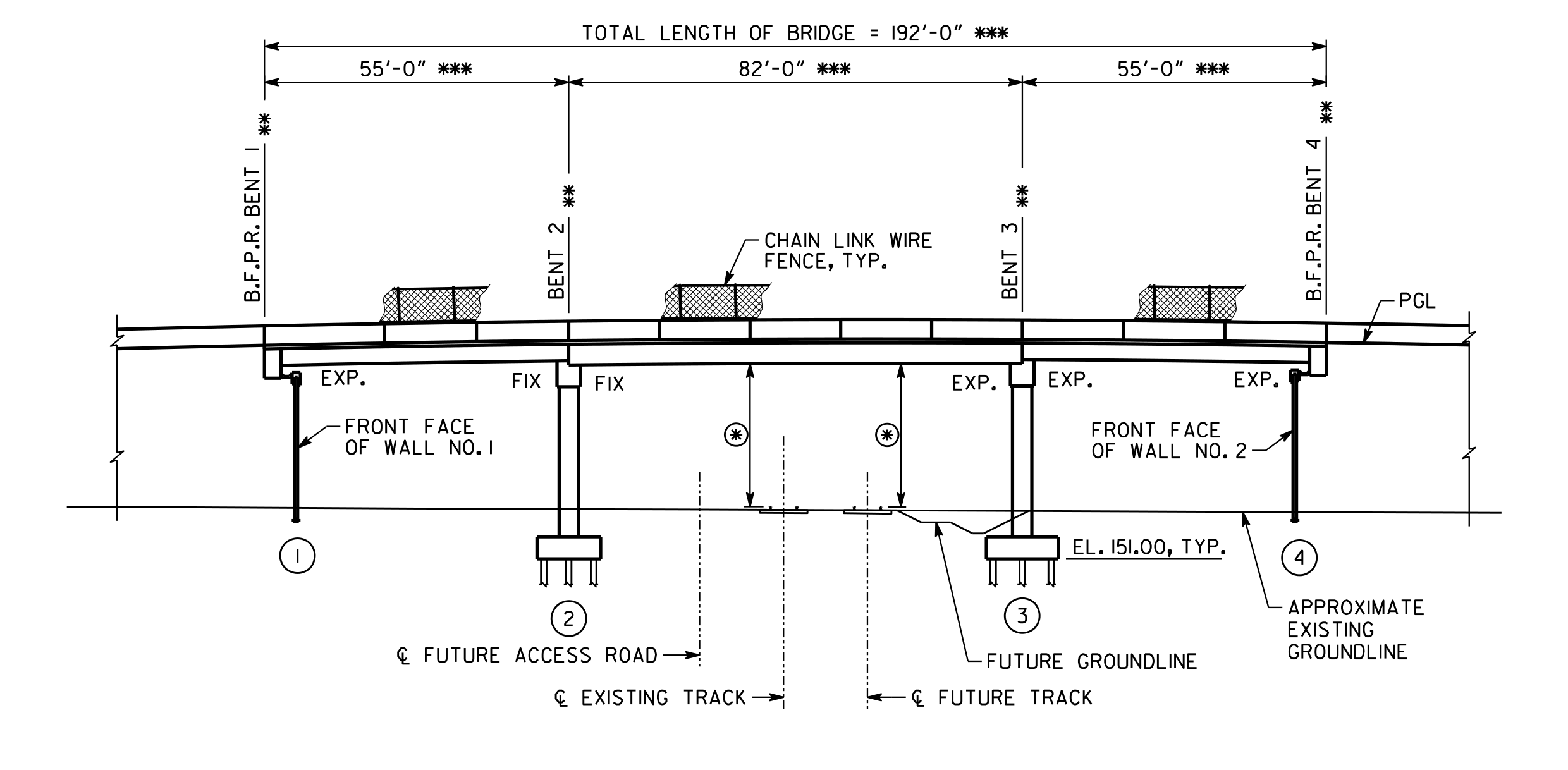

    "ELEVATION",

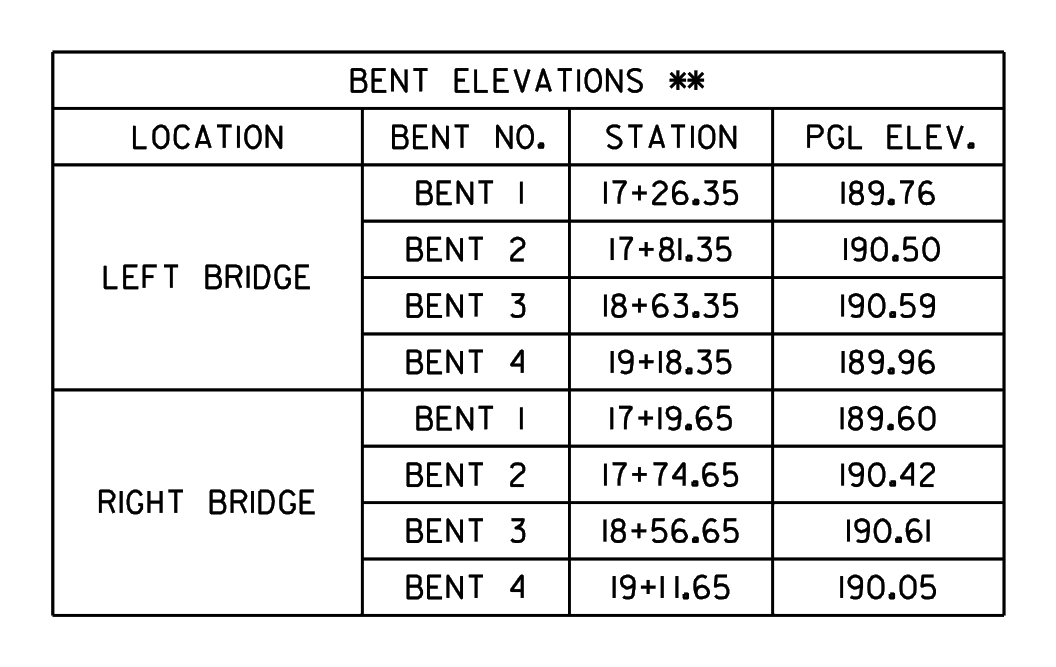

    "BENT ELEVATIONS **",
    "LOCATION",
    "BENT NO.",
    "STATION",
    "LEFT BRIDGE",
    "RIGHT BRIDGE",
    "PGL WESTBOUND",
    "PGL EASTBOUND",
    "PGL",
    "℄ CENTRAL OF GEORGIA RAILROAD COMPANY EXISTING TRACK",
    "℄ FUTURE ACCESS ROAD",
    "℄ FUTURE TRACK",
    "℄ EXISTING TRACK",
    "TO PERKINS",
    "TO US 25/SR 121",
    "TO GA HIGHWAY 23",
    "BEGIN BRIDGE",
    "END BRIDGE",
    "POINT OF MIN. VERT. CLEARANCE",
    "FUTURE POINT OF MIN. VERT. CLEARANCE",
    "MIN. HORIZ. CL. CALCULATED TO FACE OF COLUMN",
    "NOTES:"
  ],
  "description": "This crop contains a bridge general arrangement with a plan at the top and an elevation at the bottom, rather than a single elevation view. It documents left and right bridge bent positions, walls, deck bearing/joint locations, railroad and future-track clearances, bridge length and bent-station information. The right edge includes a partial proposed vertical profile and a bent-elevations table; some note text is cut off by the crop boundary."
}

Bridge No. 1 Lt and Rt

done

bridge_1_rightSubstructureElevation

Unclear17 objects · 40 measurements · 9 notes · 24 labels

This crop contains a bridge general arrangement with a plan at the top and an elevation at the bottom, rather than a single elevation view. It documents left and right bridge bent positions, walls, deck bearing/joint locations, railroad and future-track clearances, bridge length and bent-station information. The right edge includes a partial proposed vertical profile and a bent-elevations table; some note text is cut off by the crop boundary.

Objects · 17

MarkObjectNo.ShapeMaterialNote
WALL 1Wall2rectangularFront face shown in plan and elevation.
WALL 2Wall4rectangularFront face shown in plan and elevation.
BENT 1L / BENT 1RBent2B.F.P.R. end bent locations shown; end bent piles not shown.
BENT 2L / BENT 2RBent2Interior bent locations shown.
BENT 3L / BENT 3RBent2Interior bent locations shown.
BENT 4L / BENT 4RBent2B.F.P.R. end bent locations shown; end bent piles not shown.
Pile cap and piles2rectangular pile cap with vertical pilesShown below Bents 2 and 3 in elevation.
Bridge deck1straight deck slab/profileShown in elevation with PGL.
EXP.Expansion joint4Locations shown in elevation.
FIXFixed bearing2Locations shown in elevation.
Chain link wire fence3mesh panelwireLabeled TYP.
℄ EXISTING TRACKExisting track1alignmentShown below bridge in elevation and in plan.
℄ FUTURE TRACKFuture track1alignmentShown below bridge in elevation and in plan.
℄ FUTURE ACCESS ROADFuture access road1alignmentShown in plan and elevation.
Future groundline1irregular line
Approximate existing groundline1irregular line
Temporary shoringAs necessary, TYP.

Measurements · 40

MeasurementValueUnitApplies to
Minimum dimension12'-1" MIN.℄ CENTRAL OF GEORGIA RAILROAD COMPANY EXISTING TRACK
Plan dimension74'-7 15/16"
Plan dimension75'-10 15/16"℄ FUTURE TRACK
Plan dimensionN. 2°-23'-16.7"AHEAD
Minimum vertical clearance1'-9 1/2"
Gutter-to-gutter dimension40'-0"
Gutter-out-to-out dimension43'-7"
Plan dimension6'-0"
Plan dimension34'-0"
Angle81°-20'-05.0"Bents
StationSTA. 18+16.85℄ SR 21
StationSTA. 303+80.83℄ CENTRAL OF GEORGIA RAILROAD COMPANY
Begin bridge stationSTA. 17+23.00BEGIN BRIDGE
StationSTA. 17+29.07RRMP D-0080.54
StationSTA. 19+08.93℄ SR 21
End bridge stationSTA. 19+15.00END BRIDGE
BearingN. 83°-43'-21.7" E.℄ SR 21
Plan dimension22'-0"
Minimum dimension14'-1" MIN.
Plan dimension15'-0"
Plan dimension25'-8"MIN. HORIZ. CL. CALCULATED TO FACE OF COLUMN
Plan dimension36'-4"MIN. HORIZ. CL. CALCULATED TO FACE OF COLUMN
Total bridge length192'-0"Bridge
Span length55'-0"
Span length82'-0"
Span length55'-0"
ElevationEL. 151.00Pile caps
Station17+26.35LEFT BRIDGE BENT 1
Station17+81.35LEFT BRIDGE BENT 2
Station18+63.35LEFT BRIDGE BENT 3
Station19+18.35LEFT BRIDGE BENT 4
Station17+19.65RIGHT BRIDGE BENT 1
Station17+74.65RIGHT BRIDGE BENT 2
Station18+56.65RIGHT BRIDGE BENT 3
Station19+11.65RIGHT BRIDGE BENT 4
PVI stationPVI STA. 18+10.00SR 21 PGL profile fragment
PVI elevationEL. 197.80SR 21 PGL profile fragment
Grade+5.4180%SR 21 PGL profile fragment
Grade length560.0 FT.FT.SR 21 PGL profile fragment
Grade+5.4443%SR 21 PGL profile fragment

Labels

PLANELEVATIONBENT ELEVATIONS **LOCATIONBENT NO.STATIONLEFT BRIDGERIGHT BRIDGEPGL WESTBOUNDPGL EASTBOUNDPGL℄ CENTRAL OF GEORGIA RAILROAD COMPANY EXISTING TRACK℄ FUTURE ACCESS ROAD℄ FUTURE TRACK℄ EXISTING TRACKTO PERKINSTO US 25/SR 121TO GA HIGHWAY 23BEGIN BRIDGEEND BRIDGEPOINT OF MIN. VERT. CLEARANCEFUTURE POINT OF MIN. VERT. CLEARANCEMIN. HORIZ. CL. CALCULATED TO FACE OF COLUMNNOTES:

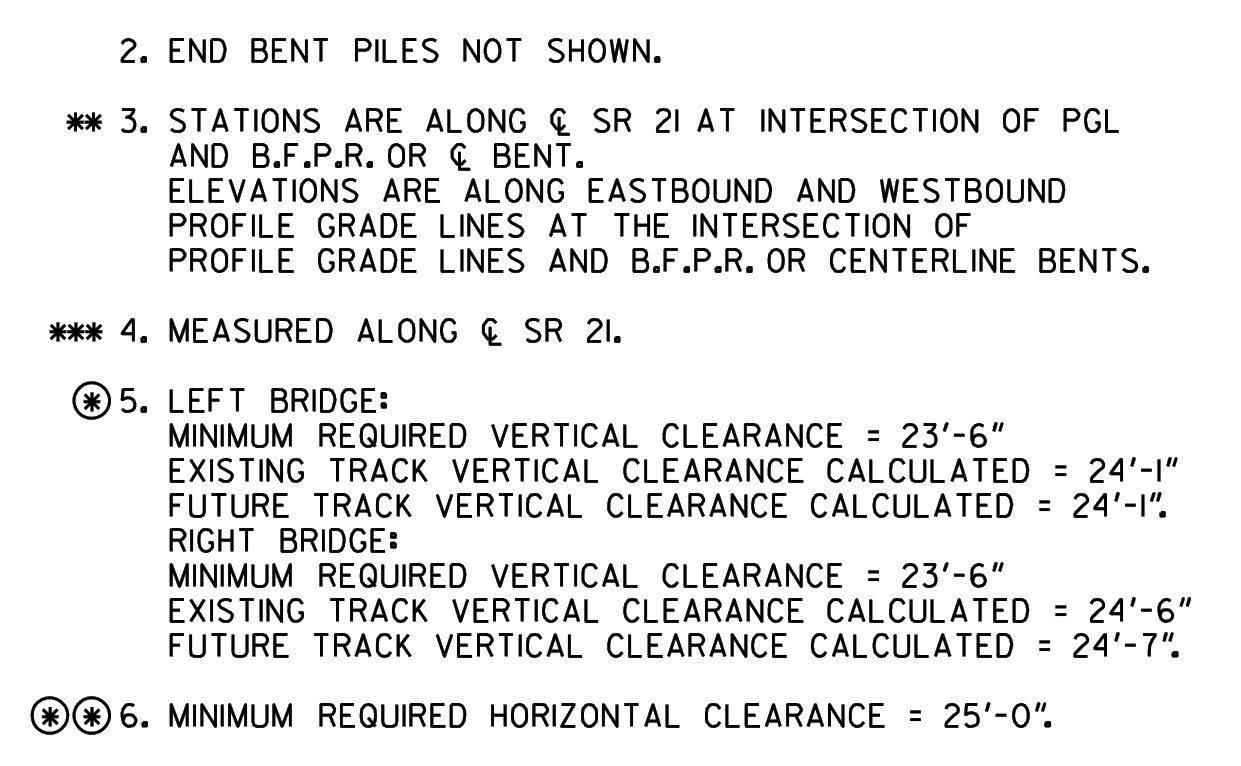

Notes

  • 1. ALL BENTS ARE PARALLEL TO ℄ CENTRAL OF GEORGIA RAILWAY COMPANY.
  • 2. END BENT PILES NOT SHOWN.
  • ** 3. STATIONS ARE ALONG ℄ SR 21 AT INTERSECTI... AND B.F.P.R. OR ℄ BENT. ELEVATIONS ARE ALONG EASTBOUND AND WES... PROFILE GRADE LINES AT THE INTERSECTION OF ... PROFILE GRADE LINES AND B.F.P.R. OR CENTER...
  • *** 4. MEASURED ALONG ℄ SR 21.
  • * 5. LEFT BRIDGE: MINIMUM REQUIRED VERTICAL CLEARANCE = 23... EXISTING TRACK VERTICAL CLEARANCE CALCULA... FUTURE TRACK VERTICAL CLEARANCE CALCULA... RIGHT BRIDGE: MINIMUM REQUIRED VERTICAL CLEARANCE = 23... EXISTING TRACK VERTICAL CLEARANCE CALCUL... FUTURE TRACK VERTICAL CLEARANCE CALCULA...
  • ** 6. MINIMUM REQUIRED HORIZONTAL CLEARANCE = ...
  • TEMPORARY SHORING AS NECESSARY, TYP.
  • CHAIN LINK WIRE FENCE, TYP.
  • TO BE REMOVED

openai/gpt-5.6-terra · 7920 tokens · 24.2s

item · 2480 × 1218

bridge 1

page 1 · bridge_bents_and_deck_p01_r08
Original
bridge 1

Not read yet. Press Analyse crops.

bridge 1

not analysed

bridge_bents_and_deck_p01_r08SubstructureElevation

Not read yet. Press Analyse crops, or read this one on its own.

item · 1331 × 630

Endfill Track Clearance Control Point

page 1 · endfill_track_clearance_control_point_p01_r03
Original
Endfill Track Clearance Control Point

Not read yet. Press Analyse crops.

Endfill Track Clearance Control Point

not analysed

endfill_track_clearance_control_point_p01_r03Substructure

Not read yet. Press Analyse crops, or read this one on its own.

crop · 3766 × 2137

p01_r01 plan of bridge bents walls and rr road alignment

page 1 · gdot_drawing_844a0f817a824bc0805d75537a69cd22_p01_r01_plan_of_bridge_bents_walls_and_rr_road_alignment
Original
p01_r01 plan of bridge bents walls and rr road alignment

Not read yet. Press Analyse crops.

p01_r01 plan of bridge bents walls and rr road alignment

not analysed

gdot_drawing_844a0f817a824bc0805d75537a69cd22_p01_r01_plan_of_bridge_bents_walls_and_rr_road_alignment

Not read yet. Press Analyse crops, or read this one on its own.

crop · 961 × 660

p01_r02 proposed vertical curve data sr 21 pgl westbound

page 1 · gdot_drawing_844a0f817a824bc0805d75537a69cd22_p01_r02_proposed_vertical_curve_data_sr_21_pgl_westbound
Original
p01_r02 proposed vertical curve data sr 21 pgl westbound

Not read yet. Press Analyse crops.

p01_r02 proposed vertical curve data sr 21 pgl westbound

not analysed

gdot_drawing_844a0f817a824bc0805d75537a69cd22_p01_r02_proposed_vertical_curve_data_sr_21_pgl_westbound

Not read yet. Press Analyse crops, or read this one on its own.

crop · 1283 × 599

p01_r03 endfill control diagram

page 1 · gdot_drawing_844a0f817a824bc0805d75537a69cd22_p01_r03_endfill_control_diagram
Original
p01_r03 endfill control diagram

Not read yet. Press Analyse crops.

p01_r03 endfill control diagram

not analysed

gdot_drawing_844a0f817a824bc0805d75537a69cd22_p01_r03_endfill_control_diagram

Not read yet. Press Analyse crops, or read this one on its own.

crop · 957 × 657

p01_r04 proposed vertical curve data sr 21 pgl eastbound

page 1 · gdot_drawing_844a0f817a824bc0805d75537a69cd22_p01_r04_proposed_vertical_curve_data_sr_21_pgl_eastbound
Original
p01_r04 proposed vertical curve data sr 21 pgl eastbound

Not read yet. Press Analyse crops.

p01_r04 proposed vertical curve data sr 21 pgl eastbound

not analysed

gdot_drawing_844a0f817a824bc0805d75537a69cd22_p01_r04_proposed_vertical_curve_data_sr_21_pgl_eastbound

Not read yet. Press Analyse crops, or read this one on its own.

crop · 979 × 587

p01_r05 construction clearance diagram

page 1 · gdot_drawing_844a0f817a824bc0805d75537a69cd22_p01_r05_construction_clearance_diagram
Original
p01_r05 construction clearance diagram

Not read yet. Press Analyse crops.

p01_r05 construction clearance diagram

not analysed

gdot_drawing_844a0f817a824bc0805d75537a69cd22_p01_r05_construction_clearance_diagram

Not read yet. Press Analyse crops, or read this one on its own.

crop · 1056 × 667

BENT ELEVATIONS

page 1 · gdot_drawing_844a0f817a824bc0805d75537a69cd22_p01_r06_bent_elevations
Original
BENT ELEVATIONS

Not read yet. Press Analyse crops.

BENT ELEVATIONS

not analysed

gdot_drawing_844a0f817a824bc0805d75537a69cd22_p01_r06_bent_elevations

Not read yet. Press Analyse crops, or read this one on its own.

crop · 3658 × 1470

p01_r07 elevation of bridge spans bents and pile bents

page 1 · gdot_drawing_844a0f817a824bc0805d75537a69cd22_p01_r07_elevation_of_bridge_spans_bents_and_pile_bents
Original
p01_r07 elevation of bridge spans bents and pile bents
{
  "view": "Elevation",
  "objects": [
    {
      "name": "bridge superstructure",
      "tag": "",
      "shape": "linear",
      "material": "",
      "count": 1,
      "note": "Shown in elevation across the bridge length."
    },
    {
      "name": "chain link wire fence",
      "tag": "",
      "shape": "rectangular mesh panels",
      "material": "chain link wire",
      "count": 3,
      "note": "Called out as typical."
    },
    {
      "name": "wall",
      "tag": "WALL NO. 1",
      "shape": "vertical",
      "material": "",
      "count": 1,
      "note": "Front face indicated."
    },
    {
      "name": "wall",
      "tag": "WALL NO. 2",
      "shape": "vertical",
      "material": "",
      "count": 1,
      "note": "Front face indicated."
    },
    {
      "name": "bent",
      "tag": "BENT 2",
      "shape": "vertical pier with rectangular cap",
      "material": "",
      "count": 1,
      "note": "Pile-supported bent shown."
    },
    {
      "name": "bent",
      "tag": "BENT 3",
      "shape": "vertical pier with rectangular cap",
      "material": "",
      "count": 1,
      "note": "Pile-supported bent shown."
    },
    {
      "name": "pile",
      "tag": "",
      "shape": "vertical",
      "material": "",
      "count": 8,
      "note": "Four piles are visibly drawn below each of BENT 2 and BENT 3."
    },
    {
      "name": "bearing",
      "tag": "EXP.",
      "shape": "",
      "material": "",
      "count": 4,
      "note": "Expansion bearing callouts visible."
    },
    {
      "name": "bearing",
      "tag": "FIX",
      "shape": "",
      "material": "",
      "count": 2,
      "note": "Fixed bearing callouts visible."
    },
    {
      "name": "existing track",
      "tag": "℄ EXISTING TRACK",
      "shape": "centerline",
      "material": "",
      "count": 1,
      "note": "Shown below bridge."
    },
    {
      "name": "future track",
      "tag": "℄ FUTURE TRACK",
      "shape": "centerline",
      "material": "",
      "count": 1,
      "note": "Shown below bridge."
    },
    {
      "name": "future access road",
      "tag": "℄ FUTURE ACCESS ROAD",
      "shape": "centerline",
      "material": "",
      "count": 1,
      "note": "Shown below bridge."
    },
    {
      "name": "future groundline",
      "tag": "",
      "shape": "irregular line",
      "material": "",
      "count": 1,
      "note": ""
    },
    {
      "name": "existing groundline",
      "tag": "",
      "shape": "irregular line",
      "material": "",
      "count": 1,
      "note": "Called approximate."
    }
  ],
  "measurements": [
    {
      "label": "TOTAL LENGTH OF BRIDGE",
      "value": "192'-0\"",
      "unit": "",
      "appliesTo": "bridge superstructure"
    },
    {
      "label": "span length",
      "value": "55'-0\"",
      "unit": "",
      "appliesTo": "B.F.P.R. BENT 1 to BENT 2"
    },
    {
      "label": "span length",
      "value": "82'-0\"",
      "unit": "",
      "appliesTo": "BENT 2 to BENT 3"
    },
    {
      "label": "span length",
      "value": "55'-0\"",
      "unit": "",
      "appliesTo": "BENT 3 to B.F.P.R. BENT 4"
    },
    {
      "label": "elevation",
      "value": "151.00",
      "unit": "",
      "appliesTo": "BENT 3"
    }
  ],
  "notes": [
    "1. ALL BENTS ARE PARALLEL TO ℄ CEN RAILWAY COMPANY.",
    "2. END BENT PILES NOT SHOWN.",
    "** 3. STATIONS ARE ALONG ℄ SR 21 AT INT AND B.F.P.R. OR ℄ BENT. ELEVATIONS ARE ALONG EASTBOUND A PROFILE GRADE LINES AT THE INTERS PROFILE GRADE LINES AND B.F.P.R. OR",
    "*** 4. MEASURED ALONG ℄ SR 21.",
    "✳ 5. LEFT BRIDGE: MINIMUM REQUIRED VERTICAL CLEARAN EXISTING TRACK VERTICAL CLEARANCE FUTURE TRACK VERTICAL CLEARANCE RIGHT BRIDGE: MINIMUM REQUIRED VERTICAL CLEARAN EXISTING TRACK VERTICAL CLEARANCE FUTURE TRACK VERTICAL CLEARANCE",
    "✳✳ 6. MINIMUM REQUIRED HORIZONTAL CLEAR"
  ],
  "labels": [
    "B.F.P.R. BENT 1",
    "BENT 2",
    "BENT 3",
    "B.F.P.R. BENT 4",
    "PGL",
    "EL. 151.00, TYP.",
    "APPROXIMATE EXISTING GROUNDLINE",
    "FUTURE GROUNDLINE",
    "℄ FUTURE ACCESS ROAD",
    "℄ EXISTING TRACK",
    "℄ FUTURE TRACK",
    "ELEVATION",
    "NOTES:",
    "LEFT BRIDGE",
    "RIGHT BRIDGE"
  ],
  "description": "This crop is a bridge elevation showing a 192'-0\" three-span superstructure between end-bent reference lines, with BENT 2 and BENT 3 visibly pile-supported. It also shows wall front faces, chain link wire fence, bearing designations, track and access-road centerlines, and existing/future groundlines. The notes block and a bent listing table are partially cropped at the right edge."
}

p01_r07 elevation of bridge spans bents and pile bents

done

gdot_drawing_844a0f817a824bc0805d75537a69cd22_p01_r07_elevation_of_bridge_spans_bents_and_pile_bents

Elevation14 objects · 5 measurements · 6 notes · 15 labels

This crop is a bridge elevation showing a 192'-0" three-span superstructure between end-bent reference lines, with BENT 2 and BENT 3 visibly pile-supported. It also shows wall front faces, chain link wire fence, bearing designations, track and access-road centerlines, and existing/future groundlines. The notes block and a bent listing table are partially cropped at the right edge.

Objects · 14

MarkObjectNo.ShapeMaterialNote
bridge superstructure1linearShown in elevation across the bridge length.
chain link wire fence3rectangular mesh panelschain link wireCalled out as typical.
WALL NO. 1wall1verticalFront face indicated.
WALL NO. 2wall1verticalFront face indicated.
BENT 2bent1vertical pier with rectangular capPile-supported bent shown.
BENT 3bent1vertical pier with rectangular capPile-supported bent shown.
pile8verticalFour piles are visibly drawn below each of BENT 2 and BENT 3.
EXP.bearing4Expansion bearing callouts visible.
FIXbearing2Fixed bearing callouts visible.
℄ EXISTING TRACKexisting track1centerlineShown below bridge.
℄ FUTURE TRACKfuture track1centerlineShown below bridge.
℄ FUTURE ACCESS ROADfuture access road1centerlineShown below bridge.
future groundline1irregular line
existing groundline1irregular lineCalled approximate.

Measurements · 5

MeasurementValueApplies to
TOTAL LENGTH OF BRIDGE192'-0"bridge superstructure
span length55'-0"B.F.P.R. BENT 1 to BENT 2
span length82'-0"BENT 2 to BENT 3
span length55'-0"BENT 3 to B.F.P.R. BENT 4
elevation151.00BENT 3

Labels

B.F.P.R. BENT 1BENT 2BENT 3B.F.P.R. BENT 4PGLEL. 151.00, TYP.APPROXIMATE EXISTING GROUNDLINEFUTURE GROUNDLINE℄ FUTURE ACCESS ROAD℄ EXISTING TRACK℄ FUTURE TRACKELEVATIONNOTES:LEFT BRIDGERIGHT BRIDGE

Notes

  • 1. ALL BENTS ARE PARALLEL TO ℄ CEN RAILWAY COMPANY.
  • 2. END BENT PILES NOT SHOWN.
  • ** 3. STATIONS ARE ALONG ℄ SR 21 AT INT AND B.F.P.R. OR ℄ BENT. ELEVATIONS ARE ALONG EASTBOUND A PROFILE GRADE LINES AT THE INTERS PROFILE GRADE LINES AND B.F.P.R. OR
  • *** 4. MEASURED ALONG ℄ SR 21.
  • ✳ 5. LEFT BRIDGE: MINIMUM REQUIRED VERTICAL CLEARAN EXISTING TRACK VERTICAL CLEARANCE FUTURE TRACK VERTICAL CLEARANCE RIGHT BRIDGE: MINIMUM REQUIRED VERTICAL CLEARAN EXISTING TRACK VERTICAL CLEARANCE FUTURE TRACK VERTICAL CLEARANCE
  • ✳✳ 6. MINIMUM REQUIRED HORIZONTAL CLEAR

openai/gpt-5.6-terra · 4008 tokens · 20.7s

crop · 2432 × 1188

p01_r08 elevation of bridge bents and deck bridge 1

page 1 · gdot_drawing_844a0f817a824bc0805d75537a69cd22_p01_r08_elevation_of_bridge_bents_and_deck_bridge_1
Original
p01_r08 elevation of bridge bents and deck bridge 1

Not read yet. Press Analyse crops.

p01_r08 elevation of bridge bents and deck bridge 1

not analysed

gdot_drawing_844a0f817a824bc0805d75537a69cd22_p01_r08_elevation_of_bridge_bents_and_deck_bridge_1

Not read yet. Press Analyse crops, or read this one on its own.

crop · 720 × 307

DOT INVENTORY CROSSING NO. / PROJECT P.I. NO. / BRIDGE NO.

page 1 · gdot_drawing_844a0f817a824bc0805d75537a69cd22_p01_r09_crossing_and_project_identifier_text_block
Original
DOT INVENTORY CROSSING NO. / PROJECT P.I. NO. / BRIDGE NO.

Not read yet. Press Analyse crops.

DOT INVENTORY CROSSING NO. / PROJECT P.I. NO. / BRIDGE NO.

not analysed

gdot_drawing_844a0f817a824bc0805d75537a69cd22_p01_r09_crossing_and_project_identifier_text_block

Not read yet. Press Analyse crops, or read this one on its own.

crop · 2104 × 1227

NOTES:

page 1 · gdot_drawing_844a0f817a824bc0805d75537a69cd22_p01_r10_full_general_notes_block_items_1_through_6
Original
NOTES:

Not read yet. Press Analyse crops.

NOTES:

not analysed

gdot_drawing_844a0f817a824bc0805d75537a69cd22_p01_r10_full_general_notes_block_items_1_through_6Notes

Not read yet. Press Analyse crops, or read this one on its own.

crop · 1953 × 1038

DEPARTMENT OF TRANSPORTATION

page 1 · gdot_drawing_844a0f817a824bc0805d75537a69cd22_p01_r11_gdot_title_block_with_seal_firm_info_and_drawing_data
Original
DEPARTMENT OF TRANSPORTATION

Not read yet. Press Analyse crops.

DEPARTMENT OF TRANSPORTATION

not analysed

gdot_drawing_844a0f817a824bc0805d75537a69cd22_p01_r11_gdot_title_block_with_seal_firm_info_and_drawing_data

Not read yet. Press Analyse crops, or read this one on its own.

crop · 1241 × 766

NOTES:

page 1 · gdot_drawing_844a0f817a824bc0805d75537a69cd22_p01_r12_notes_of_general_notes
Original
NOTES:

Not read yet. Press Analyse crops.

NOTES:

not analysed

gdot_drawing_844a0f817a824bc0805d75537a69cd22_p01_r12_notes_of_general_notesNotes

Not read yet. Press Analyse crops, or read this one on its own.

item · 1009 × 690

Sr 21 Profile Grade Line

page 1 · sr_21_profile_grade_line_p01_r02
Original
Sr 21 Profile Grade Line

Not read yet. Press Analyse crops.

Sr 21 Profile Grade Line

not analysed

sr_21_profile_grade_line_p01_r02Earthworks

Not read yet. Press Analyse crops, or read this one on its own.

item · 1004 × 689

Sr 21 Profile Grade Line

page 1 · sr_21_profile_grade_line_p01_r04
Original
Sr 21 Profile Grade Line

Not read yet. Press Analyse crops.

Sr 21 Profile Grade Line

not analysed

sr_21_profile_grade_line_p01_r04Earthworks

Not read yet. Press Analyse crops, or read this one on its own.

item · 1026 × 618

Track Clearance Envelope

page 1 · track_clearance_envelope_p01_r05
Original
Track Clearance Envelope

Not read yet. Press Analyse crops.

Track Clearance Envelope

not analysed

track_clearance_envelope_p01_r05Substructurecross section

Not read yet. Press Analyse crops, or read this one on its own.

Page 26 crops · 1 read
crop · 2084 × 3252

GENERAL NOTES CONTINUED

page 2 · gdot_drawing_844a0f817a824bc0805d75537a69cd22_p02_r01_continued_notes_on_piles_welding_diaphragms_joints
Original
GENERAL NOTES CONTINUED

Not read yet. Press Analyse crops.

GENERAL NOTES CONTINUED

not analysed

gdot_drawing_844a0f817a824bc0805d75537a69cd22_p02_r01_continued_notes_on_piles_welding_diaphragms_jointsNotes

Not read yet. Press Analyse crops, or read this one on its own.

crop · 1104 × 385

BENT NUMBER / PILE TIP ELEVATION

page 2 · gdot_drawing_844a0f817a824bc0805d75537a69cd22_p02_r02_placeholder_table_for_bent_pile_tip_elevations
Original
BENT NUMBER / PILE TIP ELEVATION

Not read yet. Press Analyse crops.

BENT NUMBER / PILE TIP ELEVATION

not analysed

gdot_drawing_844a0f817a824bc0805d75537a69cd22_p02_r02_placeholder_table_for_bent_pile_tip_elevations

Not read yet. Press Analyse crops, or read this one on its own.

crop · 1965 × 957

DESIGN DATA

page 2 · gdot_drawing_844a0f817a824bc0805d75537a69cd22_p02_r03_table_of_design_specs_loads_concrete_strengths
Original
DESIGN DATA
{
  "view": "Notes",
  "objects": [
    {
      "name": "Superstructure",
      "tag": "",
      "shape": "",
      "material": "concrete",
      "count": null,
      "note": "Class D concrete specified."
    },
    {
      "name": "Barrier",
      "tag": "",
      "shape": "",
      "material": "concrete",
      "count": null,
      "note": "Class D concrete specified."
    },
    {
      "name": "PSC beams",
      "tag": "",
      "shape": "",
      "material": "prestressed concrete",
      "count": null,
      "note": "Concrete class and allowable tension refer to beam sheets."
    },
    {
      "name": "Substructure",
      "tag": "",
      "shape": "",
      "material": "concrete",
      "count": null,
      "note": "Class AA concrete specified."
    },
    {
      "name": "Reinforcement steel",
      "tag": "",
      "shape": "",
      "material": "steel",
      "count": null,
      "note": "Grade 60 specified."
    },
    {
      "name": "Pretensioning strands",
      "tag": "",
      "shape": "",
      "material": "steel",
      "count": null,
      "note": ""
    },
    {
      "name": "Steel H-piles",
      "tag": "",
      "shape": "H-section",
      "material": "steel",
      "count": null,
      "note": "Grade 50 specified."
    }
  ],
  "measurements": [
    {
      "label": "Seismic performance zone",
      "value": "2",
      "unit": "",
      "appliesTo": ""
    },
    {
      "label": "AS",
      "value": "0.142",
      "unit": "",
      "appliesTo": ""
    },
    {
      "label": "SD1",
      "value": "0.155",
      "unit": "",
      "appliesTo": ""
    },
    {
      "label": "Design vehicle live load",
      "value": "HL-93",
      "unit": "",
      "appliesTo": ""
    },
    {
      "label": "Future paving allowance",
      "value": "30",
      "unit": "LBS PER SQ FT",
      "appliesTo": ""
    },
    {
      "label": "Concrete compressive strength, f'c",
      "value": "4,000",
      "unit": "PSI",
      "appliesTo": "Superstructure"
    },
    {
      "label": "Concrete compressive strength, f'c",
      "value": "4,000",
      "unit": "PSI",
      "appliesTo": "Barrier"
    },
    {
      "label": "Concrete compressive strength, f'c",
      "value": "3,500",
      "unit": "PSI",
      "appliesTo": "Substructure"
    },
    {
      "label": "Reinforcement steel yield strength, fy",
      "value": "60,000",
      "unit": "PSI",
      "appliesTo": "Reinforcement steel"
    },
    {
      "label": "Pretensioning strand strength, f's",
      "value": "270,000",
      "unit": "PSI",
      "appliesTo": "Pretensioning strands"
    },
    {
      "label": "Steel H-pile yield strength, fy",
      "value": "50,000",
      "unit": "PSI",
      "appliesTo": "Steel H-piles"
    }
  ],
  "notes": [
    "AASHTO LRFD 9TH EDITION, 2020",
    "(DESIGNED FOR SEISMIC PERFORMANCE ZONE 2, AS=0.142, SD1=0.155)",
    "CONCRETE: SUPERSTRUCTURE — CLASS D, f'c = 4,000 PSI",
    "BARRIER — CLASS D, f'c = 4,000 PSI",
    "PSC BEAMS — CLASS AAA, f'c = SEE BEAM SHEETS",
    "PSC BEAM ALLOWABLE TENSION — SEE BEAM SHEETS",
    "SUBSTRUCTURE — CLASS AA, f'c = 3,500 PSI",
    "REINFORCEMENT STEEL: GRADE 60, fy = 60,000 PSI",
    "PRETENSIONING STRANDS: f's = 270,000 PSI",
    "STEEL H-PILES: GRADE 50, fy = 50,000 PSI"
  ],
  "labels": [
    "DESIGN DATA",
    "SPECIFICATIONS",
    "DESIGN VEHICLE LIVE LOAD",
    "FUTURE PAVING ALLOWANCE",
    "GDOT",
    "P.I. NO.",
    "0019181",
    "TIP ELEVATION"
  ],
  "description": "This crop is a design-data notes block for a bridge structure, listing governing specifications, seismic design criteria, design live load, and future paving allowance. It documents concrete classes and strengths for the superstructure, barrier, PSC beams, and substructure, plus reinforcement, pretensioning strand, and steel H-pile material strengths. A partial unrelated red label, \"TIP ELEVATION,\" is visible at the upper left edge."
}

DESIGN DATA

done

gdot_drawing_844a0f817a824bc0805d75537a69cd22_p02_r03_table_of_design_specs_loads_concrete_strengths

Notes7 objects · 11 measurements · 10 notes · 8 labels

This crop is a design-data notes block for a bridge structure, listing governing specifications, seismic design criteria, design live load, and future paving allowance. It documents concrete classes and strengths for the superstructure, barrier, PSC beams, and substructure, plus reinforcement, pretensioning strand, and steel H-pile material strengths. A partial unrelated red label, "TIP ELEVATION," is visible at the upper left edge.

Objects · 7

ObjectShapeMaterialNote
SuperstructureconcreteClass D concrete specified.
BarrierconcreteClass D concrete specified.
PSC beamsprestressed concreteConcrete class and allowable tension refer to beam sheets.
SubstructureconcreteClass AA concrete specified.
Reinforcement steelsteelGrade 60 specified.
Pretensioning strandssteel
Steel H-pilesH-sectionsteelGrade 50 specified.

Measurements · 11

MeasurementValueUnitApplies to
Seismic performance zone2
AS0.142
SD10.155
Design vehicle live loadHL-93
Future paving allowance30LBS PER SQ FT
Concrete compressive strength, f'c4,000PSISuperstructure
Concrete compressive strength, f'c4,000PSIBarrier
Concrete compressive strength, f'c3,500PSISubstructure
Reinforcement steel yield strength, fy60,000PSIReinforcement steel
Pretensioning strand strength, f's270,000PSIPretensioning strands
Steel H-pile yield strength, fy50,000PSISteel H-piles

Labels

DESIGN DATASPECIFICATIONSDESIGN VEHICLE LIVE LOADFUTURE PAVING ALLOWANCEGDOTP.I. NO.0019181TIP ELEVATION

Notes

  • AASHTO LRFD 9TH EDITION, 2020
  • (DESIGNED FOR SEISMIC PERFORMANCE ZONE 2, AS=0.142, SD1=0.155)
  • CONCRETE: SUPERSTRUCTURE — CLASS D, f'c = 4,000 PSI
  • BARRIER — CLASS D, f'c = 4,000 PSI
  • PSC BEAMS — CLASS AAA, f'c = SEE BEAM SHEETS
  • PSC BEAM ALLOWABLE TENSION — SEE BEAM SHEETS
  • SUBSTRUCTURE — CLASS AA, f'c = 3,500 PSI
  • REINFORCEMENT STEEL: GRADE 60, fy = 60,000 PSI
  • PRETENSIONING STRANDS: f's = 270,000 PSI
  • STEEL H-PILES: GRADE 50, fy = 50,000 PSI

openai/gpt-5.6-terra · 4811 tokens · 22.8s

crop · 1823 × 770

EACH BRIDGE CONSISTS OF

page 2 · gdot_drawing_844a0f817a824bc0805d75537a69cd22_p02_r04_each_bridge_consists_of
Original
EACH BRIDGE CONSISTS OF

Not read yet. Press Analyse crops.

EACH BRIDGE CONSISTS OF

not analysed

gdot_drawing_844a0f817a824bc0805d75537a69cd22_p02_r04_each_bridge_consists_of

Not read yet. Press Analyse crops, or read this one on its own.

crop · 1967 × 1838

SUMMARY OF QUANTITIES

page 2 · gdot_drawing_844a0f817a824bc0805d75537a69cd22_p02_r05_pay_item_quantities_for_left_right_bridge
Original
SUMMARY OF QUANTITIES

Not read yet. Press Analyse crops.

SUMMARY OF QUANTITIES

not analysed

gdot_drawing_844a0f817a824bc0805d75537a69cd22_p02_r05_pay_item_quantities_for_left_right_bridge

Not read yet. Press Analyse crops, or read this one on its own.

crop · 1789 × 403

TRAFFIC DATA

page 2 · gdot_drawing_844a0f817a824bc0805d75537a69cd22_p02_r06_traffic_data
Original
TRAFFIC DATA

Not read yet. Press Analyse crops.

TRAFFIC DATA

not analysed

gdot_drawing_844a0f817a824bc0805d75537a69cd22_p02_r06_traffic_data

Not read yet. Press Analyse crops, or read this one on its own.

2Map the items23 items · 48 readings · 6 on more than one pageconfigured openai/gpt-5.6-terra-pro · about 1¢ at the last run’s size · default

One set of distinct items across every page. The same bent read as “BENT”, “Interior bent” and “Bent No. 2” is one item here, carrying every page and crop it was seen in. One model call over all of step 1’s readings; the page mapping is resolved from its grouping rather than retyped by it.

23 items from 48 readings · 8 new, 15 updated, 3 removed.

23items48readings6on 2+ pages1,542tokens in1,630tokens out
Bentsubstructure×14 · vertical pier with rectangular capp1, p33 crops
Bent

marksBENT 1L / BENT 1RBENT 2L / BENT 2RBENT 3L / BENT 3RBENT 4L / BENT 4RBENT 2BENT 3B.F.P.R. BENT 1LB.F.P.R. BENT 4LB.F.P.R. BENT 1RB.F.P.R. BENT 4R

Existing Trackancillary×2 · alignmentp1, p33 crops
Existing Track

also calledexisting railroad track

marks℄ EXISTING TRACK

Future Access Roadancillary×2 · alignmentp1, p33 crops
Future Access Road

marks℄ FUTURE ACCESS ROAD

Future Trackancillary×2 · alignmentp1, p33 crops
Future Track

marks℄ FUTURE TRACK

Steel H-pilefoundation×8 · H-section · steelp1, p22 crops
Steel H-pile

also calledpileSteel H-piles

Superstructuresuperstructure×1 · linear · concretep1, p22 crops
Superstructure

also calledbridge superstructure

Wallsubstructure×8 · rectangularp12 crops
Wall

marksWALL 1WALL 2WALL NO. 1WALL NO. 2

Bridge Limitsancillary×2 · rectangular dashed outlinep31 crop
Bridge Limits

marksLEFT BRIDGERIGHT BRIDGE

Chain Link Wire Fenceancillary×6 · rectangular mesh panels · chain link wirep12 crops
Chain Link Wire Fence
Existing Groundlineearthwork×2 · irregular linep12 crops
Existing Groundline

also calledApproximate existing groundline

Fixed Bearingsuperstructure×4p12 crops
Fixed Bearing

also calledbearing

marksFIX

Future Groundlineearthwork×2 · irregular linep12 crops
Future Groundline
Bridge Deckdeck×1 · straight deck slab/profilep11 crop
Bridge Deck
Concrete Barrierrailingconcretep21 crop
Concrete Barrier

also calledBarrier

Expansion Bearingsuperstructure×4p11 crop
Expansion Bearing

also calledbearing

marksEXP.

Expansion Jointdeck×4p11 crop
Expansion Joint

marksEXP.

Pile Cap And Pilesfoundation×2 · rectangular pile cap with vertical pilesp11 crop
Pile Cap And Piles
Pretensioning Strandmaterialsteelp21 crop
Pretensioning Strand

also calledPretensioning strands

PSC Beamsuperstructureprestressed concretep21 crop
PSC Beam

also calledPSC beams

Reinforcement Steelmaterialsteelp21 crop
Reinforcement Steel
SR 21 Roadway Alignmentancillaryalignment linep31 crop
SR 21 Roadway Alignment

marks℄ SR 21

Substructuresubstructureconcretep21 crop
Substructure
Temporary Shoringancillaryp11 crop
Temporary Shoring
3Match the ontology18 of 23 matched · 2 to check · 5 unmatchedconfigured openai/gpt-5.6-terra-pro · $1.00 → $6.00 per M · default

Every item from step 2 compared against the project’s engineering ontology, and then, for each one that lands in a class, a take-off of what that class asks for. The class list goes up as a closed vocabulary, so regional wording resolves without a synonym table — BENT to a pier system, PSC BEAM to a prestressed girder. Any class id that is not in the ontology is rejected rather than stored. The take-off reads every crop behind an item, derives what the drawings imply, shows its arithmetic, and says plainly when a number is not there. Matching against bridge v1.0.0, 133 classes.

78% of items placed. The 5 below fit no class — add one to the ontology and match again.

16matched2to check5unmatched78% covered0values0gaps5,944tokens in1,528tokens out

⚠ 5 items the bridge ontology has no class forAdd a class

  • Chain Link Wire Fencep1 · 2 crops · ×6The ontology would need a chain-link fence class.
  • Future Groundlinep1 · 2 crops · ×2The ontology would need a proposed or future ground surface class.
  • Wallp1 · 2 crops · ×8The ontology would need a generic substructure wall class or a drawing designation identifying it as a retaining wall, pier wall, or abutment wall.
  • Bridge Limitsp3 · 1 crop · ×2The ontology would need a bridge limits or bridge extents reference-boundary class.
  • Pile Cap And Pilesp1 · 1 crop · ×2The ontology would need a combined pile-cap-and-piles foundation assembly class.

superstructure6

alignment system4

ancillary system3

substructure2

construction system1

foundation system1

  • Steel H-pile→Steel H Pilebridge.foundation_system.deep_foundation.pile.steel_hp1, p2 · 2 crops · ×8on “Steel H-pile”

ground system1

◈Index for the agentnot indexed · 192 points ready

Everything steps 1 and 2 know, written to the vector store for a chat agent to answer from. Cut fine — a point for each object, each measurement and each note, not one per crop — with the page, the crop and the drawing written into every one, so a retrieved number arrives with enough context to be an answer. The readings as a whole and step 2’s items are indexed too, for the questions that are about a drawing rather than a figure.

Re-runnable at any time: each point is keyed to the record it came from, so re-indexing replaces what changed, adds what is new, and drops what the drawings no longer support. Re-read a crop or correct one by hand, then press this.

192 points ready to index.

0points stored192points ready4crops23items0tokens embedded

Collection mindmap_vectors, filtered on projectId = gdot_drawing-844a0f817a824bc0805d75537a69cd22.
