Pipeline / Mindmap / Projects / GDOT15

Mindmap builder

GDOT15

gdot_drawing-844a0f817a824bc0805d75537a69cd22 · Bridge

Models

Step 1 sends drawing crops, so it needs a model that can see them. Steps 2 and 3 send step 1’s readings as text — a text-only model with a large context is a fair answer there.

VisionStep 1 · reading the cropsTextSteps 2 and 3 · mapping, matching, take-off

1Read the crops37 crops · 4 read · 48 objects · 81 measurementsconfigured openai/gpt-5.6-terra-pro · about 19¢ for 33 crops · default

Every cropped image from the cropping run, page by page, with what the model read off it: view, objects, measurements, notes and labels. Click a crop to see it beside its JSON.

4 of 37 crops read.

37crops4read48objects found81measurements16,861tokens in6,817tokens out

Page 26 crops · 0 read

crop · 1781 × 329

TRAFFIC DATA

not analysed

gdot_drawing_844a0f817a824bc0805d75537a69cd22_p02_r07_traffic_volume_speed_truck_percentage_data

Not read yet. Press Analyse crops, or read this one on its own.

crop · 521 × 182

UTILITIES

not analysed

gdot_drawing_844a0f817a824bc0805d75537a69cd22_p02_r08_statement_of_no_utilities_on_bridgeNotes

Not read yet. Press Analyse crops, or read this one on its own.

crop · 1949 × 2051

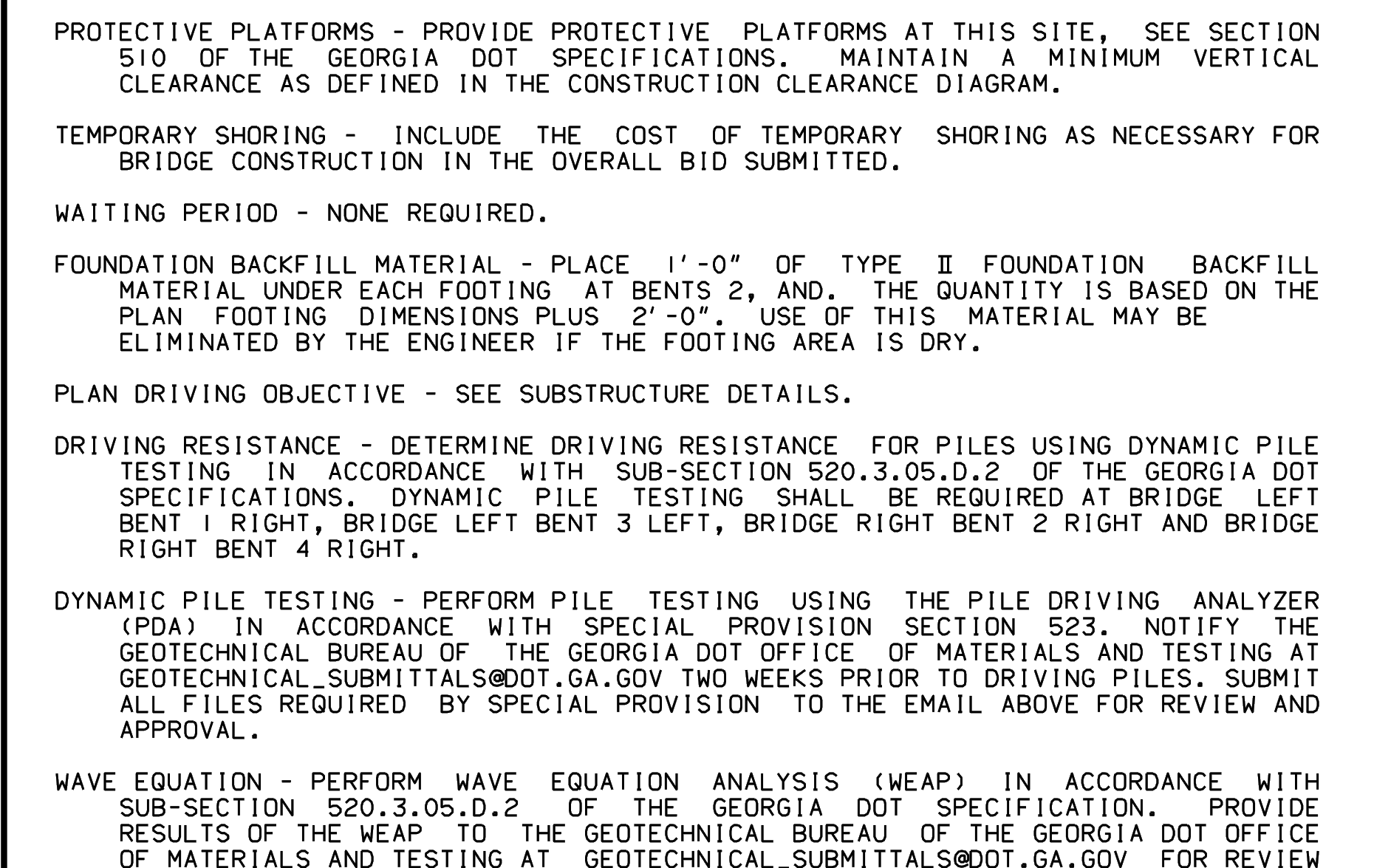

GENERAL NOTES

not analysed

gdot_drawing_844a0f817a824bc0805d75537a69cd22_p02_r09_general_notesNotes

Not read yet. Press Analyse crops, or read this one on its own.

crop · 1814 × 669

GENERAL NOTES

not analysed

gdot_drawing_844a0f817a824bc0805d75537a69cd22_p02_r10_general_notesNotes

Not read yet. Press Analyse crops, or read this one on its own.

crop · 1860 × 1175

GENERAL NOTES

not analysed

gdot_drawing_844a0f817a824bc0805d75537a69cd22_p02_r11_general_notesNotes

Not read yet. Press Analyse crops, or read this one on its own.

crop · 2068 × 1315

DEPARTMENT OF TRANSPORTATION

not analysed

gdot_drawing_844a0f817a824bc0805d75537a69cd22_p02_r12_department_of_transportation

Not read yet. Press Analyse crops, or read this one on its own.

Page 37 crops · 1 read

crop · 3306 × 3829

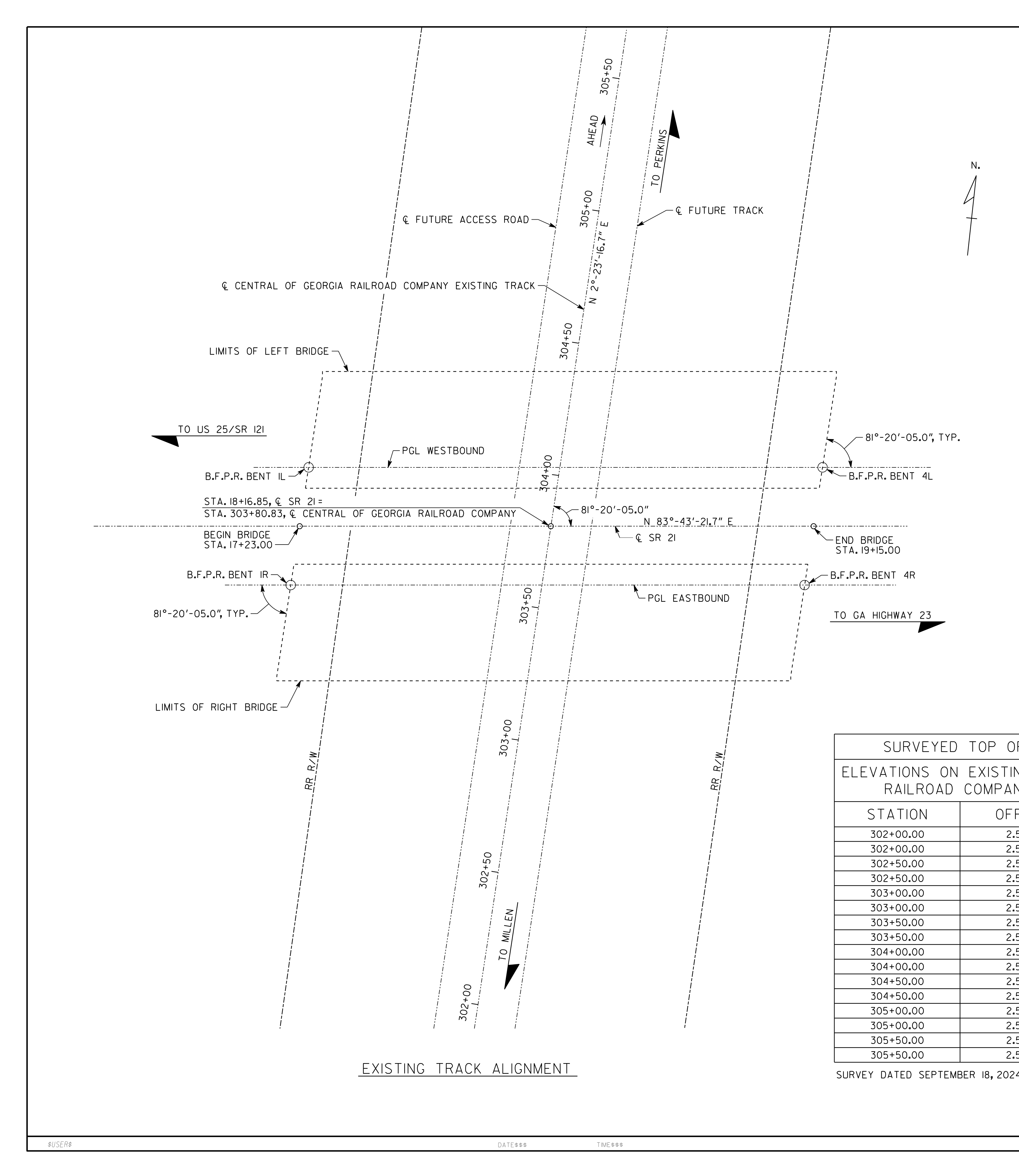

p03_r01 existing track alignment

done

gdot_drawing_844a0f817a824bc0805d75537a69cd22_p03_r01_existing_track_alignment

Plan10 objects · 25 measurements · 11 notes · 13 labels

This crop shows an existing track alignment plan for the Central of Georgia Railroad Company at the SR 21 bridge crossing. Dashed rectangular limits identify left and right bridge extents, with B.F.P.R. bent locations at each end and begin/end bridge stations. A partial surveyed top-of-rail elevations table is visible at the lower right, but its right-hand columns are cropped.

Objects · 10

Mark	Object	No.	Shape	Note
LEFT BRIDGE	bridge limits	1	rectangular dashed outline	Shown as limits only.
RIGHT BRIDGE	bridge limits	1	rectangular dashed outline	Shown as limits only.
B.F.P.R. BENT 1L	bent	1	point symbol
B.F.P.R. BENT 4L	bent	1	point symbol
B.F.P.R. BENT 1R	bent	1	point symbol
B.F.P.R. BENT 4R	bent	1	point symbol
	existing railroad track		parallel alignment lines	Identified as Central of Georgia Railroad Company existing track.
	future track		parallel alignment lines
	future access road		alignment line
℄ SR 21	SR 21 roadway alignment		alignment line	Westbound and eastbound PGL lines are shown.

Measurements · 25

Measurement	Value	Applies to
station	305+50	existing track alignment
station	305+00	existing track alignment
station	304+50	existing track alignment
station	304+00	existing track alignment
station	303+50	existing track alignment
station	303+00	existing track alignment
station	302+50	existing track alignment
station	302+00	existing track alignment
station	STA. 18+16.85	℄ SR 21
station	STA. 303+80.83	℄ CENTRAL OF GEORGIA RAILROAD COMPANY
station	STA. 17+23.00	BEGIN BRIDGE
station	STA. 19+15.00	END BRIDGE
angle	81°-20'-05.0"	B.F.P.R. BENT 1L / B.F.P.R. BENT 4L
angle	81°-20'-05.0"	B.F.P.R. BENT 4L
angle	80°-20'-05.0"	℄ SR 21
bearing	N 2°-23'-16.7" E	CENTRAL OF GEORGIA RAILROAD COMPANY EXISTING TRACK
bearing	N 83°-43'-21.7" E	℄ SR 21
station	302+00.00	partial surveyed-top-of-rail table
station	302+50.00	partial surveyed-top-of-rail table
station	303+00.00	partial surveyed-top-of-rail table
station	303+50.00	partial surveyed-top-of-rail table
station	304+00.00	partial surveyed-top-of-rail table
station	304+50.00	partial surveyed-top-of-rail table
station	305+00.00	partial surveyed-top-of-rail table
station	305+50.00	partial surveyed-top-of-rail table

Labels

PGL WESTBOUNDPGL EASTBOUND℄ SR 21EXISTING TRACK ALIGNMENTR.R. R/WAHEADN.SURVEYED TOP O...ELEVATIONS ON EXISTI...RAILROAD COMPA...STATIONOF...SURVEY DATED SEPTEMBER 18, 202...

Notes

℄ FUTURE ACCESS ROAD
℄ FUTURE TRACK
℄ CENTRAL OF GEORGIA RAILROAD COMPANY EXISTING TRACK
LIMITS OF LEFT BRIDGE
LIMITS OF RIGHT BRIDGE
BEGIN BRIDGE STA. 17+23.00
END BRIDGE STA. 19+15.00
TO US 25/SR 121
TO GA HIGHWAY 23
TO PERKINS
TO MILLEN
