Step 1 sends drawing crops, so it needs a model that can see them. Steps 2 and 3 send step 1’s readings as text — a text-only model with a large context is a fair answer there.

1Read the crops56 crops · all read · 328 objects · 821 measurementsconfigured openai/gpt-5.6-terra-pro · about 32¢ for 56 crops · default

Every cropped image from the cropping run, page by page, with what the model read off it: view, objects, measurements, notes and labels. Click a crop to see it beside its JSON.

All 56 crops read.

56crops56read328objects found821measurements203,485tokens in105,467tokens out
Page 12 crops · 2 read
crop · 5542 × 470

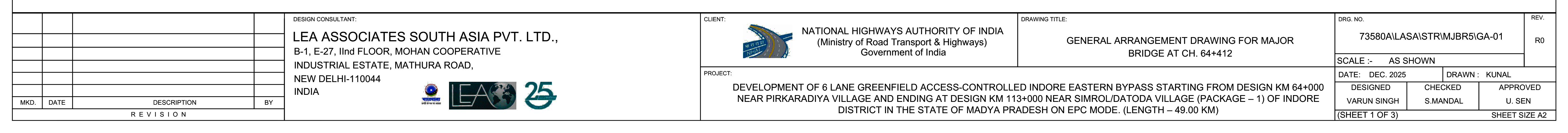

GENERAL ARRANGEMENT DRAWING FOR MAJOR BRIDGE AT CH. 64+412

page 1 · structural_drawings_pkg_1_890ff33d80e843ef8aa5a52a7a9de3d8_p01_r17_general_arrangement_drawing_for_major_bridge_at_ch_64_412
Original
GENERAL ARRANGEMENT DRAWING FOR MAJOR BRIDGE AT CH. 64+412
{
  "view": "Title Block",
  "objects": [],
  "measurements": [],
  "notes": [],
  "labels": [
    "DESIGN CONSULTANT: LEA ASSOCIATES SOUTH ASIA PVT. LTD., B-1, E-27, IInd FLOOR, MOHAN COOPERATIVE INDUSTRIAL ESTATE, MATHURA ROAD, NEW DELHI-110044, INDIA",
    "CLIENT: NATIONAL HIGHWAYS AUTHORITY OF INDIA (Ministry of Road Transport & Highways), Government of India",
    "DRAWING TITLE: GENERAL ARRANGEMENT DRAWING FOR MAJOR BRIDGE AT CH. 64+412",
    "PROJECT: DEVELOPMENT OF 6 LANE GREENFIELD ACCESS-CONTROLLED INDORE EASTERN BYPASS STARTING FROM DESIGN KM 64+000 NEAR PIRKARADIYA VILLAGE AND ENDING AT DESIGN KM 113+000 NEAR SIMROL/DATODA VILLAGE (PACKAGE - 1) OF INDORE DISTRICT IN THE STATE OF MADHYA PRADESH ON EPC MODE. (LENGTH - 49.00 KM)",
    "DRG. NO.: 73580A\\LASA\\STR\\MJBR5\\GA-01",
    "REV.: R0",
    "SCALE :- AS SHOWN",
    "DATE: DEC. 2025",
    "DRAWN : KUNAL",
    "DESIGNED: VARUN SINGH",
    "CHECKED: S.MANDAL",
    "APPROVED: U. SEN",
    "(SHEET 1 OF 3)",
    "SHEET SIZE A2",
    "MKD.",
    "DATE",
    "DESCRIPTION",
    "BY",
    "REVISION"
  ],
  "description": "This crop shows the title block of a drawing sheet for a major bridge general arrangement drawing at chainage 64+412, part of the Indore Eastern Bypass project developed by LEA Associates South Asia Pvt. Ltd. for the National Highways Authority of India. It contains project identification, client and consultant details, drawing number, revision, scale, date, and personnel names, with no constructional or dimensional content."
}

GENERAL ARRANGEMENT DRAWING FOR MAJOR BRIDGE AT CH. 64+412

done

structural_drawings_pkg_1_890ff33d80e843ef8aa5a52a7a9de3d8_p01_r17_general_arrangement_drawing_for_major_bridge_at_ch_64_412

Title Block19 labels

This crop shows the title block of a drawing sheet for a major bridge general arrangement drawing at chainage 64+412, part of the Indore Eastern Bypass project developed by LEA Associates South Asia Pvt. Ltd. for the National Highways Authority of India. It contains project identification, client and consultant details, drawing number, revision, scale, date, and personnel names, with no constructional or dimensional content.

Objects · 0

No objects read. Edit to add one.

Measurements · 0

No measurements read. Edit to add one.

Labels

DESIGN CONSULTANT: LEA ASSOCIATES SOUTH ASIA PVT. LTD., B-1, E-27, IInd FLOOR, MOHAN COOPERATIVE INDUSTRIAL ESTATE, MATHURA ROAD, NEW DELHI-110044, INDIACLIENT: NATIONAL HIGHWAYS AUTHORITY OF INDIA (Ministry of Road Transport & Highways), Government of IndiaDRAWING TITLE: GENERAL ARRANGEMENT DRAWING FOR MAJOR BRIDGE AT CH. 64+412PROJECT: DEVELOPMENT OF 6 LANE GREENFIELD ACCESS-CONTROLLED INDORE EASTERN BYPASS STARTING FROM DESIGN KM 64+000 NEAR PIRKARADIYA VILLAGE AND ENDING AT DESIGN KM 113+000 NEAR SIMROL/DATODA VILLAGE (PACKAGE - 1) OF INDORE DISTRICT IN THE STATE OF MADHYA PRADESH ON EPC MODE. (LENGTH - 49.00 KM)DRG. NO.: 73580A\LASA\STR\MJBR5\GA-01REV.: R0SCALE :- AS SHOWNDATE: DEC. 2025DRAWN : KUNALDESIGNED: VARUN SINGHCHECKED: S.MANDALAPPROVED: U. SEN(SHEET 1 OF 3)SHEET SIZE A2MKD.DATEDESCRIPTIONBYREVISION

anthropic/claude-sonnet-5 · 2726 tokens · 10.6s

crop · 1915 × 470

LEA ASSOCIATES SOUTH ASIA PVT. LTD.

page 1 · structural_drawings_pkg_1_890ff33d80e843ef8aa5a52a7a9de3d8_p01_r18_lea_associates_south_asia_pvt_ltd
Original
LEA ASSOCIATES SOUTH ASIA PVT. LTD.
{
  "view": "Title Block",
  "objects": [],
  "measurements": [],
  "notes": [],
  "labels": [
    "DESIGN CONSULTANT:",
    "LEA ASSOCIATES SOUTH ASIA PVT. LTD.,",
    "B-1, E-27, IInd FLOOR, MOHAN COOPERATIVE",
    "INDUSTRIAL ESTATE, MATHURA ROAD,",
    "NEW DELHI-110044",
    "INDIA",
    "BY",
    "CLIENT:",
    "PROJECT:",
    "DEV...",
    "NEA...",
    "Bharatmala logo",
    "LEA logo",
    "25 years excellence logo"
  ],
  "description": "This crop shows the title block section of a drawing sheet, containing the design consultant details for LEA Associates South Asia Pvt. Ltd. with their address and logos (Bharatmala emblem, LEA company logo, and a 25-year anniversary logo). Adjacent partial columns for 'CLIENT' and 'PROJECT' are visible but their text is cut off. No constructional or engineering content (drawings, dimensions, or notes) is present in this crop."
}

LEA ASSOCIATES SOUTH ASIA PVT. LTD.

done

structural_drawings_pkg_1_890ff33d80e843ef8aa5a52a7a9de3d8_p01_r18_lea_associates_south_asia_pvt_ltd

Title Block14 labels

This crop shows the title block section of a drawing sheet, containing the design consultant details for LEA Associates South Asia Pvt. Ltd. with their address and logos (Bharatmala emblem, LEA company logo, and a 25-year anniversary logo). Adjacent partial columns for 'CLIENT' and 'PROJECT' are visible but their text is cut off. No constructional or engineering content (drawings, dimensions, or notes) is present in this crop.

Objects · 0

No objects read. Edit to add one.

Measurements · 0

No measurements read. Edit to add one.

Labels

DESIGN CONSULTANT:LEA ASSOCIATES SOUTH ASIA PVT. LTD.,B-1, E-27, IInd FLOOR, MOHAN COOPERATIVEINDUSTRIAL ESTATE, MATHURA ROAD,NEW DELHI-110044INDIABYCLIENT:PROJECT:DEV...NEA...Bharatmala logoLEA logo25 years excellence logo

anthropic/claude-sonnet-5 · 2930 tokens · 6.9s

Page 222 crops · 22 read
item · 2167 × 1708

Abutment And Approach Slab

page 2 · abutment_and_approach_slab_p02_r11
Original
Abutment And Approach Slab
{
  "view": "Cross Section",
  "objects": [
    {
      "name": "Abutment",
      "tag": "A2",
      "shape": "rectangular with sloped backfill face",
      "material": "reinforced concrete",
      "count": 1,
      "note": "Marked by circled tag 'A2' at top; centerline of bearing (₽ OF BRG.) and centerline of expansion joint (₽ OF EXP. JOINT) shown at abutment"
    },
    {
      "name": "Approach slab",
      "tag": "",
      "shape": "rectangular tapered/stepped",
      "material": "reinforced concrete",
      "count": 1,
      "note": "Slab at top left with 1500 and 2850 sub-dimensions, adjacent to abutment cap"
    },
    {
      "name": "Bearing",
      "tag": "POT-PTFE BEARING (TYP.)",
      "shape": "rectangular block",
      "material": "not stated (typical elastomeric/PTFE bearing)",
      "count": 1,
      "note": "Located under girder seat, called out as typical"
    },
    {
      "name": "Seismic stopper",
      "tag": "RCC SEISMIC STOPPER",
      "shape": "rectangular block",
      "material": "reinforced concrete",
      "count": 1,
      "note": "Adjacent to bearing"
    },
    {
      "name": "Bored cast-in-situ pile",
      "tag": "",
      "shape": "circular",
      "material": "reinforced concrete",
      "count": 4,
      "note": "Shown in dashed outline below abutment footing, spaced at 3600 c/c with 750 end offsets"
    },
    {
      "name": "Retaining wall",
      "tag": "INDEPENDENT RETAINING WALL",
      "shape": "vertical wall",
      "material": "not stated (likely reinforced concrete)",
      "count": 1,
      "note": "Shown as vertical line with dashed extent behind abutment"
    },
    {
      "name": "Stone pitching",
      "tag": "STONE PITCHING",
      "shape": "sloped surface layer",
      "material": "stone",
      "count": 1,
      "note": "Applied on sloped embankment face behind abutment"
    },
    {
      "name": "Filter media layer",
      "tag": "600 THK. FILTER MEDIA",
      "shape": "layer, hatched",
      "material": "granular filter material",
      "count": 1,
      "note": "Shown as hatched band along slope, 600 thick"
    },
    {
      "name": "Embankment/backfill",
      "tag": "",
      "shape": "sloped fill",
      "material": "earth/granular fill (hatched)",
      "count": 1,
      "note": "Sloped fill behind abutment with circular aggregate symbol"
    }
  ],
  "measurements": [
    {
      "label": "",
      "value": "1070",
      "unit": "",
      "appliesTo": "distance from ₽ of BRG to face, SQ (square) dimension"
    },
    {
      "label": "",
      "value": "1236",
      "unit": "",
      "appliesTo": "same location, SK (skew) dimension"
    },
    {
      "label": "EXP.GAP",
      "value": "80",
      "unit": "",
      "appliesTo": "expansion gap, SQ"
    },
    {
      "label": "EXP.GAP",
      "value": "92",
      "unit": "",
      "appliesTo": "expansion gap, SK"
    },
    {
      "label": "",
      "value": "230",
      "unit": "",
      "appliesTo": "deck/slab thickness at top left"
    },
    {
      "label": "",
      "value": "2650",
      "unit": "",
      "appliesTo": "vertical dimension at approach slab area"
    },
    {
      "label": "",
      "value": "1500",
      "unit": "",
      "appliesTo": "approach slab sub-dimension"
    },
    {
      "label": "",
      "value": "2850",
      "unit": "",
      "appliesTo": "approach slab sub-dimension"
    },
    {
      "label": "",
      "value": "3500",
      "unit": "",
      "appliesTo": "SQ dimension near girder seat"
    },
    {
      "label": "",
      "value": "1500",
      "unit": "",
      "appliesTo": "dimension along sloped face lower section"
    },
    {
      "label": "",
      "value": "750",
      "unit": "",
      "appliesTo": "end offset, left side of pile group"
    },
    {
      "label": "",
      "value": "3600",
      "unit": "",
      "appliesTo": "pile spacing c/c (repeated three times)"
    },
    {
      "label": "",
      "value": "750",
      "unit": "",
      "appliesTo": "end offset, right side of pile group"
    },
    {
      "label": "",
      "value": "12300",
      "unit": "",
      "appliesTo": "overall length across pile group"
    },
    {
      "label": "pile diameter",
      "value": "1200",
      "unit": "DIA",
      "appliesTo": "bored cast-in-situ piles"
    },
    {
      "label": "filter media thickness",
      "value": "600",
      "unit": "THK.",
      "appliesTo": "filter media layer"
    },
    {
      "label": "scale",
      "value": "1:150",
      "unit": "",
      "appliesTo": "SECTION A-A"
    }
  ],
  "notes": [],
  "labels": [
    "A2",
    "₽ OF EXP. JOINT",
    "₽ OF BRG.",
    "POT-PTFE BEARING (TYP.)",
    "RCC SEISMIC STOPPER",
    "STONE PITCHING",
    "INDEPENDENT RETAINING WALL",
    "600 THK. FILTER MEDIA",
    "1200 DIA BORED CAST-IN-SITU PILES",
    "SECTION A-A",
    "(SCALE 1:150)"
  ],
  "description": "This crop shows a cross section (SECTION A-A, scale 1:150) through abutment A2 of a bridge, detailing the approach slab, POT-PTFE bearing, RCC seismic stopper, expansion joint gap, sloped backfill with stone pitching and filter media, an independent retaining wall, and a row of four 1200mm diameter bored cast-in-situ piles spaced at 3600mm centers beneath the abutment. It documents the substructure detailing at the abutment including bearing seat dimensions, expansion gap, backfill treatment, and pile foundation layout."
}

Abutment And Approach Slab

done

abutment_and_approach_slab_p02_r11Substructurecross section

Cross Section9 objects · 17 measurements · 11 labels

This crop shows a cross section (SECTION A-A, scale 1:150) through abutment A2 of a bridge, detailing the approach slab, POT-PTFE bearing, RCC seismic stopper, expansion joint gap, sloped backfill with stone pitching and filter media, an independent retaining wall, and a row of four 1200mm diameter bored cast-in-situ piles spaced at 3600mm centers beneath the abutment. It documents the substructure detailing at the abutment including bearing seat dimensions, expansion gap, backfill treatment, and pile foundation layout.

Objects · 9

MarkObjectNo.ShapeMaterialNote
A2Abutment1rectangular with sloped backfill facereinforced concreteMarked by circled tag 'A2' at top; centerline of bearing (₽ OF BRG.) and centerline of expansion joint (₽ OF EXP. JOINT) shown at abutment
Approach slab1rectangular tapered/steppedreinforced concreteSlab at top left with 1500 and 2850 sub-dimensions, adjacent to abutment cap
POT-PTFE BEARING (TYP.)Bearing1rectangular blocknot stated (typical elastomeric/PTFE bearing)Located under girder seat, called out as typical
RCC SEISMIC STOPPERSeismic stopper1rectangular blockreinforced concreteAdjacent to bearing
Bored cast-in-situ pile4circularreinforced concreteShown in dashed outline below abutment footing, spaced at 3600 c/c with 750 end offsets
INDEPENDENT RETAINING WALLRetaining wall1vertical wallnot stated (likely reinforced concrete)Shown as vertical line with dashed extent behind abutment
STONE PITCHINGStone pitching1sloped surface layerstoneApplied on sloped embankment face behind abutment
600 THK. FILTER MEDIAFilter media layer1layer, hatchedgranular filter materialShown as hatched band along slope, 600 thick
Embankment/backfill1sloped fillearth/granular fill (hatched)Sloped fill behind abutment with circular aggregate symbol

Measurements · 17

MeasurementValueUnitApplies to
1070distance from ₽ of BRG to face, SQ (square) dimension
1236same location, SK (skew) dimension
EXP.GAP80expansion gap, SQ
EXP.GAP92expansion gap, SK
230deck/slab thickness at top left
2650vertical dimension at approach slab area
1500approach slab sub-dimension
2850approach slab sub-dimension
3500SQ dimension near girder seat
1500dimension along sloped face lower section
750end offset, left side of pile group
3600pile spacing c/c (repeated three times)
750end offset, right side of pile group
12300overall length across pile group
pile diameter1200DIAbored cast-in-situ piles
filter media thickness600THK.filter media layer
scale1:150SECTION A-A

Labels

A2₽ OF EXP. JOINT₽ OF BRG.POT-PTFE BEARING (TYP.)RCC SEISMIC STOPPERSTONE PITCHINGINDEPENDENT RETAINING WALL600 THK. FILTER MEDIA1200 DIA BORED CAST-IN-SITU PILESSECTION A-A(SCALE 1:150)

anthropic/claude-sonnet-5 · 8139 tokens · 21.4s

item · 1850 × 2026

abutment A2

page 2 · abutment_retaining_wall_and_piles_p02_r08
Original
abutment A2
{
  "view": "Cross Section",
  "objects": [
    {
      "name": "Abutment",
      "tag": "A2",
      "shape": "tapered/trapezoidal stem with sloped backfill face",
      "material": "reinforced concrete",
      "count": 1,
      "note": "Main abutment body shown with backfill, bearing shelf, and pile foundation below."
    },
    {
      "name": "Bearing",
      "tag": "",
      "shape": "rectangular",
      "material": "not stated (POT-PTFE type)",
      "count": 1,
      "note": "Labelled POT-PTFE BEARING (TYP.), located at abutment top near centerline of bearing."
    },
    {
      "name": "Seismic stopper",
      "tag": "",
      "shape": "rectangular block",
      "material": "reinforced concrete (RCC)",
      "count": 1,
      "note": "Labelled RCC SEISMIC STOPPER, adjacent to bearing."
    },
    {
      "name": "Bored cast-in-situ pile",
      "tag": "",
      "shape": "circular",
      "material": "reinforced concrete",
      "count": 4,
      "note": "Shown in plan-like footprint below abutment, spaced at 3600mm centers, 1200 dia (per partial label)."
    },
    {
      "name": "Stone pitching / slope protection",
      "tag": "",
      "shape": "irregular/graded stone fill",
      "material": "stone",
      "count": 1,
      "note": "Labelled STONE PITCHING on embankment slope."
    },
    {
      "name": "Filter media layer",
      "tag": "",
      "shape": "layer",
      "material": "granular fill",
      "count": 1,
      "note": "Labelled 600 THK. FILTER (text cut off), behind abutment stem."
    },
    {
      "name": "Expansion joint",
      "tag": "",
      "shape": "narrow gap",
      "material": "not stated",
      "count": 1,
      "note": "Located at deck top, labelled 80(SQ) 92(SK) EXP.GAP, aligned with ℄ OF EXP. JOINT."
    },
    {
      "name": "Deck/girder end (partial)",
      "tag": "",
      "shape": "rectangular",
      "material": "not stated",
      "count": 1,
      "note": "Only a small portion of the superstructure end near the bearing is visible."
    },
    {
      "name": "Approach embankment fill",
      "tag": "",
      "shape": "sloped/tapered wedge",
      "material": "earth/granular fill",
      "count": 1,
      "note": "Fill behind and below abutment, shown with hatching pattern."
    }
  ],
  "measurements": [
    {
      "label": "1070",
      "value": "1070",
      "unit": "mm",
      "appliesTo": "square dimension near ℄ OF BRG"
    },
    {
      "label": "1236",
      "value": "1236",
      "unit": "mm",
      "appliesTo": "skew dimension near ℄ OF BRG"
    },
    {
      "label": "80",
      "value": "80",
      "unit": "mm",
      "appliesTo": "expansion gap (square)"
    },
    {
      "label": "92",
      "value": "92",
      "unit": "mm",
      "appliesTo": "expansion gap (skew)"
    },
    {
      "label": "3500",
      "value": "3500",
      "unit": "mm",
      "appliesTo": "deck/abutment top dimension (SQ)"
    },
    {
      "label": "230",
      "value": "230",
      "unit": "mm",
      "appliesTo": "deck slab thickness at top of abutment"
    },
    {
      "label": "2650",
      "value": "2650",
      "unit": "mm",
      "appliesTo": "vertical dimension of abutment upper section"
    },
    {
      "label": "1500",
      "value": "1500",
      "unit": "mm",
      "appliesTo": "horizontal dimension of abutment backfill/seat"
    },
    {
      "label": "2850",
      "value": "2850",
      "unit": "mm",
      "appliesTo": "horizontal dimension adjacent to 1500 measurement"
    },
    {
      "label": "1500",
      "value": "1500",
      "unit": "mm",
      "appliesTo": "lower horizontal dimension near pile cap area"
    },
    {
      "label": "750",
      "value": "750",
      "unit": "mm",
      "appliesTo": "end spacing of pile group (left side)"
    },
    {
      "label": "3600",
      "value": "3600",
      "unit": "mm",
      "appliesTo": "pile spacing (three instances)"
    },
    {
      "label": "750",
      "value": "750",
      "unit": "mm",
      "appliesTo": "end spacing of pile group (right side)"
    },
    {
      "label": "12300",
      "value": "12300",
      "unit": "mm",
      "appliesTo": "overall pile group width"
    },
    {
      "label": "600 THK",
      "value": "600",
      "unit": "mm",
      "appliesTo": "filter layer thickness (label partially cut off)"
    },
    {
      "label": "1200 DIA",
      "value": "1200",
      "unit": "mm",
      "appliesTo": "bored cast-in-situ pile diameter (label partially cut off)"
    },
    {
      "label": "SCALE",
      "value": "1:150",
      "unit": "",
      "appliesTo": "SECTION A-A"
    }
  ],
  "notes": [
    "℄ OF EXP. JOINT",
    "℄ OF BRG.",
    "POT-PTFE BEARING (TYP.)",
    "RCC SEISMIC STOPPER",
    "STONE PITCHING",
    "INDEPENDENT RE... (text cut off)",
    "600 THK. FILTER ... (text cut off)",
    "1200 DIA BORED ... CAST-IN-SITU PILE ... (text cut off)"
  ],
  "labels": [
    "A2",
    "SECTION A-A",
    "(SCALE 1:150)"
  ],
  "description": "This crop is a cross section (Section A-A, scale 1:150) through abutment A2 of a bridge, showing the abutment stem, backfill, POT-PTFE bearing with RCC seismic stopper at the bearing shelf, and a row of four bored cast-in-situ piles beneath the abutment spaced at 3600mm centers with 750mm end offsets (overall 12300mm). Slope protection via stone pitching and a filter layer is shown on the embankment face, with partial superstructure and expansion joint details visible at the top of the section; some right-side callout text is cut off at the crop edge."
}

abutment A2

done

abutment_retaining_wall_and_piles_p02_r08Substructurecross section

Cross Section9 objects · 17 measurements · 8 notes · 3 labels

This crop is a cross section (Section A-A, scale 1:150) through abutment A2 of a bridge, showing the abutment stem, backfill, POT-PTFE bearing with RCC seismic stopper at the bearing shelf, and a row of four bored cast-in-situ piles beneath the abutment spaced at 3600mm centers with 750mm end offsets (overall 12300mm). Slope protection via stone pitching and a filter layer is shown on the embankment face, with partial superstructure and expansion joint details visible at the top of the section; some right-side callout text is cut off at the crop edge.

Objects · 9

MarkObjectNo.ShapeMaterialNote
A2Abutment1tapered/trapezoidal stem with sloped backfill facereinforced concreteMain abutment body shown with backfill, bearing shelf, and pile foundation below.
Bearing1rectangularnot stated (POT-PTFE type)Labelled POT-PTFE BEARING (TYP.), located at abutment top near centerline of bearing.
Seismic stopper1rectangular blockreinforced concrete (RCC)Labelled RCC SEISMIC STOPPER, adjacent to bearing.
Bored cast-in-situ pile4circularreinforced concreteShown in plan-like footprint below abutment, spaced at 3600mm centers, 1200 dia (per partial label).
Stone pitching / slope protection1irregular/graded stone fillstoneLabelled STONE PITCHING on embankment slope.
Filter media layer1layergranular fillLabelled 600 THK. FILTER (text cut off), behind abutment stem.
Expansion joint1narrow gapnot statedLocated at deck top, labelled 80(SQ) 92(SK) EXP.GAP, aligned with ℄ OF EXP. JOINT.
Deck/girder end (partial)1rectangularnot statedOnly a small portion of the superstructure end near the bearing is visible.
Approach embankment fill1sloped/tapered wedgeearth/granular fillFill behind and below abutment, shown with hatching pattern.

Measurements · 17

MeasurementValueUnitApplies to
10701070mmsquare dimension near ℄ OF BRG
12361236mmskew dimension near ℄ OF BRG
8080mmexpansion gap (square)
9292mmexpansion gap (skew)
35003500mmdeck/abutment top dimension (SQ)
230230mmdeck slab thickness at top of abutment
26502650mmvertical dimension of abutment upper section
15001500mmhorizontal dimension of abutment backfill/seat
28502850mmhorizontal dimension adjacent to 1500 measurement
15001500mmlower horizontal dimension near pile cap area
750750mmend spacing of pile group (left side)
36003600mmpile spacing (three instances)
750750mmend spacing of pile group (right side)
1230012300mmoverall pile group width
600 THK600mmfilter layer thickness (label partially cut off)
1200 DIA1200mmbored cast-in-situ pile diameter (label partially cut off)
SCALE1:150SECTION A-A

Labels

A2SECTION A-A(SCALE 1:150)

Notes

  • ℄ OF EXP. JOINT
  • ℄ OF BRG.
  • POT-PTFE BEARING (TYP.)
  • RCC SEISMIC STOPPER
  • STONE PITCHING
  • INDEPENDENT RE... (text cut off)
  • 600 THK. FILTER ... (text cut off)
  • 1200 DIA BORED ... CAST-IN-SITU PILE ... (text cut off)

anthropic/claude-sonnet-5 · 8961 tokens · 24.2s

item · 1207 × 1566

Bridge Pier And Foundation

page 2 · bridge_pier_and_foundation_p02_r10
Original
Bridge Pier And Foundation
{
  "view": "Cross Section",
  "objects": [
    {
      "name": "Pier",
      "tag": "P1",
      "shape": "column, circular in elevation (rectangular cap)",
      "material": "reinforced concrete",
      "count": 1,
      "note": "Labelled RCC COLUMN PIER, shown as single circular/cylindrical shaft below pier cap"
    },
    {
      "name": "Pier cap / bearing pedestal",
      "tag": "",
      "shape": "rectangular, stepped",
      "material": "reinforced concrete",
      "count": 1,
      "note": "Supports bearings, dimensioned 1500 depth split into 750+750"
    },
    {
      "name": "Crash barrier",
      "tag": "",
      "shape": "rectangular profile",
      "material": "reinforced concrete",
      "count": 2,
      "note": "RCC CRASH BARRIER at each edge of deck, 230 height shown both sides"
    },
    {
      "name": "PSC Girder",
      "tag": "",
      "shape": "I-girder (tapered flange, shown in section as vertical hatched webs)",
      "material": "precast concrete",
      "count": 2,
      "note": "PRECAST PSC GIRDER (TYP.), one on each side of pier centerline"
    },
    {
      "name": "Bearing",
      "tag": "",
      "shape": "rectangular, pot type",
      "material": "elastomeric/PTFE composite",
      "count": 4,
      "note": "POT-PTFE BEARING (TYP.), two pairs shown symmetric about centerline"
    },
    {
      "name": "Seismic stopper",
      "tag": "",
      "shape": "rectangular block",
      "material": "reinforced concrete",
      "count": 2,
      "note": "RCC SEISMIC STOPPER shown at bearing locations"
    },
    {
      "name": "Deck continuity slab/joint",
      "tag": "",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 1,
      "note": "DECK CONTINUITY labelled at top center over pier"
    },
    {
      "name": "Pile cap",
      "tag": "",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 1,
      "note": "RCC PILECAP, dashed outline, depth 1800"
    },
    {
      "name": "Bored cast-in-situ pile",
      "tag": "",
      "shape": "circular",
      "material": "reinforced concrete",
      "count": 2,
      "note": "1200 DIA BORED CAST-IN-SITU PILES, shown in section with hooked reinforcement ends"
    }
  ],
  "measurements": [
    {
      "label": "Distance from centerline to bearing",
      "value": "1170",
      "unit": "",
      "appliesTo": "square span layout"
    },
    {
      "label": "Distance from centerline to bearing (skew)",
      "value": "1350",
      "unit": "",
      "appliesTo": "skew span layout"
    },
    {
      "label": "Bearing gap at centerline of pier",
      "value": "1500",
      "unit": "",
      "appliesTo": "skew (SK) dimension between bearings"
    },
    {
      "label": "Crash barrier height",
      "value": "230",
      "unit": "",
      "appliesTo": "RCC crash barrier, both sides"
    },
    {
      "label": "Girder depth",
      "value": "2650",
      "unit": "",
      "appliesTo": "PRECAST PSC GIRDER, both sides"
    },
    {
      "label": "Pier cap total depth",
      "value": "1500",
      "unit": "",
      "appliesTo": "pier cap"
    },
    {
      "label": "Pier cap depth split (upper)",
      "value": "750",
      "unit": "",
      "appliesTo": "pier cap"
    },
    {
      "label": "Pier cap depth split (lower)",
      "value": "750",
      "unit": "",
      "appliesTo": "pier cap"
    },
    {
      "label": "Pier cap width square",
      "value": "3640",
      "unit": "",
      "appliesTo": "pier cap (SQ)"
    },
    {
      "label": "Pier cap width skew",
      "value": "4203",
      "unit": "",
      "appliesTo": "pier cap (SK)"
    },
    {
      "label": "Pier shaft width",
      "value": "1500",
      "unit": "",
      "appliesTo": "RCC column pier"
    },
    {
      "label": "Pile cap depth",
      "value": "1800",
      "unit": "",
      "appliesTo": "RCC pilecap"
    },
    {
      "label": "Edge distance from pile to pile cap edge",
      "value": "750",
      "unit": "",
      "appliesTo": "pile cap, both sides"
    },
    {
      "label": "Pile spacing center to center",
      "value": "3600",
      "unit": "",
      "appliesTo": "between piles"
    },
    {
      "label": "Total pile cap width",
      "value": "5100",
      "unit": "",
      "appliesTo": "pile cap"
    },
    {
      "label": "Pile diameter",
      "value": "1200",
      "unit": "DIA",
      "appliesTo": "bored cast-in-situ piles"
    }
  ],
  "notes": [],
  "labels": [
    "P1",
    "℄ OF BRG.",
    "FRL",
    "RCC CRASH BARRIER",
    "DECK CONTINUITY",
    "PRECAST PSC GIRDER (TYP.)",
    "RCC SEISMIC STOPPER",
    "POT-PTFE BEARING (TYP.)",
    "RCC COLUMN PIER",
    "RCC PILECAP",
    "1200 DIA BORED CAST-IN-SITU PILES",
    "SECTION P-P"
  ],
  "description": "This crop is a cross section through bridge pier P1, showing the deck/girder arrangement, pot-PTFE bearings with seismic stoppers atop a stepped pier cap, a single circular RCC column pier shaft, and below-ground an RCC pile cap supported on two 1200mm diameter bored cast-in-situ piles. It documents the substructure geometry and key dimensions (bearing spacing, pier cap and shaft sizes, pile cap depth, pile spacing) for pier P1, distinguishing square (SQ) and skew (SK) dimensions where the bridge is skewed.  The section title 'SECTION P-P' appears partially cut off at the bottom edge."
}

Bridge Pier And Foundation

done

bridge_pier_and_foundation_p02_r10Substructurecross section

Cross Section9 objects · 16 measurements · 12 labels

This crop is a cross section through bridge pier P1, showing the deck/girder arrangement, pot-PTFE bearings with seismic stoppers atop a stepped pier cap, a single circular RCC column pier shaft, and below-ground an RCC pile cap supported on two 1200mm diameter bored cast-in-situ piles. It documents the substructure geometry and key dimensions (bearing spacing, pier cap and shaft sizes, pile cap depth, pile spacing) for pier P1, distinguishing square (SQ) and skew (SK) dimensions where the bridge is skewed. The section title 'SECTION P-P' appears partially cut off at the bottom edge.

Objects · 9

MarkObjectNo.ShapeMaterialNote
P1Pier1column, circular in elevation (rectangular cap)reinforced concreteLabelled RCC COLUMN PIER, shown as single circular/cylindrical shaft below pier cap
Pier cap / bearing pedestal1rectangular, steppedreinforced concreteSupports bearings, dimensioned 1500 depth split into 750+750
Crash barrier2rectangular profilereinforced concreteRCC CRASH BARRIER at each edge of deck, 230 height shown both sides
PSC Girder2I-girder (tapered flange, shown in section as vertical hatched webs)precast concretePRECAST PSC GIRDER (TYP.), one on each side of pier centerline
Bearing4rectangular, pot typeelastomeric/PTFE compositePOT-PTFE BEARING (TYP.), two pairs shown symmetric about centerline
Seismic stopper2rectangular blockreinforced concreteRCC SEISMIC STOPPER shown at bearing locations
Deck continuity slab/joint1rectangularreinforced concreteDECK CONTINUITY labelled at top center over pier
Pile cap1rectangularreinforced concreteRCC PILECAP, dashed outline, depth 1800
Bored cast-in-situ pile2circularreinforced concrete1200 DIA BORED CAST-IN-SITU PILES, shown in section with hooked reinforcement ends

Measurements · 16

MeasurementValueUnitApplies to
Distance from centerline to bearing1170square span layout
Distance from centerline to bearing (skew)1350skew span layout
Bearing gap at centerline of pier1500skew (SK) dimension between bearings
Crash barrier height230RCC crash barrier, both sides
Girder depth2650PRECAST PSC GIRDER, both sides
Pier cap total depth1500pier cap
Pier cap depth split (upper)750pier cap
Pier cap depth split (lower)750pier cap
Pier cap width square3640pier cap (SQ)
Pier cap width skew4203pier cap (SK)
Pier shaft width1500RCC column pier
Pile cap depth1800RCC pilecap
Edge distance from pile to pile cap edge750pile cap, both sides
Pile spacing center to center3600between piles
Total pile cap width5100pile cap
Pile diameter1200DIAbored cast-in-situ piles

Labels

P1℄ OF BRG.FRLRCC CRASH BARRIERDECK CONTINUITYPRECAST PSC GIRDER (TYP.)RCC SEISMIC STOPPERPOT-PTFE BEARING (TYP.)RCC COLUMN PIERRCC PILECAP1200 DIA BORED CAST-IN-SITU PILESSECTION P-P

anthropic/claude-sonnet-5 · 6249 tokens · 19.3s

item · 4455 × 1354

Bridge Superstructure Spans

page 2 · bridge_superstructure_spans_p02_r02
Original
Bridge Superstructure Spans
{
  "view": "Elevation",
  "objects": [
    {
      "name": "Abutment",
      "tag": "A1",
      "shape": "wall type",
      "material": "reinforced concrete",
      "count": 1,
      "note": "Wall type abutment at left end, with expansion joint and bearing"
    },
    {
      "name": "Abutment",
      "tag": "A2",
      "shape": "wall type",
      "material": "reinforced concrete",
      "count": 1,
      "note": "Wall type abutment at right end, mirrors A1"
    },
    {
      "name": "Pier",
      "tag": "P1",
      "shape": "circular column",
      "material": "reinforced concrete",
      "count": 1,
      "note": "RCC column pier at centre, labelled RCC COLUMN PIER (TYP.)"
    },
    {
      "name": "Bearing",
      "tag": "FR",
      "shape": "rectangular",
      "material": "PTFE/elastomeric pot bearing",
      "count": 3,
      "note": "POT-PTFE BEARING (TYP.), fixed/free type marked FR, located at A1, P1(one side) and A2"
    },
    {
      "name": "Bearing",
      "tag": "FX",
      "shape": "rectangular",
      "material": "PTFE pot bearing",
      "count": 1,
      "note": "POT-PTFE BEARING (TYP.), fixed type marked FX at pier P1"
    },
    {
      "name": "Girder",
      "tag": "",
      "shape": "I-girder/precast",
      "material": "precast concrete",
      "count": null,
      "note": "PRECAST PSC GIRDER (TYP.), multiple spans, exact count not enumerable from crop"
    },
    {
      "name": "Crash Barrier",
      "tag": "",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 2,
      "note": "RCC CRASH BARRIER along both spans"
    },
    {
      "name": "Approach Slab",
      "tag": "",
      "shape": "rectangular slab",
      "material": "concrete",
      "count": 2,
      "note": "300 THK. APPROACH SLAB at both ends"
    },
    {
      "name": "Pavement Layer",
      "tag": "",
      "shape": "layer",
      "material": "PCC",
      "count": 2,
      "note": "150 THK. PCC LEVELING COURSE beneath approach slabs"
    },
    {
      "name": "Retaining Wall",
      "tag": "",
      "shape": "rectangular/independent",
      "material": "concrete",
      "count": 2,
      "note": "INDEPENDENT RETAINING WALL shown both sides with stone pitching and filter media"
    },
    {
      "name": "Stone Pitching",
      "tag": "",
      "shape": "sloped surface treatment",
      "material": "stone",
      "count": 2,
      "note": "STONE PITCHING noted at both embankments"
    },
    {
      "name": "Filter Media",
      "tag": "",
      "shape": "layer",
      "material": "granular fill",
      "count": 2,
      "note": "600 THK. FILTER MEDIA beneath stone pitching"
    },
    {
      "name": "Pile",
      "tag": "",
      "shape": "circular",
      "material": "reinforced concrete, cast in situ",
      "count": null,
      "note": "1200Ø RCC CAST IN SITU PILE (TYP.) shown below pier P1 in dashed foundation plan; number of piles not clearly countable"
    },
    {
      "name": "Launching Apron",
      "tag": "",
      "shape": "sloped/stepped",
      "material": "stone/concrete",
      "count": 1,
      "note": "Shown below abutment A1 slope, labelled LAUNCHING APRON"
    },
    {
      "name": "Deck Continuity",
      "tag": "",
      "shape": "",
      "material": "concrete",
      "count": 1,
      "note": "Labelled DECK CONTINUITY at pier P1 location"
    },
    {
      "name": "Expansion Joint",
      "tag": "",
      "shape": "linear gap",
      "material": "",
      "count": 2,
      "note": "Marked at both abutments, EXP. GAP dimensions given"
    }
  ],
  "measurements": [
    {
      "label": "Span length (square)",
      "value": "40000",
      "unit": "",
      "appliesTo": "Span A1-P1"
    },
    {
      "label": "Span length (skew)",
      "value": "46188",
      "unit": "",
      "appliesTo": "Span A1-P1"
    },
    {
      "label": "Span length (square)",
      "value": "46000",
      "unit": "",
      "appliesTo": "Span P1-A2 (SK label shown twice, 46000(SQ) not explicit, only SK shown)"
    },
    {
      "label": "Span length (skew)",
      "value": "46188",
      "unit": "",
      "appliesTo": "Span P1-A2"
    },
    {
      "label": "Expansion gap (square)",
      "value": "80",
      "unit": "",
      "appliesTo": "A1 exp. joint"
    },
    {
      "label": "Expansion gap (skew)",
      "value": "92",
      "unit": "",
      "appliesTo": "A1 exp. joint"
    },
    {
      "label": "Expansion gap (square)",
      "value": "80",
      "unit": "",
      "appliesTo": "A2 exp. joint"
    },
    {
      "label": "Expansion gap (skew)",
      "value": "92",
      "unit": "",
      "appliesTo": "A2 exp. joint"
    },
    {
      "label": "Distance from exp joint to bearing centre (square)",
      "value": "1070",
      "unit": "",
      "appliesTo": "A1"
    },
    {
      "label": "Distance from exp joint to bearing centre (skew)",
      "value": "1236",
      "unit": "",
      "appliesTo": "A1"
    },
    {
      "label": "Distance from exp joint to bearing centre (square)",
      "value": "1070",
      "unit": "",
      "appliesTo": "A2"
    },
    {
      "label": "Distance from exp joint to bearing centre (skew)",
      "value": "1236",
      "unit": "",
      "appliesTo": "A2"
    },
    {
      "label": "Distance between bearings (square)",
      "value": "37761",
      "unit": "",
      "appliesTo": "Span A1-P1"
    },
    {
      "label": "Distance between bearings (skew)",
      "value": "43602",
      "unit": "",
      "appliesTo": "Span A1-P1"
    },
    {
      "label": "Distance between bearings (square)",
      "value": "37761",
      "unit": "",
      "appliesTo": "Span P1-A2"
    },
    {
      "label": "Distance between bearings (skew)",
      "value": "43602",
      "unit": "",
      "appliesTo": "Span P1-A2"
    },
    {
      "label": "Bearing offset at pier (square)",
      "value": "1170",
      "unit": "",
      "appliesTo": "P1 left"
    },
    {
      "label": "Bearing offset at pier (skew)",
      "value": "1350",
      "unit": "",
      "appliesTo": "P1 left"
    },
    {
      "label": "Bearing offset at pier (square)",
      "value": "1170",
      "unit": "",
      "appliesTo": "P1 right"
    },
    {
      "label": "Bearing offset at pier (skew)",
      "value": "1350",
      "unit": "",
      "appliesTo": "P1 right"
    },
    {
      "label": "Pier cap width (skew)",
      "value": "1500",
      "unit": "",
      "appliesTo": "P1 pier cap"
    },
    {
      "label": "Approach slab thickness",
      "value": "300",
      "unit": "THK.",
      "appliesTo": "Approach slab"
    },
    {
      "label": "PCC leveling course thickness",
      "value": "150",
      "unit": "THK.",
      "appliesTo": "PCC leveling course"
    },
    {
      "label": "Filter media thickness",
      "value": "600",
      "unit": "THK.",
      "appliesTo": "Retaining wall filter media"
    },
    {
      "label": "Minimum clearance",
      "value": "1200",
      "unit": "(min)",
      "appliesTo": "HFL clearance below girder"
    },
    {
      "label": "High Flood Level",
      "value": "HFL=",
      "unit": "",
      "appliesTo": "River/waterway (value not printed)"
    },
    {
      "label": "Low Water Level",
      "value": "506.000",
      "unit": "m",
      "appliesTo": "LWL"
    },
    {
      "label": "Pile diameter",
      "value": "1200",
      "unit": "mm (Ø)",
      "appliesTo": "RCC cast in situ pile"
    },
    {
      "label": "Pile cap/foundation dimension",
      "value": "750",
      "unit": "",
      "appliesTo": "P1 foundation"
    },
    {
      "label": "Pile spacing",
      "value": "3600",
      "unit": "",
      "appliesTo": "P1 foundation"
    },
    {
      "label": "Foundation width total",
      "value": "5100",
      "unit": "",
      "appliesTo": "P1 foundation"
    },
    {
      "label": "Embankment/retaining wall dimension",
      "value": "750",
      "unit": "",
      "appliesTo": "A1 retaining wall footing"
    },
    {
      "label": "Embankment dimension",
      "value": "3600",
      "unit": "",
      "appliesTo": "A1 retaining wall (repeated 3 times)"
    },
    {
      "label": "Embankment total width",
      "value": "12300",
      "unit": "",
      "appliesTo": "A1 retaining wall"
    },
    {
      "label": "Embankment/retaining wall dimension",
      "value": "750",
      "unit": "",
      "appliesTo": "A2 retaining wall footing"
    },
    {
      "label": "Embankment dimension",
      "value": "3600",
      "unit": "",
      "appliesTo": "A2 retaining wall (repeated 3 times)"
    },
    {
      "label": "Embankment total width",
      "value": "12300",
      "unit": "",
      "appliesTo": "A2 retaining wall"
    },
    {
      "label": "Chainage LHS point 1",
      "value": "64+360.197",
      "unit": "km",
      "appliesTo": "Table LHS chainage"
    },
    {
      "label": "Chainage RHS point 1",
      "value": "64+371.487",
      "unit": "km",
      "appliesTo": "Table RHS chainage"
    },
    {
      "label": "Chainage LHS point 2",
      "value": "64+406.385",
      "unit": "km",
      "appliesTo": "Table LHS chainage"
    },
    {
      "label": "Chainage RHS point 2",
      "value": "64+417.675",
      "unit": "km",
      "appliesTo": "Table RHS chainage"
    },
    {
      "label": "Chainage LHS point 3",
      "value": "64+452.573",
      "unit": "km",
      "appliesTo": "Table LHS chainage"
    },
    {
      "label": "Chainage RHS point 3",
      "value": "64+463.814",
      "unit": "km",
      "appliesTo": "Table RHS chainage"
    },
    {
      "label": "FRL LHS point 1",
      "value": "518.281",
      "unit": "m",
      "appliesTo": "Table FRL LHS"
    },
    {
      "label": "FRL RHS point 1",
      "value": "518.465",
      "unit": "m",
      "appliesTo": "Table FRL RHS"
    },
    {
      "label": "FRL LHS point 2",
      "value": "519.033",
      "unit": "m",
      "appliesTo": "Table FRL LHS"
    },
    {
      "label": "FRL RHS point 2",
      "value": "519.217",
      "unit": "m",
      "appliesTo": "Table FRL RHS"
    },
    {
      "label": "FRL LHS point 3",
      "value": "519.785",
      "unit": "m",
      "appliesTo": "Table FRL LHS"
    },
    {
      "label": "FRL RHS point 3",
      "value": "519.968",
      "unit": "m",
      "appliesTo": "Table FRL RHS"
    },
    {
      "label": "Ground level LHS point 1",
      "value": "509.560",
      "unit": "m",
      "appliesTo": "Table ground level LHS"
    },
    {
      "label": "Ground level LHS point 2",
      "value": "503.816",
      "unit": "m",
      "appliesTo": "Table ground level LHS"
    },
    {
      "label": "Ground level LHS point 3",
      "value": "511.891",
      "unit": "m",
      "appliesTo": "Table ground level LHS"
    }
  ],
  "notes": [
    "1. ALL DIMENSIONS ARE ... OTHERWISE SPECIFIED.",
    "2. DIMENSIONS ARE NOT FOLLOWED.",
    "3. THIS DRAWING SHALL ALIGNMENT DRAWINGS",
    "4. THE BRIDGE HAS PER... (text cut off)"
  ],
  "labels": [
    "TO DEWAS",
    "TO KHANDWA",
    "A1",
    "A2",
    "P1",
    "Ç OF EXP. JOINT",
    "Ç OF BRG.",
    "RCC CRASH BARRIER",
    "PRECAST PSC GIRDER (TYP.)",
    "WALL TYPE ABUTMENT",
    "POT-PTFE BEARING (TYP.)",
    "RCC COLUMN PIER (TYP.)",
    "DECK CONTINUITY",
    "LAUNCHING APRON",
    "STONE PITCHING",
    "INDEPENDENT RETAINING WALL",
    "300 THK. APPROACH SLAB",
    "150 THK. PCC LEVELING COURSE",
    "600 THK. FILTER MEDIA",
    "1200Ø RCC CAST IN SITU PILE (TYP.)",
    "LWL=506.000m",
    "HFL=",
    "NOTES:",
    "CHAINAGE IN (km.)",
    "FRL. (m)",
    "MAIN CARRIAGEWAY",
    "GROUND LEVEL(m)",
    "LHS",
    "RHS"
  ],
  "description": "This crop shows a full bridge elevation between two abutments (A1, A2) and a central pier (P1), depicting two spans of precast PSC girders on POT-PTFE bearings, RCC crash barriers, wall-type abutments, and a circular RCC column pier founded on 1200mm diameter cast-in-situ piles. Below the elevation is a data table listing chainage, formation road level, and ground level values at three points along LHS and RHS of the carriageway, with a partially visible general notes column at the right edge."
}

Bridge Superstructure Spans

done

bridge_superstructure_spans_p02_r02SubstructureElevation

Elevation16 objects · 52 measurements · 4 notes · 29 labels

This crop shows a full bridge elevation between two abutments (A1, A2) and a central pier (P1), depicting two spans of precast PSC girders on POT-PTFE bearings, RCC crash barriers, wall-type abutments, and a circular RCC column pier founded on 1200mm diameter cast-in-situ piles. Below the elevation is a data table listing chainage, formation road level, and ground level values at three points along LHS and RHS of the carriageway, with a partially visible general notes column at the right edge.

Objects · 16

MarkObjectNo.ShapeMaterialNote
A1Abutment1wall typereinforced concreteWall type abutment at left end, with expansion joint and bearing
A2Abutment1wall typereinforced concreteWall type abutment at right end, mirrors A1
P1Pier1circular columnreinforced concreteRCC column pier at centre, labelled RCC COLUMN PIER (TYP.)
FRBearing3rectangularPTFE/elastomeric pot bearingPOT-PTFE BEARING (TYP.), fixed/free type marked FR, located at A1, P1(one side) and A2
FXBearing1rectangularPTFE pot bearingPOT-PTFE BEARING (TYP.), fixed type marked FX at pier P1
GirderI-girder/precastprecast concretePRECAST PSC GIRDER (TYP.), multiple spans, exact count not enumerable from crop
Crash Barrier2rectangularreinforced concreteRCC CRASH BARRIER along both spans
Approach Slab2rectangular slabconcrete300 THK. APPROACH SLAB at both ends
Pavement Layer2layerPCC150 THK. PCC LEVELING COURSE beneath approach slabs
Retaining Wall2rectangular/independentconcreteINDEPENDENT RETAINING WALL shown both sides with stone pitching and filter media
Stone Pitching2sloped surface treatmentstoneSTONE PITCHING noted at both embankments
Filter Media2layergranular fill600 THK. FILTER MEDIA beneath stone pitching
Pilecircularreinforced concrete, cast in situ1200Ø RCC CAST IN SITU PILE (TYP.) shown below pier P1 in dashed foundation plan; number of piles not clearly countable
Launching Apron1sloped/steppedstone/concreteShown below abutment A1 slope, labelled LAUNCHING APRON
Deck Continuity1concreteLabelled DECK CONTINUITY at pier P1 location
Expansion Joint2linear gapMarked at both abutments, EXP. GAP dimensions given

Measurements · 52

MeasurementValueUnitApplies to
Span length (square)40000Span A1-P1
Span length (skew)46188Span A1-P1
Span length (square)46000Span P1-A2 (SK label shown twice, 46000(SQ) not explicit, only SK shown)
Span length (skew)46188Span P1-A2
Expansion gap (square)80A1 exp. joint
Expansion gap (skew)92A1 exp. joint
Expansion gap (square)80A2 exp. joint
Expansion gap (skew)92A2 exp. joint
Distance from exp joint to bearing centre (square)1070A1
Distance from exp joint to bearing centre (skew)1236A1
Distance from exp joint to bearing centre (square)1070A2
Distance from exp joint to bearing centre (skew)1236A2
Distance between bearings (square)37761Span A1-P1
Distance between bearings (skew)43602Span A1-P1
Distance between bearings (square)37761Span P1-A2
Distance between bearings (skew)43602Span P1-A2
Bearing offset at pier (square)1170P1 left
Bearing offset at pier (skew)1350P1 left
Bearing offset at pier (square)1170P1 right
Bearing offset at pier (skew)1350P1 right
Pier cap width (skew)1500P1 pier cap
Approach slab thickness300THK.Approach slab
PCC leveling course thickness150THK.PCC leveling course
Filter media thickness600THK.Retaining wall filter media
Minimum clearance1200(min)HFL clearance below girder
High Flood LevelHFL=River/waterway (value not printed)
Low Water Level506.000mLWL
Pile diameter1200mm (Ø)RCC cast in situ pile
Pile cap/foundation dimension750P1 foundation
Pile spacing3600P1 foundation
Foundation width total5100P1 foundation
Embankment/retaining wall dimension750A1 retaining wall footing
Embankment dimension3600A1 retaining wall (repeated 3 times)
Embankment total width12300A1 retaining wall
Embankment/retaining wall dimension750A2 retaining wall footing
Embankment dimension3600A2 retaining wall (repeated 3 times)
Embankment total width12300A2 retaining wall
Chainage LHS point 164+360.197kmTable LHS chainage
Chainage RHS point 164+371.487kmTable RHS chainage
Chainage LHS point 264+406.385kmTable LHS chainage
Chainage RHS point 264+417.675kmTable RHS chainage
Chainage LHS point 364+452.573kmTable LHS chainage
Chainage RHS point 364+463.814kmTable RHS chainage
FRL LHS point 1518.281mTable FRL LHS
FRL RHS point 1518.465mTable FRL RHS
FRL LHS point 2519.033mTable FRL LHS
FRL RHS point 2519.217mTable FRL RHS
FRL LHS point 3519.785mTable FRL LHS
FRL RHS point 3519.968mTable FRL RHS
Ground level LHS point 1509.560mTable ground level LHS
Ground level LHS point 2503.816mTable ground level LHS
Ground level LHS point 3511.891mTable ground level LHS

Labels

TO DEWASTO KHANDWAA1A2P1Ç OF EXP. JOINTÇ OF BRG.RCC CRASH BARRIERPRECAST PSC GIRDER (TYP.)WALL TYPE ABUTMENTPOT-PTFE BEARING (TYP.)RCC COLUMN PIER (TYP.)DECK CONTINUITYLAUNCHING APRONSTONE PITCHINGINDEPENDENT RETAINING WALL300 THK. APPROACH SLAB150 THK. PCC LEVELING COURSE600 THK. FILTER MEDIA1200Ø RCC CAST IN SITU PILE (TYP.)LWL=506.000mHFL=NOTES:CHAINAGE IN (km.)FRL. (m)MAIN CARRIAGEWAYGROUND LEVEL(m)LHSRHS

Notes

  • 1. ALL DIMENSIONS ARE ... OTHERWISE SPECIFIED.
  • 2. DIMENSIONS ARE NOT FOLLOWED.
  • 3. THIS DRAWING SHALL ALIGNMENT DRAWINGS
  • 4. THE BRIDGE HAS PER... (text cut off)

anthropic/claude-sonnet-5 · 8611 tokens · 42.6s

item · 5049 × 1530

Full Bridge Elevation With Abutments Pier And Girders

page 2 · full_bridge_elevation_with_abutments_pier_and_girders_p02_r01
Original
Full Bridge Elevation With Abutments Pier And Girders
{
  "view": "Elevation",
  "objects": [
    {
      "name": "Abutment",
      "tag": "A1",
      "shape": "wall type",
      "material": "reinforced concrete",
      "count": 1,
      "note": "Located at left end, with expansion joint centerline and POT-PTFE bearings"
    },
    {
      "name": "Abutment",
      "tag": "A2",
      "shape": "wall type",
      "material": "reinforced concrete",
      "count": 1,
      "note": "Located at right end, labeled 'WALL TYPE ABUTMENT', with expansion joint"
    },
    {
      "name": "Pier",
      "tag": "P1",
      "shape": "column, circular/rectangular cap",
      "material": "reinforced concrete",
      "count": 1,
      "note": "Labeled 'RCC COLUMN PIER (TYP.)', supports deck continuity"
    },
    {
      "name": "Girder",
      "tag": "",
      "shape": "I-girder/precast",
      "material": "precast concrete",
      "count": null,
      "note": "Labeled 'PRECAST PSC GIRDER (TYP.)'; multiple girder segments shown along both spans"
    },
    {
      "name": "Bearing",
      "tag": "FR / FX",
      "shape": "pot bearing",
      "material": "elastomeric/PTFE-steel",
      "count": 6,
      "note": "Labeled 'POT-PTFE BEARING (TYP.)'; FR (free) at abutments and one side of pier, FX (fixed) at pier"
    },
    {
      "name": "Pile",
      "tag": "",
      "shape": "circular",
      "material": "reinforced concrete",
      "count": null,
      "note": "Labeled '1200Ø RCC CAST IN SITU PILE (TYP.)', shown under both abutments and pier in schematic cross-sections"
    },
    {
      "name": "Pile cap / foundation",
      "tag": "",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 3,
      "note": "Shown in plan-like sketches beneath A1, P1, A2 with pile spacing dimensions"
    },
    {
      "name": "Crash barrier",
      "tag": "",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 2,
      "note": "Labeled 'RCC CRASH BARRIER' on both spans"
    },
    {
      "name": "Approach slab",
      "tag": "",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 2,
      "note": "300 THK, one at each abutment"
    },
    {
      "name": "PCC leveling course",
      "tag": "",
      "shape": "layer",
      "material": "plain cement concrete",
      "count": 2,
      "note": "150 THK, beneath approach slabs at both ends"
    },
    {
      "name": "Retaining wall",
      "tag": "",
      "shape": "sloped/independent",
      "material": "reinforced concrete",
      "count": 2,
      "note": "Labeled 'INDEPENDENT RETAINING WALL' at both abutments"
    },
    {
      "name": "Stone pitching",
      "tag": "",
      "shape": "sloped surface treatment",
      "material": "stone",
      "count": 2,
      "note": "With 600 THK filter media beneath, at both abutment slopes"
    },
    {
      "name": "Launching apron",
      "tag": "",
      "shape": "sloped",
      "material": "unspecified",
      "count": 1,
      "note": "Labeled near A1 embankment slope"
    },
    {
      "name": "Expansion joint",
      "tag": "",
      "shape": "linear gap",
      "material": "",
      "count": 2,
      "note": "At centerline of A1 and A2, with EXP.GAP dimensions 80(SQ.)/92(SK)"
    },
    {
      "name": "Girder cross-section (typical)",
      "tag": "",
      "shape": "I-section/tapered flange",
      "material": "precast concrete",
      "count": 1,
      "note": "Shown separately as 'SURPORT SECTION (SCALE 1:50)' / 'CROSS SECTION OF PI...' (cut off), with dimensions 1000, 800, 2650"
    }
  ],
  "measurements": [
    {
      "label": "Span A1 to P1 (square)",
      "value": "40000",
      "unit": "",
      "appliesTo": "A1-P1 span"
    },
    {
      "label": "Span A1 to P1 (skew)",
      "value": "46188",
      "unit": "",
      "appliesTo": "A1-P1 span"
    },
    {
      "label": "Span P1 to A2 (skew)",
      "value": "46000",
      "unit": "",
      "appliesTo": "P1-A2 span"
    },
    {
      "label": "Span P1 to A2 (skew, alt)",
      "value": "46188",
      "unit": "",
      "appliesTo": "P1-A2 span"
    },
    {
      "label": "Expansion gap (square)",
      "value": "80",
      "unit": "",
      "appliesTo": "A1/A2 exp. joint"
    },
    {
      "label": "Expansion gap (skew)",
      "value": "92",
      "unit": "",
      "appliesTo": "A1/A2 exp. joint"
    },
    {
      "label": "Distance (square)",
      "value": "37761",
      "unit": "",
      "appliesTo": "span between bearing centerlines"
    },
    {
      "label": "Distance (skew)",
      "value": "43602",
      "unit": "",
      "appliesTo": "span between bearing centerlines"
    },
    {
      "label": "Offset (square)",
      "value": "1070",
      "unit": "",
      "appliesTo": "A1/A2 area"
    },
    {
      "label": "Offset (skew)",
      "value": "1236",
      "unit": "",
      "appliesTo": "A1/A2 area"
    },
    {
      "label": "Offset (square)",
      "value": "1170",
      "unit": "",
      "appliesTo": "P1 area"
    },
    {
      "label": "Offset (skew)",
      "value": "1350",
      "unit": "",
      "appliesTo": "P1 area"
    },
    {
      "label": "Approach slab thickness",
      "value": "300",
      "unit": "",
      "appliesTo": "approach slab"
    },
    {
      "label": "PCC leveling course thickness",
      "value": "150",
      "unit": "",
      "appliesTo": "PCC leveling course"
    },
    {
      "label": "Filter media thickness",
      "value": "600",
      "unit": "",
      "appliesTo": "independent retaining wall"
    },
    {
      "label": "HFL clearance minimum",
      "value": "1200",
      "unit": "",
      "appliesTo": "pier clearance to HFL"
    },
    {
      "label": "LWL",
      "value": "506.000",
      "unit": "m",
      "appliesTo": "pier P1 area"
    },
    {
      "label": "Pile diameter",
      "value": "1200",
      "unit": "mm (Ø)",
      "appliesTo": "pile"
    },
    {
      "label": "Pile cap dimension",
      "value": "750",
      "unit": "",
      "appliesTo": "abutment/pier pile group"
    },
    {
      "label": "Pile cap dimension",
      "value": "3600",
      "unit": "",
      "appliesTo": "abutment/pier pile spacing"
    },
    {
      "label": "Pile cap total width",
      "value": "12300",
      "unit": "",
      "appliesTo": "abutment pile group A1/A2"
    },
    {
      "label": "Pier pile cap total",
      "value": "5100",
      "unit": "",
      "appliesTo": "pier P1 pile group"
    },
    {
      "label": "Pier cap width",
      "value": "1500",
      "unit": "(SK)",
      "appliesTo": "P1 pier cap"
    },
    {
      "label": "Cross section flange width",
      "value": "1000",
      "unit": "",
      "appliesTo": "girder support section"
    },
    {
      "label": "Cross section depth",
      "value": "2650",
      "unit": "",
      "appliesTo": "girder support section"
    },
    {
      "label": "Cross section bottom width",
      "value": "800",
      "unit": "",
      "appliesTo": "girder support section"
    },
    {
      "label": "Cross section top flange thickness",
      "value": "150",
      "unit": "",
      "appliesTo": "girder support section"
    },
    {
      "label": "Cross section web thickness",
      "value": "29",
      "unit": "",
      "appliesTo": "girder support section"
    },
    {
      "label": "Chainage LHS Point1",
      "value": "64+360.197",
      "unit": "km",
      "appliesTo": "table"
    },
    {
      "label": "Chainage RHS Point1",
      "value": "64+371.487",
      "unit": "km",
      "appliesTo": "table"
    },
    {
      "label": "Chainage LHS Point2",
      "value": "64+406.385",
      "unit": "km",
      "appliesTo": "table"
    },
    {
      "label": "Chainage RHS Point2",
      "value": "64+417.675",
      "unit": "km",
      "appliesTo": "table"
    },
    {
      "label": "Chainage LHS Point3",
      "value": "64+452.573",
      "unit": "km",
      "appliesTo": "table"
    },
    {
      "label": "Chainage RHS Point3",
      "value": "64+463.814",
      "unit": "km",
      "appliesTo": "table"
    },
    {
      "label": "FRL LHS Point1",
      "value": "518.281",
      "unit": "m",
      "appliesTo": "table"
    },
    {
      "label": "FRL RHS Point1",
      "value": "518.465",
      "unit": "m",
      "appliesTo": "table"
    },
    {
      "label": "FRL LHS Point2",
      "value": "519.033",
      "unit": "m",
      "appliesTo": "table"
    },
    {
      "label": "FRL RHS Point2",
      "value": "519.217",
      "unit": "m",
      "appliesTo": "table"
    },
    {
      "label": "FRL LHS Point3",
      "value": "519.785",
      "unit": "m",
      "appliesTo": "table"
    },
    {
      "label": "FRL RHS Point3",
      "value": "519.968",
      "unit": "m",
      "appliesTo": "table"
    },
    {
      "label": "Ground Level LHS Point1",
      "value": "509.560",
      "unit": "m",
      "appliesTo": "table"
    },
    {
      "label": "Ground Level RHS Point1",
      "value": "509.155",
      "unit": "m",
      "appliesTo": "table"
    },
    {
      "label": "Ground Level LHS Point2",
      "value": "503.816",
      "unit": "m",
      "appliesTo": "table"
    },
    {
      "label": "Ground Level RHS Point2",
      "value": "503.883",
      "unit": "m",
      "appliesTo": "table"
    },
    {
      "label": "Ground Level LHS Point3",
      "value": "511.891",
      "unit": "m",
      "appliesTo": "table"
    },
    {
      "label": "Ground Level RHS Point3",
      "value": "512.668",
      "unit": "m",
      "appliesTo": "table"
    }
  ],
  "notes": [
    "1. ALL DIMENSIONS ARE IN MILLIMETERS AND LEVELS ARE IN ... OTHERWISE SPECIFIED.",
    "2. DIMENSIONS ARE NOT TO BE SCALED. ONLY WRITTEN DIMEN... FOLLOWED.",
    "3. THIS DRAWING SHALL BE READ IN CONJUNCTION WITH RESP... ALIGNMENT DRAWINGS.",
    "4. THE BRIDGE HAS BEEN DESIGNED FOR FOUR LANE OF CLAS... CLASS 70R + TWO LANE OF CLASS A, ONE LANE OF 70R -... 70R OR SV LOADING WHICHEVER GOVERNS, IS CONSIDERED",
    "5. GRADE OF CONCRETE FOR VARIOUS STRUCTURAL COMPONEN... FOLLOWS:-"
  ],
  "labels": [
    "TO DEWAS",
    "TO KHANDWA",
    "ELEVATION (SCALE 1:300)",
    "SURPORT SECTION (SCALE 1:50)",
    "CROSS SECTION OF PI...",
    "NOTES:",
    "A1",
    "P1",
    "A2",
    "FR",
    "FX",
    "£ OF EXP. JOINT",
    "£ OF BRG.",
    "DECK CONTINUITY",
    "LAUNCHING APRON",
    "STONE PITCHING",
    "INDEPENTENT RETAINING WALL",
    "INDEPENDENT RETAINING WALL",
    "300 THK. APPROACH SLAB",
    "150 THK. PCC LEVELING COURSE",
    "600 THK. FILTER MEDIA",
    "RCC CRASH BARRIER",
    "RCC COLUMN PIER (TYP.)",
    "1200Ø RCC CAST IN SITU PILE (TYP.)",
    "POT-PTFE BEARING (TYP.)",
    "PRECAST PSC GIRDER (TYP.)",
    "WALL TYPE ABUTMENT",
    "£ OF GIRDER"
  ],
  "description": "This crop shows the full elevation of a two-span bridge over a valley/river, with abutments A1 and A2 at either end and a single pier P1 at midspan, connected by precast PSC girders on POT-PTFE bearings (fixed at pier, free elsewhere). Below the elevation is a data table giving chainage, formation road level, and ground level at three points along the LHS and RHS of the carriageway, and to the right a partially visible general notes column (notes 1-5) covering dimension units, alignment reference, live load class (70R + traffic), and concrete grades, along with a separate typical girder support cross-section detail at the far right."
}

Full Bridge Elevation With Abutments Pier And Girders

done

full_bridge_elevation_with_abutments_pier_and_girders_p02_r01SubstructureElevation

Elevation15 objects · 46 measurements · 5 notes · 28 labels

This crop shows the full elevation of a two-span bridge over a valley/river, with abutments A1 and A2 at either end and a single pier P1 at midspan, connected by precast PSC girders on POT-PTFE bearings (fixed at pier, free elsewhere). Below the elevation is a data table giving chainage, formation road level, and ground level at three points along the LHS and RHS of the carriageway, and to the right a partially visible general notes column (notes 1-5) covering dimension units, alignment reference, live load class (70R + traffic), and concrete grades, along with a separate typical girder support cross-section detail at the far right.

Objects · 15

MarkObjectNo.ShapeMaterialNote
A1Abutment1wall typereinforced concreteLocated at left end, with expansion joint centerline and POT-PTFE bearings
A2Abutment1wall typereinforced concreteLocated at right end, labeled 'WALL TYPE ABUTMENT', with expansion joint
P1Pier1column, circular/rectangular capreinforced concreteLabeled 'RCC COLUMN PIER (TYP.)', supports deck continuity
GirderI-girder/precastprecast concreteLabeled 'PRECAST PSC GIRDER (TYP.)'; multiple girder segments shown along both spans
FR / FXBearing6pot bearingelastomeric/PTFE-steelLabeled 'POT-PTFE BEARING (TYP.)'; FR (free) at abutments and one side of pier, FX (fixed) at pier
Pilecircularreinforced concreteLabeled '1200Ø RCC CAST IN SITU PILE (TYP.)', shown under both abutments and pier in schematic cross-sections
Pile cap / foundation3rectangularreinforced concreteShown in plan-like sketches beneath A1, P1, A2 with pile spacing dimensions
Crash barrier2rectangularreinforced concreteLabeled 'RCC CRASH BARRIER' on both spans
Approach slab2rectangularreinforced concrete300 THK, one at each abutment
PCC leveling course2layerplain cement concrete150 THK, beneath approach slabs at both ends
Retaining wall2sloped/independentreinforced concreteLabeled 'INDEPENDENT RETAINING WALL' at both abutments
Stone pitching2sloped surface treatmentstoneWith 600 THK filter media beneath, at both abutment slopes
Launching apron1slopedunspecifiedLabeled near A1 embankment slope
Expansion joint2linear gapAt centerline of A1 and A2, with EXP.GAP dimensions 80(SQ.)/92(SK)
Girder cross-section (typical)1I-section/tapered flangeprecast concreteShown separately as 'SURPORT SECTION (SCALE 1:50)' / 'CROSS SECTION OF PI...' (cut off), with dimensions 1000, 800, 2650

Measurements · 46

MeasurementValueUnitApplies to
Span A1 to P1 (square)40000A1-P1 span
Span A1 to P1 (skew)46188A1-P1 span
Span P1 to A2 (skew)46000P1-A2 span
Span P1 to A2 (skew, alt)46188P1-A2 span
Expansion gap (square)80A1/A2 exp. joint
Expansion gap (skew)92A1/A2 exp. joint
Distance (square)37761span between bearing centerlines
Distance (skew)43602span between bearing centerlines
Offset (square)1070A1/A2 area
Offset (skew)1236A1/A2 area
Offset (square)1170P1 area
Offset (skew)1350P1 area
Approach slab thickness300approach slab
PCC leveling course thickness150PCC leveling course
Filter media thickness600independent retaining wall
HFL clearance minimum1200pier clearance to HFL
LWL506.000mpier P1 area
Pile diameter1200mm (Ø)pile
Pile cap dimension750abutment/pier pile group
Pile cap dimension3600abutment/pier pile spacing
Pile cap total width12300abutment pile group A1/A2
Pier pile cap total5100pier P1 pile group
Pier cap width1500(SK)P1 pier cap
Cross section flange width1000girder support section
Cross section depth2650girder support section
Cross section bottom width800girder support section
Cross section top flange thickness150girder support section
Cross section web thickness29girder support section
Chainage LHS Point164+360.197kmtable
Chainage RHS Point164+371.487kmtable
Chainage LHS Point264+406.385kmtable
Chainage RHS Point264+417.675kmtable
Chainage LHS Point364+452.573kmtable
Chainage RHS Point364+463.814kmtable
FRL LHS Point1518.281mtable
FRL RHS Point1518.465mtable
FRL LHS Point2519.033mtable
FRL RHS Point2519.217mtable
FRL LHS Point3519.785mtable
FRL RHS Point3519.968mtable
Ground Level LHS Point1509.560mtable
Ground Level RHS Point1509.155mtable
Ground Level LHS Point2503.816mtable
Ground Level RHS Point2503.883mtable
Ground Level LHS Point3511.891mtable
Ground Level RHS Point3512.668mtable

Labels

TO DEWASTO KHANDWAELEVATION (SCALE 1:300)SURPORT SECTION (SCALE 1:50)CROSS SECTION OF PI...NOTES:A1P1A2FRFX£ OF EXP. JOINT£ OF BRG.DECK CONTINUITYLAUNCHING APRONSTONE PITCHINGINDEPENTENT RETAINING WALLINDEPENDENT RETAINING WALL300 THK. APPROACH SLAB150 THK. PCC LEVELING COURSE600 THK. FILTER MEDIARCC CRASH BARRIERRCC COLUMN PIER (TYP.)1200Ø RCC CAST IN SITU PILE (TYP.)POT-PTFE BEARING (TYP.)PRECAST PSC GIRDER (TYP.)WALL TYPE ABUTMENT£ OF GIRDER

Notes

  • 1. ALL DIMENSIONS ARE IN MILLIMETERS AND LEVELS ARE IN ... OTHERWISE SPECIFIED.
  • 2. DIMENSIONS ARE NOT TO BE SCALED. ONLY WRITTEN DIMEN... FOLLOWED.
  • 3. THIS DRAWING SHALL BE READ IN CONJUNCTION WITH RESP... ALIGNMENT DRAWINGS.
  • 4. THE BRIDGE HAS BEEN DESIGNED FOR FOUR LANE OF CLAS... CLASS 70R + TWO LANE OF CLASS A, ONE LANE OF 70R -... 70R OR SV LOADING WHICHEVER GOVERNS, IS CONSIDERED
  • 5. GRADE OF CONCRETE FOR VARIOUS STRUCTURAL COMPONEN... FOLLOWS:-

anthropic/claude-sonnet-5 · 9107 tokens · 46.1s

item · 850 × 747

Pier Cap Chamfer

page 2 · pier_cap_chamfer_p02_r12
Original
Pier Cap Chamfer
{
  "view": "Cross Section",
  "objects": [
    {
      "name": "Pier section (pier cap/pier member at pier location)",
      "tag": "",
      "shape": "rectangular with chamfered top corners",
      "material": "reinforced concrete",
      "count": 1,
      "note": "Corners shown chamfered 25x25; overall rectangular cross-section with rounded/chamfered top edges."
    }
  ],
  "measurements": [
    {
      "label": "Chamfer horizontal offset",
      "value": "25",
      "unit": "",
      "appliesTo": "pier section corner chamfer"
    },
    {
      "label": "Chamfer vertical offset",
      "value": "25",
      "unit": "",
      "appliesTo": "pier section corner chamfer"
    },
    {
      "label": "Chamfer size (callout)",
      "value": "25X25",
      "unit": "",
      "appliesTo": "pier section corner chamfer"
    },
    {
      "label": "Overall width",
      "value": "1500",
      "unit": "",
      "appliesTo": "pier section"
    },
    {
      "label": "Overall height",
      "value": "1000",
      "unit": "",
      "appliesTo": "pier section"
    },
    {
      "label": "Scale",
      "value": "1:25",
      "unit": "",
      "appliesTo": "SECTION AT PIER LOCATION"
    }
  ],
  "notes": [],
  "labels": [
    "SECTION AT PIER LOCATION",
    "(SCALE 1:25)",
    "CHAMFER 25X25"
  ],
  "description": "This crop is a cross-sectional detail titled 'SECTION AT PIER LOCATION' drawn at scale 1:25, showing a rectangular pier section measuring 1500 wide by 1000 high with 25x25 chamfers at the top corners. No units are printed on the dimensions themselves, and no reinforcement or material callouts appear within this crop beyond the chamfer detail."
}

Pier Cap Chamfer

done

pier_cap_chamfer_p02_r12Substructure

Cross Section1 object · 6 measurements · 3 labels

This crop is a cross-sectional detail titled 'SECTION AT PIER LOCATION' drawn at scale 1:25, showing a rectangular pier section measuring 1500 wide by 1000 high with 25x25 chamfers at the top corners. No units are printed on the dimensions themselves, and no reinforcement or material callouts appear within this crop beyond the chamfer detail.

Objects · 1

ObjectNo.ShapeMaterialNote
Pier section (pier cap/pier member at pier location)1rectangular with chamfered top cornersreinforced concreteCorners shown chamfered 25x25; overall rectangular cross-section with rounded/chamfered top edges.

Measurements · 6

MeasurementValueApplies to
Chamfer horizontal offset25pier section corner chamfer
Chamfer vertical offset25pier section corner chamfer
Chamfer size (callout)25X25pier section corner chamfer
Overall width1500pier section
Overall height1000pier section
Scale1:25SECTION AT PIER LOCATION

Labels

SECTION AT PIER LOCATION(SCALE 1:25)CHAMFER 25X25

anthropic/claude-sonnet-5 · 3180 tokens · 11.2s

item · 1977 × 1770

pier P1

page 2 · pier_p1
Original
pier P1
{
  "view": "Section",
  "objects": [
    {
      "name": "Pier",
      "tag": "P1",
      "shape": "",
      "material": "reinforced concrete",
      "count": 1,
      "note": "Overall pier assembly shown in Section B-B, including cap, column, pile cap and piles"
    },
    {
      "name": "RCC crash barrier",
      "tag": "",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 2,
      "note": "Shown at deck edges, height 230 dimensioned"
    },
    {
      "name": "Deck slab / deck continuity",
      "tag": "",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 1,
      "note": "Continuity joint at centerline of bridge"
    },
    {
      "name": "Precast PSC girder",
      "tag": "TYP.",
      "shape": "tapered/I-section (hatched)",
      "material": "precast concrete",
      "count": 2,
      "note": "Shown both sides of pier, depth 2650"
    },
    {
      "name": "Pot-PTFE bearing",
      "tag": "TYP.",
      "shape": "rectangular",
      "material": "",
      "count": 2,
      "note": "Located atop pier cap under girders"
    },
    {
      "name": "RCC seismic stopper",
      "tag": "",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 1,
      "note": "Centered on pier cap between bearings"
    },
    {
      "name": "Pier cap / pier head",
      "tag": "",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 1,
      "note": "Overall plan dimension 3640(SQ)/4203(SK), height 1500 split into two 750 segments"
    },
    {
      "name": "RCC column pier",
      "tag": "",
      "shape": "rectangular with chamfered corners",
      "material": "reinforced concrete",
      "count": 1,
      "note": "Width 1500 shown in elevation; cross-section 1500x1000 with 25x25 chamfer shown separately"
    },
    {
      "name": "RCC pile cap",
      "tag": "",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 1,
      "note": "Depth 1800, length 5100 (3600 between piles + 750 each side)"
    },
    {
      "name": "Bored cast-in-situ pile",
      "tag": "",
      "shape": "circular",
      "material": "reinforced concrete",
      "count": 2,
      "note": "1200 mm diameter piles under pile cap"
    }
  ],
  "measurements": [
    {
      "label": "Distance to bearing centerline (SQ)",
      "value": "1170",
      "unit": "",
      "appliesTo": "pier cap/bearing layout"
    },
    {
      "label": "Distance to bearing centerline (SK)",
      "value": "1350",
      "unit": "",
      "appliesTo": "pier cap/bearing layout"
    },
    {
      "label": "Crash barrier height",
      "value": "230",
      "unit": "",
      "appliesTo": "RCC crash barrier"
    },
    {
      "label": "Girder depth",
      "value": "2650",
      "unit": "",
      "appliesTo": "Precast PSC girder"
    },
    {
      "label": "Seismic stopper/bearing gap width (SK)",
      "value": "1500",
      "unit": "",
      "appliesTo": "RCC seismic stopper / pier cap"
    },
    {
      "label": "Pier cap height segment",
      "value": "750",
      "unit": "",
      "appliesTo": "Pier cap"
    },
    {
      "label": "Pier cap height segment (second)",
      "value": "750",
      "unit": "",
      "appliesTo": "Pier cap"
    },
    {
      "label": "Pier cap total height",
      "value": "1500",
      "unit": "",
      "appliesTo": "Pier cap"
    },
    {
      "label": "Pier cap plan dimension (SQ)",
      "value": "3640",
      "unit": "",
      "appliesTo": "Pier cap"
    },
    {
      "label": "Pier cap plan dimension (SK)",
      "value": "4203",
      "unit": "",
      "appliesTo": "Pier cap"
    },
    {
      "label": "Column width",
      "value": "1500",
      "unit": "",
      "appliesTo": "RCC column pier"
    },
    {
      "label": "Pile cap depth",
      "value": "1800",
      "unit": "",
      "appliesTo": "RCC pile cap"
    },
    {
      "label": "Distance between piles",
      "value": "3600",
      "unit": "",
      "appliesTo": "RCC pile cap"
    },
    {
      "label": "Edge distance to pile",
      "value": "750",
      "unit": "",
      "appliesTo": "RCC pile cap"
    },
    {
      "label": "Pile cap total length",
      "value": "5100",
      "unit": "",
      "appliesTo": "RCC pile cap"
    },
    {
      "label": "Pile diameter",
      "value": "1200",
      "unit": "",
      "appliesTo": "Bored cast-in-situ piles"
    },
    {
      "label": "Section width",
      "value": "1500",
      "unit": "",
      "appliesTo": "Section at pier location"
    },
    {
      "label": "Section depth",
      "value": "1000",
      "unit": "",
      "appliesTo": "Section at pier location"
    },
    {
      "label": "Chamfer size",
      "value": "25",
      "unit": "",
      "appliesTo": "Section at pier location (chamfer)"
    },
    {
      "label": "Chamfer size (second dimension)",
      "value": "25",
      "unit": "",
      "appliesTo": "Section at pier location (chamfer)"
    },
    {
      "label": "Scale of Section B-B",
      "value": "1:150",
      "unit": "",
      "appliesTo": "Section B-B"
    },
    {
      "label": "Scale of Section at Pier Location",
      "value": "1:25",
      "unit": "",
      "appliesTo": "Section at pier location"
    }
  ],
  "notes": [],
  "labels": [
    "P1",
    "℄ OF BRG.",
    "RCC CRASH BARRIER",
    "FRL",
    "DECK CONTINUITY",
    "PRECAST PSC GIRDER (TYP.)",
    "POT-PTFE BEARING (TYP.)",
    "RCC SEISMIC STOPPER",
    "RCC COLUMN PIER",
    "RCC PILECAP",
    "1200 DIA BORED CAST-IN-SITU PILES",
    "SECTION B-B",
    "(SCALE 1:150)",
    "SECTION AT PIER LOCATION",
    "(SCALE 1:25)",
    "CHAMFER 25X25"
  ],
  "description": "This crop shows two related structural sections for pier P1: a full-height Section B-B through the pier (from deck bearings down through the pier cap, column, pile cap and two bored piles) and a separate detail 'Section at Pier Location' showing the pier column's cross-sectional shape with chamfered corners. Dimensions cover crash barrier and girder depths, bearing spacing, pier cap and column sizes, pile cap dimensions, and pile diameter, documenting the concrete substructure elements supporting the superstructure at this pier."
}

pier P1

done

pier_p1SubstructureElevation

Section10 objects · 22 measurements · 16 labels

This crop shows two related structural sections for pier P1: a full-height Section B-B through the pier (from deck bearings down through the pier cap, column, pile cap and two bored piles) and a separate detail 'Section at Pier Location' showing the pier column's cross-sectional shape with chamfered corners. Dimensions cover crash barrier and girder depths, bearing spacing, pier cap and column sizes, pile cap dimensions, and pile diameter, documenting the concrete substructure elements supporting the superstructure at this pier.

Objects · 10

MarkObjectNo.ShapeMaterialNote
P1Pier1reinforced concreteOverall pier assembly shown in Section B-B, including cap, column, pile cap and piles
RCC crash barrier2rectangularreinforced concreteShown at deck edges, height 230 dimensioned
Deck slab / deck continuity1rectangularreinforced concreteContinuity joint at centerline of bridge
TYP.Precast PSC girder2tapered/I-section (hatched)precast concreteShown both sides of pier, depth 2650
TYP.Pot-PTFE bearing2rectangularLocated atop pier cap under girders
RCC seismic stopper1rectangularreinforced concreteCentered on pier cap between bearings
Pier cap / pier head1rectangularreinforced concreteOverall plan dimension 3640(SQ)/4203(SK), height 1500 split into two 750 segments
RCC column pier1rectangular with chamfered cornersreinforced concreteWidth 1500 shown in elevation; cross-section 1500x1000 with 25x25 chamfer shown separately
RCC pile cap1rectangularreinforced concreteDepth 1800, length 5100 (3600 between piles + 750 each side)
Bored cast-in-situ pile2circularreinforced concrete1200 mm diameter piles under pile cap

Measurements · 22

MeasurementValueApplies to
Distance to bearing centerline (SQ)1170pier cap/bearing layout
Distance to bearing centerline (SK)1350pier cap/bearing layout
Crash barrier height230RCC crash barrier
Girder depth2650Precast PSC girder
Seismic stopper/bearing gap width (SK)1500RCC seismic stopper / pier cap
Pier cap height segment750Pier cap
Pier cap height segment (second)750Pier cap
Pier cap total height1500Pier cap
Pier cap plan dimension (SQ)3640Pier cap
Pier cap plan dimension (SK)4203Pier cap
Column width1500RCC column pier
Pile cap depth1800RCC pile cap
Distance between piles3600RCC pile cap
Edge distance to pile750RCC pile cap
Pile cap total length5100RCC pile cap
Pile diameter1200Bored cast-in-situ piles
Section width1500Section at pier location
Section depth1000Section at pier location
Chamfer size25Section at pier location (chamfer)
Chamfer size (second dimension)25Section at pier location (chamfer)
Scale of Section B-B1:150Section B-B
Scale of Section at Pier Location1:25Section at pier location

Labels

P1℄ OF BRG.RCC CRASH BARRIERFRLDECK CONTINUITYPRECAST PSC GIRDER (TYP.)POT-PTFE BEARING (TYP.)RCC SEISMIC STOPPERRCC COLUMN PIERRCC PILECAP1200 DIA BORED CAST-IN-SITU PILESSECTION B-B(SCALE 1:150)SECTION AT PIER LOCATION(SCALE 1:25)CHAMFER 25X25

anthropic/claude-sonnet-5 · 9488 tokens · 30.2s

item · 921 × 932

Precast Psc Girder Cross Sections

page 2 · precast_psc_girder_cross_sections_p02_r03
Original
Precast Psc Girder Cross Sections
{
  "view": "Cross Section",
  "objects": [
    {
      "name": "PSC girder",
      "tag": "SUPPORT SECTION",
      "shape": "rectangular with tapered top flange",
      "material": "precast concrete",
      "count": 1,
      "note": "Cross section of girder at support location, scale 1:50"
    },
    {
      "name": "PSC girder",
      "tag": "MID SECTION",
      "shape": "I-section (tapered flange and web)",
      "material": "precast concrete",
      "count": 1,
      "note": "Cross section of girder at mid-span location, scale 1:50"
    }
  ],
  "measurements": [
    {
      "label": "Top flange width",
      "value": "1000",
      "unit": "",
      "appliesTo": "SUPPORT SECTION"
    },
    {
      "label": "Top edge thickness",
      "value": "150",
      "unit": "",
      "appliesTo": "SUPPORT SECTION"
    },
    {
      "label": "Small fillet/chamfer dimension",
      "value": "29",
      "unit": "",
      "appliesTo": "SUPPORT SECTION"
    },
    {
      "label": "Overall height",
      "value": "2650",
      "unit": "",
      "appliesTo": "SUPPORT SECTION"
    },
    {
      "label": "Bottom width",
      "value": "800",
      "unit": "",
      "appliesTo": "SUPPORT SECTION"
    },
    {
      "label": "Top flange width",
      "value": "1000",
      "unit": "",
      "appliesTo": "MID SECTION"
    },
    {
      "label": "Top edge thickness",
      "value": "150",
      "unit": "",
      "appliesTo": "MID SECTION"
    },
    {
      "label": "Flange taper depth",
      "value": "100",
      "unit": "",
      "appliesTo": "MID SECTION"
    },
    {
      "label": "Web height (upper)",
      "value": "1950",
      "unit": "",
      "appliesTo": "MID SECTION"
    },
    {
      "label": "Web height (lower segment)",
      "value": "200",
      "unit": "",
      "appliesTo": "MID SECTION"
    },
    {
      "label": "Web thickness",
      "value": "300",
      "unit": "",
      "appliesTo": "MID SECTION"
    },
    {
      "label": "Bottom flange taper height",
      "value": "250",
      "unit": "",
      "appliesTo": "MID SECTION"
    },
    {
      "label": "Overall height",
      "value": "2650",
      "unit": "",
      "appliesTo": "MID SECTION"
    },
    {
      "label": "Bottom width",
      "value": "800",
      "unit": "",
      "appliesTo": "MID SECTION"
    }
  ],
  "notes": [],
  "labels": [
    "℄ OF GIRDER",
    "SURPORT SECTION",
    "(SCALE 1:50)",
    "MID SECTION",
    "(SCALE 1:50)",
    "CROSS SECTION OF PRECAST PSC GIRDER"
  ],
  "description": "This crop shows two cross-sectional details of a precast PSC (prestressed concrete) girder: the support section and the mid-span section, both drawn at scale 1:50. Each section is dimensioned showing flange width, web thickness, overall depth, and taper dimensions, illustrating the typical I-beam profile of the girder at these two critical locations along its length."
}

Precast Psc Girder Cross Sections

done

precast_psc_girder_cross_sections_p02_r03Substructurecross section

Cross Section2 objects · 14 measurements · 6 labels

This crop shows two cross-sectional details of a precast PSC (prestressed concrete) girder: the support section and the mid-span section, both drawn at scale 1:50. Each section is dimensioned showing flange width, web thickness, overall depth, and taper dimensions, illustrating the typical I-beam profile of the girder at these two critical locations along its length.

Objects · 2

MarkObjectNo.ShapeMaterialNote
SUPPORT SECTIONPSC girder1rectangular with tapered top flangeprecast concreteCross section of girder at support location, scale 1:50
MID SECTIONPSC girder1I-section (tapered flange and web)precast concreteCross section of girder at mid-span location, scale 1:50

Measurements · 14

MeasurementValueApplies to
Top flange width1000SUPPORT SECTION
Top edge thickness150SUPPORT SECTION
Small fillet/chamfer dimension29SUPPORT SECTION
Overall height2650SUPPORT SECTION
Bottom width800SUPPORT SECTION
Top flange width1000MID SECTION
Top edge thickness150MID SECTION
Flange taper depth100MID SECTION
Web height (upper)1950MID SECTION
Web height (lower segment)200MID SECTION
Web thickness300MID SECTION
Bottom flange taper height250MID SECTION
Overall height2650MID SECTION
Bottom width800MID SECTION

Labels

℄ OF GIRDERSURPORT SECTION(SCALE 1:50)MID SECTION(SCALE 1:50)CROSS SECTION OF PRECAST PSC GIRDER

anthropic/claude-sonnet-5 · 4247 tokens · 13.2s

item · 951 × 852

Precast Psc Girder

page 2 · precast_psc_girder_p02_r04
Original
Precast Psc Girder
{
  "view": "Cross Section",
  "objects": [
    {
      "name": "PSC girder",
      "tag": "",
      "shape": "I-section (support section, near-rectangular web with flange)",
      "material": "precast concrete",
      "count": 1,
      "note": "Support section cross section, overall depth 2650, top flange width 1000, bottom width 800"
    },
    {
      "name": "PSC girder",
      "tag": "",
      "shape": "I-section (mid section, tapered web with top and bottom flanges)",
      "material": "precast concrete",
      "count": 1,
      "note": "Mid section cross section, overall depth 2650, top flange width 1000, bottom flange width 800, web thickness 300"
    }
  ],
  "measurements": [
    {
      "label": "Top slab/flange thickness",
      "value": "150",
      "unit": "",
      "appliesTo": "Support Section girder"
    },
    {
      "label": "Top fillet/haunch depth",
      "value": "29",
      "unit": "",
      "appliesTo": "Support Section girder"
    },
    {
      "label": "Overall depth",
      "value": "2650",
      "unit": "",
      "appliesTo": "Support Section girder"
    },
    {
      "label": "Top flange width",
      "value": "1000",
      "unit": "",
      "appliesTo": "Support Section girder"
    },
    {
      "label": "Bottom width",
      "value": "800",
      "unit": "",
      "appliesTo": "Support Section girder"
    },
    {
      "label": "Top slab/flange thickness",
      "value": "150",
      "unit": "",
      "appliesTo": "Mid Section girder"
    },
    {
      "label": "Top flange local depth",
      "value": "100",
      "unit": "",
      "appliesTo": "Mid Section girder"
    },
    {
      "label": "Web height above bottom flange",
      "value": "1950",
      "unit": "",
      "appliesTo": "Mid Section girder"
    },
    {
      "label": "Web taper depth",
      "value": "200",
      "unit": "",
      "appliesTo": "Mid Section girder"
    },
    {
      "label": "Web thickness",
      "value": "300",
      "unit": "",
      "appliesTo": "Mid Section girder"
    },
    {
      "label": "Bottom flange depth",
      "value": "250",
      "unit": "",
      "appliesTo": "Mid Section girder"
    },
    {
      "label": "Overall depth",
      "value": "2650",
      "unit": "",
      "appliesTo": "Mid Section girder"
    },
    {
      "label": "Top flange width",
      "value": "1000",
      "unit": "",
      "appliesTo": "Mid Section girder"
    },
    {
      "label": "Bottom flange width",
      "value": "800",
      "unit": "",
      "appliesTo": "Mid Section girder"
    },
    {
      "label": "Scale",
      "value": "1:50",
      "unit": "",
      "appliesTo": "Support Section"
    },
    {
      "label": "Scale",
      "value": "1:50",
      "unit": "",
      "appliesTo": "Mid Section"
    }
  ],
  "notes": [],
  "labels": [
    "CL OF GIRDER",
    "SURPORT SECTION",
    "(SCALE 1:50)",
    "MID SECTION",
    "(SCALE 1:50)",
    "CROSS SECTION OF PRECAST PSC GIRDER"
  ],
  "description": "This crop shows two cross sections of a precast PSC (prestressed concrete) girder at 1:50 scale: a 'Support Section' near the bearing showing a nearly rectangular web with top flange, and a 'Mid Section' showing the typical tapered I-shaped girder profile with top flange, web, and bottom flange. Dimensions define flange widths, web thickness, and depths at both locations, used for detailing the girder's varying cross-sectional geometry along its length."
}

Precast Psc Girder

done

precast_psc_girder_p02_r04Substructurecross section

Cross Section2 objects · 16 measurements · 6 labels

This crop shows two cross sections of a precast PSC (prestressed concrete) girder at 1:50 scale: a 'Support Section' near the bearing showing a nearly rectangular web with top flange, and a 'Mid Section' showing the typical tapered I-shaped girder profile with top flange, web, and bottom flange. Dimensions define flange widths, web thickness, and depths at both locations, used for detailing the girder's varying cross-sectional geometry along its length.

Objects · 2

ObjectNo.ShapeMaterialNote
PSC girder1I-section (support section, near-rectangular web with flange)precast concreteSupport section cross section, overall depth 2650, top flange width 1000, bottom width 800
PSC girder1I-section (mid section, tapered web with top and bottom flanges)precast concreteMid section cross section, overall depth 2650, top flange width 1000, bottom flange width 800, web thickness 300

Measurements · 16

MeasurementValueApplies to
Top slab/flange thickness150Support Section girder
Top fillet/haunch depth29Support Section girder
Overall depth2650Support Section girder
Top flange width1000Support Section girder
Bottom width800Support Section girder
Top slab/flange thickness150Mid Section girder
Top flange local depth100Mid Section girder
Web height above bottom flange1950Mid Section girder
Web taper depth200Mid Section girder
Web thickness300Mid Section girder
Bottom flange depth250Mid Section girder
Overall depth2650Mid Section girder
Top flange width1000Mid Section girder
Bottom flange width800Mid Section girder
Scale1:50Support Section
Scale1:50Mid Section

Labels

CL OF GIRDERSURPORT SECTION(SCALE 1:50)MID SECTION(SCALE 1:50)CROSS SECTION OF PRECAST PSC GIRDER

anthropic/claude-sonnet-5 · 3956 tokens · 11.0s

crop · 5003 × 1498

p02_r01 full longitudinal elevation of bridge with hfl lwl

page 2 · structural_drawings_pkg_1_890ff33d80e843ef8aa5a52a7a9de3d8_p02_r01_full_longitudinal_elevation_of_bridge_with_hfl_lwl
Original
p02_r01 full longitudinal elevation of bridge with hfl lwl
{
  "view": "Elevation",
  "objects": [
    {
      "name": "Abutment",
      "tag": "A1",
      "shape": "wall type",
      "material": "reinforced concrete",
      "count": 1,
      "note": "Located at left end, near TO DEWAS side"
    },
    {
      "name": "Abutment",
      "tag": "A2",
      "shape": "wall type",
      "material": "reinforced concrete",
      "count": 1,
      "note": "Located at right end, near TO KHANDWA side"
    },
    {
      "name": "Pier",
      "tag": "P1",
      "shape": "circular column",
      "material": "reinforced concrete",
      "count": 1,
      "note": "RCC column pier"
    },
    {
      "name": "Pile",
      "tag": "",
      "shape": "circular",
      "material": "reinforced concrete",
      "count": null,
      "note": "1200mm dia RCC cast-in-situ pile (typ.), shown under P1 pile cap"
    },
    {
      "name": "Pile cap",
      "tag": "",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 3,
      "note": "One under each abutment (A1, A2) and under pier P1"
    },
    {
      "name": "Bearing",
      "tag": "FR",
      "shape": "pot-PTFE",
      "material": "elastomeric/steel",
      "count": 4,
      "note": "Free/guided bearings, typical, at abutments and pier"
    },
    {
      "name": "Bearing",
      "tag": "FX",
      "shape": "pot-PTFE",
      "material": "elastomeric/steel",
      "count": 1,
      "note": "Fixed bearing at pier P1"
    },
    {
      "name": "Girder",
      "tag": "",
      "shape": "I-girder",
      "material": "precast concrete",
      "count": null,
      "note": "Precast PSC girder (typ.), multiple spans shown"
    },
    {
      "name": "Crash barrier",
      "tag": "",
      "shape": "rectangular profile",
      "material": "reinforced concrete",
      "count": 2,
      "note": "RCC crash barrier along both spans"
    },
    {
      "name": "Approach slab",
      "tag": "",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 2,
      "note": "300 thk. approach slab at both ends"
    },
    {
      "name": "PCC leveling course",
      "tag": "",
      "shape": "layer",
      "material": "plain cement concrete",
      "count": 2,
      "note": "150 thk. PCC leveling course beneath approach slabs"
    },
    {
      "name": "Deck continuity",
      "tag": "",
      "shape": "",
      "material": "reinforced concrete",
      "count": 1,
      "note": "Deck continuity joint over pier P1"
    },
    {
      "name": "Retaining wall",
      "tag": "",
      "shape": "",
      "material": "reinforced concrete",
      "count": 2,
      "note": "Independent retaining wall at both abutments"
    },
    {
      "name": "Stone pitching",
      "tag": "",
      "shape": "sloped surface",
      "material": "stone",
      "count": 2,
      "note": "Stone pitching with 600 thk. filter media at both approach slopes"
    },
    {
      "name": "Launching apron",
      "tag": "",
      "shape": "",
      "material": "",
      "count": 1,
      "note": "Shown near abutment A1 slope"
    },
    {
      "name": "Expansion joint",
      "tag": "",
      "shape": "",
      "material": "",
      "count": 2,
      "note": "At centerline of exp. joint near A1 and A2, gap 80(SQ) 92(SK)"
    },
    {
      "name": "Girder cross section",
      "tag": "",
      "shape": "tapered/I-section",
      "material": "precast concrete",
      "count": 1,
      "note": "Support section detail shown at right, scale 1:50"
    }
  ],
  "measurements": [
    {
      "label": "Span A1 to P1",
      "value": "40000(SQ) 46188(SK)",
      "unit": "mm",
      "appliesTo": "span between A1 and P1"
    },
    {
      "label": "Span P1 to A2",
      "value": "46000(SK) 46188(SK)",
      "unit": "mm",
      "appliesTo": "span between P1 and A2"
    },
    {
      "label": "Bearing to bearing distance",
      "value": "37761(SQ) 43602(SK)",
      "unit": "mm",
      "appliesTo": "left span, between bearing centerlines"
    },
    {
      "label": "Bearing to bearing distance",
      "value": "37761(SQ) 43602(SK)",
      "unit": "mm",
      "appliesTo": "right span, between bearing centerlines"
    },
    {
      "label": "Expansion gap",
      "value": "80(SQ) 92(SK)",
      "unit": "mm",
      "appliesTo": "expansion joint at A1"
    },
    {
      "label": "Expansion gap",
      "value": "80(SQ) 92(SK)",
      "unit": "mm",
      "appliesTo": "expansion joint at A2"
    },
    {
      "label": "Bearing offset",
      "value": "1070(SQ) 1236(SK)",
      "unit": "mm",
      "appliesTo": "bearing near A1"
    },
    {
      "label": "Bearing offset",
      "value": "1170(SQ) 1350(SK)",
      "unit": "mm",
      "appliesTo": "bearing near P1 (left side)"
    },
    {
      "label": "Bearing offset",
      "value": "1170(SQ) 1350(SK)",
      "unit": "mm",
      "appliesTo": "bearing near P1 (right side)"
    },
    {
      "label": "Bearing offset",
      "value": "1070(SQ) 1236(SK)",
      "unit": "mm",
      "appliesTo": "bearing near A2"
    },
    {
      "label": "Pier cap width",
      "value": "1500(SK)",
      "unit": "mm",
      "appliesTo": "P1 pier cap"
    },
    {
      "label": "HFL clearance",
      "value": "1200(min)",
      "unit": "mm",
      "appliesTo": "HFL level marker"
    },
    {
      "label": "LWL elevation",
      "value": "506.000",
      "unit": "m",
      "appliesTo": "Low Water Level"
    },
    {
      "label": "Pile diameter",
      "value": "1200",
      "unit": "mm",
      "appliesTo": "RCC cast in situ pile at P1"
    },
    {
      "label": "Pile cap dimension (A1/A2)",
      "value": "750, 3600, 3600, 3600, 750",
      "unit": "mm",
      "appliesTo": "pile cap width breakdown at abutments"
    },
    {
      "label": "Pile cap total width (A1/A2)",
      "value": "12300",
      "unit": "mm",
      "appliesTo": "pile cap at abutments"
    },
    {
      "label": "Pile cap dimension (P1)",
      "value": "750, 3600, 750",
      "unit": "mm",
      "appliesTo": "pile cap width breakdown at pier"
    },
    {
      "label": "Pile cap total width (P1)",
      "value": "5100",
      "unit": "mm",
      "appliesTo": "pile cap at pier P1"
    },
    {
      "label": "Approach slab thickness",
      "value": "300",
      "unit": "mm",
      "appliesTo": "approach slab"
    },
    {
      "label": "PCC leveling course thickness",
      "value": "150",
      "unit": "mm",
      "appliesTo": "PCC leveling course"
    },
    {
      "label": "Filter media thickness",
      "value": "600",
      "unit": "mm",
      "appliesTo": "stone pitching filter media"
    },
    {
      "label": "Chainage LHS (A1)",
      "value": "64+360.197",
      "unit": "km",
      "appliesTo": "A1 LHS chainage"
    },
    {
      "label": "Chainage RHS (A1)",
      "value": "64+371.487",
      "unit": "km",
      "appliesTo": "A1 RHS chainage"
    },
    {
      "label": "Chainage LHS (P1)",
      "value": "64+406.385",
      "unit": "km",
      "appliesTo": "P1 LHS chainage"
    },
    {
      "label": "Chainage RHS (P1)",
      "value": "64+417.675",
      "unit": "km",
      "appliesTo": "P1 RHS chainage"
    },
    {
      "label": "Chainage LHS (A2)",
      "value": "64+452.573",
      "unit": "km",
      "appliesTo": "A2 LHS chainage"
    },
    {
      "label": "Chainage RHS (A2)",
      "value": "64+463.814",
      "unit": "km",
      "appliesTo": "A2 RHS chainage"
    },
    {
      "label": "FRL LHS (A1)",
      "value": "518.281",
      "unit": "m",
      "appliesTo": "A1 main carriageway LHS"
    },
    {
      "label": "FRL RHS (A1)",
      "value": "518.465",
      "unit": "m",
      "appliesTo": "A1 main carriageway RHS"
    },
    {
      "label": "FRL LHS (P1)",
      "value": "519.033",
      "unit": "m",
      "appliesTo": "P1 main carriageway LHS"
    },
    {
      "label": "FRL RHS (P1)",
      "value": "519.217",
      "unit": "m",
      "appliesTo": "P1 main carriageway RHS"
    },
    {
      "label": "FRL LHS (A2)",
      "value": "519.785",
      "unit": "m",
      "appliesTo": "A2 main carriageway LHS"
    },
    {
      "label": "FRL RHS (A2)",
      "value": "519.968",
      "unit": "m",
      "appliesTo": "A2 main carriageway RHS"
    },
    {
      "label": "Ground level LHS (A1)",
      "value": "509.560",
      "unit": "m",
      "appliesTo": "A1 LHS ground level"
    },
    {
      "label": "Ground level RHS (A1)",
      "value": "509.155",
      "unit": "m",
      "appliesTo": "A1 RHS ground level"
    },
    {
      "label": "Ground level LHS (P1)",
      "value": "503.816",
      "unit": "m",
      "appliesTo": "P1 LHS ground level"
    },
    {
      "label": "Ground level RHS (P1)",
      "value": "503.883",
      "unit": "m",
      "appliesTo": "P1 RHS ground level"
    },
    {
      "label": "Ground level LHS (A2)",
      "value": "511.891",
      "unit": "m",
      "appliesTo": "A2 LHS ground level"
    },
    {
      "label": "Ground level RHS (A2)",
      "value": "512.668",
      "unit": "m",
      "appliesTo": "A2 RHS ground level"
    },
    {
      "label": "Support section width",
      "value": "800",
      "unit": "mm",
      "appliesTo": "girder cross section base"
    },
    {
      "label": "Support section top width",
      "value": "1000",
      "unit": "mm",
      "appliesTo": "girder cross section top"
    },
    {
      "label": "Support section height",
      "value": "2650",
      "unit": "mm",
      "appliesTo": "girder cross section overall height"
    },
    {
      "label": "Support section top flange thickness",
      "value": "150",
      "unit": "mm",
      "appliesTo": "girder cross section"
    },
    {
      "label": "Support section web thickness",
      "value": "29",
      "unit": "mm",
      "appliesTo": "girder cross section web"
    },
    {
      "label": "Slope ratio",
      "value": "2:1",
      "unit": "",
      "appliesTo": "approach embankment slope near A1 and A2"
    }
  ],
  "notes": [
    "1. ALL DIMENSIONS ARE IN MILLIMETERS AND LEVELS ARE IN...OTHERWISE SPECIFIED.",
    "2. DIMENSIONS ARE NOT TO BE SCALED. ONLY WRITTEN DIM...FOLLOWED.",
    "3. THIS DRAWING SHALL BE READ IN CONJUNCTION WITH RES...ALIGNMENT DRAWINGS.",
    "4. THE BRIDGE HAS BEEN DESIGNED FOR FOUR LANE OF CLA...CLASS 70R + TWO LANE OF CLASS A, ONE LANE OF 70R...70R OR SV LOADING WHICHEVER GOVERNS, IS CONSIDERED.",
    "5. GRADE OF CONCRETE FOR VARIOUS STRUCTURAL COMPONE...FOLLOWS:-"
  ],
  "labels": [
    "TO DEWAS",
    "TO KHANDWA",
    "É OF EXP. JOINT",
    "É OF BRG.",
    "RCC CRASH BARRIER",
    "DECK CONTINUITY",
    "POT-PTFE BEARING (TYP.)",
    "RCC COLUMN PIER (TYP.)",
    "PRECAST PSC GIRDER (TYP.)",
    "WALL TYPE ABUTMENT",
    "LAUNCHING APRON",
    "1200∅ RCC CAST IN SITU PILE (TYP.)",
    "INDEPENDENT RETAINING WALL",
    "STONE PITCHING",
    "600 THK. FILTER MEDIA",
    "300 THK. APPROACH SLAB",
    "150 THK. PCC LEVELING COURSE",
    "HFL=",
    "LWL=506.000m",
    "ELEVATION (SCALE 1:300)",
    "SURPORT SECTION (SCALE 1:50)",
    "CROSS SECTION OF ...",
    "É OF GIRDER",
    "CHAINAGE IN (km.)",
    "FRL. (m)",
    "MAIN CARRIAGEWAY",
    "GROUND LEVEL (m)",
    "LHS",
    "RHS",
    "NOTES:"
  ],
  "description": "This crop shows the longitudinal elevation of a two-span bridge (scale 1:300) between abutments A1 and A2 with a central pier P1, including span dimensions, bearing types (FR/FX pot-PTFE bearings), precast PSC girders, RCC crash barriers, approach slabs, retaining walls, stone pitching, and pile/pile cap details. Below the elevation is a chainage/level data table for LHS and RHS at each support, and to the right is a girder support cross-section detail (scale 1:50) with a partial general notes block."
}

p02_r01 full longitudinal elevation of bridge with hfl lwl

done

structural_drawings_pkg_1_890ff33d80e843ef8aa5a52a7a9de3d8_p02_r01_full_longitudinal_elevation_of_bridge_with_hfl_lwl

Elevation17 objects · 45 measurements · 5 notes · 30 labels

This crop shows the longitudinal elevation of a two-span bridge (scale 1:300) between abutments A1 and A2 with a central pier P1, including span dimensions, bearing types (FR/FX pot-PTFE bearings), precast PSC girders, RCC crash barriers, approach slabs, retaining walls, stone pitching, and pile/pile cap details. Below the elevation is a chainage/level data table for LHS and RHS at each support, and to the right is a girder support cross-section detail (scale 1:50) with a partial general notes block.

Objects · 17

MarkObjectNo.ShapeMaterialNote
A1Abutment1wall typereinforced concreteLocated at left end, near TO DEWAS side
A2Abutment1wall typereinforced concreteLocated at right end, near TO KHANDWA side
P1Pier1circular columnreinforced concreteRCC column pier
Pilecircularreinforced concrete1200mm dia RCC cast-in-situ pile (typ.), shown under P1 pile cap
Pile cap3rectangularreinforced concreteOne under each abutment (A1, A2) and under pier P1
FRBearing4pot-PTFEelastomeric/steelFree/guided bearings, typical, at abutments and pier
FXBearing1pot-PTFEelastomeric/steelFixed bearing at pier P1
GirderI-girderprecast concretePrecast PSC girder (typ.), multiple spans shown
Crash barrier2rectangular profilereinforced concreteRCC crash barrier along both spans
Approach slab2rectangularreinforced concrete300 thk. approach slab at both ends
PCC leveling course2layerplain cement concrete150 thk. PCC leveling course beneath approach slabs
Deck continuity1reinforced concreteDeck continuity joint over pier P1
Retaining wall2reinforced concreteIndependent retaining wall at both abutments
Stone pitching2sloped surfacestoneStone pitching with 600 thk. filter media at both approach slopes
Launching apron1Shown near abutment A1 slope
Expansion joint2At centerline of exp. joint near A1 and A2, gap 80(SQ) 92(SK)
Girder cross section1tapered/I-sectionprecast concreteSupport section detail shown at right, scale 1:50

Measurements · 45

MeasurementValueUnitApplies to
Span A1 to P140000(SQ) 46188(SK)mmspan between A1 and P1
Span P1 to A246000(SK) 46188(SK)mmspan between P1 and A2
Bearing to bearing distance37761(SQ) 43602(SK)mmleft span, between bearing centerlines
Bearing to bearing distance37761(SQ) 43602(SK)mmright span, between bearing centerlines
Expansion gap80(SQ) 92(SK)mmexpansion joint at A1
Expansion gap80(SQ) 92(SK)mmexpansion joint at A2
Bearing offset1070(SQ) 1236(SK)mmbearing near A1
Bearing offset1170(SQ) 1350(SK)mmbearing near P1 (left side)
Bearing offset1170(SQ) 1350(SK)mmbearing near P1 (right side)
Bearing offset1070(SQ) 1236(SK)mmbearing near A2
Pier cap width1500(SK)mmP1 pier cap
HFL clearance1200(min)mmHFL level marker
LWL elevation506.000mLow Water Level
Pile diameter1200mmRCC cast in situ pile at P1
Pile cap dimension (A1/A2)750, 3600, 3600, 3600, 750mmpile cap width breakdown at abutments
Pile cap total width (A1/A2)12300mmpile cap at abutments
Pile cap dimension (P1)750, 3600, 750mmpile cap width breakdown at pier
Pile cap total width (P1)5100mmpile cap at pier P1
Approach slab thickness300mmapproach slab
PCC leveling course thickness150mmPCC leveling course
Filter media thickness600mmstone pitching filter media
Chainage LHS (A1)64+360.197kmA1 LHS chainage
Chainage RHS (A1)64+371.487kmA1 RHS chainage
Chainage LHS (P1)64+406.385kmP1 LHS chainage
Chainage RHS (P1)64+417.675kmP1 RHS chainage
Chainage LHS (A2)64+452.573kmA2 LHS chainage
Chainage RHS (A2)64+463.814kmA2 RHS chainage
FRL LHS (A1)518.281mA1 main carriageway LHS
FRL RHS (A1)518.465mA1 main carriageway RHS
FRL LHS (P1)519.033mP1 main carriageway LHS
FRL RHS (P1)519.217mP1 main carriageway RHS
FRL LHS (A2)519.785mA2 main carriageway LHS
FRL RHS (A2)519.968mA2 main carriageway RHS
Ground level LHS (A1)509.560mA1 LHS ground level
Ground level RHS (A1)509.155mA1 RHS ground level
Ground level LHS (P1)503.816mP1 LHS ground level
Ground level RHS (P1)503.883mP1 RHS ground level
Ground level LHS (A2)511.891mA2 LHS ground level
Ground level RHS (A2)512.668mA2 RHS ground level
Support section width800mmgirder cross section base
Support section top width1000mmgirder cross section top
Support section height2650mmgirder cross section overall height
Support section top flange thickness150mmgirder cross section
Support section web thickness29mmgirder cross section web
Slope ratio2:1approach embankment slope near A1 and A2

Labels

TO DEWASTO KHANDWAÉ OF EXP. JOINTÉ OF BRG.RCC CRASH BARRIERDECK CONTINUITYPOT-PTFE BEARING (TYP.)RCC COLUMN PIER (TYP.)PRECAST PSC GIRDER (TYP.)WALL TYPE ABUTMENTLAUNCHING APRON1200∅ RCC CAST IN SITU PILE (TYP.)INDEPENDENT RETAINING WALLSTONE PITCHING600 THK. FILTER MEDIA300 THK. APPROACH SLAB150 THK. PCC LEVELING COURSEHFL=LWL=506.000mELEVATION (SCALE 1:300)SURPORT SECTION (SCALE 1:50)CROSS SECTION OF ...É OF GIRDERCHAINAGE IN (km.)FRL. (m)MAIN CARRIAGEWAYGROUND LEVEL (m)LHSRHSNOTES:

Notes

  • 1. ALL DIMENSIONS ARE IN MILLIMETERS AND LEVELS ARE IN...OTHERWISE SPECIFIED.
  • 2. DIMENSIONS ARE NOT TO BE SCALED. ONLY WRITTEN DIM...FOLLOWED.
  • 3. THIS DRAWING SHALL BE READ IN CONJUNCTION WITH RES...ALIGNMENT DRAWINGS.
  • 4. THE BRIDGE HAS BEEN DESIGNED FOR FOUR LANE OF CLA...CLASS 70R + TWO LANE OF CLASS A, ONE LANE OF 70R...70R OR SV LOADING WHICHEVER GOVERNS, IS CONSIDERED.
  • 5. GRADE OF CONCRETE FOR VARIOUS STRUCTURAL COMPONE...FOLLOWS:-

anthropic/claude-sonnet-5 · 8000 tokens · 39.7s

crop · 4408 × 1320

p02_r02 elevation of bridge spans from abutment a1 to a2

page 2 · structural_drawings_pkg_1_890ff33d80e843ef8aa5a52a7a9de3d8_p02_r02_elevation_of_bridge_spans_from_abutment_a1_to_a2
Original
p02_r02 elevation of bridge spans from abutment a1 to a2
{
  "view": "Elevation",
  "objects": [
    {
      "name": "Abutment",
      "tag": "A1",
      "shape": "wall type",
      "material": "reinforced concrete",
      "count": 1,
      "note": "Marked with expansion joint centerline, pot-PTFE bearings (FR)"
    },
    {
      "name": "Abutment",
      "tag": "A2",
      "shape": "wall type",
      "material": "reinforced concrete",
      "count": 1,
      "note": "Marked with expansion joint centerline, pot-PTFE bearings (FR), labeled 'WALL TYPE ABUTMENT'"
    },
    {
      "name": "Pier",
      "tag": "P1",
      "shape": "column, circular (implied by pile group)",
      "material": "reinforced concrete",
      "count": 1,
      "note": "Labeled 'RCC COLUMN PIER (TYP.)'"
    },
    {
      "name": "Pot-PTFE Bearing",
      "tag": "FR",
      "shape": "rectangular block",
      "material": "elastomeric/PTFE",
      "count": 3,
      "note": "Located at A1, A2 and one side of P1; labeled 'POT-PTFE BEARING (TYP.)'"
    },
    {
      "name": "Pot-PTFE Bearing",
      "tag": "FX",
      "shape": "rectangular block",
      "material": "elastomeric/PTFE",
      "count": 1,
      "note": "Fixed bearing at P1"
    },
    {
      "name": "PSC Girder",
      "tag": "",
      "shape": "I-girder, precast",
      "material": "precast concrete",
      "count": null,
      "note": "Labeled 'PRECAST PSC GIRDER (TYP.)', multiple girders visible per span, exact count not clearly countable"
    },
    {
      "name": "RCC Crash Barrier",
      "tag": "",
      "shape": "rectangular/parapet",
      "material": "reinforced concrete",
      "count": 2,
      "note": "One on each span, along deck edge"
    },
    {
      "name": "Approach Slab",
      "tag": "",
      "shape": "rectangular slab",
      "material": "reinforced concrete",
      "count": 2,
      "note": "300 THK, at each abutment approach"
    },
    {
      "name": "PCC Leveling Course",
      "tag": "",
      "shape": "layer",
      "material": "plain cement concrete",
      "count": 2,
      "note": "150 THK, beneath approach slab"
    },
    {
      "name": "Independent Retaining Wall",
      "tag": "",
      "shape": "trapezoidal/battered wall",
      "material": "unspecified (likely concrete)",
      "count": 2,
      "note": "At each end near abutments"
    },
    {
      "name": "Stone Pitching",
      "tag": "",
      "shape": "sloped surface treatment",
      "material": "stone",
      "count": 2,
      "note": "Slope protection near abutments"
    },
    {
      "name": "Filter Media",
      "tag": "",
      "shape": "layer",
      "material": "granular filter media",
      "count": 2,
      "note": "600 THK, behind retaining wall"
    },
    {
      "name": "Launching Apron",
      "tag": "",
      "shape": "stepped/sloped apron",
      "material": "unspecified",
      "count": 1,
      "note": "Shown at left span near A1"
    },
    {
      "name": "Pile",
      "tag": "",
      "shape": "circular",
      "material": "reinforced concrete",
      "count": 3,
      "note": "1200mm dia RCC cast-in-situ piles shown in plan-like inset below P1; group of 3 visible with 3600mm spacing"
    },
    {
      "name": "Deck Continuity Joint",
      "tag": "",
      "shape": "linear joint",
      "material": "",
      "count": 1,
      "note": "Labeled at top of deck near P1"
    },
    {
      "name": "Expansion Joint",
      "tag": "",
      "shape": "linear gap",
      "material": "",
      "count": 2,
      "note": "At A1 and A2, '80(SQ) 92(SK) EXP.GAP'"
    }
  ],
  "measurements": [
    {
      "label": "Span length (A1 to P1)",
      "value": "40000(SQ) 46188(SK)",
      "unit": "mm",
      "appliesTo": "Span A1-P1"
    },
    {
      "label": "Span length (P1 to A2)",
      "value": "46000(SK)",
      "unit": "mm",
      "appliesTo": "Span P1-A2"
    },
    {
      "label": "Bridge centerline distance A1 to P1",
      "value": "37761(SQ) 43602(SK)",
      "unit": "mm",
      "appliesTo": "A1-P1"
    },
    {
      "label": "Bridge centerline distance P1 to A2",
      "value": "37761(SQ) 43602(SK)",
      "unit": "mm",
      "appliesTo": "P1-A2"
    },
    {
      "label": "Expansion gap at A1/A2",
      "value": "80(SQ) 92(SK)",
      "unit": "mm",
      "appliesTo": "A1, A2 expansion joints"
    },
    {
      "label": "Distance from bearing centerline",
      "value": "1070(SQ) 1236(SK)",
      "unit": "mm",
      "appliesTo": "A1 region"
    },
    {
      "label": "Distance from bearing centerline",
      "value": "1070(SQ) 1236(SK)",
      "unit": "mm",
      "appliesTo": "A2 region"
    },
    {
      "label": "Distance at P1 bearing (left)",
      "value": "1170(SQ) 1350(SK)",
      "unit": "mm",
      "appliesTo": "P1 bearing"
    },
    {
      "label": "Distance at P1 bearing (right)",
      "value": "1170(SQ) 1350(SK)",
      "unit": "mm",
      "appliesTo": "P1 bearing"
    },
    {
      "label": "Pier cap width",
      "value": "1500(SK)",
      "unit": "mm",
      "appliesTo": "P1"
    },
    {
      "label": "Approach slab thickness",
      "value": "300",
      "unit": "mm (THK.)",
      "appliesTo": "Approach slab"
    },
    {
      "label": "PCC leveling course thickness",
      "value": "150",
      "unit": "mm (THK.)",
      "appliesTo": "PCC leveling course"
    },
    {
      "label": "Filter media thickness",
      "value": "600",
      "unit": "mm (THK.)",
      "appliesTo": "Independent retaining wall backfill"
    },
    {
      "label": "Retaining wall base dimension",
      "value": "750",
      "unit": "mm",
      "appliesTo": "Independent retaining wall (left)"
    },
    {
      "label": "Retaining wall spacing",
      "value": "3600",
      "unit": "mm",
      "appliesTo": "Independent retaining wall (left), repeated 3 times"
    },
    {
      "label": "Retaining wall total width",
      "value": "12300",
      "unit": "mm",
      "appliesTo": "Independent retaining wall (left)"
    },
    {
      "label": "Retaining wall base dimension",
      "value": "750",
      "unit": "mm",
      "appliesTo": "Independent retaining wall (right)"
    },
    {
      "label": "Retaining wall spacing",
      "value": "3600",
      "unit": "mm",
      "appliesTo": "Independent retaining wall (right), repeated 3 times"
    },
    {
      "label": "Retaining wall total width",
      "value": "12300",
      "unit": "mm",
      "appliesTo": "Independent retaining wall (right)"
    },
    {
      "label": "Pile diameter",
      "value": "1200",
      "unit": "mm (Ø)",
      "appliesTo": "RCC cast in situ pile at P1"
    },
    {
      "label": "Pile group edge distance",
      "value": "750",
      "unit": "mm",
      "appliesTo": "Pile group at P1"
    },
    {
      "label": "Pile spacing",
      "value": "3600",
      "unit": "mm",
      "appliesTo": "Pile group at P1"
    },
    {
      "label": "Pile group total width",
      "value": "5100",
      "unit": "mm",
      "appliesTo": "Pile group at P1"
    },
    {
      "label": "HFL clearance",
      "value": "1200 (min)",
      "unit": "mm",
      "appliesTo": "HFL below deck"
    },
    {
      "label": "HFL elevation",
      "value": "HFL=",
      "unit": "m",
      "appliesTo": "High Flood Level, value not shown/illegible"
    },
    {
      "label": "LWL elevation",
      "value": "506.000",
      "unit": "m",
      "appliesTo": "Low Water Level"
    },
    {
      "label": "Chainage LHS at A1",
      "value": "64+360.197",
      "unit": "km",
      "appliesTo": "A1 LHS chainage"
    },
    {
      "label": "Chainage RHS at A1",
      "value": "64+371.487",
      "unit": "km",
      "appliesTo": "A1 RHS chainage"
    },
    {
      "label": "Chainage LHS at P1",
      "value": "64+406.385",
      "unit": "km",
      "appliesTo": "P1 LHS chainage"
    },
    {
      "label": "Chainage RHS at P1",
      "value": "64+417.675",
      "unit": "km",
      "appliesTo": "P1 RHS chainage"
    },
    {
      "label": "Chainage LHS at A2",
      "value": "64+452.573",
      "unit": "km",
      "appliesTo": "A2 LHS chainage"
    },
    {
      "label": "Chainage RHS at A2",
      "value": "64+463.814",
      "unit": "km",
      "appliesTo": "A2 RHS chainage"
    },
    {
      "label": "FRL LHS main carriageway at A1",
      "value": "518.281",
      "unit": "m",
      "appliesTo": "A1 FRL LHS"
    },
    {
      "label": "FRL RHS main carriageway at A1",
      "value": "518.465",
      "unit": "m",
      "appliesTo": "A1 FRL RHS"
    },
    {
      "label": "FRL LHS main carriageway at P1",
      "value": "519.033",
      "unit": "m",
      "appliesTo": "P1 FRL LHS"
    },
    {
      "label": "FRL RHS main carriageway at P1",
      "value": "519.217",
      "unit": "m",
      "appliesTo": "P1 FRL RHS"
    },
    {
      "label": "FRL LHS main carriageway at A2",
      "value": "519.785",
      "unit": "m",
      "appliesTo": "A2 FRL LHS"
    },
    {
      "label": "FRL RHS main carriageway at A2",
      "value": "519.968",
      "unit": "m",
      "appliesTo": "A2 FRL RHS"
    },
    {
      "label": "Ground level LHS (partial)",
      "value": "506.560 (partial, cut off)",
      "unit": "m",
      "appliesTo": "A1 ground level, table cut off at bottom"
    }
  ],
  "notes": [
    "1. ALL DIMENSIONS ARE (text cut off, partial) OTHERWISE SPECIFIED.",
    "2. DIMENSIONS ARE N... (text cut off) FOLLOWED.",
    "3. THIS DRAWING SHAL... (text cut off) ALIGNMENT DRAWING... (text cut off)"
  ],
  "labels": [
    "TO DEWAS",
    "TO KHANDWA",
    "CENTRE OF EXP. JOINT",
    "CENTRE OF BRG.",
    "RCC CRASH BARRIER",
    "DECK CONTINUITY",
    "RCC COLUMN PIER (TYP.)",
    "PRECAST PSC GIRDER (TYP.)",
    "WALL TYPE ABUTMENT",
    "POT-PTFE BEARING (TYP.)",
    "LAUNCHING APRON",
    "STONE PITCHING",
    "INDEPENDENT RETAINING WALL",
    "600 THK. FILTER MEDIA",
    "300 THK. APPROACH SLAB",
    "150 THK. PCC LEVELING COURSE",
    "1200Ø RCC CAST IN SITU PILE (TYP.)",
    "HFL=",
    "LWL=506.000m",
    "NOTES:",
    "CHAINAGE IN (km.)",
    "FRL. (m)",
    "MAIN CARRIAGEWAY",
    "GROUND LEVEL (m)",
    "LHS",
    "RHS"
  ],
  "description": "This crop is an elevation view of a two-span bridge structure between wall-type abutments A1 and A2, with a single RCC column pier P1 at midspan, showing precast PSC girders on pot-PTFE bearings (fixed at pier, free elsewhere), RCC crash barriers, approach slabs, and independent retaining walls with stone pitching and filter media at each end. A pile foundation detail (1200mm dia RCC piles) is shown below the pier, and a chainage/level data table with general notes appears at the bottom of the sheet, though the notes text and part of the table are cut off."
}

p02_r02 elevation of bridge spans from abutment a1 to a2

done

structural_drawings_pkg_1_890ff33d80e843ef8aa5a52a7a9de3d8_p02_r02_elevation_of_bridge_spans_from_abutment_a1_to_a2

Elevation16 objects · 39 measurements · 3 notes · 26 labels

This crop is an elevation view of a two-span bridge structure between wall-type abutments A1 and A2, with a single RCC column pier P1 at midspan, showing precast PSC girders on pot-PTFE bearings (fixed at pier, free elsewhere), RCC crash barriers, approach slabs, and independent retaining walls with stone pitching and filter media at each end. A pile foundation detail (1200mm dia RCC piles) is shown below the pier, and a chainage/level data table with general notes appears at the bottom of the sheet, though the notes text and part of the table are cut off.

Objects · 16

MarkObjectNo.ShapeMaterialNote
A1Abutment1wall typereinforced concreteMarked with expansion joint centerline, pot-PTFE bearings (FR)
A2Abutment1wall typereinforced concreteMarked with expansion joint centerline, pot-PTFE bearings (FR), labeled 'WALL TYPE ABUTMENT'
P1Pier1column, circular (implied by pile group)reinforced concreteLabeled 'RCC COLUMN PIER (TYP.)'
FRPot-PTFE Bearing3rectangular blockelastomeric/PTFELocated at A1, A2 and one side of P1; labeled 'POT-PTFE BEARING (TYP.)'
FXPot-PTFE Bearing1rectangular blockelastomeric/PTFEFixed bearing at P1
PSC GirderI-girder, precastprecast concreteLabeled 'PRECAST PSC GIRDER (TYP.)', multiple girders visible per span, exact count not clearly countable
RCC Crash Barrier2rectangular/parapetreinforced concreteOne on each span, along deck edge
Approach Slab2rectangular slabreinforced concrete300 THK, at each abutment approach
PCC Leveling Course2layerplain cement concrete150 THK, beneath approach slab
Independent Retaining Wall2trapezoidal/battered wallunspecified (likely concrete)At each end near abutments
Stone Pitching2sloped surface treatmentstoneSlope protection near abutments
Filter Media2layergranular filter media600 THK, behind retaining wall
Launching Apron1stepped/sloped apronunspecifiedShown at left span near A1
Pile3circularreinforced concrete1200mm dia RCC cast-in-situ piles shown in plan-like inset below P1; group of 3 visible with 3600mm spacing
Deck Continuity Joint1linear jointLabeled at top of deck near P1
Expansion Joint2linear gapAt A1 and A2, '80(SQ) 92(SK) EXP.GAP'

Measurements · 39

MeasurementValueUnitApplies to
Span length (A1 to P1)40000(SQ) 46188(SK)mmSpan A1-P1
Span length (P1 to A2)46000(SK)mmSpan P1-A2
Bridge centerline distance A1 to P137761(SQ) 43602(SK)mmA1-P1
Bridge centerline distance P1 to A237761(SQ) 43602(SK)mmP1-A2
Expansion gap at A1/A280(SQ) 92(SK)mmA1, A2 expansion joints
Distance from bearing centerline1070(SQ) 1236(SK)mmA1 region
Distance from bearing centerline1070(SQ) 1236(SK)mmA2 region
Distance at P1 bearing (left)1170(SQ) 1350(SK)mmP1 bearing
Distance at P1 bearing (right)1170(SQ) 1350(SK)mmP1 bearing
Pier cap width1500(SK)mmP1
Approach slab thickness300mm (THK.)Approach slab
PCC leveling course thickness150mm (THK.)PCC leveling course
Filter media thickness600mm (THK.)Independent retaining wall backfill
Retaining wall base dimension750mmIndependent retaining wall (left)
Retaining wall spacing3600mmIndependent retaining wall (left), repeated 3 times
Retaining wall total width12300mmIndependent retaining wall (left)
Retaining wall base dimension750mmIndependent retaining wall (right)
Retaining wall spacing3600mmIndependent retaining wall (right), repeated 3 times
Retaining wall total width12300mmIndependent retaining wall (right)
Pile diameter1200mm (Ø)RCC cast in situ pile at P1
Pile group edge distance750mmPile group at P1
Pile spacing3600mmPile group at P1
Pile group total width5100mmPile group at P1
HFL clearance1200 (min)mmHFL below deck
HFL elevationHFL=mHigh Flood Level, value not shown/illegible
LWL elevation506.000mLow Water Level
Chainage LHS at A164+360.197kmA1 LHS chainage
Chainage RHS at A164+371.487kmA1 RHS chainage
Chainage LHS at P164+406.385kmP1 LHS chainage
Chainage RHS at P164+417.675kmP1 RHS chainage
Chainage LHS at A264+452.573kmA2 LHS chainage
Chainage RHS at A264+463.814kmA2 RHS chainage
FRL LHS main carriageway at A1518.281mA1 FRL LHS
FRL RHS main carriageway at A1518.465mA1 FRL RHS
FRL LHS main carriageway at P1519.033mP1 FRL LHS
FRL RHS main carriageway at P1519.217mP1 FRL RHS
FRL LHS main carriageway at A2519.785mA2 FRL LHS
FRL RHS main carriageway at A2519.968mA2 FRL RHS
Ground level LHS (partial)506.560 (partial, cut off)mA1 ground level, table cut off at bottom

Labels

TO DEWASTO KHANDWACENTRE OF EXP. JOINTCENTRE OF BRG.RCC CRASH BARRIERDECK CONTINUITYRCC COLUMN PIER (TYP.)PRECAST PSC GIRDER (TYP.)WALL TYPE ABUTMENTPOT-PTFE BEARING (TYP.)LAUNCHING APRONSTONE PITCHINGINDEPENDENT RETAINING WALL600 THK. FILTER MEDIA300 THK. APPROACH SLAB150 THK. PCC LEVELING COURSE1200Ø RCC CAST IN SITU PILE (TYP.)HFL=LWL=506.000mNOTES:CHAINAGE IN (km.)FRL. (m)MAIN CARRIAGEWAYGROUND LEVEL (m)LHSRHS

Notes

  • 1. ALL DIMENSIONS ARE (text cut off, partial) OTHERWISE SPECIFIED.
  • 2. DIMENSIONS ARE N... (text cut off) FOLLOWED.
  • 3. THIS DRAWING SHAL... (text cut off) ALIGNMENT DRAWING... (text cut off)

anthropic/claude-sonnet-5 · 7396 tokens · 38.9s

crop · 874 × 899

p02_r03 support and mid span girder cross sections side by side

page 2 · structural_drawings_pkg_1_890ff33d80e843ef8aa5a52a7a9de3d8_p02_r03_support_and_mid_span_girder_cross_sections_side_by_side
Original
p02_r03 support and mid span girder cross sections side by side
{
  "view": "Cross Section",
  "objects": [
    {
      "name": "PSC Girder",
      "tag": "",
      "shape": "I-section (support section)",
      "material": "precast concrete",
      "count": 1,
      "note": "Support section cross section of girder near bearing/support location"
    },
    {
      "name": "PSC Girder",
      "tag": "",
      "shape": "I-section with tapered web haunch (mid section)",
      "material": "precast concrete",
      "count": 1,
      "note": "Mid section cross section of girder at midspan, showing tapered web widening near bottom flange"
    }
  ],
  "measurements": [
    {
      "label": "Top flange width",
      "value": "1000",
      "unit": "",
      "appliesTo": "Support Section"
    },
    {
      "label": "Top flange thickness",
      "value": "150",
      "unit": "",
      "appliesTo": "Support Section"
    },
    {
      "label": "Fillet/haunch depth",
      "value": "29",
      "unit": "",
      "appliesTo": "Support Section"
    },
    {
      "label": "Overall depth",
      "value": "2650",
      "unit": "",
      "appliesTo": "Support Section"
    },
    {
      "label": "Bottom flange width",
      "value": "800",
      "unit": "",
      "appliesTo": "Support Section"
    },
    {
      "label": "Top flange width",
      "value": "1000",
      "unit": "",
      "appliesTo": "Mid Section"
    },
    {
      "label": "Top flange thickness",
      "value": "150",
      "unit": "",
      "appliesTo": "Mid Section"
    },
    {
      "label": "Web taper depth (upper)",
      "value": "100",
      "unit": "",
      "appliesTo": "Mid Section"
    },
    {
      "label": "Web straight depth",
      "value": "1950",
      "unit": "",
      "appliesTo": "Mid Section"
    },
    {
      "label": "Web thickness",
      "value": "300",
      "unit": "",
      "appliesTo": "Mid Section"
    },
    {
      "label": "Web depth segment",
      "value": "200",
      "unit": "",
      "appliesTo": "Mid Section"
    },
    {
      "label": "Bottom taper depth",
      "value": "250",
      "unit": "",
      "appliesTo": "Mid Section"
    },
    {
      "label": "Overall depth",
      "value": "2650",
      "unit": "",
      "appliesTo": "Mid Section"
    },
    {
      "label": "Bottom flange width",
      "value": "800",
      "unit": "",
      "appliesTo": "Mid Section"
    },
    {
      "label": "Scale",
      "value": "1:50",
      "unit": "",
      "appliesTo": "Support Section"
    },
    {
      "label": "Scale",
      "value": "1:50",
      "unit": "",
      "appliesTo": "Mid Section"
    }
  ],
  "notes": [
    "SURPORT SECTION (SCALE 1:50)",
    "MID SECTION (SCALE 1:50)",
    "CROSS SECTION OF PRECAST PSC GIRDER"
  ],
  "labels": [
    "SURPORT SECTION",
    "MID SECTION",
    "CROSS SECTION OF PRECAST PSC GIRDER",
    "C OF GIRDER"
  ],
  "description": "This crop shows two cross-section details of a precast prestressed concrete (PSC) I-girder at two different locations along its length: the support section and the mid section, both drawn at 1:50 scale. Each section is fully dimensioned showing flange widths, flange thicknesses, web depths, and overall girder depth of 2650, with the mid section showing an additional tapered haunch transitioning from the web to the bottom flange."
}

p02_r03 support and mid span girder cross sections side by side

done

structural_drawings_pkg_1_890ff33d80e843ef8aa5a52a7a9de3d8_p02_r03_support_and_mid_span_girder_cross_sections_side_by_side

Cross Section2 objects · 16 measurements · 3 notes · 4 labels

This crop shows two cross-section details of a precast prestressed concrete (PSC) I-girder at two different locations along its length: the support section and the mid section, both drawn at 1:50 scale. Each section is fully dimensioned showing flange widths, flange thicknesses, web depths, and overall girder depth of 2650, with the mid section showing an additional tapered haunch transitioning from the web to the bottom flange.

Objects · 2

ObjectNo.ShapeMaterialNote
PSC Girder1I-section (support section)precast concreteSupport section cross section of girder near bearing/support location
PSC Girder1I-section with tapered web haunch (mid section)precast concreteMid section cross section of girder at midspan, showing tapered web widening near bottom flange

Measurements · 16

MeasurementValueApplies to
Top flange width1000Support Section
Top flange thickness150Support Section
Fillet/haunch depth29Support Section
Overall depth2650Support Section
Bottom flange width800Support Section
Top flange width1000Mid Section
Top flange thickness150Mid Section
Web taper depth (upper)100Mid Section
Web straight depth1950Mid Section
Web thickness300Mid Section
Web depth segment200Mid Section
Bottom taper depth250Mid Section
Overall depth2650Mid Section
Bottom flange width800Mid Section
Scale1:50Support Section
Scale1:50Mid Section

Labels

SURPORT SECTIONMID SECTIONCROSS SECTION OF PRECAST PSC GIRDERC OF GIRDER

Notes

  • SURPORT SECTION (SCALE 1:50)
  • MID SECTION (SCALE 1:50)
  • CROSS SECTION OF PRECAST PSC GIRDER

anthropic/claude-sonnet-5 · 3460 tokens · 11.0s

crop · 903 × 818

p02_r04 cross section of precast psc girder

page 2 · structural_drawings_pkg_1_890ff33d80e843ef8aa5a52a7a9de3d8_p02_r04_cross_section_of_precast_psc_girder
Original
p02_r04 cross section of precast psc girder
{
  "view": "Cross Section",
  "objects": [
    {
      "name": "PSC girder",
      "tag": "",
      "shape": "I-section (box-like at support, flanged/tapered web at mid-span)",
      "material": "precast concrete",
      "count": 2,
      "note": "Two cross sections shown: one at support (near-rectangular/box profile) and one at mid-span (I-shaped with top flange, thin web, bottom flange)."
    }
  ],
  "measurements": [
    {
      "label": "Top flange width",
      "value": "1000",
      "unit": "",
      "appliesTo": "Support Section girder"
    },
    {
      "label": "Edge offset from centerline",
      "value": "15",
      "unit": "",
      "appliesTo": "Support Section girder"
    },
    {
      "label": "Flange/web depth dimension",
      "value": "29",
      "unit": "",
      "appliesTo": "Support Section girder"
    },
    {
      "label": "Overall depth",
      "value": "2650",
      "unit": "",
      "appliesTo": "Support Section girder"
    },
    {
      "label": "Bottom flange width",
      "value": "800",
      "unit": "",
      "appliesTo": "Support Section girder"
    },
    {
      "label": "Top flange width",
      "value": "1000",
      "unit": "",
      "appliesTo": "Mid Section girder"
    },
    {
      "label": "Edge offset from centerline",
      "value": "15",
      "unit": "",
      "appliesTo": "Mid Section girder"
    },
    {
      "label": "Top flange thickness dimension",
      "value": "100",
      "unit": "",
      "appliesTo": "Mid Section girder"
    },
    {
      "label": "Web height dimension",
      "value": "1950",
      "unit": "",
      "appliesTo": "Mid Section girder"
    },
    {
      "label": "Web thickness/taper dimension",
      "value": "200",
      "unit": "",
      "appliesTo": "Mid Section girder"
    },
    {
      "label": "Web width at narrow point",
      "value": "300",
      "unit": "",
      "appliesTo": "Mid Section girder"
    },
    {
      "label": "Bottom flange depth dimension",
      "value": "250",
      "unit": "",
      "appliesTo": "Mid Section girder"
    },
    {
      "label": "Overall depth",
      "value": "2650",
      "unit": "",
      "appliesTo": "Mid Section girder"
    },
    {
      "label": "Bottom flange width",
      "value": "800",
      "unit": "",
      "appliesTo": "Mid Section girder"
    }
  ],
  "notes": [],
  "labels": [
    "€ OF GIRDER",
    "SURPORT SECTION",
    "(SCALE 1:50)",
    "MID SECTION",
    "(SCALE 1:50)",
    "CROSS SECTION OF PRECAST PSC GIRDER"
  ],
  "description": "This crop shows two cross-sectional details of a precast prestressed concrete (PSC) girder at scale 1:50: one taken at the support location (labeled 'SURPORT SECTION', likely a typo for 'SUPPORT SECTION') showing a near-rectangular/box-like profile, and one at mid-span (labeled 'MID SECTION') showing a classic I-shaped girder profile with a wider top flange, thin web, and flared bottom flange. Both sections share an overall depth of 2650 and a bottom flange width of 800, with detailed sub-dimensions given for flange and web thicknesses at each location."
}

p02_r04 cross section of precast psc girder

done

structural_drawings_pkg_1_890ff33d80e843ef8aa5a52a7a9de3d8_p02_r04_cross_section_of_precast_psc_girder

Cross Section1 object · 14 measurements · 6 labels

This crop shows two cross-sectional details of a precast prestressed concrete (PSC) girder at scale 1:50: one taken at the support location (labeled 'SURPORT SECTION', likely a typo for 'SUPPORT SECTION') showing a near-rectangular/box-like profile, and one at mid-span (labeled 'MID SECTION') showing a classic I-shaped girder profile with a wider top flange, thin web, and flared bottom flange. Both sections share an overall depth of 2650 and a bottom flange width of 800, with detailed sub-dimensions given for flange and web thicknesses at each location.

Objects · 1

ObjectNo.ShapeMaterialNote
PSC girder2I-section (box-like at support, flanged/tapered web at mid-span)precast concreteTwo cross sections shown: one at support (near-rectangular/box profile) and one at mid-span (I-shaped with top flange, thin web, bottom flange).

Measurements · 14

MeasurementValueApplies to
Top flange width1000Support Section girder
Edge offset from centerline15Support Section girder
Flange/web depth dimension29Support Section girder
Overall depth2650Support Section girder
Bottom flange width800Support Section girder
Top flange width1000Mid Section girder
Edge offset from centerline15Mid Section girder
Top flange thickness dimension100Mid Section girder
Web height dimension1950Mid Section girder
Web thickness/taper dimension200Mid Section girder
Web width at narrow point300Mid Section girder
Bottom flange depth dimension250Mid Section girder
Overall depth2650Mid Section girder
Bottom flange width800Mid Section girder

Labels

€ OF GIRDERSURPORT SECTION(SCALE 1:50)MID SECTION(SCALE 1:50)CROSS SECTION OF PRECAST PSC GIRDER

anthropic/claude-sonnet-5 · 3354 tokens · 10.6s

crop · 2680 × 599

CHAINAGE/FRL/GROUND LEVEL TABLE

page 2 · structural_drawings_pkg_1_890ff33d80e843ef8aa5a52a7a9de3d8_p02_r05_tabulated_chainage_formation_and_ground_levels_at_supports
Original
CHAINAGE/FRL/GROUND LEVEL TABLE
{
  "view": "Table",
  "objects": [
    {
      "name": "pile",
      "tag": "",
      "shape": "circular",
      "material": "reinforced concrete",
      "count": 2,
      "note": "1200mm dia RCC cast-in-situ pile (TYP.), shown partially in elevation detail at top right of crop"
    }
  ],
  "measurements": [
    {
      "label": "Pile diameter",
      "value": "1200",
      "unit": "mm",
      "appliesTo": "pile"
    },
    {
      "label": "Edge spacing",
      "value": "750",
      "unit": "",
      "appliesTo": "pile group (elevation detail)"
    },
    {
      "label": "Pile spacing",
      "value": "3600",
      "unit": "",
      "appliesTo": "pile group (elevation detail)"
    },
    {
      "label": "Edge spacing",
      "value": "750",
      "unit": "",
      "appliesTo": "pile group (elevation detail)"
    },
    {
      "label": "Overall width",
      "value": "5100",
      "unit": "",
      "appliesTo": "pile group (elevation detail)"
    },
    {
      "label": "Chainage IN (km.) LHS - Point 1",
      "value": "64+360.197",
      "unit": "km",
      "appliesTo": "LHS chainage"
    },
    {
      "label": "Chainage IN (km.) LHS - Point 2",
      "value": "64+406.385",
      "unit": "km",
      "appliesTo": "LHS chainage"
    },
    {
      "label": "Chainage IN (km.) RHS - Point 1",
      "value": "64+371.487",
      "unit": "km",
      "appliesTo": "RHS chainage"
    },
    {
      "label": "Chainage IN (km.) RHS - Point 2",
      "value": "64+417.675",
      "unit": "km",
      "appliesTo": "RHS chainage"
    },
    {
      "label": "FRL Main Carriageway LHS - Point 1",
      "value": "518.281",
      "unit": "m",
      "appliesTo": "LHS FRL"
    },
    {
      "label": "FRL Main Carriageway LHS - Point 2",
      "value": "519.033",
      "unit": "m",
      "appliesTo": "LHS FRL"
    },
    {
      "label": "FRL Main Carriageway RHS - Point 1",
      "value": "518.465",
      "unit": "m",
      "appliesTo": "RHS FRL"
    },
    {
      "label": "FRL Main Carriageway RHS - Point 2",
      "value": "519.217",
      "unit": "m",
      "appliesTo": "RHS FRL"
    },
    {
      "label": "Ground Level Main Carriageway LHS - Point 1",
      "value": "509.560",
      "unit": "m",
      "appliesTo": "LHS ground level"
    },
    {
      "label": "Ground Level Main Carriageway LHS - Point 2",
      "value": "503.816",
      "unit": "m",
      "appliesTo": "LHS ground level"
    },
    {
      "label": "Ground Level Main Carriageway RHS - Point 1",
      "value": "509.155",
      "unit": "m",
      "appliesTo": "RHS ground level"
    },
    {
      "label": "Ground Level Main Carriageway RHS - Point 2",
      "value": "503.883",
      "unit": "m",
      "appliesTo": "RHS ground level"
    }
  ],
  "notes": [
    "1200Ø RCC CAST IN SITU PILE (TYP.)"
  ],
  "labels": [
    "CHAINAGE IN (km.)",
    "LHS",
    "RHS",
    "FRL. (m) MAIN CARRIAGEWAY",
    "GROUND LEVEL (m) MAIN CARRIAGEWAY",
    "ELEVATION",
    "(SCALE 1:300)"
  ],
  "description": "This crop shows a data table listing chainage, finished road level (FRL), and ground level values for the main carriageway at LHS and RHS positions, likely corresponding to two structural points (e.g., start and end of a bridge span). Above the table, a partial elevation detail shows a fragment of a pile foundation arrangement with two 1200mm diameter RCC cast-in-situ piles and associated spacing dimensions (750, 3600, 750, totaling 5100). The table appears to be part of a larger bridge/structure elevation drawing at scale 1:300."
}

CHAINAGE/FRL/GROUND LEVEL TABLE

done

structural_drawings_pkg_1_890ff33d80e843ef8aa5a52a7a9de3d8_p02_r05_tabulated_chainage_formation_and_ground_levels_at_supports

Table1 object · 17 measurements · 1 note · 7 labels

This crop shows a data table listing chainage, finished road level (FRL), and ground level values for the main carriageway at LHS and RHS positions, likely corresponding to two structural points (e.g., start and end of a bridge span). Above the table, a partial elevation detail shows a fragment of a pile foundation arrangement with two 1200mm diameter RCC cast-in-situ piles and associated spacing dimensions (750, 3600, 750, totaling 5100). The table appears to be part of a larger bridge/structure elevation drawing at scale 1:300.

Objects · 1

ObjectNo.ShapeMaterialNote
pile2circularreinforced concrete1200mm dia RCC cast-in-situ pile (TYP.), shown partially in elevation detail at top right of crop

Measurements · 17

MeasurementValueUnitApplies to
Pile diameter1200mmpile
Edge spacing750pile group (elevation detail)
Pile spacing3600pile group (elevation detail)
Edge spacing750pile group (elevation detail)
Overall width5100pile group (elevation detail)
Chainage IN (km.) LHS - Point 164+360.197kmLHS chainage
Chainage IN (km.) LHS - Point 264+406.385kmLHS chainage
Chainage IN (km.) RHS - Point 164+371.487kmRHS chainage
Chainage IN (km.) RHS - Point 264+417.675kmRHS chainage
FRL Main Carriageway LHS - Point 1518.281mLHS FRL
FRL Main Carriageway LHS - Point 2519.033mLHS FRL
FRL Main Carriageway RHS - Point 1518.465mRHS FRL
FRL Main Carriageway RHS - Point 2519.217mRHS FRL
Ground Level Main Carriageway LHS - Point 1509.560mLHS ground level
Ground Level Main Carriageway LHS - Point 2503.816mLHS ground level
Ground Level Main Carriageway RHS - Point 1509.155mRHS ground level
Ground Level Main Carriageway RHS - Point 2503.883mRHS ground level

Labels

CHAINAGE IN (km.)LHSRHSFRL. (m) MAIN CARRIAGEWAYGROUND LEVEL (m) MAIN CARRIAGEWAYELEVATION(SCALE 1:300)

Notes

  • 1200Ø RCC CAST IN SITU PILE (TYP.)

anthropic/claude-sonnet-5 · 4119 tokens · 14.9s

crop · 1573 × 2031

NOTES

page 2 · structural_drawings_pkg_1_890ff33d80e843ef8aa5a52a7a9de3d8_p02_r06_notes_of_general_design_notes
Original
NOTES
{
  "view": "Notes",
  "objects": [
    {
      "name": "PSC precast girder",
      "tag": "",
      "shape": "",
      "material": "precast concrete",
      "count": null,
      "note": "Referenced in concrete grade note (M50)"
    },
    {
      "name": "R.C.C. cast in situ deck slab",
      "tag": "",
      "shape": "",
      "material": "reinforced concrete",
      "count": null,
      "note": "Concrete grade M45"
    },
    {
      "name": "R.C.C. end cross girder",
      "tag": "",
      "shape": "",
      "material": "reinforced concrete",
      "count": null,
      "note": "Concrete grade M45"
    },
    {
      "name": "R.C.C. intermediate cross girder",
      "tag": "",
      "shape": "",
      "material": "reinforced concrete",
      "count": null,
      "note": "Concrete grade M45"
    },
    {
      "name": "Bearing pedestal",
      "tag": "",
      "shape": "",
      "material": "concrete",
      "count": null,
      "note": "Concrete grade M50"
    },
    {
      "name": "Crash barrier",
      "tag": "",
      "shape": "",
      "material": "concrete",
      "count": null,
      "note": "Concrete grade M40"
    },
    {
      "name": "Approach slab",
      "tag": "",
      "shape": "",
      "material": "concrete",
      "count": null,
      "note": "Concrete grade M30"
    },
    {
      "name": "Levelling course",
      "tag": "",
      "shape": "",
      "material": "concrete",
      "count": null,
      "note": "Concrete grade M15"
    },
    {
      "name": "Dirt wall & slab",
      "tag": "",
      "shape": "",
      "material": "concrete",
      "count": null,
      "note": "Concrete grade M35"
    },
    {
      "name": "Abutment",
      "tag": "",
      "shape": "",
      "material": "reinforced concrete",
      "count": null,
      "note": "Concrete grade M45; part of abutment & pier group"
    },
    {
      "name": "Pier",
      "tag": "",
      "shape": "",
      "material": "reinforced concrete",
      "count": null,
      "note": "Concrete grade M45; part of abutment & pier group"
    },
    {
      "name": "Pile foundation",
      "tag": "",
      "shape": "",
      "material": "reinforced concrete",
      "count": null,
      "note": "Concrete grade M35"
    },
    {
      "name": "Expansion joint",
      "tag": "",
      "shape": "",
      "material": "",
      "count": null,
      "note": "Strip seal type as per MORTH specification"
    },
    {
      "name": "Drainage spout",
      "tag": "",
      "shape": "",
      "material": "",
      "count": null,
      "note": "Provided in deck slab per MORTH specification"
    },
    {
      "name": "Bituminous concrete layer",
      "tag": "",
      "shape": "",
      "material": "bituminous concrete",
      "count": null,
      "note": "50mm thick, single layer"
    },
    {
      "name": "RE wall / backfill",
      "tag": "",
      "shape": "",
      "material": "selected earth fill",
      "count": null,
      "note": "Behind RE wall, properties C=0, phi>32°, gamma=2T/m3"
    },
    {
      "name": "Gap slab",
      "tag": "",
      "shape": "",
      "material": "",
      "count": null,
      "note": "Referenced for dimension & reinforcement details in miscellaneous drawing"
    },
    {
      "name": "Pile",
      "tag": "",
      "shape": "",
      "material": "",
      "count": null,
      "note": "Tentative working pile load table given"
    }
  ],
  "measurements": [
    {
      "label": "Clear cover - Foundation",
      "value": "75",
      "unit": "mm",
      "appliesTo": "Foundation"
    },
    {
      "label": "Clear cover - Abutment & Abutment Cap",
      "value": "45",
      "unit": "mm",
      "appliesTo": "Abutment"
    },
    {
      "label": "Clear cover - Pier & Pier Cap",
      "value": "45",
      "unit": "mm",
      "appliesTo": "Pier"
    },
    {
      "label": "Clear cover - Superstructure",
      "value": "45",
      "unit": "mm",
      "appliesTo": "Superstructure"
    },
    {
      "label": "Bituminous concrete thickness",
      "value": "50",
      "unit": "MM",
      "appliesTo": "Bituminous concrete layer"
    },
    {
      "label": "Bearing/pedestal depth basis",
      "value": "400",
      "unit": "mm",
      "appliesTo": "Pier cap / Bearing pedestal"
    },
    {
      "label": "Minimum bearing height threshold",
      "value": "200",
      "unit": "mm",
      "appliesTo": "Bearing"
    },
    {
      "label": "Pedestal adjustment height",
      "value": "200",
      "unit": "mm",
      "appliesTo": "Pedestal"
    },
    {
      "label": "Max vertical pile load",
      "value": "300",
      "unit": "T",
      "appliesTo": "Pile"
    },
    {
      "label": "Lateral pile load",
      "value": "50",
      "unit": "T",
      "appliesTo": "Pile"
    },
    {
      "label": "Selected earth fill cohesion",
      "value": "0",
      "unit": "",
      "appliesTo": "RE wall backfill"
    },
    {
      "label": "Selected earth fill friction angle",
      "value": ">32",
      "unit": "degrees",
      "appliesTo": "RE wall backfill"
    },
    {
      "label": "Selected earth fill unit weight",
      "value": "2",
      "unit": "T/m3",
      "appliesTo": "RE wall backfill"
    }
  ],
  "notes": [
    "ALL DIMENSIONS ARE IN MILLIMETERS AND LEVELS ARE IN METERS UNLESS OTHERWISE SPECIFIED.",
    "DIMENSIONS ARE NOT TO BE SCALED. ONLY WRITTEN DIMENSIONS SHALL BE FOLLOWED.",
    "THIS DRAWING SHALL BE READ IN CONJUNCTION WITH RESPECTIVE HIGHWAY ALIGNMENT DRAWINGS.",
    "THE BRIDGE HAS BEEN DESIGNED FOR FOUR LANE OF CLASS A, ONE LANE CLASS 70R + TWO LANE OF CLASS A, ONE LANE OF 70R + ONE LANE OF 70R OR SV LOADING WHICHEVER GOVERNS, IS CONSIDERED AS LIVE LOAD.",
    "GRADE OF CONCRETE FOR VARIOUS STRUCTURAL COMPONENTS SHALL BE AS FOLLOWS:- PSC PRECAST GIRDER-M50; R.C.C. CAST IN SITU DECK SLAB-M45; R.C.C. END CROSS GIRDER-M45; R.C.C. INTERMEDIATE CROSS GIRDER-M45; BEARING PEDESTAL-M50; CRASH BARRIER-M40; APPROACH SLAB-M30; LEVELLING COURSE-M15; DIRT WALL & SLAB-M35; ABUTMENT & PIER-M45; PILE FOUNDATION-M35.",
    "CLEAR COVER TO ANY REINFORCEMENTS SHALL BE AS FOLLOWS: FOUNDATION...75mm; SUBSTRUCTURE ABUTMENT & ABUTMENT CAP...45mm, PIER & PIER CAP...45mm; SUPERSTRUCTURE...45mm.",
    "ALL REINFORCING STEEL SHOULD BE HIGH YIELD STRENGTH DEFORMED (TMT) BARS OF GRADE-Fe 550D, CONFORMING TO IS: 1786.",
    "STRIP SEAL TYE OF EXPANSION JOINT SHALL BE PROVIDED AS PER M O R T H SPECIFICATION.",
    "BITUMINOUS CONCRETE 50MM THICK LAID IN SINGLE LAYER.",
    "FRL, CAMBER / SUPER ELEVATION & LAYOUT SHALL BE FOLLOWED AS PER LATEST PLAN & PROFILE DRAWING.",
    "DRAINAGE SPOUT SHALL BE PROVIDED IN DECK SLAB AS PER M O R T H SPECIFICATION.",
    "BACK FILLING MATERIAL BEHIND ABUTMENT SHALL BE WELL COMPACTED AS PER APPENDIX 6 OF IRC 78:2014 & M O R T H SPECIFICATION BEFORE RESTING THE SUPERSTRUCTURE.",
    "THE STRUCTURE IS LOCATED IN SEISMIC ZONE III AND WIND ZONE IV & 'SEVERE' EXPOSURE CONDITION.",
    "DIMENSION OF STRUCTURES ARE TENTATIVE AND WILL BE FINALIZED AFTER DETAIL DESIGN.",
    "THE SELECTED EARTH FILL USED FOR BACKFILLING BEHIND RE WALL SHALL HAVE THE FOLLOWING PROPERTIES. C=0, ø>32°, γ=2T/m3",
    "THE PIERCAP TOP LEVEL HAS BEEN FIXED CONSIDERING 400mm DEPTH OF BRG. & PEDESTAL. IN CASE THE BEARING HEIGHT IS LESS THAN THAT OF 200mm THEN THE HEIGHT OF THE BEARING SHALL BE ADJUSTED IN 200mm PEDESTAL.",
    "FOR DIMENSION & REINFORCEMENT DETAILS OF APPROACH SLAB, GAP SLAB, CRASH BARRIER & DRAINAGE SPOUTS REFER MISCELLANEOUS DRG.",
    "TENTATIVE WORKING PILE LOAD AND SUBJECTED TO CHANGE AS PER DETAILED DESIGN:-"
  ],
  "labels": [
    "NOTES:",
    "MAX. VERTICAL LOAD",
    "LATERAL LOAD"
  ],
  "description": "This crop is a general notes block (Sheet page 2) for a bridge project, listing 18 numbered construction notes covering dimensioning conventions, live load design basis, concrete grades for each structural component, reinforcement clear cover requirements, rebar material specification, expansion joint and drainage spout provisions, backfilling requirements, seismic/wind zone classification, and a tentative pile load table. It contains no plan, section, or elevation geometry, only textual specifications and a small load table (max vertical load 300T, lateral load 50T) applicable to pile foundations."
}

NOTES

done

structural_drawings_pkg_1_890ff33d80e843ef8aa5a52a7a9de3d8_p02_r06_notes_of_general_design_notesNotes

Notes18 objects · 13 measurements · 18 notes · 3 labels

This crop is a general notes block (Sheet page 2) for a bridge project, listing 18 numbered construction notes covering dimensioning conventions, live load design basis, concrete grades for each structural component, reinforcement clear cover requirements, rebar material specification, expansion joint and drainage spout provisions, backfilling requirements, seismic/wind zone classification, and a tentative pile load table. It contains no plan, section, or elevation geometry, only textual specifications and a small load table (max vertical load 300T, lateral load 50T) applicable to pile foundations.

Objects · 18

ObjectMaterialNote
PSC precast girderprecast concreteReferenced in concrete grade note (M50)
R.C.C. cast in situ deck slabreinforced concreteConcrete grade M45
R.C.C. end cross girderreinforced concreteConcrete grade M45
R.C.C. intermediate cross girderreinforced concreteConcrete grade M45
Bearing pedestalconcreteConcrete grade M50
Crash barrierconcreteConcrete grade M40
Approach slabconcreteConcrete grade M30
Levelling courseconcreteConcrete grade M15
Dirt wall & slabconcreteConcrete grade M35
Abutmentreinforced concreteConcrete grade M45; part of abutment & pier group
Pierreinforced concreteConcrete grade M45; part of abutment & pier group
Pile foundationreinforced concreteConcrete grade M35
Expansion jointStrip seal type as per MORTH specification
Drainage spoutProvided in deck slab per MORTH specification
Bituminous concrete layerbituminous concrete50mm thick, single layer
RE wall / backfillselected earth fillBehind RE wall, properties C=0, phi>32°, gamma=2T/m3
Gap slabReferenced for dimension & reinforcement details in miscellaneous drawing
PileTentative working pile load table given

Measurements · 13

MeasurementValueUnitApplies to
Clear cover - Foundation75mmFoundation
Clear cover - Abutment & Abutment Cap45mmAbutment
Clear cover - Pier & Pier Cap45mmPier
Clear cover - Superstructure45mmSuperstructure
Bituminous concrete thickness50MMBituminous concrete layer
Bearing/pedestal depth basis400mmPier cap / Bearing pedestal
Minimum bearing height threshold200mmBearing
Pedestal adjustment height200mmPedestal
Max vertical pile load300TPile
Lateral pile load50TPile
Selected earth fill cohesion0RE wall backfill
Selected earth fill friction angle>32degreesRE wall backfill
Selected earth fill unit weight2T/m3RE wall backfill

Labels

NOTES:MAX. VERTICAL LOADLATERAL LOAD

Notes

  • ALL DIMENSIONS ARE IN MILLIMETERS AND LEVELS ARE IN METERS UNLESS OTHERWISE SPECIFIED.
  • DIMENSIONS ARE NOT TO BE SCALED. ONLY WRITTEN DIMENSIONS SHALL BE FOLLOWED.
  • THIS DRAWING SHALL BE READ IN CONJUNCTION WITH RESPECTIVE HIGHWAY ALIGNMENT DRAWINGS.
  • THE BRIDGE HAS BEEN DESIGNED FOR FOUR LANE OF CLASS A, ONE LANE CLASS 70R + TWO LANE OF CLASS A, ONE LANE OF 70R + ONE LANE OF 70R OR SV LOADING WHICHEVER GOVERNS, IS CONSIDERED AS LIVE LOAD.
  • GRADE OF CONCRETE FOR VARIOUS STRUCTURAL COMPONENTS SHALL BE AS FOLLOWS:- PSC PRECAST GIRDER-M50; R.C.C. CAST IN SITU DECK SLAB-M45; R.C.C. END CROSS GIRDER-M45; R.C.C. INTERMEDIATE CROSS GIRDER-M45; BEARING PEDESTAL-M50; CRASH BARRIER-M40; APPROACH SLAB-M30; LEVELLING COURSE-M15; DIRT WALL & SLAB-M35; ABUTMENT & PIER-M45; PILE FOUNDATION-M35.
  • CLEAR COVER TO ANY REINFORCEMENTS SHALL BE AS FOLLOWS: FOUNDATION...75mm; SUBSTRUCTURE ABUTMENT & ABUTMENT CAP...45mm, PIER & PIER CAP...45mm; SUPERSTRUCTURE...45mm.
  • ALL REINFORCING STEEL SHOULD BE HIGH YIELD STRENGTH DEFORMED (TMT) BARS OF GRADE-Fe 550D, CONFORMING TO IS: 1786.
  • STRIP SEAL TYE OF EXPANSION JOINT SHALL BE PROVIDED AS PER M O R T H SPECIFICATION.
  • BITUMINOUS CONCRETE 50MM THICK LAID IN SINGLE LAYER.
  • FRL, CAMBER / SUPER ELEVATION & LAYOUT SHALL BE FOLLOWED AS PER LATEST PLAN & PROFILE DRAWING.
  • DRAINAGE SPOUT SHALL BE PROVIDED IN DECK SLAB AS PER M O R T H SPECIFICATION.
  • BACK FILLING MATERIAL BEHIND ABUTMENT SHALL BE WELL COMPACTED AS PER APPENDIX 6 OF IRC 78:2014 & M O R T H SPECIFICATION BEFORE RESTING THE SUPERSTRUCTURE.
  • THE STRUCTURE IS LOCATED IN SEISMIC ZONE III AND WIND ZONE IV & 'SEVERE' EXPOSURE CONDITION.
  • DIMENSION OF STRUCTURES ARE TENTATIVE AND WILL BE FINALIZED AFTER DETAIL DESIGN.
  • THE SELECTED EARTH FILL USED FOR BACKFILLING BEHIND RE WALL SHALL HAVE THE FOLLOWING PROPERTIES. C=0, ø>32°, γ=2T/m3
  • THE PIERCAP TOP LEVEL HAS BEEN FIXED CONSIDERING 400mm DEPTH OF BRG. & PEDESTAL. IN CASE THE BEARING HEIGHT IS LESS THAN THAT OF 200mm THEN THE HEIGHT OF THE BEARING SHALL BE ADJUSTED IN 200mm PEDESTAL.
  • FOR DIMENSION & REINFORCEMENT DETAILS OF APPROACH SLAB, GAP SLAB, CRASH BARRIER & DRAINAGE SPOUTS REFER MISCELLANEOUS DRG.
  • TENTATIVE WORKING PILE LOAD AND SUBJECTED TO CHANGE AS PER DETAILED DESIGN:-

anthropic/claude-sonnet-5 · 8974 tokens · 27.4s

crop · 4182 × 471

p02_r07 chainage frl and ground level data table

page 2 · structural_drawings_pkg_1_890ff33d80e843ef8aa5a52a7a9de3d8_p02_r07_chainage_frl_and_ground_level_data_table
Original
p02_r07 chainage frl and ground level data table
{
  "view": "Table",
  "objects": [],
  "measurements": [
    {
      "label": "CHAINAGE IN (km.)",
      "value": "64+360.197",
      "unit": "km",
      "appliesTo": "LHS"
    },
    {
      "label": "CHAINAGE IN (km.)",
      "value": "64+406.385",
      "unit": "km",
      "appliesTo": ""
    },
    {
      "label": "CHAINAGE IN (km.)",
      "value": "64+452.573",
      "unit": "km",
      "appliesTo": ""
    },
    {
      "label": "CHAINAGE IN (km.)",
      "value": "64+371.487",
      "unit": "km",
      "appliesTo": "RHS"
    },
    {
      "label": "CHAINAGE IN (km.)",
      "value": "64+417.675",
      "unit": "km",
      "appliesTo": ""
    },
    {
      "label": "CHAINAGE IN (km.)",
      "value": "64+463.814",
      "unit": "km",
      "appliesTo": ""
    },
    {
      "label": "FRL.",
      "value": "518.281",
      "unit": "m",
      "appliesTo": "MAIN CARRIAGEWAY LHS"
    },
    {
      "label": "FRL.",
      "value": "519.033",
      "unit": "m",
      "appliesTo": "MAIN CARRIAGEWAY LHS"
    },
    {
      "label": "FRL.",
      "value": "519.785",
      "unit": "m",
      "appliesTo": "MAIN CARRIAGEWAY LHS"
    },
    {
      "label": "FRL.",
      "value": "518.465",
      "unit": "m",
      "appliesTo": "MAIN CARRIAGEWAY RHS"
    },
    {
      "label": "FRL.",
      "value": "519.217",
      "unit": "m",
      "appliesTo": "MAIN CARRIAGEWAY RHS"
    },
    {
      "label": "FRL.",
      "value": "519.968",
      "unit": "m",
      "appliesTo": "MAIN CARRIAGEWAY RHS"
    },
    {
      "label": "GROUND LEVEL",
      "value": "509.560",
      "unit": "m",
      "appliesTo": "MAIN CARRIAGEWAY LHS"
    },
    {
      "label": "GROUND LEVEL",
      "value": "503.816",
      "unit": "m",
      "appliesTo": "MAIN CARRIAGEWAY LHS"
    },
    {
      "label": "GROUND LEVEL",
      "value": "511.891",
      "unit": "m",
      "appliesTo": "MAIN CARRIAGEWAY LHS"
    },
    {
      "label": "GROUND LEVEL",
      "value": "509.155",
      "unit": "m",
      "appliesTo": "MAIN CARRIAGEWAY RHS"
    },
    {
      "label": "GROUND LEVEL",
      "value": "503.883",
      "unit": "m",
      "appliesTo": "MAIN CARRIAGEWAY RHS"
    },
    {
      "label": "GROUND LEVEL",
      "value": "512.668",
      "unit": "m",
      "appliesTo": "MAIN CARRIAGEWAY RHS"
    },
    {
      "label": "SCALE",
      "value": "1:300",
      "unit": "",
      "appliesTo": "ELEVATION"
    }
  ],
  "notes": [
    "1. ALL DIMENSIONS A... OTHERWISE SPECIFIED.",
    "2. DIMENSIONS ARE ... FOLLOWED.",
    "3. THIS DRAWING S... ALIGNMENT DRAW...",
    "4. THE BRIDGE HAS CLASS 70R + TV... 70R OR SV LOAD...",
    "5. GRADE OF CONC... FOLLOWS:-",
    "• PSC PRECAST ...",
    "• R.C.C. CAST ...",
    "• R.C.C. END CR..."
  ],
  "labels": [
    "ELEVATION",
    "(SCALE 1:300)",
    "CHAINAGE IN (km.)",
    "FRL. (m)",
    "MAIN CARRIAGEWAY",
    "GROUND LEVEL(m)",
    "LHS",
    "RHS"
  ],
  "description": "This crop shows a data table beneath a bridge elevation drawing, listing chainage, formation road level (FRL), and ground level values at three points along the LHS and RHS of the main carriageway, with the elevation drawn at scale 1:300. To the right, a partially visible general notes column (notes 1–5) references dimension units, alignment drawing reference, bridge live load class (70R + traffic), and concrete grade specifications, though text is cut off at the right edge of the crop."
}

p02_r07 chainage frl and ground level data table

done

structural_drawings_pkg_1_890ff33d80e843ef8aa5a52a7a9de3d8_p02_r07_chainage_frl_and_ground_level_data_table

Table19 measurements · 8 notes · 8 labels

This crop shows a data table beneath a bridge elevation drawing, listing chainage, formation road level (FRL), and ground level values at three points along the LHS and RHS of the main carriageway, with the elevation drawn at scale 1:300. To the right, a partially visible general notes column (notes 1–5) references dimension units, alignment drawing reference, bridge live load class (70R + traffic), and concrete grade specifications, though text is cut off at the right edge of the crop.

Objects · 0

No objects read. Edit to add one.

Measurements · 19

MeasurementValueUnitApplies to
CHAINAGE IN (km.)64+360.197kmLHS
CHAINAGE IN (km.)64+406.385km
CHAINAGE IN (km.)64+452.573km
CHAINAGE IN (km.)64+371.487kmRHS
CHAINAGE IN (km.)64+417.675km
CHAINAGE IN (km.)64+463.814km
FRL.518.281mMAIN CARRIAGEWAY LHS
FRL.519.033mMAIN CARRIAGEWAY LHS
FRL.519.785mMAIN CARRIAGEWAY LHS
FRL.518.465mMAIN CARRIAGEWAY RHS
FRL.519.217mMAIN CARRIAGEWAY RHS
FRL.519.968mMAIN CARRIAGEWAY RHS
GROUND LEVEL509.560mMAIN CARRIAGEWAY LHS
GROUND LEVEL503.816mMAIN CARRIAGEWAY LHS
GROUND LEVEL511.891mMAIN CARRIAGEWAY LHS
GROUND LEVEL509.155mMAIN CARRIAGEWAY RHS
GROUND LEVEL503.883mMAIN CARRIAGEWAY RHS
GROUND LEVEL512.668mMAIN CARRIAGEWAY RHS
SCALE1:300ELEVATION

Labels

ELEVATION(SCALE 1:300)CHAINAGE IN (km.)FRL. (m)MAIN CARRIAGEWAYGROUND LEVEL(m)LHSRHS

Notes

  • 1. ALL DIMENSIONS A... OTHERWISE SPECIFIED.
  • 2. DIMENSIONS ARE ... FOLLOWED.
  • 3. THIS DRAWING S... ALIGNMENT DRAW...
  • 4. THE BRIDGE HAS CLASS 70R + TV... 70R OR SV LOAD...
  • 5. GRADE OF CONC... FOLLOWS:-
  • • PSC PRECAST ...
  • • R.C.C. CAST ...
  • • R.C.C. END CR...

anthropic/claude-sonnet-5 · 3437 tokens · 14.0s

crop · 1804 × 1993

p02_r08 abutment section with retaining wall and bored piles

page 2 · structural_drawings_pkg_1_890ff33d80e843ef8aa5a52a7a9de3d8_p02_r08_abutment_section_with_retaining_wall_and_bored_piles
Original
p02_r08 abutment section with retaining wall and bored piles
{
  "view": "Section",
  "objects": [
    {
      "name": "Abutment",
      "tag": "A2",
      "shape": "tapered/trapezoidal",
      "material": "reinforced concrete",
      "count": 1,
      "note": "Abutment section with sloped back face and seismic stopper"
    },
    {
      "name": "Bearing",
      "tag": "",
      "shape": "rectangular",
      "material": "POT-PTFE",
      "count": 1,
      "note": "Labeled POT-PTFE BEARING (TYP.), located at abutment top"
    },
    {
      "name": "Seismic Stopper",
      "tag": "",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 1,
      "note": "Labeled RCC SEISMIC STOPPER"
    },
    {
      "name": "Expansion Joint",
      "tag": "",
      "shape": "linear gap",
      "material": "",
      "count": 1,
      "note": "Centerline of expansion joint shown with gap dimension"
    },
    {
      "name": "Pile",
      "tag": "",
      "shape": "circular",
      "material": "cast-in-situ concrete",
      "count": 4,
      "note": "1200 dia bored cast-in-situ piles, shown in dashed elevation below abutment"
    },
    {
      "name": "Filter Layer",
      "tag": "",
      "shape": "",
      "material": "granular filter",
      "count": 1,
      "note": "600 THK. FILTER (partial label) shown near ground level"
    },
    {
      "name": "Stone Pitching",
      "tag": "",
      "shape": "",
      "material": "stone",
      "count": 1,
      "note": "STONE PITCHIN(G) label, partial text, embankment slope protection"
    },
    {
      "name": "Approach Embankment/Slope Fill",
      "tag": "",
      "shape": "tapered",
      "material": "granular fill",
      "count": 1,
      "note": "Hatched fill material forming approach slope behind abutment"
    },
    {
      "name": "Wing Wall/Return",
      "tag": "",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 1,
      "note": "Small stepped concrete element near top left, partially visible with break line"
    }
  ],
  "measurements": [
    {
      "label": "Distance from CL BRG to CL EXP JOINT (SQ)",
      "value": "1070",
      "unit": "",
      "appliesTo": "A2 abutment"
    },
    {
      "label": "Distance from CL BRG to CL EXP JOINT (SK)",
      "value": "1236",
      "unit": "",
      "appliesTo": "A2 abutment"
    },
    {
      "label": "Expansion gap (SQ)",
      "value": "80",
      "unit": "",
      "appliesTo": "expansion joint"
    },
    {
      "label": "Expansion gap (SK)",
      "value": "92",
      "unit": "",
      "appliesTo": "expansion joint"
    },
    {
      "label": "Width dimension",
      "value": "3500",
      "unit": "",
      "appliesTo": "top slab/deck near abutment"
    },
    {
      "label": "Vertical dimension",
      "value": "230",
      "unit": "",
      "appliesTo": "deck/slab thickness at top"
    },
    {
      "label": "Vertical dimension",
      "value": "2650",
      "unit": "",
      "appliesTo": "abutment stem height"
    },
    {
      "label": "Horizontal dimension",
      "value": "1500",
      "unit": "",
      "appliesTo": "abutment top step"
    },
    {
      "label": "Horizontal dimension",
      "value": "2850",
      "unit": "",
      "appliesTo": "abutment top area"
    },
    {
      "label": "Horizontal dimension",
      "value": "1500",
      "unit": "",
      "appliesTo": "lower abutment/slope area"
    },
    {
      "label": "Pile spacing",
      "value": "3600",
      "unit": "",
      "appliesTo": "piles"
    },
    {
      "label": "Pile spacing",
      "value": "3600",
      "unit": "",
      "appliesTo": "piles"
    },
    {
      "label": "Pile spacing",
      "value": "3600",
      "unit": "",
      "appliesTo": "piles"
    },
    {
      "label": "Edge distance",
      "value": "750",
      "unit": "",
      "appliesTo": "pile group left edge"
    },
    {
      "label": "Edge distance",
      "value": "750",
      "unit": "",
      "appliesTo": "pile group right edge"
    },
    {
      "label": "Total pile group width",
      "value": "12300",
      "unit": "",
      "appliesTo": "pile group"
    },
    {
      "label": "Pile diameter",
      "value": "1200",
      "unit": "DIA",
      "appliesTo": "bored cast-in-situ piles"
    },
    {
      "label": "Filter thickness",
      "value": "600",
      "unit": "THK",
      "appliesTo": "filter layer"
    },
    {
      "label": "Scale",
      "value": "1:150",
      "unit": "",
      "appliesTo": "Section A-A"
    }
  ],
  "notes": [
    "POT-PTFE BEARING (TYP.)",
    "RCC SEISMIC STOPPER",
    "STONE PITCHIN(G) [partial]",
    "INDEPENDENT F [partial, likely 'INDEPENDENT FOOTING' or similar]",
    "600 THK. FILTE [partial, likely 'FILTER']",
    "1200 DIA BORED [partial]",
    "CAST-IN-SITU PI [partial, likely 'PILE']",
    "CL OF EXP. JOINT",
    "CL OF BRG."
  ],
  "labels": [
    "A2",
    "SECTION A-A",
    "(SCALE 1:150)"
  ],
  "description": "This crop shows a cross-section (Section A-A) through abutment A2 of a bridge, illustrating the abutment stem, bearing arrangement (POT-PTFE bearing with RCC seismic stopper), expansion joint gap dimensions for square and skew geometries, backfill and slope protection details, and a row of four bored cast-in-situ piles with spacing dimensions below the abutment. It documents structural and geometric details needed for abutment, bearing, and foundation pile quantities."
}

p02_r08 abutment section with retaining wall and bored piles

done

structural_drawings_pkg_1_890ff33d80e843ef8aa5a52a7a9de3d8_p02_r08_abutment_section_with_retaining_wall_and_bored_piles

Section9 objects · 19 measurements · 9 notes · 3 labels

This crop shows a cross-section (Section A-A) through abutment A2 of a bridge, illustrating the abutment stem, bearing arrangement (POT-PTFE bearing with RCC seismic stopper), expansion joint gap dimensions for square and skew geometries, backfill and slope protection details, and a row of four bored cast-in-situ piles with spacing dimensions below the abutment. It documents structural and geometric details needed for abutment, bearing, and foundation pile quantities.

Objects · 9

MarkObjectNo.ShapeMaterialNote
A2Abutment1tapered/trapezoidalreinforced concreteAbutment section with sloped back face and seismic stopper
Bearing1rectangularPOT-PTFELabeled POT-PTFE BEARING (TYP.), located at abutment top
Seismic Stopper1rectangularreinforced concreteLabeled RCC SEISMIC STOPPER
Expansion Joint1linear gapCenterline of expansion joint shown with gap dimension
Pile4circularcast-in-situ concrete1200 dia bored cast-in-situ piles, shown in dashed elevation below abutment
Filter Layer1granular filter600 THK. FILTER (partial label) shown near ground level
Stone Pitching1stoneSTONE PITCHIN(G) label, partial text, embankment slope protection
Approach Embankment/Slope Fill1taperedgranular fillHatched fill material forming approach slope behind abutment
Wing Wall/Return1rectangularreinforced concreteSmall stepped concrete element near top left, partially visible with break line

Measurements · 19

MeasurementValueUnitApplies to
Distance from CL BRG to CL EXP JOINT (SQ)1070A2 abutment
Distance from CL BRG to CL EXP JOINT (SK)1236A2 abutment
Expansion gap (SQ)80expansion joint
Expansion gap (SK)92expansion joint
Width dimension3500top slab/deck near abutment
Vertical dimension230deck/slab thickness at top
Vertical dimension2650abutment stem height
Horizontal dimension1500abutment top step
Horizontal dimension2850abutment top area
Horizontal dimension1500lower abutment/slope area
Pile spacing3600piles
Pile spacing3600piles
Pile spacing3600piles
Edge distance750pile group left edge
Edge distance750pile group right edge
Total pile group width12300pile group
Pile diameter1200DIAbored cast-in-situ piles
Filter thickness600THKfilter layer
Scale1:150Section A-A

Labels

A2SECTION A-A(SCALE 1:150)

Notes

  • POT-PTFE BEARING (TYP.)
  • RCC SEISMIC STOPPER
  • STONE PITCHIN(G) [partial]
  • INDEPENDENT F [partial, likely 'INDEPENDENT FOOTING' or similar]
  • 600 THK. FILTE [partial, likely 'FILTER']
  • 1200 DIA BORED [partial]
  • CAST-IN-SITU PI [partial, likely 'PILE']
  • CL OF EXP. JOINT
  • CL OF BRG.

anthropic/claude-sonnet-5 · 7952 tokens · 19.1s

crop · 1473 × 1737

p02_r09 section b b

page 2 · structural_drawings_pkg_1_890ff33d80e843ef8aa5a52a7a9de3d8_p02_r09_section_b_b
Original
p02_r09 section b b
{
  "view": "Cross Section",
  "objects": [
    {
      "name": "Pier cap / pier bearing seat",
      "tag": "P1",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 1,
      "note": "Cap supporting bearings and seismic stopper, shown at top of column pier"
    },
    {
      "name": "RCC crash barrier",
      "tag": "",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 2,
      "note": "Shown atop deck on both sides"
    },
    {
      "name": "Precast PSC girder",
      "tag": "",
      "shape": "tapered/I-section (haunched)",
      "material": "precast concrete",
      "count": 2,
      "note": "Typical girder either side of pier centerline"
    },
    {
      "name": "Deck slab with deck continuity joint",
      "tag": "",
      "shape": "flat slab",
      "material": "reinforced concrete",
      "count": 1,
      "note": "Continuity over pier"
    },
    {
      "name": "Pot-PTFE bearing",
      "tag": "",
      "shape": "rectangular",
      "material": "elastomeric/PTFE composite",
      "count": 2,
      "note": "Typical bearing, one per girder line"
    },
    {
      "name": "RCC seismic stopper",
      "tag": "",
      "shape": "rectangular block",
      "material": "reinforced concrete",
      "count": 1,
      "note": "Located between bearings at pier cap"
    },
    {
      "name": "RCC column pier",
      "tag": "",
      "shape": "rectangular/circular column",
      "material": "reinforced concrete",
      "count": 1,
      "note": "Single column shaft below pier cap"
    },
    {
      "name": "RCC pile cap",
      "tag": "",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 1,
      "note": ""
    },
    {
      "name": "Bored cast-in-situ pile",
      "tag": "",
      "shape": "circular",
      "material": "reinforced concrete",
      "count": 2,
      "note": "1200 dia piles shown in section, part of larger group"
    },
    {
      "name": "Chamfer detail",
      "tag": "SECTION A",
      "shape": "rectangular with chamfered corner",
      "material": "concrete",
      "count": 1,
      "note": "Shown in adjacent small detail, partially cropped"
    }
  ],
  "measurements": [
    {
      "label": "Distance from bearing centerline to edge (SQ)",
      "value": "1170",
      "unit": "mm",
      "appliesTo": "deck/pier cap"
    },
    {
      "label": "Distance from bearing centerline to edge (SK)",
      "value": "1350",
      "unit": "mm",
      "appliesTo": "deck/pier cap"
    },
    {
      "label": "Barrier height",
      "value": "230",
      "unit": "mm",
      "appliesTo": "RCC crash barrier"
    },
    {
      "label": "Girder depth",
      "value": "2650",
      "unit": "mm",
      "appliesTo": "Precast PSC girder"
    },
    {
      "label": "Bearing seat width (SK)",
      "value": "1500",
      "unit": "mm",
      "appliesTo": "pier cap/bearing area"
    },
    {
      "label": "Pier cap layer thickness",
      "value": "750",
      "unit": "mm",
      "appliesTo": "pier cap"
    },
    {
      "label": "Pier cap layer thickness",
      "value": "750",
      "unit": "mm",
      "appliesTo": "pier cap"
    },
    {
      "label": "Total pier cap depth",
      "value": "1500",
      "unit": "mm",
      "appliesTo": "pier cap"
    },
    {
      "label": "Pier cap width (SQ)",
      "value": "3640",
      "unit": "mm",
      "appliesTo": "pier cap"
    },
    {
      "label": "Pier cap width (SK)",
      "value": "4203",
      "unit": "mm",
      "appliesTo": "pier cap"
    },
    {
      "label": "Column width",
      "value": "1500",
      "unit": "mm",
      "appliesTo": "RCC column pier"
    },
    {
      "label": "Pile cap thickness",
      "value": "1800",
      "unit": "mm",
      "appliesTo": "RCC pile cap"
    },
    {
      "label": "Edge distance to pile",
      "value": "750",
      "unit": "mm",
      "appliesTo": "pile cap"
    },
    {
      "label": "Pile spacing",
      "value": "3600",
      "unit": "mm",
      "appliesTo": "piles"
    },
    {
      "label": "Overall pile cap width",
      "value": "5100",
      "unit": "mm",
      "appliesTo": "pile cap"
    },
    {
      "label": "Edge distance to pile",
      "value": "750",
      "unit": "mm",
      "appliesTo": "pile cap"
    },
    {
      "label": "Pile diameter",
      "value": "1200",
      "unit": "mm",
      "appliesTo": "bored cast-in-situ piles"
    },
    {
      "label": "Chamfer dimension",
      "value": "25",
      "unit": "mm",
      "appliesTo": "Section A chamfer detail"
    },
    {
      "label": "Chamfer dimension",
      "value": "25",
      "unit": "mm",
      "appliesTo": "Section A chamfer detail"
    },
    {
      "label": "Scale",
      "value": "1:150",
      "unit": "",
      "appliesTo": "Section B-B"
    }
  ],
  "notes": [
    "RCC CRASH BARRIER",
    "FRL",
    "DECK CONTINUITY",
    "PRECAST PSC GIRDER (TYP.)",
    "RCC SEISMIC STOPPER",
    "POT-PTFE BEARING (TYP.)",
    "RCC COLUMN PIER",
    "RCC PILECAP",
    "1200 DIA BORED CAST-IN-SITU PILES",
    "CHAMFER"
  ],
  "labels": [
    "P1",
    "C OF BRG.",
    "SECTION A",
    "SECTION B-B",
    "(SCALE 1:150)",
    "(SC..."
  ],
  "description": "This crop shows Section B-B, a cross section through a bridge pier (P1) at scale 1:150, illustrating the deck, PSC girders, crash barriers, pot-PTFE bearings, seismic stopper, pier cap, RCC column pier, pile cap, and two of the bored cast-in-situ piles with their spacing dimensions. A partial adjacent detail labeled 'SECTION A' shows a chamfer detail at a concrete edge, cut off at the right margin of the crop."
}

p02_r09 section b b

done

structural_drawings_pkg_1_890ff33d80e843ef8aa5a52a7a9de3d8_p02_r09_section_b_b

Cross Section10 objects · 20 measurements · 10 notes · 6 labels

This crop shows Section B-B, a cross section through a bridge pier (P1) at scale 1:150, illustrating the deck, PSC girders, crash barriers, pot-PTFE bearings, seismic stopper, pier cap, RCC column pier, pile cap, and two of the bored cast-in-situ piles with their spacing dimensions. A partial adjacent detail labeled 'SECTION A' shows a chamfer detail at a concrete edge, cut off at the right margin of the crop.

Objects · 10

MarkObjectNo.ShapeMaterialNote
P1Pier cap / pier bearing seat1rectangularreinforced concreteCap supporting bearings and seismic stopper, shown at top of column pier
RCC crash barrier2rectangularreinforced concreteShown atop deck on both sides
Precast PSC girder2tapered/I-section (haunched)precast concreteTypical girder either side of pier centerline
Deck slab with deck continuity joint1flat slabreinforced concreteContinuity over pier
Pot-PTFE bearing2rectangularelastomeric/PTFE compositeTypical bearing, one per girder line
RCC seismic stopper1rectangular blockreinforced concreteLocated between bearings at pier cap
RCC column pier1rectangular/circular columnreinforced concreteSingle column shaft below pier cap
RCC pile cap1rectangularreinforced concrete
Bored cast-in-situ pile2circularreinforced concrete1200 dia piles shown in section, part of larger group
SECTION AChamfer detail1rectangular with chamfered cornerconcreteShown in adjacent small detail, partially cropped

Measurements · 20

MeasurementValueUnitApplies to
Distance from bearing centerline to edge (SQ)1170mmdeck/pier cap
Distance from bearing centerline to edge (SK)1350mmdeck/pier cap
Barrier height230mmRCC crash barrier
Girder depth2650mmPrecast PSC girder
Bearing seat width (SK)1500mmpier cap/bearing area
Pier cap layer thickness750mmpier cap
Pier cap layer thickness750mmpier cap
Total pier cap depth1500mmpier cap
Pier cap width (SQ)3640mmpier cap
Pier cap width (SK)4203mmpier cap
Column width1500mmRCC column pier
Pile cap thickness1800mmRCC pile cap
Edge distance to pile750mmpile cap
Pile spacing3600mmpiles
Overall pile cap width5100mmpile cap
Edge distance to pile750mmpile cap
Pile diameter1200mmbored cast-in-situ piles
Chamfer dimension25mmSection A chamfer detail
Chamfer dimension25mmSection A chamfer detail
Scale1:150Section B-B

Labels

P1C OF BRG.SECTION ASECTION B-B(SCALE 1:150)(SC...

Notes

  • RCC CRASH BARRIER
  • FRL
  • DECK CONTINUITY
  • PRECAST PSC GIRDER (TYP.)
  • RCC SEISMIC STOPPER
  • POT-PTFE BEARING (TYP.)
  • RCC COLUMN PIER
  • RCC PILECAP
  • 1200 DIA BORED CAST-IN-SITU PILES
  • CHAMFER

anthropic/claude-sonnet-5 · 6642 tokens · 18.1s

crop · 1161 × 1534

p02_r10 section b b

page 2 · structural_drawings_pkg_1_890ff33d80e843ef8aa5a52a7a9de3d8_p02_r10_section_b_b
Original
p02_r10 section b b
{
  "view": "Elevation",
  "objects": [
    {
      "name": "Crash Barrier",
      "tag": "",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 2,
      "note": "labeled RCC CRASH BARRIER, on either side of deck"
    },
    {
      "name": "PSC Girder",
      "tag": "",
      "shape": "I-girder/tapered",
      "material": "precast concrete",
      "count": 2,
      "note": "labeled PRECAST PSC GIRDER (TYP.), shown schematically hatched"
    },
    {
      "name": "Deck Continuity Slab",
      "tag": "",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 1,
      "note": "deck continuity at pier top"
    },
    {
      "name": "Bearing",
      "tag": "",
      "shape": "rectangular",
      "material": "",
      "count": 2,
      "note": "POT-PTFE BEARING (TYP.)"
    },
    {
      "name": "Seismic Stopper",
      "tag": "",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 1,
      "note": "RCC SEISMIC STOPPER, hatched block at pier cap top"
    },
    {
      "name": "Pier Cap",
      "tag": "",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 1,
      "note": "cap supporting bearings above column"
    },
    {
      "name": "Column Pier",
      "tag": "P1",
      "shape": "circular",
      "material": "reinforced concrete",
      "count": 1,
      "note": "labeled RCC COLUMN PIER"
    },
    {
      "name": "Pile Cap",
      "tag": "",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 1,
      "note": "labeled RCC PILECAP, shown dashed (below ground/hidden)"
    },
    {
      "name": "Bored Cast-in-situ Pile",
      "tag": "",
      "shape": "circular",
      "material": "reinforced concrete",
      "count": 2,
      "note": "labeled 1200 DIA BORED CAST-IN-SITU PILES, shown dashed"
    }
  ],
  "measurements": [
    {
      "label": "Barrier width offset",
      "value": "230",
      "unit": "",
      "appliesTo": "Crash Barrier (each side)"
    },
    {
      "label": "Girder depth",
      "value": "2650",
      "unit": "",
      "appliesTo": "PSC Girder"
    },
    {
      "label": "Bearing spacing (square)",
      "value": "1170(SQ)",
      "unit": "",
      "appliesTo": "C OF BRG. spacing left"
    },
    {
      "label": "Bearing spacing (skew)",
      "value": "1350(SK)",
      "unit": "",
      "appliesTo": "C OF BRG. spacing left"
    },
    {
      "label": "Bearing spacing (square)",
      "value": "1170(SQ)",
      "unit": "",
      "appliesTo": "C OF BRG. spacing right"
    },
    {
      "label": "Bearing spacing (skew)",
      "value": "1350(SK)",
      "unit": "",
      "appliesTo": "C OF BRG. spacing right"
    },
    {
      "label": "Seismic stopper width (skew)",
      "value": "1500(SK)",
      "unit": "",
      "appliesTo": "RCC Seismic Stopper"
    },
    {
      "label": "Pier cap depth upper",
      "value": "750",
      "unit": "",
      "appliesTo": "Pier Cap"
    },
    {
      "label": "Pier cap depth lower",
      "value": "750",
      "unit": "",
      "appliesTo": "Pier Cap"
    },
    {
      "label": "Pier cap total depth",
      "value": "1500",
      "unit": "",
      "appliesTo": "Pier Cap"
    },
    {
      "label": "Pier cap width (square)",
      "value": "3640(SQ)",
      "unit": "",
      "appliesTo": "Pier Cap"
    },
    {
      "label": "Pier cap width (skew)",
      "value": "4203(SK)",
      "unit": "",
      "appliesTo": "Pier Cap"
    },
    {
      "label": "Column diameter",
      "value": "1500",
      "unit": "",
      "appliesTo": "Column Pier P1"
    },
    {
      "label": "Pile cap depth",
      "value": "1800",
      "unit": "",
      "appliesTo": "Pile Cap"
    },
    {
      "label": "Pile edge distance left",
      "value": "750",
      "unit": "",
      "appliesTo": "Pile Cap"
    },
    {
      "label": "Pile spacing",
      "value": "3600",
      "unit": "",
      "appliesTo": "Bored Piles"
    },
    {
      "label": "Pile edge distance right",
      "value": "750",
      "unit": "",
      "appliesTo": "Pile Cap"
    },
    {
      "label": "Pile cap overall width",
      "value": "5100",
      "unit": "",
      "appliesTo": "Pile Cap"
    },
    {
      "label": "Pile diameter",
      "value": "1200",
      "unit": "DIA",
      "appliesTo": "Bored Cast-in-situ Piles"
    }
  ],
  "notes": [
    "RCC CRASH BARRIER",
    "FRL",
    "DECK CONTINUITY",
    "RCC SEISMIC STOPPER",
    "POT-PTFE BEARING (TYP.)",
    "PRECAST PSC GIRDER (TYP.)",
    "RCC COLUMN PIER",
    "RCC PILECAP",
    "1200 DIA BORED CAST-IN-SITU PILES"
  ],
  "labels": [
    "P1",
    "C OF BRG."
  ],
  "description": "This crop is an elevation view of a bridge pier (marked P1) showing the deck cross-section above with crash barriers, precast PSC girders, deck continuity slab, pot-PTFE bearings and seismic stopper, resting on a pier cap supported by a single circular RCC column pier. Below ground, the column continues to a pile cap (shown dashed/hidden) founded on two 1200mm diameter bored cast-in-situ piles. Key dimensions for bearing spacing, pier cap size (square and skew), column diameter, pile cap dimensions, and pile spacing are annotated."
}

p02_r10 section b b

done

structural_drawings_pkg_1_890ff33d80e843ef8aa5a52a7a9de3d8_p02_r10_section_b_b

Elevation9 objects · 19 measurements · 9 notes · 2 labels

This crop is an elevation view of a bridge pier (marked P1) showing the deck cross-section above with crash barriers, precast PSC girders, deck continuity slab, pot-PTFE bearings and seismic stopper, resting on a pier cap supported by a single circular RCC column pier. Below ground, the column continues to a pile cap (shown dashed/hidden) founded on two 1200mm diameter bored cast-in-situ piles. Key dimensions for bearing spacing, pier cap size (square and skew), column diameter, pile cap dimensions, and pile spacing are annotated.

Objects · 9

MarkObjectNo.ShapeMaterialNote
Crash Barrier2rectangularreinforced concretelabeled RCC CRASH BARRIER, on either side of deck
PSC Girder2I-girder/taperedprecast concretelabeled PRECAST PSC GIRDER (TYP.), shown schematically hatched
Deck Continuity Slab1rectangularreinforced concretedeck continuity at pier top
Bearing2rectangularPOT-PTFE BEARING (TYP.)
Seismic Stopper1rectangularreinforced concreteRCC SEISMIC STOPPER, hatched block at pier cap top
Pier Cap1rectangularreinforced concretecap supporting bearings above column
P1Column Pier1circularreinforced concretelabeled RCC COLUMN PIER
Pile Cap1rectangularreinforced concretelabeled RCC PILECAP, shown dashed (below ground/hidden)
Bored Cast-in-situ Pile2circularreinforced concretelabeled 1200 DIA BORED CAST-IN-SITU PILES, shown dashed

Measurements · 19

MeasurementValueUnitApplies to
Barrier width offset230Crash Barrier (each side)
Girder depth2650PSC Girder
Bearing spacing (square)1170(SQ)C OF BRG. spacing left
Bearing spacing (skew)1350(SK)C OF BRG. spacing left
Bearing spacing (square)1170(SQ)C OF BRG. spacing right
Bearing spacing (skew)1350(SK)C OF BRG. spacing right
Seismic stopper width (skew)1500(SK)RCC Seismic Stopper
Pier cap depth upper750Pier Cap
Pier cap depth lower750Pier Cap
Pier cap total depth1500Pier Cap
Pier cap width (square)3640(SQ)Pier Cap
Pier cap width (skew)4203(SK)Pier Cap
Column diameter1500Column Pier P1
Pile cap depth1800Pile Cap
Pile edge distance left750Pile Cap
Pile spacing3600Bored Piles
Pile edge distance right750Pile Cap
Pile cap overall width5100Pile Cap
Pile diameter1200DIABored Cast-in-situ Piles

Labels

P1C OF BRG.

Notes

  • RCC CRASH BARRIER
  • FRL
  • DECK CONTINUITY
  • RCC SEISMIC STOPPER
  • POT-PTFE BEARING (TYP.)
  • PRECAST PSC GIRDER (TYP.)
  • RCC COLUMN PIER
  • RCC PILECAP
  • 1200 DIA BORED CAST-IN-SITU PILES

anthropic/claude-sonnet-5 · 5545 tokens · 16.7s

crop · 2120 × 1675

p02_r11 section a a

page 2 · structural_drawings_pkg_1_890ff33d80e843ef8aa5a52a7a9de3d8_p02_r11_section_a_a
Original
p02_r11 section a a
{
  "view": "Section",
  "objects": [
    {
      "name": "Abutment",
      "tag": "A2",
      "shape": "tapered/battered",
      "material": "reinforced concrete",
      "count": 1,
      "note": "Abutment with backwall supporting bearing seat, shown with sloped face against embankment"
    },
    {
      "name": "Bearing",
      "tag": "",
      "shape": "rectangular",
      "material": "PTFE/elastomeric (Pot-PTFE)",
      "count": 1,
      "note": "Labeled POT-PTFE BEARING (TYP.), seated on abutment cap"
    },
    {
      "name": "Seismic Stopper",
      "tag": "",
      "shape": "rectangular block",
      "material": "reinforced concrete",
      "count": 1,
      "note": "Labeled RCC SEISMIC STOPPER, adjacent to bearing"
    },
    {
      "name": "Expansion Joint",
      "tag": "",
      "shape": "linear gap",
      "material": "",
      "count": 1,
      "note": "Located at centerline of exp. joint, gap dimensions given as 80(SQ)/92(SK)"
    },
    {
      "name": "Deck/Girder",
      "tag": "",
      "shape": "rectangular slab with haunch",
      "material": "reinforced concrete",
      "count": 1,
      "note": "Top slab shown with 230 thickness dimension and 3500(SQ) span reference"
    },
    {
      "name": "Retaining Wall",
      "tag": "",
      "shape": "vertical wall",
      "material": "reinforced concrete (implied)",
      "count": 1,
      "note": "Labeled INDEPENDENT RETAINING WALL, separate from abutment"
    },
    {
      "name": "Pile",
      "tag": "",
      "shape": "circular",
      "material": "cast-in-situ concrete",
      "count": 4,
      "note": "Labeled 1200 DIA BORED CAST-IN-SITU PILES, shown in elevation/plan strip below section, 4 piles visible with spacing"
    },
    {
      "name": "Stone Pitching",
      "tag": "",
      "shape": "sloped layer",
      "material": "stone",
      "count": 1,
      "note": "Labeled STONE PITCHING on embankment slope"
    },
    {
      "name": "Filter Media",
      "tag": "",
      "shape": "layer",
      "material": "granular fill",
      "count": 1,
      "note": "Labeled 600 THK. FILTER MEDIA behind retaining wall"
    },
    {
      "name": "Embankment/Backfill",
      "tag": "",
      "shape": "sloped fill",
      "material": "earth/granular",
      "count": 1,
      "note": "Shown with hatching, sloped approach fill behind abutment"
    },
    {
      "name": "Ground Line",
      "tag": "",
      "shape": "irregular line",
      "material": "",
      "count": 1,
      "note": "Existing ground surface shown with break line at far right"
    }
  ],
  "measurements": [
    {
      "label": "",
      "value": "1070",
      "unit": "mm",
      "appliesTo": "distance from bearing CL to exp. joint CL, square case (SQ)"
    },
    {
      "label": "",
      "value": "1236",
      "unit": "mm",
      "appliesTo": "distance from bearing CL to exp. joint CL, skew case (SK)"
    },
    {
      "label": "",
      "value": "80",
      "unit": "mm",
      "appliesTo": "expansion gap, square case (SQ)"
    },
    {
      "label": "",
      "value": "92",
      "unit": "mm",
      "appliesTo": "expansion gap, skew case (SK), labeled EXP.GAP"
    },
    {
      "label": "",
      "value": "230",
      "unit": "mm",
      "appliesTo": "deck slab thickness"
    },
    {
      "label": "",
      "value": "3500",
      "unit": "mm",
      "appliesTo": "span/offset dimension (SQ) at deck level"
    },
    {
      "label": "",
      "value": "2650",
      "unit": "mm",
      "appliesTo": "vertical dimension, abutment section height"
    },
    {
      "label": "",
      "value": "1500",
      "unit": "mm",
      "appliesTo": "horizontal dimension near bearing seat"
    },
    {
      "label": "",
      "value": "2850",
      "unit": "mm",
      "appliesTo": "horizontal dimension near bearing seat"
    },
    {
      "label": "",
      "value": "1500",
      "unit": "mm",
      "appliesTo": "horizontal offset dimension near retaining wall base"
    },
    {
      "label": "",
      "value": "750",
      "unit": "mm",
      "appliesTo": "pile spacing, edge distance (left)"
    },
    {
      "label": "",
      "value": "3600",
      "unit": "mm",
      "appliesTo": "pile spacing (x3)"
    },
    {
      "label": "",
      "value": "750",
      "unit": "mm",
      "appliesTo": "pile spacing, edge distance (right)"
    },
    {
      "label": "",
      "value": "12300",
      "unit": "mm",
      "appliesTo": "total pile group width"
    },
    {
      "label": "",
      "value": "600",
      "unit": "mm",
      "appliesTo": "filter media thickness"
    },
    {
      "label": "",
      "value": "1200",
      "unit": "mm",
      "appliesTo": "pile diameter"
    },
    {
      "label": "1:150",
      "value": "1:150",
      "unit": "",
      "appliesTo": "drawing scale"
    }
  ],
  "notes": [
    "POT-PTFE BEARING (TYP.)",
    "RCC SEISMIC STOPPER",
    "STONE PITCHING",
    "INDEPENDENT RETAINING WALL",
    "600 THK. FILTER MEDIA",
    "1200 DIA BORED CAST-IN-SITU PILES"
  ],
  "labels": [
    "A2",
    "C OF EXP. JOINT",
    "C OF BRG.",
    "SECTION A-A",
    "(SCALE 1:150)"
  ],
  "description": "This crop shows a cross-section (Section A-A) through abutment A2 of a bridge, detailing the bearing arrangement, seismic stopper, expansion joint gap dimensions for square and skew conditions, the sloped embankment fill with stone pitching, an independent retaining wall with filter media, and a row of four 1200mm diameter bored cast-in-situ piles with their spacing dimensions. It documents the abutment structural detail, foundation piling layout, and associated earthwork/retaining elements at this location."
}

p02_r11 section a a

done

structural_drawings_pkg_1_890ff33d80e843ef8aa5a52a7a9de3d8_p02_r11_section_a_a

Section11 objects · 17 measurements · 6 notes · 5 labels

This crop shows a cross-section (Section A-A) through abutment A2 of a bridge, detailing the bearing arrangement, seismic stopper, expansion joint gap dimensions for square and skew conditions, the sloped embankment fill with stone pitching, an independent retaining wall with filter media, and a row of four 1200mm diameter bored cast-in-situ piles with their spacing dimensions. It documents the abutment structural detail, foundation piling layout, and associated earthwork/retaining elements at this location.

Objects · 11

MarkObjectNo.ShapeMaterialNote
A2Abutment1tapered/batteredreinforced concreteAbutment with backwall supporting bearing seat, shown with sloped face against embankment
Bearing1rectangularPTFE/elastomeric (Pot-PTFE)Labeled POT-PTFE BEARING (TYP.), seated on abutment cap
Seismic Stopper1rectangular blockreinforced concreteLabeled RCC SEISMIC STOPPER, adjacent to bearing
Expansion Joint1linear gapLocated at centerline of exp. joint, gap dimensions given as 80(SQ)/92(SK)
Deck/Girder1rectangular slab with haunchreinforced concreteTop slab shown with 230 thickness dimension and 3500(SQ) span reference
Retaining Wall1vertical wallreinforced concrete (implied)Labeled INDEPENDENT RETAINING WALL, separate from abutment
Pile4circularcast-in-situ concreteLabeled 1200 DIA BORED CAST-IN-SITU PILES, shown in elevation/plan strip below section, 4 piles visible with spacing
Stone Pitching1sloped layerstoneLabeled STONE PITCHING on embankment slope
Filter Media1layergranular fillLabeled 600 THK. FILTER MEDIA behind retaining wall
Embankment/Backfill1sloped fillearth/granularShown with hatching, sloped approach fill behind abutment
Ground Line1irregular lineExisting ground surface shown with break line at far right

Measurements · 17

MeasurementValueUnitApplies to
1070mmdistance from bearing CL to exp. joint CL, square case (SQ)
1236mmdistance from bearing CL to exp. joint CL, skew case (SK)
80mmexpansion gap, square case (SQ)
92mmexpansion gap, skew case (SK), labeled EXP.GAP
230mmdeck slab thickness
3500mmspan/offset dimension (SQ) at deck level
2650mmvertical dimension, abutment section height
1500mmhorizontal dimension near bearing seat
2850mmhorizontal dimension near bearing seat
1500mmhorizontal offset dimension near retaining wall base
750mmpile spacing, edge distance (left)
3600mmpile spacing (x3)
750mmpile spacing, edge distance (right)
12300mmtotal pile group width
600mmfilter media thickness
1200mmpile diameter
1:1501:150drawing scale

Labels

A2C OF EXP. JOINTC OF BRG.SECTION A-A(SCALE 1:150)

Notes

  • POT-PTFE BEARING (TYP.)
  • RCC SEISMIC STOPPER
  • STONE PITCHING
  • INDEPENDENT RETAINING WALL
  • 600 THK. FILTER MEDIA
  • 1200 DIA BORED CAST-IN-SITU PILES

anthropic/claude-sonnet-5 · 7572 tokens · 20.5s

crop · 804 × 714

p02_r12 chamfer detail 25x25 at pier cap edge

page 2 · structural_drawings_pkg_1_890ff33d80e843ef8aa5a52a7a9de3d8_p02_r12_chamfer_detail_25x25_at_pier_cap_edge
Original
p02_r12 chamfer detail 25x25 at pier cap edge
{
  "view": "Cross Section",
  "objects": [
    {
      "name": "Pier (cross-section)",
      "tag": "",
      "shape": "rectangular with chamfered corners",
      "material": "",
      "count": 1,
      "note": "Shown as a rectangular section with 25x25 chamfer at the top-left corner (and by symmetry likely all corners); material not explicitly labeled but typically concrete for a pier section."
    }
  ],
  "measurements": [
    {
      "label": "Width",
      "value": "1500",
      "unit": "",
      "appliesTo": "Pier section"
    },
    {
      "label": "Height",
      "value": "1000",
      "unit": "",
      "appliesTo": "Pier section"
    },
    {
      "label": "Chamfer horizontal offset",
      "value": "25",
      "unit": "",
      "appliesTo": "Chamfer at corner"
    },
    {
      "label": "Chamfer vertical offset",
      "value": "25",
      "unit": "",
      "appliesTo": "Chamfer at corner"
    },
    {
      "label": "Scale",
      "value": "1:25",
      "unit": "",
      "appliesTo": "Drawing scale"
    }
  ],
  "notes": [
    "CHAMFER 25X25"
  ],
  "labels": [
    "SECTION AT PIER LOCATION",
    "(SCALE 1:25)"
  ],
  "description": "This crop shows a cross-sectional detail labeled 'SECTION AT PIER LOCATION' at scale 1:25, depicting a rectangular pier section measuring 1500 units wide by 1000 units tall with a 25x25 chamfer detail called out at the top-left corner. No material callout or reinforcement is shown in this view; it appears to document only the overall outer geometry of the pier section at this location."
}

p02_r12 chamfer detail 25x25 at pier cap edge

done

structural_drawings_pkg_1_890ff33d80e843ef8aa5a52a7a9de3d8_p02_r12_chamfer_detail_25x25_at_pier_cap_edge

Cross Section1 object · 5 measurements · 1 note · 2 labels

This crop shows a cross-sectional detail labeled 'SECTION AT PIER LOCATION' at scale 1:25, depicting a rectangular pier section measuring 1500 units wide by 1000 units tall with a 25x25 chamfer detail called out at the top-left corner. No material callout or reinforcement is shown in this view; it appears to document only the overall outer geometry of the pier section at this location.

Objects · 1

ObjectNo.ShapeNote
Pier (cross-section)1rectangular with chamfered cornersShown as a rectangular section with 25x25 chamfer at the top-left corner (and by symmetry likely all corners); material not explicitly labeled but typically concrete for a pier section.

Measurements · 5

MeasurementValueApplies to
Width1500Pier section
Height1000Pier section
Chamfer horizontal offset25Chamfer at corner
Chamfer vertical offset25Chamfer at corner
Scale1:25Drawing scale

Labels

SECTION AT PIER LOCATION(SCALE 1:25)

Notes

  • CHAMFER 25X25

anthropic/claude-sonnet-5 · 2646 tokens · 7.7s

crop · 744 × 563

p02_r13 section at pier location

page 2 · structural_drawings_pkg_1_890ff33d80e843ef8aa5a52a7a9de3d8_p02_r13_section_at_pier_location
Original
p02_r13 section at pier location
{
  "view": "Section",
  "objects": [
    {
      "name": "Section element at pier location (likely girder/beam or pier cap cross-section)",
      "tag": "",
      "shape": "rectangular with chamfered corners",
      "material": "",
      "count": 1,
      "note": "Chamfer detail 25x25 shown at top-left corner; likely representative of all four corners"
    }
  ],
  "measurements": [
    {
      "label": "Width",
      "value": "1500",
      "unit": "",
      "appliesTo": "Section at pier location"
    },
    {
      "label": "Height",
      "value": "1000",
      "unit": "",
      "appliesTo": "Section at pier location"
    },
    {
      "label": "Chamfer dimension",
      "value": "25",
      "unit": "",
      "appliesTo": "corner chamfer"
    },
    {
      "label": "Chamfer size",
      "value": "25X25",
      "unit": "",
      "appliesTo": "corner chamfer"
    },
    {
      "label": "Scale",
      "value": "1:25",
      "unit": "",
      "appliesTo": "drawing scale"
    }
  ],
  "notes": [
    "CHAMFER 25X25"
  ],
  "labels": [
    "SECTION AT PIER LOCATION",
    "(SCALE 1:25)"
  ],
  "description": "This crop shows a cross-section labeled 'SECTION AT PIER LOCATION' at scale 1:25, depicting a rectangular member measuring 1500 by 1000 (units not stated, likely mm) with 25x25 chamfers at the corners. No reinforcement, material callout, or additional context is shown in this fragment beyond the outline and dimensions."
}

p02_r13 section at pier location

done

structural_drawings_pkg_1_890ff33d80e843ef8aa5a52a7a9de3d8_p02_r13_section_at_pier_location

Section1 object · 5 measurements · 1 note · 2 labels

This crop shows a cross-section labeled 'SECTION AT PIER LOCATION' at scale 1:25, depicting a rectangular member measuring 1500 by 1000 (units not stated, likely mm) with 25x25 chamfers at the corners. No reinforcement, material callout, or additional context is shown in this fragment beyond the outline and dimensions.

Objects · 1

ObjectNo.ShapeNote
Section element at pier location (likely girder/beam or pier cap cross-section)1rectangular with chamfered cornersChamfer detail 25x25 shown at top-left corner; likely representative of all four corners

Measurements · 5

MeasurementValueApplies to
Width1500Section at pier location
Height1000Section at pier location
Chamfer dimension25corner chamfer
Chamfer size25X25corner chamfer
Scale1:25drawing scale

Labels

SECTION AT PIER LOCATION(SCALE 1:25)

Notes

  • CHAMFER 25X25

anthropic/claude-sonnet-5 · 2383 tokens · 6.7s

2Map the items44 items · 328 readings · 18 on more than one pageconfigured openai/gpt-5.6-terra-pro · about 10¢ at the last run’s size · default

One set of distinct items across every page. The same bent read as “BENT”, “Interior bent” and “Bent No. 2” is one item here, carrying every page and crop it was seen in. One model call over all of step 1’s readings; the page mapping is resolved from its grouping rather than retyped by it.

44 items from 328 readings · 17 new, 27 updated, 22 removed.

44items328readings18on 2+ pages5,976tokens in15,886tokens out
Pilefoundation×161 · circular · reinforced concretep1, p2, p325 crops
Pile

also calledPile / foundation elementFoundation piles/borehole grid pattern (circular marks in skewed plan)Pile foundation (piles shown in plan, skewed grid)Bored cast-in-situ pilePile foundationBored Cast-in-situ PilePiles

marksP1

Expansion Jointsuperstructure×42 · linear · not statedp1, p2, p321 crops
Expansion Joint

also calledDeck Joint/Expansion MarkerExpansion Joint (centerline marker)Expansion joint centerline markerExpansion joint markersExpansion Joint Marks (Small triangular symbols)expansion/sealant gap

marksA1

Girdersuperstructure×30 · I-girder (tapered flange) · precast concretep1, p2, p318 crops
Girder

also calledDeck slab girders/beams (shown as parallel lines)Girders (deck beams)Deck/girder end (partial)PSC GirderGirder cross-section (typical)Precast PSC girderPSC girderGirder cross sectionPSC precast girderDeck/GirderGirder/bearing line

marksTYP.SUPPORT SECTIONMID SECTION

Abutmentsubstructure×21 · skewed rectangular · reinforced concretep1, p2, p318 crops
Abutment

also calledAbutment section (partial, cropped)

marksA1A2A1 & A2

Crash Barrierrailing×44 · linear, rectangular in section · reinforced concretep1, p2, p322 crops
Crash Barrier

also calledRCC crash barrierRCC Crash Barrier

Piersubstructure×28 · circular (in plan) · reinforced concretep1, p2, p319 crops
Pier

also calledPier/Support MarkerPier/support markerPier section (pier cap/pier member at pier location)RCC column pierColumn PierPier (cross-section)Pier columns/webs (square)

marksP1

Pile Capfoundation×28 · rectangular · reinforced concretep1, p2, p311 crops
Pile Cap

also calledPile cap / foundation raftFoundation/pile cap layoutFoundation/pile cap outlinePile cap / foundationRCC pile cap

marksA1

Deck Slabdeck×12 · rectangular (skewed) · reinforced concretep1, p2, p310 crops
Deck Slab

also calledDeck Slab / CarriagewayApproach/Deck Slab LinesR.C.C. cast in situ deck slabRCC cast-in-situ deck slabDeck slab (RCC cast in situ)

marksSLAB

Embankment/Slope Fillearthwork×10 · sloped fill · earth/granular fillp1, p2, p38 crops
Embankment/Slope Fill

also calledEmbankment/slope protection areaEmbankment/backfillApproach embankment fillRE wall / backfillApproach Embankment/Slope FillEmbankment/BackfillEmbankment / slope protection

Pier Capsubstructure×8 · rectangular · reinforced concretep1, p2, p37 crops
Pier Cap

also calledPier/Pier capPier cap / bearing pedestalPier cap / pier headPier cap / pier bearing seatSection element at pier location (likely girder/beam or pier cap cross-section)Pier cap / pile cap top and bottom levels (PCTL/PCBL)

marksP1

Bearingsuperstructure×55 · rectangular block · elastomeric/PTFEp1, p217 crops
Bearing

also calledBearing/pile cap markers (small squares in lower left partial view)Bearing/support symbolBearing/Support markersBearing/pedestalPot-PTFE bearingPot-PTFE BearingBearing pedestal

marksPOT-PTFE BEARING (TYP.)FRFXFR / FXTYP.

Retaining Wallsubstructure×32 · rectangular · concretep1, p213 crops
Retaining Wall

also calledIndependent retaining wallRetaining/Toe wallIndependent Retaining WallRetaining/Toe Wall (Key Plan)Toe wall / retaining wall (Key Plan)Retaining/Toe WallRetaining/toe wall

marksRET./TOE WALLINDEPENDENT RETAINING WALL

Approach Slabdeck×17 · rectangular (skewed/angled) · reinforced concretep1, p210 crops
Approach Slab
Footpathpavement×16 · rectangular · reinforced concrete (implied)p1, p39 crops
Footpath
Median Wallsubstructure×8 · trapezoidal strip · PCC M15p1, p38 crops
Median Wall

also calledcantilever median wallCantilever median wall

Drainage Scupperdrainage×49 · small rectangular symbol with cross hatchp1, p27 crops
Drainage Scupper

also calledDrainage/Deck inlet or joint markersDrainage/scupper symbols (small hatched squares)Drainage/scupper symbolsDrainage Inlet/ScupperDrainage Inlet / ScupperDrainage inlet/scupperDrainage spout

PCC Leveling Coursefoundation×8 · layer · plain cement concretep2, p36 crops
PCC Leveling Course

also calledLevelling coursePCC blinding/leveling layerPCC blinding/leveling course

marksPCC M-15M-15

Wing Wallsubstructure×2 · rectangular · reinforced concretep1, p22 crops
Wing Wall

also calledWingwall/Slope hatchingWing Wall/Return

Seismic Stoppersubstructure×9 · rectangular block · reinforced concretep28 crops
Seismic Stopper

also calledRCC seismic stopper

marksRCC SEISMIC STOPPER

Stone Pitchingearthwork×12 · sloped surface layer · stonep28 crops
Stone Pitching

also calledStone pitching / slope protection

marksSTONE PITCHING

Deck Continuitydeck×7 · rectangular slab/joint · reinforced concretep27 crops
Deck Continuity

also calledDeck continuity slab/jointDeck slab / deck continuityDeck Continuity JointDeck slab with deck continuity jointDeck Continuity Slab

Filter Mediadrainage×8 · layer · granular fillp26 crops
Filter Media

also calledFilter media layerFilter Layer

marks600 THK. FILTER MEDIA

Borehole Location Markerother×1 · symbol (crosshair circle)p15 crops
Borehole Location Marker

also calledBorehole location markers

Medianpavement×5 · linear stripp15 crops
Median

also calledMedian/paved shoulder area

Tree/Vegetation Symbolother×18 · circular cluster symbolsp15 crops
Tree/Vegetation Symbol

also calledTrees/Vegetation symbolsTree/landscaping symbolsTree/landscape symbolsLandscaping/tree symbolsTrees/Vegetation

Launching Apronancillary×4 · sloped/stepped · stone/concretep24 crops
Launching Apron
Roadway Alignmentother×3 · linear/curvedp13 crops
Roadway Alignment

also calledKey Plan roadway alignmentRoadway/Highway alignmentBridge/Road alignment

Wearing Coursepavement×5 · layer, ~50mm thick · asphalt/bituminousp33 crops
Wearing Course

also calledWearing coat

marksWC

Carriagewaypavement×3 · rectangular stripp12 crops
Carriageway

also calledRoad/carriageway

marksTO KHANDWA

Cross Girdersuperstructurereinforced concretep21 crop
Cross Girder

also calledR.C.C. end cross girderR.C.C. intermediate cross girder

Earthen Draindrainage×2 · linear, sinuous · earthp12 crops
Earthen Drain
Right Of Way Boundaryother×8 · linearp12 crops
Right Of Way Boundary

also calledRoad/Right-of-Way boundary lines

marksROW

Riverother×2 · irregular natural watercoursep12 crops
River

also calledRiver (Shipra River)River (Sipra River)

Bituminous Concrete Layerpavementlayer · bituminous concretep21 crop
Bituminous Concrete Layer
Bridge/Structure (Proposed)other×1 · rectangular hatched zonep11 crop
Bridge/Structure (Proposed)
Chamfer Detailother×1 · rectangular with chamfered corner · concretep21 crop
Chamfer Detail

marksSECTION A

Direction Sign/Calloutother×1p11 crop
Direction Sign/Callout
  • p1p01_r07Direction sign/callout · ×1
Dirt Wallsubstructureconcretep21 crop
Dirt Wall

also calledDirt wall & slab

Gap Slabdeckp21 crop
Gap Slab
Ground Lineother×1 · irregular linep21 crop
Ground Line
Hatched Pad/Blockother×3 · rectangular, hatchedp11 crop
Hatched Pad/Block
Pavement Layerpavement×2 · layer · PCCp21 crop
Pavement Layer
  • p2p02_r02Pavement Layer · ×2
Small Inset Square Markerother×3 · square with inner squarep11 crop
Small Inset Square Marker
Utility Pipe/Ductdrainage×1 · circular (in plan, linear run)p11 crop
Utility Pipe/Duct
3Match the ontology34 of 44 matched · 7 to check · 10 unmatchedconfigured openai/gpt-5.6-terra-pro · about $1.54 for a full pass · default

Every item from step 2 compared against the project’s engineering ontology, and then, for each one that lands in a class, a take-off of what that class asks for. The class list goes up as a closed vocabulary, so regional wording resolves without a synonym table — BENT to a pier system, PSC BEAM to a prestressed girder. Any class id that is not in the ontology is rejected rather than stored. The take-off reads every crop behind an item, derives what the drawings imply, shows its arithmetic, and says plainly when a number is not there. Matching against bridge v1.0.0, 133 classes.

77% of items placed. The 10 below fit no class — add one to the ontology and match again.

27matched7to check10unmatched77% covered67values72gaps881,221tokens in109,299tokens out

10 items the bridge ontology has no class forAdd a class

  • Deck Continuityp2 · 7 crops · ×7Deck continuity slab/joint is a distinct concept from expansion joints; ontology has no matching continuity-slab class.
  • Borehole Location Markerp1 · 5 crops · ×1Survey/investigation marker, not a permanent works component; no matching class.
  • Tree/Vegetation Symbolp1 · 5 crops · ×18Landscaping symbol, not part of the bridge permanent works; no matching class.
  • Right Of Way Boundaryp1 · 2 crops · ×8Survey/legal boundary line, not part of permanent works; no matching class.
  • Chamfer Detailp2 · 1 crop · ×1A drawing detail/section annotation, not a discrete built object; no matching class.
  • Direction Sign/Calloutp1 · 1 crop · ×1A drawing callout/label, not a physical sign structure; no matching class.
  • Gap Slabp2 · 1 cropNo class corresponds to a gap slab between spans; ontology would need a dedicated gap/continuity slab class.
  • Hatched Pad/Blockp1 · 1 crop · ×3Insufficient detail to identify whether this is a footing, pedestal, or other block; no confident match.
  • Pavement Layerp2 · 1 crop · ×2Generic PCC pavement layer does not fit wearing course (asphalt) or blinding concrete (foundation); ontology lacks a generic pavement layer class.
  • Small Inset Square Markerp1 · 1 crop · ×3Generic drawing symbol with no identifiable structural meaning; no matching class.

superstructure10

  • Expansion JointcheckExpansion Joint Systemgroupingbridge.superstructure.expansion_joint_systemp1, p2, p3 · 21 crops · ×42on “Expansion Joint
  • GirderPrestressed Concrete Girderbridge.superstructure.main_load_system.psc_girderp1, p2, p3 · 18 crops · ×302 read · 2 gapson “PSC Girder
  • Deck SlabDeck Slabbridge.superstructure.deck_system.deck_slabp1, p2, p3 · 10 crops · ×122 read · 2 derived · 1 gapon “Deck Slab
  • BearingPot Bearingbridge.superstructure.bearing_system.pot_bearingp1, p2 · 17 crops · ×551 read · 5 gapson “Pot-PTFE Bearing
  • FootpathBridge Footpathbridge.superstructure.deck_system.footpathp1, p3 · 9 crops · ×163 read · 1 gapon “Footpath
  • Median WallcheckBridge Medianbridge.superstructure.deck_system.medianp1, p3 · 8 crops · ×81 read · 2 gapson “Median
  • MedianBridge Medianbridge.superstructure.deck_system.medianp1 · 5 crops · ×51 read · 2 gapson “Median
  • Wearing CourseWearing Coursebridge.superstructure.deck_system.wearing_coursep3 · 3 crops · ×52 read · 1 derived · 1 gapon “Wearing Course
  • Bituminous Concrete LayercheckWearing Coursebridge.superstructure.deck_system.wearing_coursep2 · 1 crop2 read · 2 gapson “Bituminous
  • Cross GirderCross Girderbridge.superstructure.secondary_member_system.cross_girderp2 · 1 crop1 read · 4 gapson “Cross Girder

substructure6

  • PierPier Systemgroupingbridge.substructure.pier_systemp1, p2, p3 · 19 crops · ×281 read · 2 derived · 1 gapon “Pier
  • AbutmentAbutment Systemgroupingbridge.substructure.abutment_systemp1, p2, p3 · 18 crops · ×21on “Abutment
  • Pier CapPier Capbridge.substructure.pier_system.pier_capp1, p2, p3 · 7 crops · ×83 read · 1 derived · 1 gapon “Pier cap
  • Wing WallWing Wallbridge.substructure.abutment_system.wing_wallp1, p2 · 2 crops · ×21 read · 4 gapson “Wing Wall
  • Seismic StopperSeismic Restrainerbridge.substructure.seismic_restrainerp2 · 8 crops · ×91 read · 1 derived · 3 gapson “RCC Seismic Stopper
  • Dirt WallAbutment Backwallbridge.substructure.abutment_system.backwallp2 · 1 crop1 read · 4 gapson “Dirt wall

drainage protection system5

alignment system3

approach earthwork system3

foundation system3

  • PileBored Cast-in-situ Pilebridge.foundation_system.deep_foundation.pile.bored_cast_in_situp1, p2, p3 · 25 crops · ×1613 read · 1 derivedon “Bored Cast-in-situ Pile
  • Pile CapPile Capbridge.foundation_system.deep_foundation.pile_capp1, p2, p3 · 11 crops · ×284 read · 1 derived · 1 gapon “Pile cap
  • PCC Leveling CourseBlinding Concretebridge.foundation_system.blinding_concretep2, p3 · 6 crops · ×83 read · 2 gapson “Leveling Course

ancillary system2

asset1

ground system1

Index for the agent1465 points · 56 crops · 44 itemsopenai/text-embedding-3-small

Everything steps 1 and 2 know, written to the vector store for a chat agent to answer from. Cut fine — a point for each object, each measurement and each note, not one per crop — with the page, the crop and the drawing written into every one, so a retrieved number arrives with enough context to be an answer. The readings as a whole and step 2’s items are indexed too, for the questions that are about a drawing rather than a figure.

Re-runnable at any time: each point is keyed to the record it came from, so re-indexing replaces what changed, adds what is new, and drops what the drawings no longer support. Re-read a crop or correct one by hand, then press this.

1465 points indexed and up to date.

1,465points stored1,465points ready56crops44items134,144tokens embedded

Collection mindmap_vectors, filtered on projectId = structural_drawings_pkg_1-890ff33d80e843ef8aa5a52a7a9de3d8.
