GDOT17

{
  "view": "Detail",
  "objects": [
    {
      "name": "concrete cap",
      "tag": "",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 1,
      "note": ""
    },
    {
      "name": "reinforcing bar",
      "tag": "",
      "shape": "circular",
      "material": "reinforcing steel",
      "count": 2,
      "note": "vertical bars extending from cap"
    },
    {
      "name": "wall",
      "tag": "",
      "shape": "rectangular with opening",
      "material": "",
      "count": 1,
      "note": "front of wall (label visible)"
    }
  ],
  "measurements": [
    {
      "label": "6'-0\" MIN.",
      "value": "6'-0\"",
      "unit": "",
      "appliesTo": ""
    },
    {
      "label": "3'-0\"",
      "value": "3'-0\"",
      "unit": "",
      "appliesTo": ""
    },
    {
      "label": "2'-0\" MIN.",
      "value": "2'-0\"",
      "unit": "",
      "appliesTo": ""
    }
  ],
  "notes": [],
  "labels": [
    "B.F.P.R."
  ],
  "description": "Detail showing a concrete cap with two vertical reinforcing bars and a wall element on the right. The drawing provides minimum length and height dimensions (6'-0\" MIN., 2'-0\" MIN.) and a 3'-0\" offset dimension; a wall front/right connection is shown."
}

{
  "view": "Section",
  "objects": [
    {
      "name": "outer pocket frame",
      "tag": "",
      "shape": "rectangular with rounded corners",
      "material": "",
      "count": 1,
      "note": ""
    },
    {
      "name": "bolts",
      "tag": "",
      "shape": "circle",
      "material": "",
      "count": 4,
      "note": "bolts/fasteners at corners inside pocket"
    },
    {
      "name": "central post / sleeve",
      "tag": "",
      "shape": "rectangular/linear ledge inside center",
      "material": "",
      "count": 1,
      "note": "centerline element shown with dashed centerline"
    },
    {
      "name": "plate, identifier 4-1010",
      "tag": "",
      "shape": "rectangular",
      "material": "",
      "count": 1,
      "note": "dimensioned element labeled 4-1010"
    },
    {
      "name": "bottom support / pedestal",
      "tag": "",
      "shape": "rectangular",
      "material": "",
      "count": 1,
      "note": "lower protruding member under pocket"
    }
  ],
  "measurements": [
    {
      "label": "overall width",
      "value": "3'-0\"",
      "unit": "ft",
      "appliesTo": "outer pocket frame"
    },
    {
      "label": "inner segment width (each side)",
      "value": "1'-6\"",
      "unit": "ft",
      "appliesTo": "top inner segments"
    },
    {
      "label": "centerline to left edge",
      "value": "1'-6\"",
      "unit": "ft",
      "appliesTo": "top/center area"
    },
    {
      "label": "centerline to right edge",
      "value": "1'-6\"",
      "unit": "ft",
      "appliesTo": "top/center area"
    },
    {
      "label": "section scale",
      "value": "3/4\"",
      "unit": "in",
      "appliesTo": "figural scale note"
    },
    {
      "label": "min centerline clearance",
      "value": "2'",
      "unit": "ft",
      "appliesTo": "centerline clearance"
    },
    {
      "label": "min vertical clearance",
      "value": "2'-0\"",
      "unit": "ft",
      "appliesTo": "vertical dimension on right"
    },
    {
      "label": "three-sides clearance",
      "value": "2\"",
      "unit": "in",
      "appliesTo": "three sides"
    },
    {
      "label": "typical offset",
      "value": "1'-0\"",
      "unit": "ft",
      "appliesTo": "typical section offset"
    }
  ],
  "notes": [],
  "labels": [
    "SECTION A-A",
    "SCALE: 3/4\" = 1'-0\""
  ],
  "description": "Cross-section view Section A-A of a rectangular pocket/Frame with bolt pattern and centerline member. Shows overall width, inner segment spacing, and minimum clearances as depicted on Sheet page 13."
}

{
  "view": "Section",
  "objects": [
    {
      "name": "outer boundary",
      "tag": "",
      "shape": "rectangular",
      "material": "",
      "count": 1,
      "note": ""
    },
    {
      "name": "inner boundary",
      "tag": "",
      "shape": "rectangular",
      "material": "",
      "count": 1,
      "note": ""
    },
    {
      "name": "corner bolts",
      "tag": "",
      "shape": "circular",
      "material": "",
      "count": 4,
      "note": ""
    },
    {
      "name": "conduit holes",
      "tag": "",
      "shape": "circular",
      "material": "",
      "count": 2,
      "note": ""
    }
  ],
  "measurements": [
    {
      "label": "overall width",
      "value": "3'-0\"",
      "unit": "ft-in",
      "appliesTo": "outer boundary"
    },
    {
      "label": "minimum centerline clearance",
      "value": "2\"",
      "unit": "MIN.",
      "appliesTo": "top clearance"
    },
    {
      "label": "minimum height",
      "value": "2'-0\"",
      "unit": "MIN.",
      "appliesTo": "vertical clearance"
    },
    {
      "label": "typical spacing",
      "value": "1'-0\"",
      "unit": "",
      "appliesTo": "vertical spacing"
    },
    {
      "label": "left/right spacing",
      "value": "1'-6\"",
      "unit": "",
      "appliesTo": "bottom width segments"
    },
    {
      "label": "left/right spacing (end)",
      "value": "1'-6\"",
      "unit": "",
      "appliesTo": "bottom width segments"
    },
    {
      "label": "scale",
      "value": "3/4\" = 1'-0\"",
      "unit": "",
      "appliesTo": "drawing scale"
    }
  ],
  "notes": [],
  "labels": [
    "SECTION B-B",
    "SCALE: 3/4\" = 1'-0\"",
    "2\" CL. 3 SIDES"
  ],
  "description": "This crop shows a Section B-B cross-section of an enclosure with an outer boundary and an inner recessed opening, four corner bolts, and two bottom circular openings. It includes dimension notes for overall width, minimum clearances, typical spacing, and bottom side clearances, with a scale of 3/4\" = 1'-0\"."
}

{
  "view": "Title Block",
  "objects": [
    {
      "name": "Georgia Registered Engineer Seal",
      "tag": "",
      "shape": "circular",
      "material": "seal/stamp",
      "count": 1,
      "note": ""
    },
    {
      "name": "Drawing No.",
      "tag": "",
      "shape": "rectangular",
      "material": "text box",
      "count": 1,
      "note": "35-0013"
    },
    {
      "name": "Bridge Sheet",
      "tag": "",
      "shape": "rectangular",
      "material": "text",
      "count": 1,
      "note": "BRIDGE SHEET 13 OF 21"
    },
    {
      "name": "Georgia Department of Transportation Title Block",
      "tag": "",
      "shape": "rectangular banner",
      "material": "text",
      "count": 1,
      "note": "ENGINEERING DIVISION-OFFICE OF BRIDGES AND STRUCTURES"
    },
    {
      "name": "S&A SASSTRY & ASSOCIATES, INC.",
      "tag": "",
      "shape": "rectangular",
      "material": "text",
      "count": 1,
      "note": ""
    },
    {
      "name": "Scale block",
      "tag": "",
      "shape": "rectangular",
      "material": "text",
      "count": 1,
      "note": "SCALE: 1/4\" = 1'-0\" (UNLESS OTHERWISE NOTED)"
    },
    {
      "name": "Date block",
      "tag": "",
      "shape": "rectangular",
      "material": "text",
      "count": 1,
      "note": "MAY 2025"
    }
  ],
  "measurements": [
    {
      "label": "Drawing No.",
      "value": "35-0013",
      "unit": "",
      "appliesTo": "Drawing No."
    },
    {
      "label": "Bridge Sheet",
      "value": "13 OF 21",
      "unit": "",
      "appliesTo": "Bridge Sheet"
    },
    {
      "label": "Scale",
      "value": "1/4\" = 1'-0\"",
      "unit": "",
      "appliesTo": "Scale"
    },
    {
      "label": "Date",
      "value": "MAY 2025",
      "unit": "",
      "appliesTo": "Date"
    }
  ],
  "notes": [
    "UNLESS OTHERWISE NOTED"
  ],
  "labels": [
    "BRIDGE NO. LT. AND RT.",
    "GEORGIA DEPARTMENT OF TRANSPORTATION",
    "ENGINEERING DIVISION-OFFICE OF BRIDGES AND STRUCTURES",
    "S&A SASSTRY & ASSOCIATES, INC.",
    "DRAWING NO.",
    "BRIDGE SHEET 13 OF 21",
    "SCALE: 1/4\" = 1'-0\" (UNLESS OTHERWISE NOTED)",
    "MAY 2025"
  ],
  "description": "This crop shows the title/cover block area of a Georgia DOT bridge drawing: includes the DOT title block, consultant firm block, the Georgia registered engineer seal, the drawing and sheet numbers, scale, and date."
}

{
  "view": "Notes",
  "objects": [
    {
      "name": "Piles",
      "tag": "",
      "shape": "",
      "material": "steel",
      "count": null,
      "note": "HP 12 x 53"
    },
    {
      "name": "Bent IL",
      "tag": "IL",
      "shape": "",
      "material": "",
      "count": 1,
      "note": ""
    },
    {
      "name": "Bent IR",
      "tag": "IR",
      "shape": "",
      "material": "",
      "count": 1,
      "note": ""
    }
  ],
  "measurements": [
    {
      "label": "Maximum factored axial load",
      "value": "212",
      "unit": "kips",
      "appliesTo": "Piles"
    },
    {
      "label": "Pile type",
      "value": "HP 12 x 53",
      "unit": "",
      "appliesTo": "Piles"
    },
    {
      "label": "Driving resistance target",
      "value": "326",
      "unit": "kips",
      "appliesTo": "Piles"
    },
    {
      "label": "Minimum tip elevation at Bent IL",
      "value": "139",
      "unit": "",
      "appliesTo": "Bent IL"
    },
    {
      "label": "Minimum tip elevation at Bent IR",
      "value": "125",
      "unit": "",
      "appliesTo": "Bent IR"
    }
  ],
  "notes": [

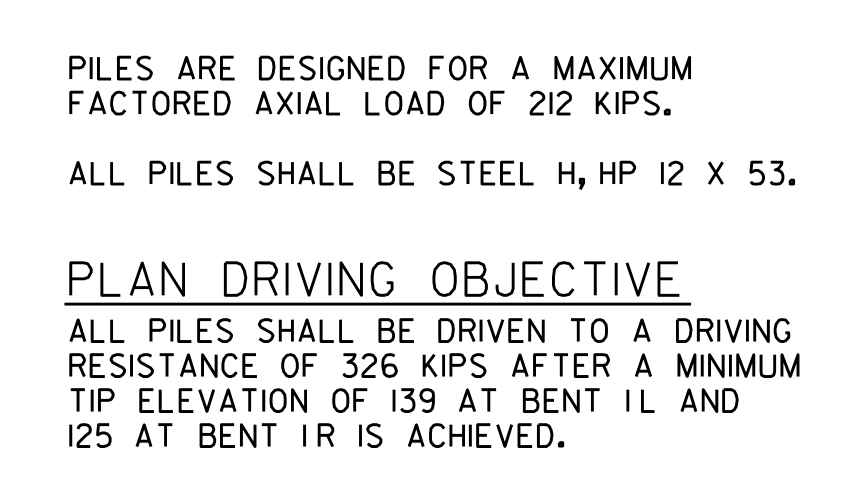

    "PILES ARE DESIGNED FOR A MAXIMUM FACTORED AXIAL LOAD OF 212 KIPS.",
    "ALL PILES SHALL BE STEEL H, HP 12 X 53.",
    "PLAN DRIVING OBJECTIVE",
    "ALL PILES SHALL BE DRIVEN TO A DRIVING RESISTANCE OF 326 KIPS AFTER A MINIMUM TIP ELEVATION OF 139 AT BENT IL AND 125 AT BENT IR IS ACHIEVED."
  ],
  "labels": [
    "PLAN DRIVING OBJECTIVE"
  ],
  "description": "Crop shows a page of notes defining pile design criteria: a maximum factored axial load of 212 kips, piles as steel HP 12x53, and a plan driving objective requiring driving resistance of 326 kips after minimum tip elevations of 139 (Bent IL) and 125 (Bent IR)."
}

{
  "view": "Section",
  "objects": [],
  "measurements": [],
  "notes": [],
  "labels": [
    "SECTION AT END BENT AND WALL",
    "SCALE: 3/4\" = 1'-0\"",
    "FRONT OF WALL"
  ],
  "description": "Crop shows the section view title for the end bent and wall with a scale annotation; only text labels are visible, no distinct construction elements are identifiable in this crop."
}

{
  "view": "Table",
  "objects": [
    {
      "name": "CY CLASS AA CONCRETE",
      "tag": "",
      "shape": "",
      "material": "concrete",
      "count": 1,
      "note": ""
    },
    {
      "name": "LB BAR REINF STEEL",
      "tag": "",
      "shape": "",
      "material": "steel",
      "count": 1,
      "note": ""
    }
  ],
  "measurements": [
    {
      "label": "CY CLASS AA CONCRETE (BENT ILT)",
      "value": "12.0",
      "unit": "CY",
      "appliesTo": "CY CLASS AA CONCRETE"
    },
    {
      "label": "CY CLASS AA CONCRETE (BENT IRT)",
      "value": "12.0",
      "unit": "CY",
      "appliesTo": "CY CLASS AA CONCRETE"
    },
    {
      "label": "LB BAR REINF STEEL (BENT ILT)",
      "value": "1434",
      "unit": "LB",
      "appliesTo": "LB BAR REINF STEEL"
    },
    {
      "label": "LB BAR REINF STEEL (BENT IRT)",
      "value": "1434",
      "unit": "LB",
      "appliesTo": "LB BAR REINF STEEL"
    }
  ],
  "notes": [],
  "labels": [
    "SUBSTRUCTURE QUANTITIES"
  ],
  "description": "Table titled SUBSTRUCTURE QUANTITIES showing two items (CY CLASS AA CONCRETE and LB BAR REINF STEEL) with quantities for two bent positions (BENT ILT and BENT IRT)."
}

{
  "view": "Plan",
  "objects": [
    {
      "name": "Bent I Right",
      "tag": "BENT I RIGHT",
      "shape": "n/a",
      "material": "n/a",
      "count": 1,
      "note": ""
    },
    {
      "name": "Bent I Left",
      "tag": "BENT I LEFT",
      "shape": "n/a",
      "material": "n/a",
      "count": 1,
      "note": ""
    },
    {
      "name": "C BEAM 12",
      "tag": "C BEAM 12",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 1,
      "note": ""
    },
    {
      "name": "C BEAM 11",
      "tag": "C BEAM 11",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 1,
      "note": ""
    },
    {
      "name": "C BEAM 10",
      "tag": "C BEAM 10",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 1,
      "note": ""
    },
    {
      "name": "C BEAM 9",
      "tag": "C BEAM 9",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 1,
      "note": ""
    },
    {
      "name": "C BEAM 8",
      "tag": "C BEAM 8",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 1,
      "note": ""
    },
    {
      "name": "C BEAM 7",
      "tag": "C BEAM 7",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 2,
      "note": ""
    },
    {
      "name": "C BEAM 6",
      "tag": "C BEAM 6",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 2,
      "note": ""
    },
    {
      "name": "C BEAM 5",
      "tag": "C BEAM 5",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 2,
      "note": ""
    },
    {
      "name": "C BEAM 4",
      "tag": "C BEAM 4",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 2,
      "note": ""
    },
    {
      "name": "C BEAM 3",
      "tag": "C BEAM 3",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 2,
      "note": ""
    },
    {
      "name": "C BEAM 2",
      "tag": "C BEAM 2",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 2,
      "note": ""
    },
    {
      "name": "C BEAM 1",
      "tag": "C BEAM 1",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 2,
      "note": ""
    }
  ],
  "measurements": [],
  "notes": [
    "SEE DETAIL 1 BRIDGE SHEET 16",
    "SEE DETAIL 2 BRIDGE SHEET 16",
    "FORM 3\" DIA. X 12\" DEEP HOLE FOR 1 3/4\" DIA. SMOOTH DOWEL, TYP."
  ],
  "labels": [
    "PLAN (BENT I RIGHT)",
    "PLAN (BENT I LEFT)",
    "GDOT",
    "P.J. NO. 001981"
  ],
  "description": "Plan views of Bent I Right and Bent I Left showing the arrangement of concrete beams (C BEAM 1-12) and callouts to detail sheets; includes dowel hole instruction and typical dowel details."
}

{
  "view": "Elevation",
  "objects": [
    {
      "name": "Piles",
      "tag": "",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": null,
      "note": ""
    },
    {
      "name": "Abutment",
      "tag": "",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 2,
      "note": ""
    },
    {
      "name": "Deck slab",
      "tag": "",
      "shape": "slab",
      "material": "reinforced concrete",
      "count": 1,
      "note": ""
    }
  ],
  "measurements": [
    {
      "label": "EL. 189.16",
      "value": "189.16",
      "unit": "ft",
      "appliesTo": "Left abutment top"
    },
    {
      "label": "EL. 189.23",
      "value": "189.23",
      "unit": "ft",
      "appliesTo": "Left abutment top"
    },
    {
      "label": "EL. 185.75",
      "value": "185.75",
      "unit": "ft",
      "appliesTo": "Deck elevation (left portion)"
    },
    {
      "label": "EL. 185.65",
      "value": "185.65",
      "unit": "ft",
      "appliesTo": "Deck elevation"
    },
    {
      "label": "EL. 185.52",
      "value": "185.52",
      "unit": "ft",
      "appliesTo": "Deck/overpile area"
    },
    {
      "label": "EL. 185.39",
      "value": "185.39",
      "unit": "ft",
      "appliesTo": "Deck/overpile area"
    },
    {
      "label": "EL. 185.26",
      "value": "185.26",
      "unit": "ft",
      "appliesTo": "Deck area near center"
    },
    {
      "label": "EL. 185.10",
      "value": "185.10",
      "unit": "ft",
      "appliesTo": "Deck area near right"
    },
    {
      "label": "EL. 188.39",
      "value": "188.39",
      "unit": "ft",
      "appliesTo": "Right abutment top"
    },
    {
      "label": "EL. 188.45",
      "value": "188.45",
      "unit": "ft",
      "appliesTo": "Right abutment top"
    },
    {
      "label": "EL. 182.98",
      "value": "182.98",
      "unit": "ft",
      "appliesTo": "Right approach area"
    }
  ],
  "notes": [
    "4-4I0 OVER EACH PILE",
    "2-4I2",
    "2-4I5A, TYP.",
    "7-4II AT EQ. SPS. TYP. EA. BAY",
    "AT EQ. SPACES"
  ],
  "labels": [
    "4-4I0 OVER EACH PILE",
    "2-4I2",
    "2-4I5A, TYP.",
    "7-4II AT EQ. SPS.",
    "EA. BAY"
  ],
  "description": "Elevation view of a bridge showing end abutments, a line of piles supporting a deck, and typical elevations across the structure with spacing notes."
}

{
  "view": "Elevation",
  "objects": [
    {
      "name": "Abutment",
      "tag": "",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 2,
      "note": "left and right abutments"
    },
    {
      "name": "Pile",
      "tag": "",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": null,
      "note": "vertical piles along the deck between abutments"
    },
    {
      "name": "Deck slab",
      "tag": "",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 1,
      "note": "continuous deck slab"
    }
  ],
  "measurements": [
    {
      "label": "EL. 188.03",
      "value": "188.03",
      "unit": "ft",
      "appliesTo": "left abutment top"
    },
    {
      "label": "EL. 188.10",
      "value": "188.10",
      "unit": "ft",
      "appliesTo": "left deck area"
    },
    {
      "label": "EL. 184.75",
      "value": "184.75",
      "unit": "ft",
      "appliesTo": "deck level"
    },
    {
      "label": "EL. 184.96",
      "value": "184.96",
      "unit": "ft",
      "appliesTo": "deck level"
    },
    {
      "label": "EL. 185.13",
      "value": "185.13",
      "unit": "ft",
      "appliesTo": "deck level"
    },
    {
      "label": "EL. 185.30",
      "value": "185.30",
      "unit": "ft",
      "appliesTo": "deck level"
    },
    {
      "label": "EL. 185.47",
      "value": "185.47",
      "unit": "ft",
      "appliesTo": "deck level"
    },
    {
      "label": "EL. 185.62",
      "value": "185.62",
      "unit": "ft",
      "appliesTo": "deck level"
    },
    {
      "label": "EL. 189.00",
      "value": "189.00",
      "unit": "ft",
      "appliesTo": "right abutment top"
    },
    {
      "label": "EL. 189.11",
      "value": "189.11",
      "unit": "ft",
      "appliesTo": "deck level"
    },
    {
      "label": "EL. 183.62",
      "value": "183.62",
      "unit": "ft",
      "appliesTo": "right deck area"
    },
    {
      "label": "EL. 182.59",
      "value": "182.59",
      "unit": "ft",
      "appliesTo": "left deck area"
    },
    {
      "label": "44'-1 1/16\"",
      "value": "44'-1 1/16\"",
      "unit": "",
      "appliesTo": "overall length"
    },
    {
      "label": "2'-10 1/8\"",
      "value": "2'-10 1/8\"",
      "unit": "",
      "appliesTo": "left bay width"
    },
    {
      "label": "7'-7/16\"",
      "value": "7'-7/16\"",
      "unit": "",
      "appliesTo": "bay spacing"
    },
    {
      "label": "10\"",
      "value": "10\"",
      "unit": "",
      "appliesTo": "dimension between piles"
    },
    {
      "label": "3'-3 5/8\"",
      "value": "3'-3 5/8\"",
      "unit": "",
      "appliesTo": "right bay width"
    }
  ],
  "notes": [
    "4-4II AT EQ. SPACES"
  ],
  "labels": [
    "A",
    "B"
  ],
  "description": "Elevation view of a long-span deck structure with end abutments and vertical piles. The drawing shows pile locations, deck elevations (EL.), section callouts A and B, and spacing/length dimensions for the deck along its length."
}

{
  "view": "Notes",
  "objects": [],
  "measurements": [],
  "notes": [
    "1. MAINTAIN 2\" CLEARANCE ON ALL REINFORCEMENT UNLESS OTHERWISE NOTED.",
    "2. SEE GA. STD. 9037 FOR DRAINAGE DETAILS AT END BENTS."
  ],
  "labels": [
    "NOTES:"
  ],
  "description": "Crop shows the NOTES section from sheet page 13 with two notes regarding reinforcement clearance and drainage details at end bents."
}

{
  "view": "Section",
  "objects": [
    {
      "name": "cap",
      "tag": "",
      "shape": "rounded rectangle",
      "material": "reinforced concrete",
      "count": 1,
      "note": ""
    },
    {
      "name": "reinforcement bar",
      "tag": "",
      "shape": "bar",
      "material": "steel",
      "count": 2,
      "note": "vertical bars protruding from cap bottom"
    },
    {
      "name": "wall",
      "tag": "",
      "shape": "rectangular prism",
      "material": "concrete",
      "count": 1,
      "note": "front of wall element on right"
    }
  ],
  "measurements": [
    {
      "label": "overall length (min)",
      "value": "6'-0\" MIN.",
      "unit": "",
      "appliesTo": "section"
    },
    {
      "label": "cap width",
      "value": "3'-0\"",
      "unit": "",
      "appliesTo": "cap"
    },
    {
      "label": "cap height",
      "value": "2'-0\" MIN.",
      "unit": "",
      "appliesTo": "cap"
    }
  ],
  "notes": [
    "SECTION AT END PNT AND WALL"
  ],
  "labels": [],
  "description": "Section through the end of a cap on a wall assembly. The cap is dimensioned 2'-0\" tall and 3'-0\" wide, with an overall minimum length of 6'-0\". There are two vertical reinforcement bars in the cap and a wall element shown to the right labeled as front of wall."
}

{
  "view": "Section",
  "objects": [
    {
      "name": "outer plate / base plate",
      "tag": "",
      "shape": "rectangular with rounded corners",
      "material": "",
      "count": 1,
      "note": ""
    },
    {
      "name": "bolt holes",
      "tag": "4-Ø10",
      "shape": "circle",
      "material": "",
      "count": 4,
      "note": "positions along top edge inside plate"
    },
    {
      "name": "central post / column",
      "tag": "",
      "shape": "rectangular",
      "material": "",
      "count": 1,
      "note": ""
    },
    {
      "name": "lower vertical member",
      "tag": "",
      "shape": "rectangular",
      "material": "",
      "count": 1,
      "note": ""
    }
  ],
  "measurements": [
    {
      "label": "overall width",
      "value": "3'-0\"",
      "unit": "",
      "appliesTo": "outer plate"
    },
    {
      "label": "left segment width",
      "value": "1'-6\"",
      "unit": "",
      "appliesTo": "outer plate"
    },
    {
      "label": "right segment width",
      "value": "1'-6\"",
      "unit": "",
      "appliesTo": "outer plate"
    },
    {
      "label": "hole pattern center to edge spacing",
      "value": "2-4 1/2\"",
      "unit": "",
      "appliesTo": "bolt holes"
    },
    {
      "label": "minimum clearance to side",
      "value": "2\" MIN. CL.",
      "unit": "",
      "appliesTo": "perimeter clearance (top)"
    },
    {
      "label": "overall height",
      "value": "2'-0\" MIN.",
      "unit": "",
      "appliesTo": "outer perimeter height"
    },
    {
      "label": "three-sided clearance",
      "value": "2\" CL. 3 SIDES",
      "unit": "",
      "appliesTo": "perimeter clearance"
    },
    {
      "label": "typical interior clearance",
      "value": "1'-0\" TYP.",
      "unit": "",
      "appliesTo": "inner dimension"
    },
    {
      "label": "scale",
      "value": "3/4\" = 1'-0\"",
      "unit": "",
      "appliesTo": "title block / drawing scale"
    }
  ],
  "notes": [
    "Section A-A shows a cross sectional view of a base plate with four bolt holes Ø10 and a central vertical member; three-sided clearance is indicated."
  ],
  "labels": [
    "SECTION A-A",
    "SCALE: 3/4\" = 1'-0\""
  ],
  "description": "A cropped Section A-A drawing showing a rounded rectangular base plate with four bolt holes (Ø10), a central vertical member, and specified clearances; overall width 3'-0\", with 2\" minimum side clearance and 2'-0\" minimum height, at scale 3/4\" = 1'-0\"."
}

{
  "view": "Section",
  "objects": [
    {
      "name": "outer boundary of enclosure",
      "tag": "",
      "shape": "rounded rectangle",
      "material": "",
      "count": 1,
      "note": ""
    },
    {
      "name": "inner boundary / recess",
      "tag": "",
      "shape": "rounded rectangle",
      "material": "",
      "count": 1,
      "note": "inner boundary of enclosure"
    },
    {
      "name": "top bolt holes",
      "tag": "",
      "shape": "circle",
      "material": "",
      "count": 2,
      "note": ""
    },
    {
      "name": "bottom holes",
      "tag": "2-415 SERIES",
      "shape": "circle",
      "material": "",
      "count": 2,
      "note": ""
    }
  ],
  "measurements": [
    {
      "label": "overall width",
      "value": "3'-0\"",
      "unit": "ft",
      "appliesTo": "outer boundary"
    },
    {
      "label": "centerline offset (left)",
      "value": "1'-6\"",
      "unit": "ft",
      "appliesTo": "centerline to left edge"
    },
    {
      "label": "centerline offset (right)",
      "value": "1'-6\"",
      "unit": "ft",
      "appliesTo": "centerline to right edge"
    },
    {
      "label": "top clearance (min. CL.)",
      "value": "2\"",
      "unit": "in",
      "appliesTo": "top area"
    },
    {
      "label": "vertical clearance (min.)",
      "value": "2'-0\"",
      "unit": "ft",
      "appliesTo": "right side"
    },
    {
      "label": "internal typ. spacing",
      "value": "1'-0\"",
      "unit": "ft",
      "appliesTo": "internal feature spacing"
    },
    {
      "label": "clearance on three sides",
      "value": "2\"",
      "unit": "in",
      "appliesTo": "three sides"
    }
  ],
  "notes": [],
  "labels": [
    "SECTION B-B",
    "B.F"
  ],
  "description": "Cross-section through a rectangular enclosure with an inner recess and two topside bolt holes, showing centerline, clearances, and a pair of bottom holes labeled as 2-415 SERIES."
}

{
  "view": "Notes",
  "objects": [],
  "measurements": [
    {
      "label": "Maximum factored axial load",
      "value": "212",
      "unit": "KIPS",
      "appliesTo": ""
    },
    {
      "label": "Driving resistance",
      "value": "326",
      "unit": "KIPS",
      "appliesTo": ""
    },
    {
      "label": "Minimum tip elevation at Bent IL",
      "value": "139",
      "unit": "",
      "appliesTo": "Bent IL"
    },
    {
      "label": "Minimum tip elevation at Bent IR",
      "value": "I25",
      "unit": "",
      "appliesTo": "Bent IR"
    }
  ],
  "notes": [
    "PILES ARE DESIGNED FOR A MAXIMUM FACTORED AXIAL LOAD OF 212 KIPS.",
    "ALL PILES SHALL BE STEEL H,HP 12 X 53.",
    "PLAN DRIVING OBJECTIVE",
    "ALL PILES SHALL BE DRIVEN TO A DRIVING RESISTANCE OF 326 KIPS AFTER A MINIMUM TIP ELEVATION OF 139 AT BENT IL AND I25 AT BENT IR IS ACHIEVED."
  ],
  "labels": [
    "PLAN DRIVING OBJECTIVE"
  ],
  "description": "Text-focused crop of plan notes on page 13 detailing pile design criteria and driving objectives, including max axial load, pile type (Steel H,HP 12x53), driving resistance, and minimum tip elevations at Bent IL and Bent IR."
}

{
  "view": "Section",
  "objects": [
    {
      "name": "front face of wall",
      "tag": "",
      "shape": "rectangular",
      "material": "",
      "count": 1,
      "note": ""
    }
  ],
  "measurements": [
    {
      "label": "SCALE",
      "value": "3/4\" = 1'-0\"",
      "unit": "",
      "appliesTo": "SECTION AT END BENT AND WALL"
    }
  ],
  "notes": [],
  "labels": [
    "SECTION AT END BENT AND WALL",
    "FRONT FACE OF WALL"
  ],
  "description": "Section view at the end of a bent and wall; shows the front face of the wall with the drawing scale of 3/4 inch equals 1 foot."
}

{
  "view": "Table",
  "objects": [
    {
      "name": "CY CLASS AA CONCRETE",
      "tag": "",
      "shape": "rectangular",
      "material": "concrete",
      "count": 1,
      "note": ""
    },
    {
      "name": "LB BAR REINF STEEL",
      "tag": "",
      "shape": "rectangular",
      "material": "reinforcing steel",
      "count": 1,
      "note": ""
    }
  ],
  "measurements": [
    {
      "label": "BENT I LT.",
      "value": "12.0",
      "unit": "",
      "appliesTo": ""
    },
    {
      "label": "BENT I RT.",
      "value": "12.0",
      "unit": "",
      "appliesTo": ""
    },
    {
      "label": "BENT I LT.",
      "value": "I434",
      "unit": "",
      "appliesTo": ""
    },
    {
      "label": "BENT I RT.",
      "value": "I434",
      "unit": "",
      "appliesTo": ""
    }
  ],
  "notes": [],
  "labels": [
    "SUBSTRUCTURE QUANTITIES"
  ],
  "description": "Table showing substructure quantities: two items (CY CLASS AA CONCRETE and LB BAR REINF STEEL) with bent-left and bent-right values; concrete 12.0 (left and right), reinforcing steel I434 (left and right)."
}

{
  "view": "Plan",
  "objects": [
    {
      "name": "beam",
      "tag": "C BEAM 1",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 1,
      "note": ""
    },
    {
      "name": "beam",
      "tag": "C BEAM 2",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 1,
      "note": ""
    },
    {
      "name": "beam",
      "tag": "C BEAM 3",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 1,
      "note": ""
    },
    {
      "name": "beam",
      "tag": "C BEAM 4",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 1,
      "note": ""
    },
    {
      "name": "beam",
      "tag": "C BEAM 5",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 1,
      "note": ""
    },
    {
      "name": "beam",
      "tag": "C BEAM 6",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 1,
      "note": ""
    },
    {
      "name": "beam",
      "tag": "C BEAM 7",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 1,
      "note": ""
    },
    {
      "name": "beam",
      "tag": "C BEAM 8",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 1,
      "note": ""
    },
    {
      "name": "beam",
      "tag": "C BEAM 9",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 1,
      "note": ""
    },
    {
      "name": "beam",
      "tag": "C BEAM 10",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 1,
      "note": ""
    },
    {
      "name": "beam",
      "tag": "C BEAM 11",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 1,
      "note": ""
    },
    {
      "name": "beam",
      "tag": "C BEAM 12",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 1,
      "note": ""
    },
    {
      "name": "bent",
      "tag": "C BENT",
      "shape": "curved",
      "material": "reinforced concrete",
      "count": 2,
      "note": "two bends shown in plan"
    }
  ],
  "measurements": [
    {
      "label": "PLAN LENGTH (LEFT)",
      "value": "42'-6\"",
      "unit": "ft",
      "appliesTo": "PLAN LEFT"
    },
    {
      "label": "LEFT END DIMENSION",
      "value": "6'-0\"",
      "unit": "ft",
      "appliesTo": "PLAN LEFT"
    },
    {
      "label": "TOP DIMENSION",
      "value": "22'-0\"",
      "unit": "ft",
      "appliesTo": "PLAN TOP"
    },
    {
      "label": "STA. 17+8.35",
      "value": "17+8.35",
      "unit": "",
      "appliesTo": "PLAN LEFT/RIGHT"
    },
    {
      "label": "STA. 17+74.65",
      "value": "17+74.65",
      "unit": "",
      "appliesTo": "PLAN RIGHT"
    },
    {
      "label": "2'-3 3/8\"",
      "value": "2'-3 3/8\"",
      "unit": "ft",
      "appliesTo": "vertical dimension near ends"
    }
  ],
  "notes": [],
  "labels": [
    "PLAN (BENT 2 LEFT)",
    "PLAN (BENT 2 RIGHT)"
  ],
  "description": "Two plan views of Bent 2 (left and right) showing a sequence of beams (C BEAM 1–12) with bearings, bent locations, and dowel hole callouts. The drawing fragment includes plan dimensions, stationing, and plan-wide dimensions for the bent arrangement."
}

{
  "view": "Elevation",
  "objects": [
    {
      "name": "PILE",
      "tag": "H-PILE",
      "shape": "H-section",
      "material": "steel",
      "count": 1,
      "note": ""
    },
    {
      "name": "PILE CAP",
      "tag": "",
      "shape": "rectangular block",
      "material": "reinforced concrete",
      "count": 1,
      "note": "beneath deck, supports piles"
    },
    {
      "name": "COLUMN",
      "tag": "COLUMN 1",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 1,
      "note": ""
    },
    {
      "name": "COLUMN",
      "tag": "COLUMN 2",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 1,
      "note": ""
    },
    {
      "name": "BENT",
      "tag": "BENT 2",
      "shape": "frame/bent",
      "material": "reinforced concrete",
      "count": 1,
      "note": "left looking ahead"
    },
    {
      "name": "REINFORCEMENT BAR",
      "tag": "",
      "shape": "bars",
      "material": "reinforced steel",
      "count": null,
      "note": "bars shown in callouts; some bars extend into cap per notes"
    }
  ],
  "measurements": [],
  "notes": [
    "I. SEE BRIDGE SHEET NO.16 FOR CAP, COLUMN AND FOOTING SECTIONS.",
    "2. BARS 422 NOT SHOWN.",
    "3. EXTEND BARS I12IA 3'-6\" INTO CAP.",
    "* REQUIRED CONSTRUCTION JOINT. AT CONTRACTOR'S OPTION, CONSTRUCTION JOINT MAY BE RELOCATED TO TOP OF FOOTING."
  ],
  "labels": [
    "ELEVATION (BENT 2 LEFT LOOKING AHEAD)",
    "PILE CONNECTION DETAIL",
    "NO SCALE"
  ],
  "description": "Elevation view of Bent 2 with an adjacent pile connection detail, showing a reinforced concrete pile cap, two columns (COLUMN 1 and COLUMN 2), and an H-pile. Includes reinforcement bar callouts and notes about missing bars and extension into the cap."
}

{
  "view": "Elevation",
  "objects": [
    {
      "name": "COLUMN",
      "tag": "COLUMN 3",
      "shape": "rectangular",
      "material": "concrete",
      "count": 1,
      "note": ""
    },
    {
      "name": "COLUMN",
      "tag": "COLUMN 4",
      "shape": "rectangular",
      "material": "concrete",
      "count": 1,
      "note": ""
    }
  ],
  "measurements": [
    {
      "label": "EL. 186.42 (BK)",
      "value": "186.42",
      "unit": "ft",
      "appliesTo": ""
    },
    {
      "label": "EL. 186.29 (BK)",
      "value": "186.29",
      "unit": "ft",
      "appliesTo": ""
    },
    {
      "label": "EL. 186.12 (BK)",
      "value": "186.12",
      "unit": "ft",
      "appliesTo": ""
    },
    {
      "label": "EL. 185.94 (BK)",
      "value": "185.94",
      "unit": "ft",
      "appliesTo": ""
    },
    {
      "label": "EL. 185.77 (BK)",
      "value": "185.77",
      "unit": "ft",
      "appliesTo": ""
    },
    {
      "label": "EL. 185.58 (AH)",
      "value": "185.58",
      "unit": "ft",
      "appliesTo": ""
    },
    {
      "label": "EL. 185.42 (AH)",
      "value": "185.42",
      "unit": "ft",
      "appliesTo": ""
    },
    {
      "label": "EL. 185.26 (AH)",
      "value": "185.26",
      "unit": "ft",
      "appliesTo": ""
    },
    {
      "label": "EL. 185.03 (AH)",
      "value": "185.03",
      "unit": "ft",
      "appliesTo": ""
    },
    {
      "label": "EL. 181.84",
      "value": "181.84",
      "unit": "ft",
      "appliesTo": ""
    },
    {
      "label": "EL. 181.68",
      "value": "181.68",
      "unit": "ft",
      "appliesTo": ""
    },
    {
      "label": "EL. 181.61",
      "value": "181.61",
      "unit": "ft",
      "appliesTo": ""
    },
    {
      "label": "EL. 181.13",
      "value": "181.13",
      "unit": "ft",
      "appliesTo": ""
    },
    {
      "label": "EL. 181.05",
      "value": "181.05",
      "unit": "ft",
      "appliesTo": ""
    }
  ],
  "notes": [],
  "labels": [
    "ELEVATION (BENT 2 RIGHT LOOKING AHEAD)",
    "BRIDGE NO. 1 LT. AND RT.",
    "S&A SASTRY & ASSOCIATES, INC."
  ],
  "description": "Elevation view of a bridge showing two concrete columns (COLUMN 3 and COLUMN 4) with numerous deck/elevation callouts along the top of the superstructure. The figure includes a title block area and a note indicating the elevation perspective (Bent 2, right looking ahead)."
}

{
  "view": "Elevation",
  "objects": [
    {
      "name": "GEORGIA REGISTERED ENGINEER SEAL",
      "tag": "",
      "shape": "circular",
      "material": "seal",
      "count": 1,
      "note": ""
    },
    {
      "name": "DEPARTMENT OF TRANSPORTATION TITLE BLOCK",
      "tag": "",
      "shape": "rectangular",
      "material": "title block",
      "count": 1,
      "note": ""
    },
    {
      "name": "DRAWING NO. BOX",
      "tag": "",
      "shape": "rectangular",
      "material": "",
      "count": 1,
      "note": "Contains 35-0014"
    },
    {
      "name": "DRAWING NO.",
      "tag": "",
      "shape": "rectangular",
      "material": "",
      "count": 1,
      "note": "35-0014"
    },
    {
      "name": "BRIDGE SHEET INDICATOR",
      "tag": "",
      "shape": "rectangular",
      "material": "",
      "count": 1,
      "note": "14 OF 21"
    },
    {
      "name": "INTERMEDIATE BENT 2",
      "tag": "",
      "shape": "text",
      "material": "",
      "count": 1,
      "note": ""
    },
    {
      "name": "SR 21 @ NS",
      "tag": "",
      "shape": "text",
      "material": "",
      "count": 1,
      "note": ""
    },
    {
      "name": "JENKINS COUNTY",
      "tag": "",
      "shape": "text",
      "material": "",
      "count": 1,
      "note": ""
    },
    {
      "name": "IDENTIFIER NUMBER",
      "tag": "",
      "shape": "text",
      "material": "",
      "count": 1,
      "note": "0019181"
    },
    {
      "name": "SCALE",
      "tag": "",
      "shape": "rectangular",
      "material": "",
      "count": 1,
      "note": "1/4\" = 1'-0\" (UNLESS OTHERWISE NOTED)"
    },
    {
      "name": "DATE",
      "tag": "",
      "shape": "text",
      "material": "",
      "count": 1,
      "note": "MAY 2025"
    },
    {
      "name": "SIGNATURE BLOCKS",
      "tag": "",
      "shape": "rectangular",
      "material": "",
      "count": 1,
      "note": "DESIGNED UP; DRAWN EPR; CHECKED AS; REVISED DLC/SKG; APPROVED DPD"
    }
  ],
  "measurements": [
    {
      "label": "SCALE",
      "value": "1/4\" = 1'-0\"",
      "unit": "",
      "appliesTo": "Elevation"
    },
    {
      "label": "DATE",
      "value": "MAY 2025",
      "unit": "",
      "appliesTo": "Drawing block"
    }
  ],
  "notes": [],
  "labels": [
    "ELEVATION",
    "(BENT 2 RIGHT LOOKING AHEAD)",
    "BRIDGE NO. LT. AND RT.",
    "SAS TRY & ASSOCIATES, INC.",
    "GEORGIA",
    "DEPARTMENT OF TRANSPORTATION",
    "INTERMEDIATE BENT 2",
    "SR 21 @ NS #620272Y",
    "JENKINS COUNTY",
    "DRAWING NO. 35-0014",
    "BRIDGE SHEET 14 OF 21",
    "SCALE: 1/4\" = 1'0\" (UNLESS OTHERWISE NOTED)",
    "MAY 2025"
  ],
  "description": "This crop shows the elevation view area of a Georgia DOT bridge sheet. It includes the elevation caption for Bent 2, the department header, the Georgia registered engineer seal, the drawing number (35-0014) and sheet sequence (14 of 21), the main title block text for the Department of Transportation, and the scale/date blocks."
}

{
  "view": "Notes",
  "objects": [],
  "measurements": [
    {
      "label": "maximum factored axial load",
      "value": "237",
      "unit": "kips",
      "appliesTo": "piles"
    },
    {
      "label": "driving resistance",
      "value": "365",
      "unit": "kips",
      "appliesTo": "piles"
    },
    {
      "label": "minimum tip elevation Bent 2L",
      "value": "119",
      "unit": "",
      "appliesTo": "Bent 2L tip elevation"
    },
    {
      "label": "minimum tip elevation Bent 2R",
      "value": "118",
      "unit": "",
      "appliesTo": "Bent 2R tip elevation"
    }
  ],
  "notes": [
    "PILES ARE DESIGNED FOR A MAXIMUM FACTORED AXIAL LOAD OF 237 KIPS.",
    "ALL PILES SHALL BE STEEL H, HP 12 X 53.",
    "ALL PILES SHALL BE DRIVEN TO A DRIVING RESISTANCE OF 365 KIPS AFTER A MINIMUM TIP ELEVATION OF 119 AT BENT 2L AND 118 AT BENT 2R IS ACHIEVED."
  ],
  "labels": [
    "Sheet page 14.",
    "PLAN DRIVING OBJECTIVE"
  ],
  "description": "Textual pile design notes showing a maximum axial load, pile type, and the plan driving objective with driving resistance targets and minimum tip elevations for Bent 2L and Bent 2R."
}

{
  "view": "Table",
  "objects": [
    {
      "name": "CY CLASS AA CONCRETE",
      "tag": "",
      "shape": "text",
      "material": "concrete",
      "count": 1,
      "note": ""
    },
    {
      "name": "LB BAR REINF STEEL",
      "tag": "",
      "shape": "text",
      "material": "reinforcing steel",
      "count": 1,
      "note": ""
    }
  ],
  "measurements": [
    {
      "label": "QUANTITY",
      "value": "93.0",
      "unit": "CY",
      "appliesTo": "BENT 2 LT."
    },
    {
      "label": "QUANTITY",
      "value": "93.0",
      "unit": "CY",
      "appliesTo": "BENT 2 RT."
    },
    {
      "label": "QUANTITY",
      "value": "15875",
      "unit": "LB",
      "appliesTo": "BENT 2 LT."
    },
    {
      "label": "QUANTITY",
      "value": "15848",
      "unit": "LB",
      "appliesTo": "BENT 2 RT."
    }
  ],
  "notes": [],
  "labels": [
    "SUBSTRUCTURE QUANTITIES",
    "BENT 2 LT.",
    "BENT 2 RT."
  ],
  "description": "Table showing substructure quantities for Bent 2 left and Bent 2 right: concrete (CY) and reinforcing steel (LB)."
}

{
  "view": "Plan",
  "objects": [
    {
      "name": "BEAM",
      "tag": "BEAM 1",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 1,
      "note": ""
    },
    {
      "name": "BEAM",
      "tag": "BEAM 2",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 1,
      "note": ""
    },
    {
      "name": "BEAM",
      "tag": "BEAM 3",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 1,
      "note": ""
    },
    {
      "name": "BEAM",
      "tag": "BEAM 4",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 1,
      "note": ""
    },
    {
      "name": "BEAM",
      "tag": "BEAM 5",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 1,
      "note": ""
    },
    {
      "name": "BEAM",
      "tag": "BEAM 6",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 1,
      "note": ""
    },
    {
      "name": "BEAM",
      "tag": "BEAM 7",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 1,
      "note": ""
    },
    {
      "name": "BEAM",
      "tag": "BEAM 8",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 1,
      "note": ""
    },
    {
      "name": "BEAM",
      "tag": "BEAM 9",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 1,
      "note": ""
    },
    {
      "name": "BEAM",
      "tag": "BEAM 10",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 1,
      "note": ""
    },
    {
      "name": "BEAM",
      "tag": "BEAM 11",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 1,
      "note": ""
    },
    {
      "name": "BEAM",
      "tag": "BEAM 12",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 1,
      "note": ""
    },
    {
      "name": "BENT",
      "tag": "",
      "shape": "rectangular",
      "material": "",
      "count": 2,
      "note": "Bent locations (2 visible)"
    },
    {
      "name": "BEARING",
      "tag": "C BEARING",
      "shape": "rectangular",
      "material": "",
      "count": 2,
      "note": ""
    },
    {
      "name": "HOLE FOR DOWEL",
      "tag": "",
      "shape": "circular",
      "material": "concrete",
      "count": 1,
      "note": "FORM 3\" DIA. X 12\" DEEP HOLE FOR 1/2\" DIA. SMOOTH DOWEL BAR, TYP."
    }
  ],
  "measurements": [
    {
      "label": "PLAN LEFT LENGTH",
      "value": "42'-6\"",
      "unit": "",
      "appliesTo": ""
    },
    {
      "label": "PLAN RIGHT LENGTH",
      "value": "42'-6\"",
      "unit": "",
      "appliesTo": ""
    },
    {
      "label": "EDGE TO BEAM 1",
      "value": "6'-0\"",
      "unit": "",
      "appliesTo": "BEAM 1"
    },
    {
      "label": "BEAM SPACING 1",
      "value": "7'-7/16\"",
      "unit": "",
      "appliesTo": "BEAM 1"
    },
    {
      "label": "BEAM SPACING 2",
      "value": "7'-7/16\"",
      "unit": "",
      "appliesTo": "BEAM 2"
    },
    {
      "label": "BEAM SPACING 3",
      "value": "7'-7/16\"",
      "unit": "",
      "appliesTo": "BEAM 3"
    },
    {
      "label": "BEAM SPACING 4",
      "value": "7'-7/16\"",
      "unit": "",
      "appliesTo": "BEAM 4"
    },
    {
      "label": "BEAM SPACING 5",
      "value": "7'-7/16\"",
      "unit": "",
      "appliesTo": "BEAM 5"
    },
    {
      "label": "BEAM SPACING 6",
      "value": "7'-7/16\"",
      "unit": "",
      "appliesTo": "BEAM 6"
    },
    {
      "label": "BEAM SPACING 7",
      "value": "7'-7/16\"",
      "unit": "",
      "appliesTo": "BEAM 7"
    },
    {
      "label": "BEAM SPACING 8",
      "value": "7'-7/16\"",
      "unit": "",
      "appliesTo": "BEAM 8"
    },
    {
      "label": "BEAM SPACING 9",
      "value": "7'-7/16\"",
      "unit": "",
      "appliesTo": "BEAM 9"
    },
    {
      "label": "BEAM SPACING 10",
      "value": "7'-7/16\"",
      "unit": "",
      "appliesTo": "BEAM 10"
    },
    {
      "label": "BEAM SPACING 11",
      "value": "7'-7/16\"",
      "unit": "",
      "appliesTo": "BEAM 11"
    },
    {
      "label": "BEAM SPACING 12",
      "value": "7'-7/16\"",
      "unit": "",
      "appliesTo": "BEAM 12"
    },
    {
      "label": "TOTAL PLAN LENGTH LEFT",
      "value": "42'-6\"",
      "unit": "",
      "appliesTo": ""
    },
    {
      "label": "TOTAL PLAN LENGTH RIGHT",
      "value": "42'-6\"",
      "unit": "",
      "appliesTo": ""
    }
  ],
  "notes": [
    "FORM 3\" DIA. X 12\" DEEP HOLE FOR 1/2\" DIA. SMOOTH DOWEL BAR, TYP."
  ],
  "labels": [
    "SR 2I WB = PGL",
    "SR 2I EB = PGL",
    "STA. 17+81.35",
    "STA. 17+74.65",
    "PLAN (BENT 2 LEFT)",
    "PLAN (BENT 2 RIGHT)"
  ],
  "description": "Plan view crop showing Bent 2 left and Bent 2 right sections with 12 beams across. It includes bearing locations, dowel hole note, and plan callouts with station markers and WB/EB references."
}
