1Read the crops304 crops · all read · 1336 objects · 4531 measurementsconfigured openai/gpt-5.6-terra-pro · about $1.73 for 304 crops · default

Every cropped image from the cropping run, page by page, with what the model read off it: view, objects, measurements, notes and labels. Click a crop to see it beside its JSON.

All 304 crops read.

304crops304read1336objects found4531measurements3,769,924tokens in1,185,838tokens out
Page 1715 crops · 15 read
crop · 831 × 824

p17_r07 section b b

page 17 · gdot_drawing_83a3db2262b94086918a1e232d2b9607_p17_r07_section_b_b
Original
p17_r07 section b b
{
  "view": "Section",
  "objects": [
    {
      "name": "concrete member",
      "tag": "",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 1,
      "note": "Sectioned rectangular member with reinforcing shown."
    },
    {
      "name": "longitudinal reinforcement bars",
      "tag": "4-#10 B0",
      "shape": "circular",
      "material": "reinforcing steel",
      "count": 4,
      "note": "Four bars shown at the corners."
    },
    {
      "name": "reinforcement bars",
      "tag": "2-#4 B2",
      "shape": "circular",
      "material": "reinforcing steel",
      "count": 2,
      "note": "Two bars shown near the top face."
    },
    {
      "name": "reinforcement bars",
      "tag": "2-#4 B5 SERIES",
      "shape": "circular with vertical legs",
      "material": "reinforcing steel",
      "count": 2,
      "note": "Two lower bars with vertical legs extending below the section."
    },
    {
      "name": "reinforcement tie",
      "tag": "#4 B1",
      "shape": "rectangular closed tie",
      "material": "reinforcing steel",
      "count": 1,
      "note": "Tie shape shown around the perimeter reinforcement."
    }
  ],
  "measurements": [
    {
      "label": "overall width",
      "value": "3'-0\"",
      "unit": "",
      "appliesTo": "concrete member"
    },
    {
      "label": "minimum clear cover",
      "value": "2\"",
      "unit": "",
      "appliesTo": "concrete member"
    },
    {
      "label": "minimum overall height",
      "value": "2'-0\"",
      "unit": "",
      "appliesTo": "concrete member"
    },
    {
      "label": "typical vertical dimension",
      "value": "1'-0\"",
      "unit": "",
      "appliesTo": "concrete member"
    },
    {
      "label": "clear cover, 3 sides",
      "value": "2\"",
      "unit": "",
      "appliesTo": "concrete member"
    },
    {
      "label": "left half width",
      "value": "1'-6\"",
      "unit": "",
      "appliesTo": "concrete member"
    },
    {
      "label": "right half width",
      "value": "1'-6\"",
      "unit": "",
      "appliesTo": "concrete member"
    },
    {
      "label": "scale",
      "value": "3/4\" = 1'-0\"",
      "unit": "",
      "appliesTo": "SECTION B-B"
    }
  ],
  "notes": [],
  "labels": [
    "SECTION B-B",
    "SCALE: 3/4\" = 1'-0\"",
    "MIN.",
    "CL.",
    "TYP.",
    "SERIES"
  ],
  "description": "This crop shows SECTION B-B through a rectangular reinforced-concrete member. It documents the section dimensions, clear cover requirements, and the arrangement and callouts of corner, top, lower, and tie reinforcement."
}

p17_r07 section b b

done

gdot_drawing_83a3db2262b94086918a1e232d2b9607_p17_r07_section_b_b

Section5 objects · 8 measurements · 6 labels

This crop shows SECTION B-B through a rectangular reinforced-concrete member. It documents the section dimensions, clear cover requirements, and the arrangement and callouts of corner, top, lower, and tie reinforcement.

Objects · 5

MarkObjectNo.ShapeMaterialNote
concrete member1rectangularreinforced concreteSectioned rectangular member with reinforcing shown.
4-#10 B0longitudinal reinforcement bars4circularreinforcing steelFour bars shown at the corners.
2-#4 B2reinforcement bars2circularreinforcing steelTwo bars shown near the top face.
2-#4 B5 SERIESreinforcement bars2circular with vertical legsreinforcing steelTwo lower bars with vertical legs extending below the section.
#4 B1reinforcement tie1rectangular closed tiereinforcing steelTie shape shown around the perimeter reinforcement.

Measurements · 8

MeasurementValueApplies to
overall width3'-0"concrete member
minimum clear cover2"concrete member
minimum overall height2'-0"concrete member
typical vertical dimension1'-0"concrete member
clear cover, 3 sides2"concrete member
left half width1'-6"concrete member
right half width1'-6"concrete member
scale3/4" = 1'-0"SECTION B-B

Labels

SECTION B-BSCALE: 3/4" = 1'-0"MIN.CL.TYP.SERIES

openai/gpt-5.6-terra-pro · 16891 tokens · 31.0s

crop · 1996 × 1192

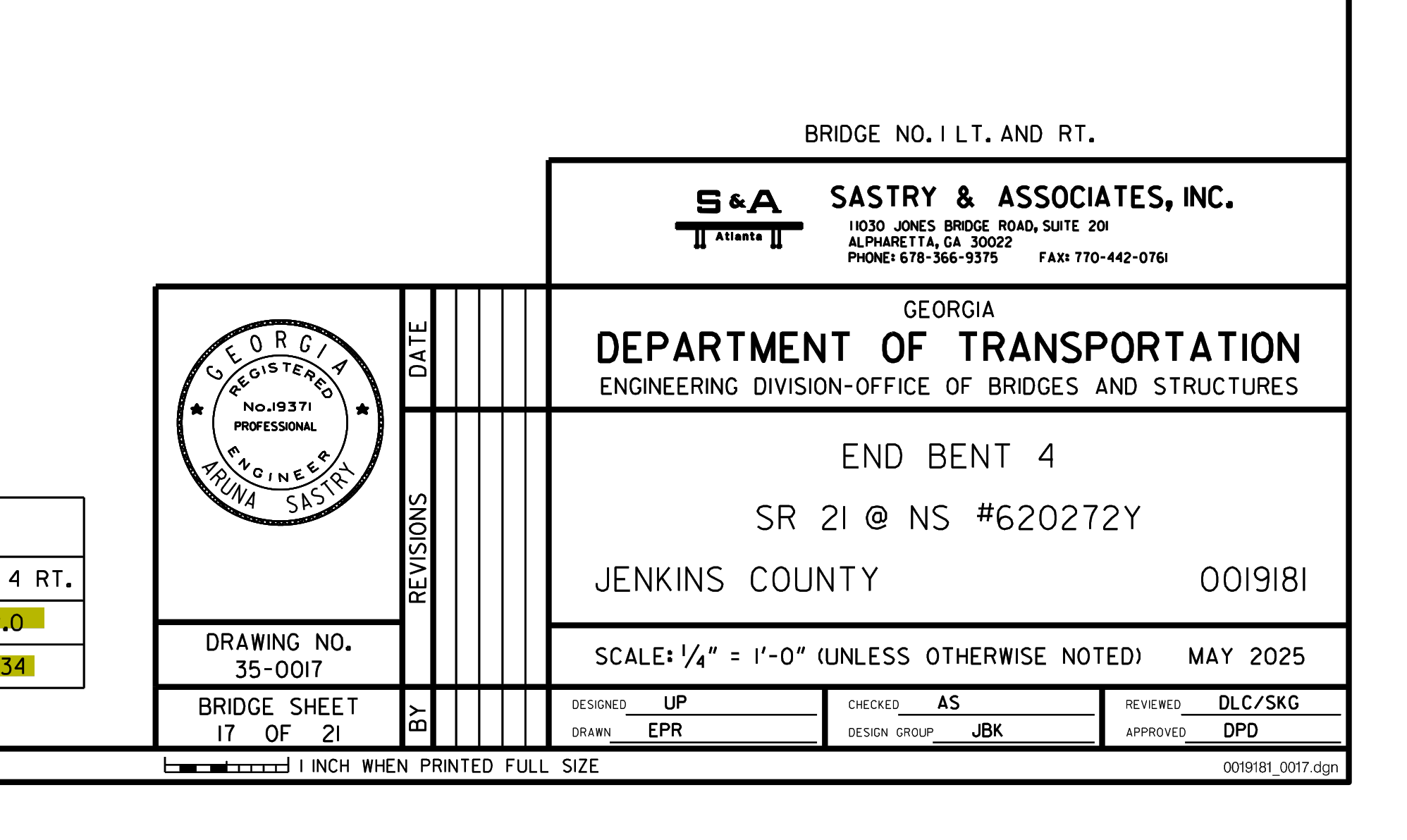

p17_r08 title block

page 17 · gdot_drawing_83a3db2262b94086918a1e232d2b9607_p17_r08_title_block
Original
p17_r08 title block
{
  "view": "Title Block",
  "objects": [],
  "measurements": [
    {
      "label": "SCALE",
      "value": "¼\" = 1'-0\"",
      "unit": "",
      "appliesTo": ""
    }
  ],
  "notes": [
    "(UNLESS OTHERWISE NOTED)"
  ],
  "labels": [
    "BRIDGE NO. LT. AND RT.",
    "S&A Atlanta",
    "SASTRY & ASSOCIATES, INC.",
    "11030 JONES BRIDGE ROAD, SUITE 201",
    "ALPHARETTA, GA 30022",
    "PHONE: 678-366-9375",
    "FAX: 770-442-0761",
    "GEORGIA DEPARTMENT OF TRANSPORTATION",
    "ENGINEERING DIVISION-OFFICE OF BRIDGES AND STRUCTURES",
    "END BENT 4",
    "SR 21 @ NS #620272Y",
    "JENKINS COUNTY",
    "001981",
    "DRAWING NO.",
    "35-0017",
    "BRIDGE SHEET 17 OF 21",
    "DATE",
    "REVISIONS",
    "BY",
    "SCALE: ¼\" = 1'-0\"",
    "MAY 2025",
    "DESIGNED UP",
    "DRAWN EPR",
    "CHECKED AS",
    "DESIGN GROUP JBK",
    "REVIEWED DLC/SKG",
    "APPROVED DPD",
    "GEORGIA REGISTERED PROFESSIONAL ENGINEER",
    "No.19371",
    "ARUNA SASTRY",
    "1 INCH WHEN PRINTED FULL SIZE",
    "001981_0017.dgn"
  ],
  "description": "This crop shows the bridge drawing title block for the Georgia Department of Transportation. The sheet is titled \"END BENT 4\" for SR 21 @ NS #620272Y in Jenkins County, identified as bridge sheet 17 of 21 and drawing number 35-0017."
}

p17_r08 title block

done

gdot_drawing_83a3db2262b94086918a1e232d2b9607_p17_r08_title_block

Title Block1 measurement · 1 note · 32 labels

This crop shows the bridge drawing title block for the Georgia Department of Transportation. The sheet is titled "END BENT 4" for SR 21 @ NS #620272Y in Jenkins County, identified as bridge sheet 17 of 21 and drawing number 35-0017.

Objects · 0

No objects read. Edit to add one.

Measurements · 1

MeasurementValue
SCALE¼" = 1'-0"

Labels

BRIDGE NO. LT. AND RT.S&A AtlantaSASTRY & ASSOCIATES, INC.11030 JONES BRIDGE ROAD, SUITE 201ALPHARETTA, GA 30022PHONE: 678-366-9375FAX: 770-442-0761GEORGIA DEPARTMENT OF TRANSPORTATIONENGINEERING DIVISION-OFFICE OF BRIDGES AND STRUCTURESEND BENT 4SR 21 @ NS #620272YJENKINS COUNTY001981DRAWING NO.35-0017BRIDGE SHEET 17 OF 21DATEREVISIONSBYSCALE: ¼" = 1'-0"MAY 2025DESIGNED UPDRAWN EPRCHECKED ASDESIGN GROUP JBKREVIEWED DLC/SKGAPPROVED DPDGEORGIA REGISTERED PROFESSIONAL ENGINEERNo.19371ARUNA SASTRY1 INCH WHEN PRINTED FULL SIZE001981_0017.dgn

Notes

  • (UNLESS OTHERWISE NOTED)

openai/gpt-5.6-terra-pro · 16683 tokens · 16.0s

crop · 815 × 474

p17_r09 plan driving objective

page 17 · gdot_drawing_83a3db2262b94086918a1e232d2b9607_p17_r09_plan_driving_objective
Original
p17_r09 plan driving objective
{
  "view": "Notes",
  "objects": [
    {
      "name": "piles",
      "tag": "",
      "shape": "H-section",
      "material": "steel",
      "count": null,
      "note": "Specified as HP 12 X 53 piles."
    }
  ],
  "measurements": [
    {
      "label": "maximum factored axial load",
      "value": "212",
      "unit": "KIPS",
      "appliesTo": "piles"
    },
    {
      "label": "pile section designation",
      "value": "HP 12 X 53",
      "unit": "",
      "appliesTo": "piles"
    },
    {
      "label": "driving resistance",
      "value": "326",
      "unit": "KIPS",
      "appliesTo": "piles"
    },
    {
      "label": "minimum tip elevation",
      "value": "122",
      "unit": "",
      "appliesTo": "BENT 4L"
    },
    {
      "label": "minimum tip elevation",
      "value": "144",
      "unit": "",
      "appliesTo": "BENT 4R"
    }
  ],
  "notes": [
    "PILES ARE DESIGNED FOR A MAXIMUM FACTORED AXIAL LOAD OF 212 KIPS.",
    "ALL PILES SHALL BE STEEL H, HP 12 X 53.",
    "ALL PILES SHALL BE DRIVEN TO A DRIVING RESISTANCE OF 326 KIPS AFTER A MINIMUM TIP ELEVATION OF 122 AT BENT 4L AND 144 AT BENT 4R IS ACHIEVED."
  ],
  "labels": [
    "PLAN DRIVING OBJECTIVE"
  ],
  "description": "This crop is a pile design and driving criteria note block. It specifies steel H-pile section HP 12 X 53, the maximum factored axial load, required driving resistance, and minimum pile tip elevations at Bents 4L and 4R."
}

p17_r09 plan driving objective

done

gdot_drawing_83a3db2262b94086918a1e232d2b9607_p17_r09_plan_driving_objective

Notes1 object · 5 measurements · 3 notes · 1 label

This crop is a pile design and driving criteria note block. It specifies steel H-pile section HP 12 X 53, the maximum factored axial load, required driving resistance, and minimum pile tip elevations at Bents 4L and 4R.

Objects · 1

ObjectShapeMaterialNote
pilesH-sectionsteelSpecified as HP 12 X 53 piles.

Measurements · 5

MeasurementValueUnitApplies to
maximum factored axial load212KIPSpiles
pile section designationHP 12 X 53piles
driving resistance326KIPSpiles
minimum tip elevation122BENT 4L
minimum tip elevation144BENT 4R

Labels

PLAN DRIVING OBJECTIVE

Notes

  • PILES ARE DESIGNED FOR A MAXIMUM FACTORED AXIAL LOAD OF 212 KIPS.
  • ALL PILES SHALL BE STEEL H, HP 12 X 53.
  • ALL PILES SHALL BE DRIVEN TO A DRIVING RESISTANCE OF 326 KIPS AFTER A MINIMUM TIP ELEVATION OF 122 AT BENT 4L AND 144 AT BENT 4R IS ACHIEVED.

openai/gpt-5.6-terra-pro · 9246 tokens · 16.3s

crop · 1044 × 356

p17_r10 section at end bent and wall

page 17 · gdot_drawing_83a3db2262b94086918a1e232d2b9607_p17_r10_section_at_end_bent_and_wall
Original
p17_r10 section at end bent and wall
{
  "view": "Section",
  "objects": [
    {
      "name": "wall",
      "tag": "",
      "shape": "",
      "material": "",
      "count": null,
      "note": "Only a partial vertical wall element is visible at the upper right."
    }
  ],
  "measurements": [
    {
      "label": "Scale",
      "value": "3/4\" = 1'-0\"",
      "unit": "",
      "appliesTo": "SECTION AT END BENT AND WALL"
    }
  ],
  "notes": [],
  "labels": [
    "SECTION AT END BENT AND WALL",
    "SCALE: 3/4\" = 1'-0\"",
    "FRONT OF WALL (partial)"
  ],
  "description": "This crop contains the title and scale for a section view at an end bent and wall. Only a small partial portion of the wall section and its callout are visible; no end-bent geometry is shown in this crop."
}

p17_r10 section at end bent and wall

done

gdot_drawing_83a3db2262b94086918a1e232d2b9607_p17_r10_section_at_end_bent_and_wall

Section1 object · 1 measurement · 3 labels

This crop contains the title and scale for a section view at an end bent and wall. Only a small partial portion of the wall section and its callout are visible; no end-bent geometry is shown in this crop.

Objects · 1

ObjectNote
wallOnly a partial vertical wall element is visible at the upper right.

Measurements · 1

MeasurementValueApplies to
Scale3/4" = 1'-0"SECTION AT END BENT AND WALL

Labels

SECTION AT END BENT AND WALLSCALE: 3/4" = 1'-0"FRONT OF WALL (partial)

openai/gpt-5.6-terra-pro · 8426 tokens · 12.2s

crop · 1068 × 338

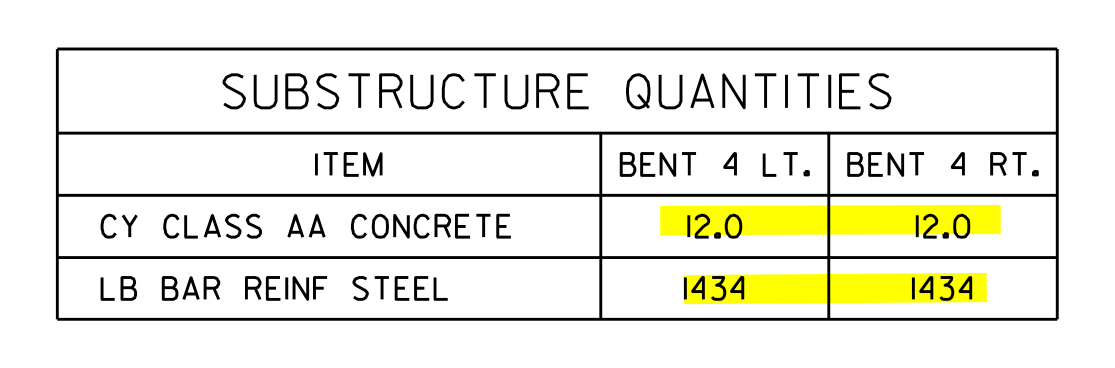

p17_r11 substructure quantities

page 17 · gdot_drawing_83a3db2262b94086918a1e232d2b9607_p17_r11_substructure_quantities
Original
p17_r11 substructure quantities
{
  "view": "Table",
  "objects": [
    {
      "name": "Bent",
      "tag": "BENT 4 LT.",
      "shape": "",
      "material": "",
      "count": 1,
      "note": "Substructure quantity column."
    },
    {
      "name": "Bent",
      "tag": "BENT 4 RT.",
      "shape": "",
      "material": "",
      "count": 1,
      "note": "Substructure quantity column."
    }
  ],
  "measurements": [
    {
      "label": "CY CLASS AA CONCRETE",
      "value": "12.0",
      "unit": "CY",
      "appliesTo": "BENT 4 LT."
    },
    {
      "label": "CY CLASS AA CONCRETE",
      "value": "12.0",
      "unit": "CY",
      "appliesTo": "BENT 4 RT."
    },
    {
      "label": "LB BAR REINF STEEL",
      "value": "1434",
      "unit": "LB",
      "appliesTo": "BENT 4 LT."
    },
    {
      "label": "LB BAR REINF STEEL",
      "value": "1434",
      "unit": "LB",
      "appliesTo": "BENT 4 RT."
    }
  ],
  "notes": [],
  "labels": [
    "SUBSTRUCTURE QUANTITIES",
    "ITEM",
    "CY CLASS AA CONCRETE",
    "LB BAR REINF STEEL"
  ],
  "description": "This crop is a substructure quantities table for Bent 4 left and Bent 4 right. It lists Class AA concrete quantities and reinforcing steel quantities for each bent."
}

p17_r11 substructure quantities

done

gdot_drawing_83a3db2262b94086918a1e232d2b9607_p17_r11_substructure_quantities

Table2 objects · 4 measurements · 4 labels

This crop is a substructure quantities table for Bent 4 left and Bent 4 right. It lists Class AA concrete quantities and reinforcing steel quantities for each bent.

Objects · 2

MarkObjectNo.Note
BENT 4 LT.Bent1Substructure quantity column.
BENT 4 RT.Bent1Substructure quantity column.

Measurements · 4

MeasurementValueUnitApplies to
CY CLASS AA CONCRETE12.0CYBENT 4 LT.
CY CLASS AA CONCRETE12.0CYBENT 4 RT.
LB BAR REINF STEEL1434LBBENT 4 LT.
LB BAR REINF STEEL1434LBBENT 4 RT.

Labels

SUBSTRUCTURE QUANTITIESITEMCY CLASS AA CONCRETELB BAR REINF STEEL

openai/gpt-5.6-terra-pro · 8193 tokens · 5.9s

item · 5853 × 1351

Other P17 R01

page 17 · other_p17_r01
Original
Other P17 R01
{
  "view": "Plan",
  "objects": [
    {
      "name": "bent cap",
      "tag": "BENT 4 LEFT",
      "shape": "rectangular with tapered end returns",
      "material": "",
      "count": 1,
      "note": "Shown in plan with six beam centerlines."
    },
    {
      "name": "bent cap",
      "tag": "BENT 4 RIGHT",
      "shape": "rectangular with tapered end returns",
      "material": "",
      "count": 1,
      "note": "Shown in plan with six beam centerlines."
    },
    {
      "name": "beam centerline locations",
      "tag": "BEAM 1–6",
      "shape": "",
      "material": "",
      "count": 6,
      "note": "Centerlines only are shown in the left bent plan."
    },
    {
      "name": "beam centerline locations",
      "tag": "BEAM 7–12",
      "shape": "",
      "material": "",
      "count": 6,
      "note": "Centerlines only are shown in the right bent plan."
    },
    {
      "name": "smooth dowel",
      "tag": "",
      "shape": "circular",
      "material": "",
      "count": null,
      "note": "Callout identifies a typical 1½ in. diameter dowel in a formed hole."
    }
  ],
  "measurements": [
    {
      "label": "dowel hole diameter",
      "value": "3\"",
      "unit": "",
      "appliesTo": "smooth dowel hole"
    },
    {
      "label": "dowel hole depth",
      "value": "12\"",
      "unit": "",
      "appliesTo": "smooth dowel hole"
    },
    {
      "label": "smooth dowel diameter",
      "value": "1½\"",
      "unit": "",
      "appliesTo": "smooth dowel"
    },
    {
      "label": "skew angle",
      "value": "81°-20'-05.0\"",
      "unit": "",
      "appliesTo": "BENT 4 LEFT; TYP."
    },
    {
      "label": "skew angle",
      "value": "81°-20'-05.0\"",
      "unit": "",
      "appliesTo": "BENT 4 RIGHT; TYP."
    },
    {
      "label": "longitudinal dimension",
      "value": "22'-0\"",
      "unit": "",
      "appliesTo": "left side of center bridge reference"
    },
    {
      "label": "longitudinal dimension",
      "value": "22'-0\"",
      "unit": "",
      "appliesTo": "right side of center bridge reference"
    },
    {
      "label": "station",
      "value": "19+18.35",
      "unit": "",
      "appliesTo": "SR 21 WB = PGL"
    },
    {
      "label": "station",
      "value": "19+15.00",
      "unit": "",
      "appliesTo": "END BRIDGE B.F.P.R. BENT 4"
    },
    {
      "label": "dimension",
      "value": "1'-6\"",
      "unit": "",
      "appliesTo": "BENT 4 LEFT"
    },
    {
      "label": "dimension",
      "value": "1'-6\"",
      "unit": "",
      "appliesTo": "BENT 4 LEFT"
    },
    {
      "label": "dimension",
      "value": "1'-6\"",
      "unit": "",
      "appliesTo": "BENT 4 RIGHT"
    },
    {
      "label": "dimension",
      "value": "1'-6\"",
      "unit": "",
      "appliesTo": "BENT 4 RIGHT"
    },
    {
      "label": "dimension",
      "value": "3'-0\"",
      "unit": "",
      "appliesTo": "BENT 4 LEFT"
    },
    {
      "label": "dimension",
      "value": "3'-0\"",
      "unit": "",
      "appliesTo": "BENT 4 RIGHT"
    },
    {
      "label": "dimension",
      "value": "2¾\"",
      "unit": "",
      "appliesTo": "BENT 4; TYP."
    },
    {
      "label": "dimension",
      "value": "2'-9⅜\"",
      "unit": "",
      "appliesTo": "BENT 4 LEFT"
    },
    {
      "label": "dimension",
      "value": "2'-9⅜\"",
      "unit": "",
      "appliesTo": "BENT 4 RIGHT"
    },
    {
      "label": "dimension",
      "value": "5'-4¾\"",
      "unit": "",
      "appliesTo": "BENT 4 LEFT"
    },
    {
      "label": "dimension",
      "value": "5'-4¾\"",
      "unit": "",
      "appliesTo": "BENT 4 RIGHT"
    },
    {
      "label": "end offset",
      "value": "3'-0⅞\"",
      "unit": "",
      "appliesTo": "BENT 4 LEFT; two printed occurrences"
    },
    {
      "label": "beam centerline spacing",
      "value": "7'-7¹⁄₁₆\"",
      "unit": "",
      "appliesTo": "BEAM 1–6; five printed occurrences"
    },
    {
      "label": "end offset",
      "value": "6'-10½\"",
      "unit": "",
      "appliesTo": "BENT 4 LEFT"
    },
    {
      "label": "beam spacing",
      "value": "7'-7\"",
      "unit": "",
      "appliesTo": "BENT 4 LEFT; four printed occurrences"
    },
    {
      "label": "end offset",
      "value": "6'-10⁹⁄₁₆\"",
      "unit": "",
      "appliesTo": "BENT 4 LEFT"
    },
    {
      "label": "overall width",
      "value": "44'-1¹⁄₁₆\"",
      "unit": "",
      "appliesTo": "BENT 4 LEFT"
    },
    {
      "label": "end offset",
      "value": "3'-0⅞\"",
      "unit": "",
      "appliesTo": "BENT 4 RIGHT; two printed occurrences"
    },
    {
      "label": "beam centerline spacing",
      "value": "7'-7¹⁄₁₆\"",
      "unit": "",
      "appliesTo": "BEAM 7–12; five printed occurrences"
    },
    {
      "label": "end offset",
      "value": "6'-10½\"",
      "unit": "",
      "appliesTo": "BENT 4 RIGHT"
    },
    {
      "label": "beam spacing",
      "value": "7'-7\"",
      "unit": "",
      "appliesTo": "BENT 4 RIGHT; four printed occurrences"
    },
    {
      "label": "end offset",
      "value": "6'-10⁹⁄₁₆\"",
      "unit": "",
      "appliesTo": "BENT 4 RIGHT"
    },
    {
      "label": "overall width",
      "value": "44'-1¹⁄₁₆\"",
      "unit": "",
      "appliesTo": "BENT 4 RIGHT"
    }
  ],
  "notes": [
    "FORM 3” DIA. X 12” DEEP HOLE FOR 1½” DIA. SMOOTH DOWEL, TYP.",
    "SEE DETAIL 3 BRIDGE SHEET 16",
    "SEE DETAIL 4 BRIDGE SHEET 16"
  ],
  "labels": [
    "B.F.P.R.",
    "SR 21 WB = PGL",
    "SR 21 EB = PGL",
    "℄ SR 21",
    "℄ BRG.",
    "END BRIDGE B.F.P.R. BENT 4",
    "PLAN",
    "(BENT 4 LEFT)",
    "(BENT 4 RIGHT)"
  ],
  "description": "This crop shows plan views of Bent 4, divided into BENT 4 LEFT and BENT 4 RIGHT. Each plan shows a skewed bent-cap outline, beam centerline locations for twelve total beams, dimensions, roadway PGL references, and typical smooth-dowel hole callouts."
}

Other P17 R01

done

other_p17_r01

Plan5 objects · 32 measurements · 3 notes · 9 labels

This crop shows plan views of Bent 4, divided into BENT 4 LEFT and BENT 4 RIGHT. Each plan shows a skewed bent-cap outline, beam centerline locations for twelve total beams, dimensions, roadway PGL references, and typical smooth-dowel hole callouts.

Objects · 5

MarkObjectNo.ShapeNote
BENT 4 LEFTbent cap1rectangular with tapered end returnsShown in plan with six beam centerlines.
BENT 4 RIGHTbent cap1rectangular with tapered end returnsShown in plan with six beam centerlines.
BEAM 1–6beam centerline locations6Centerlines only are shown in the left bent plan.
BEAM 7–12beam centerline locations6Centerlines only are shown in the right bent plan.
smooth dowelcircularCallout identifies a typical 1½ in. diameter dowel in a formed hole.

Measurements · 32

MeasurementValueApplies to
dowel hole diameter3"smooth dowel hole
dowel hole depth12"smooth dowel hole
smooth dowel diameter1½"smooth dowel
skew angle81°-20'-05.0"BENT 4 LEFT; TYP.
skew angle81°-20'-05.0"BENT 4 RIGHT; TYP.
longitudinal dimension22'-0"left side of center bridge reference
longitudinal dimension22'-0"right side of center bridge reference
station19+18.35SR 21 WB = PGL
station19+15.00END BRIDGE B.F.P.R. BENT 4
dimension1'-6"BENT 4 LEFT
dimension1'-6"BENT 4 LEFT
dimension1'-6"BENT 4 RIGHT
dimension1'-6"BENT 4 RIGHT
dimension3'-0"BENT 4 LEFT
dimension3'-0"BENT 4 RIGHT
dimension2¾"BENT 4; TYP.
dimension2'-9⅜"BENT 4 LEFT
dimension2'-9⅜"BENT 4 RIGHT
dimension5'-4¾"BENT 4 LEFT
dimension5'-4¾"BENT 4 RIGHT
end offset3'-0⅞"BENT 4 LEFT; two printed occurrences
beam centerline spacing7'-7¹⁄₁₆"BEAM 1–6; five printed occurrences
end offset6'-10½"BENT 4 LEFT
beam spacing7'-7"BENT 4 LEFT; four printed occurrences
end offset6'-10⁹⁄₁₆"BENT 4 LEFT
overall width44'-1¹⁄₁₆"BENT 4 LEFT
end offset3'-0⅞"BENT 4 RIGHT; two printed occurrences
beam centerline spacing7'-7¹⁄₁₆"BEAM 7–12; five printed occurrences
end offset6'-10½"BENT 4 RIGHT
beam spacing7'-7"BENT 4 RIGHT; four printed occurrences
end offset6'-10⁹⁄₁₆"BENT 4 RIGHT
overall width44'-1¹⁄₁₆"BENT 4 RIGHT

Labels

B.F.P.R.SR 21 WB = PGLSR 21 EB = PGL℄ SR 21℄ BRG.END BRIDGE B.F.P.R. BENT 4PLAN(BENT 4 LEFT)(BENT 4 RIGHT)

Notes

  • FORM 3” DIA. X 12” DEEP HOLE FOR 1½” DIA. SMOOTH DOWEL, TYP.
  • SEE DETAIL 3 BRIDGE SHEET 16
  • SEE DETAIL 4 BRIDGE SHEET 16

openai/gpt-5.6-terra-pro · 28176 tokens · 59.0s

item · 2584 × 843

Other P17 R02

page 17 · other_p17_r02
Original
Other P17 R02
{
  "view": "Elevation",
  "objects": [
    {
      "name": "longitudinal rectangular member",
      "tag": "",
      "shape": "rectangular",
      "material": "",
      "count": 1,
      "note": "Continuous member shown across the elevation."
    },
    {
      "name": "pile",
      "tag": "",
      "shape": "rectangular",
      "material": "",
      "count": 6,
      "note": "Six vertical piles/supports are visible; lower portions are not shown in this crop."
    },
    {
      "name": "end vertical block",
      "tag": "",
      "shape": "rectangular",
      "material": "",
      "count": 2,
      "note": "One raised vertical block is shown at each end of the member."
    },
    {
      "name": "reinforcement bar",
      "tag": "4-440",
      "shape": "linear",
      "material": "steel",
      "count": null,
      "note": "Called out over each pile."
    },
    {
      "name": "reinforcement bar",
      "tag": "2-442",
      "shape": "linear",
      "material": "steel",
      "count": null,
      "note": ""
    },
    {
      "name": "reinforcement bar",
      "tag": "4-1040",
      "shape": "linear",
      "material": "steel",
      "count": null,
      "note": ""
    },
    {
      "name": "reinforcement bar",
      "tag": "2-445A",
      "shape": "linear",
      "material": "steel",
      "count": null,
      "note": "Typical."
    },
    {
      "name": "reinforcement bar",
      "tag": "2-445B",
      "shape": "linear",
      "material": "steel",
      "count": null,
      "note": ""
    },
    {
      "name": "reinforcement bar",
      "tag": "2-445C",
      "shape": "linear",
      "material": "steel",
      "count": null,
      "note": ""
    },
    {
      "name": "reinforcement bar",
      "tag": "4-441",
      "shape": "linear",
      "material": "steel",
      "count": null,
      "note": "At equal spaces."
    },
    {
      "name": "reinforcement bar",
      "tag": "7-441",
      "shape": "linear",
      "material": "steel",
      "count": null,
      "note": "At equal spaces, typical each bay."
    }
  ],
  "measurements": [
    {
      "label": "Elevation",
      "value": "189.42",
      "unit": "",
      "appliesTo": "left end vertical block"
    },
    {
      "label": "Elevation",
      "value": "189.50",
      "unit": "",
      "appliesTo": "left end vertical block"
    },
    {
      "label": "Elevation",
      "value": "186.04",
      "unit": "",
      "appliesTo": "longitudinal rectangular member"
    },
    {
      "label": "Elevation",
      "value": "185.93",
      "unit": "",
      "appliesTo": "longitudinal rectangular member"
    },
    {
      "label": "Elevation",
      "value": "185.80",
      "unit": "",
      "appliesTo": "longitudinal rectangular member"
    },
    {
      "label": "Elevation",
      "value": "185.67",
      "unit": "",
      "appliesTo": "longitudinal rectangular member"
    },
    {
      "label": "Elevation",
      "value": "185.53",
      "unit": "",
      "appliesTo": "longitudinal rectangular member"
    },
    {
      "label": "Elevation",
      "value": "185.37",
      "unit": "",
      "appliesTo": "longitudinal rectangular member"
    },
    {
      "label": "Elevation",
      "value": "188.67",
      "unit": "",
      "appliesTo": "right end vertical block"
    },
    {
      "label": "Elevation",
      "value": "188.71",
      "unit": "",
      "appliesTo": "right end vertical block"
    },
    {
      "label": "Elevation",
      "value": "184.04",
      "unit": "",
      "appliesTo": "left end of longitudinal rectangular member"
    },
    {
      "label": "Elevation",
      "value": "183.25",
      "unit": "",
      "appliesTo": "right end of longitudinal rectangular member"
    },
    {
      "label": "Spacing",
      "value": "10\"",
      "unit": "",
      "appliesTo": "left end pile area"
    },
    {
      "label": "Spacing",
      "value": "10\", TYP.",
      "unit": "",
      "appliesTo": "pile bay"
    },
    {
      "label": "Spacing",
      "value": "10\", TYP.",
      "unit": "",
      "appliesTo": "pile bay"
    },
    {
      "label": "Spacing",
      "value": "10\"",
      "unit": "",
      "appliesTo": "right end pile area"
    },
    {
      "label": "Horizontal dimension",
      "value": "2'-10⅛\"",
      "unit": "",
      "appliesTo": "left end to first pile"
    },
    {
      "label": "Horizontal dimension",
      "value": "7'-7 1/16\"",
      "unit": "",
      "appliesTo": "pile bay"
    },
    {
      "label": "Horizontal dimension",
      "value": "7'-7 1/16\"",
      "unit": "",
      "appliesTo": "pile bay"
    },
    {
      "label": "Horizontal dimension",
      "value": "7'-7 1/16\"",
      "unit": "",
      "appliesTo": "pile bay"
    },
    {
      "label": "Horizontal dimension",
      "value": "7'-7 1/16\"",
      "unit": "",
      "appliesTo": "pile bay"
    },
    {
      "label": "Horizontal dimension",
      "value": "7'-7 1/16\"",
      "unit": "",
      "appliesTo": "pile bay"
    },
    {
      "label": "Horizontal dimension",
      "value": "3'-3 5/8\"",
      "unit": "",
      "appliesTo": "last pile to right end"
    },
    {
      "label": "Overall horizontal dimension",
      "value": "44'-1 1/16\"",
      "unit": "",
      "appliesTo": "longitudinal rectangular member"
    }
  ],
  "notes": [
    "4-440 OVER EACH PILE",
    "2-442",
    "4-1040",
    "2-445A, TYP.",
    "2-445B",
    "2-445C",
    "4-441 AT EQ. SPACES",
    "4-441 AT EQ. SPACES",
    "7-441 AT EQ. SPS. TYP. EA. BAY"
  ],
  "labels": [
    "A",
    "B",
    "ELEVATION"
  ],
  "description": "This crop shows an elevation of a continuous longitudinal rectangular member supported on six visible piles, with raised vertical blocks at both ends. It documents member elevations, pile-bay spacing, overall length, and reinforcement callouts; the lower portions of the piles are outside the crop."
}

Other P17 R02

done

other_p17_r02

Elevation11 objects · 24 measurements · 9 notes · 3 labels

This crop shows an elevation of a continuous longitudinal rectangular member supported on six visible piles, with raised vertical blocks at both ends. It documents member elevations, pile-bay spacing, overall length, and reinforcement callouts; the lower portions of the piles are outside the crop.

Objects · 11

MarkObjectNo.ShapeMaterialNote
longitudinal rectangular member1rectangularContinuous member shown across the elevation.
pile6rectangularSix vertical piles/supports are visible; lower portions are not shown in this crop.
end vertical block2rectangularOne raised vertical block is shown at each end of the member.
4-440reinforcement barlinearsteelCalled out over each pile.
2-442reinforcement barlinearsteel
4-1040reinforcement barlinearsteel
2-445Areinforcement barlinearsteelTypical.
2-445Breinforcement barlinearsteel
2-445Creinforcement barlinearsteel
4-441reinforcement barlinearsteelAt equal spaces.
7-441reinforcement barlinearsteelAt equal spaces, typical each bay.

Measurements · 24

MeasurementValueApplies to
Elevation189.42left end vertical block
Elevation189.50left end vertical block
Elevation186.04longitudinal rectangular member
Elevation185.93longitudinal rectangular member
Elevation185.80longitudinal rectangular member
Elevation185.67longitudinal rectangular member
Elevation185.53longitudinal rectangular member
Elevation185.37longitudinal rectangular member
Elevation188.67right end vertical block
Elevation188.71right end vertical block
Elevation184.04left end of longitudinal rectangular member
Elevation183.25right end of longitudinal rectangular member
Spacing10"left end pile area
Spacing10", TYP.pile bay
Spacing10", TYP.pile bay
Spacing10"right end pile area
Horizontal dimension2'-10⅛"left end to first pile
Horizontal dimension7'-7 1/16"pile bay
Horizontal dimension7'-7 1/16"pile bay
Horizontal dimension7'-7 1/16"pile bay
Horizontal dimension7'-7 1/16"pile bay
Horizontal dimension7'-7 1/16"pile bay
Horizontal dimension3'-3 5/8"last pile to right end
Overall horizontal dimension44'-1 1/16"longitudinal rectangular member

Labels

ABELEVATION

Notes

  • 4-440 OVER EACH PILE
  • 2-442
  • 4-1040
  • 2-445A, TYP.
  • 2-445B
  • 2-445C
  • 4-441 AT EQ. SPACES
  • 4-441 AT EQ. SPACES
  • 7-441 AT EQ. SPS. TYP. EA. BAY

openai/gpt-5.6-terra-pro · 28839 tokens · 56.8s

item · 2582 × 839

Other P17 R03

page 17 · other_p17_r03
Original
Other P17 R03
{
  "view": "Elevation",
  "objects": [
    {
      "name": "pile",
      "tag": "",
      "shape": "rectangular",
      "material": "",
      "count": 6,
      "note": "Six vertical pile elements are visible beneath the longitudinal member."
    },
    {
      "name": "longitudinal pile-supported member",
      "tag": "",
      "shape": "elongated stepped profile with sloping top",
      "material": "",
      "count": 1,
      "note": "Extends between the two end upstands shown in this crop."
    },
    {
      "name": "end upstand",
      "tag": "",
      "shape": "rectangular",
      "material": "",
      "count": 2,
      "note": "One at each visible end of the member."
    },
    {
      "name": "reinforcement bar set",
      "tag": "4-440",
      "shape": "linear",
      "material": "reinforcing steel",
      "count": null,
      "note": "Called out over each pile."
    },
    {
      "name": "reinforcement bar set",
      "tag": "2-442",
      "shape": "linear",
      "material": "reinforcing steel",
      "count": 1,
      "note": ""
    },
    {
      "name": "reinforcement bar set",
      "tag": "4-1040",
      "shape": "linear",
      "material": "reinforcing steel",
      "count": 1,
      "note": ""
    },
    {
      "name": "reinforcement bar set",
      "tag": "7-441",
      "shape": "linear",
      "material": "reinforcing steel",
      "count": null,
      "note": "At equal spacing, typical each bay."
    },
    {
      "name": "reinforcement bar set",
      "tag": "2-445A",
      "shape": "linear",
      "material": "reinforcing steel",
      "count": null,
      "note": "Typical."
    },
    {
      "name": "reinforcement bar set",
      "tag": "2-445B",
      "shape": "linear",
      "material": "reinforcing steel",
      "count": 1,
      "note": "Left-end callout."
    },
    {
      "name": "reinforcement bar set",
      "tag": "2-445C",
      "shape": "linear",
      "material": "reinforcing steel",
      "count": 1,
      "note": "Right-end callout."
    }
  ],
  "measurements": [
    {
      "label": "elevation",
      "value": "188.39",
      "unit": "",
      "appliesTo": "left end upstand"
    },
    {
      "label": "elevation",
      "value": "188.45",
      "unit": "",
      "appliesTo": "left end upstand"
    },
    {
      "label": "elevation",
      "value": "185.12",
      "unit": "",
      "appliesTo": "longitudinal pile-supported member"
    },
    {
      "label": "elevation",
      "value": "185.32",
      "unit": "",
      "appliesTo": "longitudinal pile-supported member"
    },
    {
      "label": "elevation",
      "value": "185.49",
      "unit": "",
      "appliesTo": "longitudinal pile-supported member"
    },
    {
      "label": "elevation",
      "value": "185.66",
      "unit": "",
      "appliesTo": "longitudinal pile-supported member"
    },
    {
      "label": "elevation",
      "value": "185.82",
      "unit": "",
      "appliesTo": "longitudinal pile-supported member"
    },
    {
      "label": "elevation",
      "value": "185.96",
      "unit": "",
      "appliesTo": "longitudinal pile-supported member"
    },
    {
      "label": "elevation",
      "value": "189.36",
      "unit": "",
      "appliesTo": "right end upstand"
    },
    {
      "label": "elevation",
      "value": "189.44",
      "unit": "",
      "appliesTo": "right end upstand"
    },
    {
      "label": "elevation",
      "value": "182.96",
      "unit": "",
      "appliesTo": "left end of longitudinal pile-supported member"
    },
    {
      "label": "elevation",
      "value": "183.96",
      "unit": "",
      "appliesTo": "right end of longitudinal pile-supported member"
    },
    {
      "label": "pile reinforcement",
      "value": "4-440",
      "unit": "",
      "appliesTo": "4-440"
    },
    {
      "label": "spacing",
      "value": "10\"",
      "unit": "",
      "appliesTo": "piles"
    },
    {
      "label": "end segment length",
      "value": "2'-10 1/8\"",
      "unit": "",
      "appliesTo": "longitudinal pile-supported member"
    },
    {
      "label": "bay length",
      "value": "7'-7 1/16\"",
      "unit": "",
      "appliesTo": "longitudinal pile-supported member"
    },
    {
      "label": "end segment length",
      "value": "3'-3 5/8\"",
      "unit": "",
      "appliesTo": "longitudinal pile-supported member"
    },
    {
      "label": "overall length",
      "value": "44'-1 1/16\"",
      "unit": "",
      "appliesTo": "longitudinal pile-supported member"
    }
  ],
  "notes": [
    "4-440 OVER EACH PILE",
    "7-441 AT EQ. SPS. TYP. EA. BAY",
    "2-445A, TYP.",
    "4-441 AT EQ. SPACES",
    "10\", TYP."
  ],
  "labels": [
    "A",
    "B",
    "ELEVATION"
  ],
  "description": "This crop is an elevation of a longitudinal pile-supported member with six visible rectangular piles and raised rectangular end upstands. It documents member elevations, pile and bay spacing, overall length, and reinforcement callouts; section-reference arrows A and B are shown."
}

Other P17 R03

done

other_p17_r03

Elevation10 objects · 18 measurements · 5 notes · 3 labels

This crop is an elevation of a longitudinal pile-supported member with six visible rectangular piles and raised rectangular end upstands. It documents member elevations, pile and bay spacing, overall length, and reinforcement callouts; section-reference arrows A and B are shown.

Objects · 10

MarkObjectNo.ShapeMaterialNote
pile6rectangularSix vertical pile elements are visible beneath the longitudinal member.
longitudinal pile-supported member1elongated stepped profile with sloping topExtends between the two end upstands shown in this crop.
end upstand2rectangularOne at each visible end of the member.
4-440reinforcement bar setlinearreinforcing steelCalled out over each pile.
2-442reinforcement bar set1linearreinforcing steel
4-1040reinforcement bar set1linearreinforcing steel
7-441reinforcement bar setlinearreinforcing steelAt equal spacing, typical each bay.
2-445Areinforcement bar setlinearreinforcing steelTypical.
2-445Breinforcement bar set1linearreinforcing steelLeft-end callout.
2-445Creinforcement bar set1linearreinforcing steelRight-end callout.

Measurements · 18

MeasurementValueApplies to
elevation188.39left end upstand
elevation188.45left end upstand
elevation185.12longitudinal pile-supported member
elevation185.32longitudinal pile-supported member
elevation185.49longitudinal pile-supported member
elevation185.66longitudinal pile-supported member
elevation185.82longitudinal pile-supported member
elevation185.96longitudinal pile-supported member
elevation189.36right end upstand
elevation189.44right end upstand
elevation182.96left end of longitudinal pile-supported member
elevation183.96right end of longitudinal pile-supported member
pile reinforcement4-4404-440
spacing10"piles
end segment length2'-10 1/8"longitudinal pile-supported member
bay length7'-7 1/16"longitudinal pile-supported member
end segment length3'-3 5/8"longitudinal pile-supported member
overall length44'-1 1/16"longitudinal pile-supported member

Labels

ABELEVATION

Notes

  • 4-440 OVER EACH PILE
  • 7-441 AT EQ. SPS. TYP. EA. BAY
  • 2-445A, TYP.
  • 4-441 AT EQ. SPACES
  • 10", TYP.

openai/gpt-5.6-terra-pro · 25178 tokens · 46.1s

item · 1148 × 293

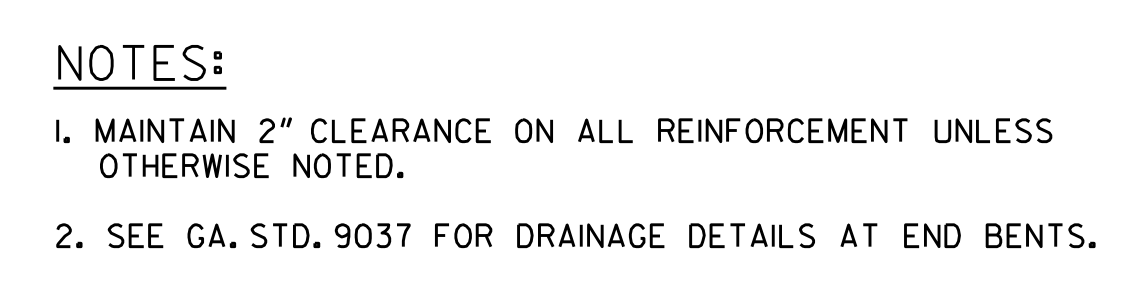

Other P17 R04

page 17 · other_p17_r04
Original
Other P17 R04
{
  "view": "Notes",
  "objects": [],
  "measurements": [
    {
      "label": "clearance on all reinforcement",
      "value": "2”",
      "unit": "",
      "appliesTo": "reinforcement"
    }
  ],
  "notes": [
    "1. MAINTAIN 2” CLEARANCE ON ALL REINFORCEMENT UNLESS OTHERWISE NOTED.",
    "2. SEE GA. STD. 9037 FOR DRAINAGE DETAILS AT END BENTS."
  ],
  "labels": [
    "NOTES:"
  ],
  "description": "This crop is a notes block. It specifies reinforcement clearance and references GA. STD. 9037 for drainage details at end bents."
}

Other P17 R04

done

other_p17_r04

Notes1 measurement · 2 notes · 1 label

This crop is a notes block. It specifies reinforcement clearance and references GA. STD. 9037 for drainage details at end bents.

Objects · 0

No objects read. Edit to add one.

Measurements · 1

MeasurementValueApplies to
clearance on all reinforcement2”reinforcement

Labels

NOTES:

Notes

  • 1. MAINTAIN 2” CLEARANCE ON ALL REINFORCEMENT UNLESS OTHERWISE NOTED.
  • 2. SEE GA. STD. 9037 FOR DRAINAGE DETAILS AT END BENTS.

openai/gpt-5.6-terra-pro · 7291 tokens · 5.7s

item · 1185 × 965

Other P17 R05

page 17 · other_p17_r05
Original
Other P17 R05
{
  "view": "Section",
  "objects": [
    {
      "name": "cap",
      "tag": "",
      "shape": "rectangular with chamfered corners",
      "material": "",
      "count": 1,
      "note": "Labeled CAP."
    },
    {
      "name": "pile",
      "tag": "",
      "shape": "rectangular",
      "material": "",
      "count": 2,
      "note": "Two vertical pile elements are shown below the cap; lower portions are broken off."
    },
    {
      "name": "wall",
      "tag": "",
      "shape": "rectangular",
      "material": "",
      "count": 1,
      "note": "Wall is partially shown at right; callout reads partial \"FRONT OF WAL\"."
    }
  ],
  "measurements": [
    {
      "label": "minimum horizontal dimension from B.F.P.R. reference",
      "value": "6'-0\" MIN.",
      "unit": "",
      "appliesTo": ""
    },
    {
      "label": "horizontal cap dimension",
      "value": "3'-0\"",
      "unit": "",
      "appliesTo": "cap"
    },
    {
      "label": "minimum vertical cap dimension",
      "value": "2'-0\" MIN.",
      "unit": "",
      "appliesTo": "cap"
    }
  ],
  "notes": [],
  "labels": [
    "B.F.P.R.",
    "CAP",
    "CON",
    "FRONT OF WAL",
    "SECTION AT END BENT AND WALL"
  ],
  "description": "This crop shows a partial section at an end bent and wall. A cap supported by two piles is shown at left, with a partially visible wall and intervening sloping profile at right; the full right-side callouts and lower portions are cropped."
}

Other P17 R05

done

other_p17_r05

Section3 objects · 3 measurements · 5 labels

This crop shows a partial section at an end bent and wall. A cap supported by two piles is shown at left, with a partially visible wall and intervening sloping profile at right; the full right-side callouts and lower portions are cropped.

Objects · 3

ObjectNo.ShapeNote
cap1rectangular with chamfered cornersLabeled CAP.
pile2rectangularTwo vertical pile elements are shown below the cap; lower portions are broken off.
wall1rectangularWall is partially shown at right; callout reads partial "FRONT OF WAL".

Measurements · 3

MeasurementValueApplies to
minimum horizontal dimension from B.F.P.R. reference6'-0" MIN.
horizontal cap dimension3'-0"cap
minimum vertical cap dimension2'-0" MIN.cap

Labels

B.F.P.R.CAPCONFRONT OF WALSECTION AT END BENT AND WALL

openai/gpt-5.6-terra-pro · 13522 tokens · 16.6s

item · 931 × 926

Other P17 R06

page 17 · other_p17_r06
Original
Other P17 R06
{
  "view": "Section",
  "objects": [
    {
      "name": "reinforced concrete member",
      "tag": "",
      "shape": "rectangular with chamfered corners",
      "material": "reinforced concrete",
      "count": 1,
      "note": "Sectioned rectangular member surrounding a central vertical member."
    },
    {
      "name": "vertical member",
      "tag": "",
      "shape": "rectangular",
      "material": "",
      "count": 1,
      "note": "Only the portion passing through the reinforced concrete member is visible."
    },
    {
      "name": "reinforcement bar",
      "tag": "2-242",
      "shape": "circular in section",
      "material": "",
      "count": 2,
      "note": "Two top reinforcing bars are shown."
    },
    {
      "name": "reinforcement bar",
      "tag": "4-1040",
      "shape": "circular in section",
      "material": "",
      "count": 4,
      "note": "Four reinforcing bars at the corners are shown."
    },
    {
      "name": "reinforcement bar",
      "tag": "440",
      "shape": "",
      "material": "",
      "count": null,
      "note": "Callout leader points to the outer reinforcement line."
    }
  ],
  "measurements": [
    {
      "label": "overall width",
      "value": "3'-0\"",
      "unit": "",
      "appliesTo": "reinforced concrete member"
    },
    {
      "label": "half width",
      "value": "1'-6\"",
      "unit": "",
      "appliesTo": "reinforced concrete member"
    },
    {
      "label": "half width",
      "value": "1'-6\"",
      "unit": "",
      "appliesTo": "reinforced concrete member"
    },
    {
      "label": "minimum clear cover",
      "value": "2\" MIN.",
      "unit": "",
      "appliesTo": "reinforced concrete member"
    },
    {
      "label": "minimum height",
      "value": "2'-0\" MIN.",
      "unit": "",
      "appliesTo": "reinforced concrete member"
    },
    {
      "label": "typical dimension",
      "value": "1'-0\"",
      "unit": "",
      "appliesTo": "reinforced concrete member"
    },
    {
      "label": "clear cover, 3 sides",
      "value": "2\"",
      "unit": "",
      "appliesTo": "reinforced concrete member"
    },
    {
      "label": "half width",
      "value": "1'-6\"",
      "unit": "",
      "appliesTo": "reinforced concrete member"
    },
    {
      "label": "half width",
      "value": "1'-6\"",
      "unit": "",
      "appliesTo": "reinforced concrete member"
    },
    {
      "label": "scale",
      "value": "3/4\" = 1'-0\"",
      "unit": "",
      "appliesTo": "SECTION A-A"
    }
  ],
  "notes": [
    "2\" MIN. CL.",
    "1'-0\" TYP.",
    "2\" CL. 3 SIDES"
  ],
  "labels": [
    "SECTION A-A",
    "SCALE: 3/4\" = 1'-0\""
  ],
  "description": "This crop shows SECTION A-A through a rectangular reinforced concrete member with chamfered corners and a central vertical rectangular member. Reinforcing bar callouts and concrete cover, overall width, and minimum-height dimensions are shown."
}

Other P17 R06

done

other_p17_r06

Section5 objects · 10 measurements · 3 notes · 2 labels

This crop shows SECTION A-A through a rectangular reinforced concrete member with chamfered corners and a central vertical rectangular member. Reinforcing bar callouts and concrete cover, overall width, and minimum-height dimensions are shown.

Objects · 5

MarkObjectNo.ShapeMaterialNote
reinforced concrete member1rectangular with chamfered cornersreinforced concreteSectioned rectangular member surrounding a central vertical member.
vertical member1rectangularOnly the portion passing through the reinforced concrete member is visible.
2-242reinforcement bar2circular in sectionTwo top reinforcing bars are shown.
4-1040reinforcement bar4circular in sectionFour reinforcing bars at the corners are shown.
440reinforcement barCallout leader points to the outer reinforcement line.

Measurements · 10

MeasurementValueApplies to
overall width3'-0"reinforced concrete member
half width1'-6"reinforced concrete member
half width1'-6"reinforced concrete member
minimum clear cover2" MIN.reinforced concrete member
minimum height2'-0" MIN.reinforced concrete member
typical dimension1'-0"reinforced concrete member
clear cover, 3 sides2"reinforced concrete member
half width1'-6"reinforced concrete member
half width1'-6"reinforced concrete member
scale3/4" = 1'-0"SECTION A-A

Labels

SECTION A-ASCALE: 3/4" = 1'-0"

Notes

  • 2" MIN. CL.
  • 1'-0" TYP.
  • 2" CL. 3 SIDES

openai/gpt-5.6-terra-pro · 16243 tokens · 34.7s

item · 879 × 854

Other P17 R07

page 17 · other_p17_r07
Original
Other P17 R07
{
  "view": "Section",
  "objects": [
    {
      "name": "concrete member",
      "tag": "",
      "shape": "rectangular",
      "material": "",
      "count": 1,
      "note": "Sectioned rectangular member; member name is not shown in this crop."
    },
    {
      "name": "reinforcement bar",
      "tag": "2-442",
      "shape": "circular in section",
      "material": "",
      "count": 2,
      "note": "Two top bars indicated by callout."
    },
    {
      "name": "reinforcement bar",
      "tag": "4-1040",
      "shape": "circular in section",
      "material": "",
      "count": 4,
      "note": "Four corner bars indicated by callout."
    },
    {
      "name": "reinforcement bar",
      "tag": "2-445 SERIES",
      "shape": "circular in section",
      "material": "",
      "count": 2,
      "note": "Two lower bars indicated; series callout."
    },
    {
      "name": "reinforcing tie/stirrup",
      "tag": "4I",
      "shape": "rectangular",
      "material": "",
      "count": null,
      "note": "Callout points to the enclosing reinforcement; tag is unclear as printed."
    }
  ],
  "measurements": [
    {
      "label": "overall width",
      "value": "3'-0\"",
      "unit": "",
      "appliesTo": "concrete member"
    },
    {
      "label": "minimum clear cover",
      "value": "2\"",
      "unit": "",
      "appliesTo": "concrete member"
    },
    {
      "label": "minimum overall height",
      "value": "2'-0\"",
      "unit": "",
      "appliesTo": "concrete member"
    },
    {
      "label": "typical vertical dimension",
      "value": "1'-0\"",
      "unit": "",
      "appliesTo": "concrete member"
    },
    {
      "label": "clear cover, 3 sides",
      "value": "2\"",
      "unit": "",
      "appliesTo": "concrete member"
    },
    {
      "label": "left horizontal dimension from centerline",
      "value": "1'-6\"",
      "unit": "",
      "appliesTo": "concrete member"
    },
    {
      "label": "right horizontal dimension from centerline",
      "value": "1'-6\"",
      "unit": "",
      "appliesTo": "concrete member"
    },
    {
      "label": "drawing scale",
      "value": "3/4\" = 1'-0\"",
      "unit": "",
      "appliesTo": "SECTION B-B"
    }
  ],
  "notes": [
    "2\" MIN. CL.",
    "2'-0\" MIN.",
    "1'-0\" TYP.",
    "2\" CL. 3 SIDES"
  ],
  "labels": [
    "SECTION B-B",
    "SCALE: 3/4\" = 1'-0\"",
    "B.F. (partial)"
  ],
  "description": "This crop shows SECTION B-B of a rectangular reinforced concrete member with perimeter reinforcement and lower series bars. The section documents member dimensions, minimum clear cover, and reinforcement callouts; the overall member identity is not visible in the crop."
}

Other P17 R07

done

other_p17_r07

Section5 objects · 8 measurements · 4 notes · 3 labels

This crop shows SECTION B-B of a rectangular reinforced concrete member with perimeter reinforcement and lower series bars. The section documents member dimensions, minimum clear cover, and reinforcement callouts; the overall member identity is not visible in the crop.

Objects · 5

MarkObjectNo.ShapeNote
concrete member1rectangularSectioned rectangular member; member name is not shown in this crop.
2-442reinforcement bar2circular in sectionTwo top bars indicated by callout.
4-1040reinforcement bar4circular in sectionFour corner bars indicated by callout.
2-445 SERIESreinforcement bar2circular in sectionTwo lower bars indicated; series callout.
4Ireinforcing tie/stirruprectangularCallout points to the enclosing reinforcement; tag is unclear as printed.

Measurements · 8

MeasurementValueApplies to
overall width3'-0"concrete member
minimum clear cover2"concrete member
minimum overall height2'-0"concrete member
typical vertical dimension1'-0"concrete member
clear cover, 3 sides2"concrete member
left horizontal dimension from centerline1'-6"concrete member
right horizontal dimension from centerline1'-6"concrete member
drawing scale3/4" = 1'-0"SECTION B-B

Labels

SECTION B-BSCALE: 3/4" = 1'-0"B.F. (partial)

Notes

  • 2" MIN. CL.
  • 2'-0" MIN.
  • 1'-0" TYP.
  • 2" CL. 3 SIDES

openai/gpt-5.6-terra-pro · 15105 tokens · 32.1s

item · 863 × 504

Other P17 R09

page 17 · other_p17_r09
Original
Other P17 R09
{
  "view": "Notes",
  "objects": [
    {
      "name": "piles",
      "tag": "",
      "shape": "H-section",
      "material": "steel",
      "count": null,
      "note": "ALL PILES SHALL BE STEEL H, HP 12 X 53."
    }
  ],
  "measurements": [
    {
      "label": "maximum factored axial load",
      "value": "212",
      "unit": "KIPS",
      "appliesTo": "piles"
    },
    {
      "label": "pile section designation",
      "value": "HP 12 X 53",
      "unit": "",
      "appliesTo": "piles"
    },
    {
      "label": "driving resistance",
      "value": "326",
      "unit": "KIPS",
      "appliesTo": "piles"
    },
    {
      "label": "minimum tip elevation",
      "value": "122",
      "unit": "",
      "appliesTo": "BENT 4L"
    },
    {
      "label": "minimum tip elevation",
      "value": "144",
      "unit": "",
      "appliesTo": "BENT 4R"
    }
  ],
  "notes": [
    "PILES ARE DESIGNED FOR A MAXIMUM FACTORED AXIAL LOAD OF 212 KIPS.",
    "ALL PILES SHALL BE STEEL H, HP 12 X 53.",
    "ALL PILES SHALL BE DRIVEN TO A DRIVING RESISTANCE OF 326 KIPS AFTER A MINIMUM TIP ELEVATION OF 122 AT BENT 4L AND 144 AT BENT 4R IS ACHIEVED."
  ],
  "labels": [
    "PLAN DRIVING OBJECTIVE"
  ],
  "description": "This crop is a pile-design and pile-driving notes block. It specifies steel H-pile section HP 12 X 53, maximum factored axial load, required driving resistance, and minimum tip elevations at BENT 4L and BENT 4R."
}

Other P17 R09

done

other_p17_r09

Notes1 object · 5 measurements · 3 notes · 1 label

This crop is a pile-design and pile-driving notes block. It specifies steel H-pile section HP 12 X 53, maximum factored axial load, required driving resistance, and minimum tip elevations at BENT 4L and BENT 4R.

Objects · 1

ObjectShapeMaterialNote
pilesH-sectionsteelALL PILES SHALL BE STEEL H, HP 12 X 53.

Measurements · 5

MeasurementValueUnitApplies to
maximum factored axial load212KIPSpiles
pile section designationHP 12 X 53piles
driving resistance326KIPSpiles
minimum tip elevation122BENT 4L
minimum tip elevation144BENT 4R

Labels

PLAN DRIVING OBJECTIVE

Notes

  • PILES ARE DESIGNED FOR A MAXIMUM FACTORED AXIAL LOAD OF 212 KIPS.
  • ALL PILES SHALL BE STEEL H, HP 12 X 53.
  • ALL PILES SHALL BE DRIVEN TO A DRIVING RESISTANCE OF 326 KIPS AFTER A MINIMUM TIP ELEVATION OF 122 AT BENT 4L AND 144 AT BENT 4R IS ACHIEVED.

openai/gpt-5.6-terra-pro · 9787 tokens · 13.1s

item · 1092 × 386

Other P17 R10

page 17 · other_p17_r10
Original
Other P17 R10
{
  "view": "Section",
  "objects": [
    {
      "name": "wall",
      "tag": "",
      "shape": "rectangular",
      "material": "",
      "count": 1,
      "note": "Only a partial wall is visible."
    }
  ],
  "measurements": [
    {
      "label": "SCALE",
      "value": "3/4\" = 1'-0\"",
      "unit": "",
      "appliesTo": "SECTION AT END BENT AND WALL"
    }
  ],
  "notes": [
    "FRONT FACE OF WALL"
  ],
  "labels": [
    "SECTION AT END BENT AND WALL"
  ],
  "description": "This crop shows the title and scale for a section at an end bent and wall. A partial vertical wall element is visible with a callout identifying its front face."
}

Other P17 R10

done

other_p17_r10

Section1 object · 1 measurement · 1 note · 1 label

This crop shows the title and scale for a section at an end bent and wall. A partial vertical wall element is visible with a callout identifying its front face.

Objects · 1

ObjectNo.ShapeNote
wall1rectangularOnly a partial wall is visible.

Measurements · 1

MeasurementValueApplies to
SCALE3/4" = 1'-0"SECTION AT END BENT AND WALL

Labels

SECTION AT END BENT AND WALL

Notes

  • FRONT FACE OF WALL

openai/gpt-5.6-terra-pro · 9428 tokens · 20.0s

item · 1115 × 368

Other P17 R11

page 17 · other_p17_r11
Original
Other P17 R11
{
  "view": "Table",
  "objects": [],
  "measurements": [
    {
      "label": "CY CLASS AA CONCRETE",
      "value": "12.0",
      "unit": "CY",
      "appliesTo": "BENT 4 LT."
    },
    {
      "label": "CY CLASS AA CONCRETE",
      "value": "12.0",
      "unit": "CY",
      "appliesTo": "BENT 4 RT."
    },
    {
      "label": "LB BAR REINF STEEL",
      "value": "1434",
      "unit": "LB",
      "appliesTo": "BENT 4 LT."
    },
    {
      "label": "LB BAR REINF STEEL",
      "value": "1434",
      "unit": "LB",
      "appliesTo": "BENT 4 RT."
    }
  ],
  "notes": [],
  "labels": [
    "SUBSTRUCTURE QUANTITIES",
    "ITEM",
    "BENT 4 LT.",
    "BENT 4 RT.",
    "CY CLASS AA CONCRETE",
    "LB BAR REINF STEEL"
  ],
  "description": "This crop is a substructure quantities table for the left and right sides of Bent 4. It lists Class AA concrete and reinforcing steel quantities for each side."
}

Other P17 R11

done

other_p17_r11

Table4 measurements · 6 labels

This crop is a substructure quantities table for the left and right sides of Bent 4. It lists Class AA concrete and reinforcing steel quantities for each side.

Objects · 0

No objects read. Edit to add one.

Measurements · 4

MeasurementValueUnitApplies to
CY CLASS AA CONCRETE12.0CYBENT 4 LT.
CY CLASS AA CONCRETE12.0CYBENT 4 RT.
LB BAR REINF STEEL1434LBBENT 4 LT.
LB BAR REINF STEEL1434LBBENT 4 RT.

Labels

SUBSTRUCTURE QUANTITIESITEMBENT 4 LT.BENT 4 RT.CY CLASS AA CONCRETELB BAR REINF STEEL

openai/gpt-5.6-terra-pro · 8108 tokens · 8.9s

Page 189 crops · 9 read
crop · 4682 × 2440

p18_r01 footing 3

page 18 · gdot_drawing_83a3db2262b94086918a1e232d2b9607_p18_r01_footing_3
Original
p18_r01 footing 3
{
  "view": "Plan",
  "objects": [
    {
      "name": "bent",
      "tag": "BENT 1",
      "shape": "long narrow rectangular strip divided at beam centerlines",
      "material": "",
      "count": 2,
      "note": "Shown as BENT 1 LEFT and BENT 1 RIGHT."
    },
    {
      "name": "bent",
      "tag": "BENT 4",
      "shape": "long narrow rectangular strip divided at beam centerlines",
      "material": "",
      "count": 2,
      "note": "Shown as BENT 4 LEFT and BENT 4 RIGHT."
    },
    {
      "name": "footing",
      "tag": "FOOTING 1",
      "shape": "rectangular",
      "material": "",
      "count": 2,
      "note": "One shown at BENT 2 LEFT and one at BENT 3 LEFT."
    },
    {
      "name": "footing",
      "tag": "FOOTING 2",
      "shape": "rectangular",
      "material": "",
      "count": 2,
      "note": "One shown at BENT 2 LEFT and one at BENT 3 LEFT."
    },
    {
      "name": "footing",
      "tag": "FOOTING 3",
      "shape": "rectangular",
      "material": "",
      "count": 2,
      "note": "One shown at BENT 2 RIGHT and one at BENT 3 RIGHT."
    },
    {
      "name": "footing",
      "tag": "FOOTING 4",
      "shape": "rectangular",
      "material": "",
      "count": 2,
      "note": "One shown at BENT 2 RIGHT and one at BENT 3 RIGHT."
    },
    {
      "name": "footing",
      "tag": "",
      "shape": "partial rectangular",
      "material": "",
      "count": null,
      "note": "Partial footing-related plan is cut off at the upper-right edge; callout reads only \"FOOTI\"."
    },
    {
      "name": "pile location",
      "tag": "PILE NO. 1–12",
      "shape": "H-like pile symbol",
      "material": "",
      "count": 48,
      "note": "Six pile symbols are shown in each complete footing plan; pile numbers repeat between the illustrated bent plans."
    },
    {
      "name": "beam centerline",
      "tag": "℄ BEAM 1–12",
      "shape": "centerline",
      "material": "",
      "count": 12,
      "note": "Beam centerlines are identified alongside the BENT 1 and BENT 4 strips."
    }
  ],
  "measurements": [],
  "notes": [],
  "labels": [
    "BENT 1 LEFT",
    "BENT 2 LEFT",
    "BENT 3 LEFT",
    "BENT 4 LEFT",
    "BENT 1 RIGHT",
    "BENT 2 RIGHT",
    "BENT 3 RIGHT",
    "BENT 4 RIGHT",
    "B.F.P.R. BENT 1",
    "℄ BENT 2",
    "℄ BENT 3",
    "B.F.P.R. BENT 4",
    "℄ SR 21",
    "BENT",
    "PILE LOCATION",
    "PILE NO.",
    "PILE TIP ELEVATION",
    "3 RIGHT",
    "FOOTI (partial)"
  ],
  "description": "This crop is a foundation and bent layout plan showing left and right arrangements for Bents 1 through 4. Bents 2 and 3 show rectangular Footings 1 through 4 with numbered pile locations, while Bents 1 and 4 show beam centerline positions 1 through 12. A partial pile-tip-elevation schedule for BENT 3 RIGHT and a cut-off footing-related plan are visible at the right edge."
}

p18_r01 footing 3

done

gdot_drawing_83a3db2262b94086918a1e232d2b9607_p18_r01_footing_3

Plan9 objects · 19 labels

This crop is a foundation and bent layout plan showing left and right arrangements for Bents 1 through 4. Bents 2 and 3 show rectangular Footings 1 through 4 with numbered pile locations, while Bents 1 and 4 show beam centerline positions 1 through 12. A partial pile-tip-elevation schedule for BENT 3 RIGHT and a cut-off footing-related plan are visible at the right edge.

Objects · 9

MarkObjectNo.ShapeNote
BENT 1bent2long narrow rectangular strip divided at beam centerlinesShown as BENT 1 LEFT and BENT 1 RIGHT.
BENT 4bent2long narrow rectangular strip divided at beam centerlinesShown as BENT 4 LEFT and BENT 4 RIGHT.
FOOTING 1footing2rectangularOne shown at BENT 2 LEFT and one at BENT 3 LEFT.
FOOTING 2footing2rectangularOne shown at BENT 2 LEFT and one at BENT 3 LEFT.
FOOTING 3footing2rectangularOne shown at BENT 2 RIGHT and one at BENT 3 RIGHT.
FOOTING 4footing2rectangularOne shown at BENT 2 RIGHT and one at BENT 3 RIGHT.
footingpartial rectangularPartial footing-related plan is cut off at the upper-right edge; callout reads only "FOOTI".
PILE NO. 1–12pile location48H-like pile symbolSix pile symbols are shown in each complete footing plan; pile numbers repeat between the illustrated bent plans.
℄ BEAM 1–12beam centerline12centerlineBeam centerlines are identified alongside the BENT 1 and BENT 4 strips.

Measurements · 0

No measurements read. Edit to add one.

Labels

BENT 1 LEFTBENT 2 LEFTBENT 3 LEFTBENT 4 LEFTBENT 1 RIGHTBENT 2 RIGHTBENT 3 RIGHTBENT 4 RIGHTB.F.P.R. BENT 1℄ BENT 2℄ BENT 3B.F.P.R. BENT 4℄ SR 21BENTPILE LOCATIONPILE NO.PILE TIP ELEVATION3 RIGHTFOOTI (partial)

openai/gpt-5.6-terra-pro · 22830 tokens · 44.0s

crop · 802 × 344

p18_r02 footing elevation

page 18 · gdot_drawing_83a3db2262b94086918a1e232d2b9607_p18_r02_footing_elevation
Original
p18_r02 footing elevation
{
  "view": "Section",
  "objects": [
    {
      "name": "footing",
      "tag": "",
      "shape": "rectangular",
      "material": "",
      "count": 1,
      "note": "Only a partial portion of the footing is visible in the crop."
    },
    {
      "name": "pile",
      "tag": "",
      "shape": "rectangular",
      "material": "",
      "count": 1,
      "note": "Pile outline is partly shown below the footing; the embedded portion is dashed."
    }
  ],
  "measurements": [],
  "notes": [
    "BOTTOM OF FOOTING ELEVATION"
  ],
  "labels": [],
  "description": "This crop is a partial section through a rectangular footing and a single pile below it. A leader identifies the horizontal line at the underside of the footing as the bottom-of-footing elevation."
}

p18_r02 footing elevation

done

gdot_drawing_83a3db2262b94086918a1e232d2b9607_p18_r02_footing_elevation

Section2 objects · 1 note

This crop is a partial section through a rectangular footing and a single pile below it. A leader identifies the horizontal line at the underside of the footing as the bottom-of-footing elevation.

Objects · 2

ObjectNo.ShapeNote
footing1rectangularOnly a partial portion of the footing is visible in the crop.
pile1rectangularPile outline is partly shown below the footing; the embedded portion is dashed.

Measurements · 0

No measurements read. Edit to add one.

Notes

  • BOTTOM OF FOOTING ELEVATION

openai/gpt-5.6-terra-pro · 8843 tokens · 13.9s

crop · 1136 × 1035

p18_r03 footing 3

page 18 · gdot_drawing_83a3db2262b94086918a1e232d2b9607_p18_r03_footing_3
Original
p18_r03 footing 3
{
  "view": "Table",
  "objects": [
    {
      "name": "bent",
      "tag": "3 RIGHT",
      "shape": "",
      "material": "",
      "count": 1,
      "note": "Pile schedule entries shown for this bent."
    },
    {
      "name": "footing",
      "tag": "FOOTING 3",
      "shape": "",
      "material": "",
      "count": 1,
      "note": "Pile Nos. 1 through 6 are listed at this footing location."
    },
    {
      "name": "footing",
      "tag": "FOOTING 4",
      "shape": "",
      "material": "",
      "count": 1,
      "note": "Pile Nos. 7 through 12 are listed at this footing location."
    },
    {
      "name": "pile",
      "tag": "1-12",
      "shape": "",
      "material": "",
      "count": 12,
      "note": "Pile tip elevation and bottom of footing elevation cells are blank in this crop."
    }
  ],
  "measurements": [],
  "notes": [],
  "labels": [
    "BENT",
    "PILE LOCATION",
    "PILE NO.",
    "PILE TIP ELEVATION",
    "BOTTOM OF FOOTING ELEVATION"
  ],
  "description": "This crop is a pile elevation schedule table for Bent 3 Right. It lists twelve piles, with Piles 1 through 6 located at Footing 3 and Piles 7 through 12 located at Footing 4; the elevation fields are blank in the visible crop."
}

p18_r03 footing 3

done

gdot_drawing_83a3db2262b94086918a1e232d2b9607_p18_r03_footing_3

Table4 objects · 5 labels

This crop is a pile elevation schedule table for Bent 3 Right. It lists twelve piles, with Piles 1 through 6 located at Footing 3 and Piles 7 through 12 located at Footing 4; the elevation fields are blank in the visible crop.

Objects · 4

MarkObjectNo.Note
3 RIGHTbent1Pile schedule entries shown for this bent.
FOOTING 3footing1Pile Nos. 1 through 6 are listed at this footing location.
FOOTING 4footing1Pile Nos. 7 through 12 are listed at this footing location.
1-12pile12Pile tip elevation and bottom of footing elevation cells are blank in this crop.

Measurements · 0

No measurements read. Edit to add one.

Labels

BENTPILE LOCATIONPILE NO.PILE TIP ELEVATIONBOTTOM OF FOOTING ELEVATION

openai/gpt-5.6-terra-pro · 12181 tokens · 10.2s

crop · 879 × 1019

p18_r04 elevation

page 18 · gdot_drawing_83a3db2262b94086918a1e232d2b9607_p18_r04_elevation
Original
p18_r04 elevation
{
  "view": "Table",
  "objects": [
    {
      "name": "Bent",
      "tag": "4 LEFT",
      "shape": "",
      "material": "",
      "count": 1,
      "note": "Six listed pile locations, BEAM 1 through BEAM 6."
    },
    {
      "name": "Bent",
      "tag": "4 RIGHT",
      "shape": "",
      "material": "",
      "count": 1,
      "note": "Six listed pile locations, BEAM 7 through BEAM 12."
    },
    {
      "name": "Pile",
      "tag": "PILE NO. 1-12",
      "shape": "",
      "material": "",
      "count": 12,
      "note": "Pile tip elevation cells are blank in this crop."
    }
  ],
  "measurements": [],
  "notes": [],
  "labels": [
    "BENT",
    "PILE LOCATION",
    "PILE NO.",
    "PILE TIP ELEVATION",
    "BEAM 1",
    "BEAM 2",
    "BEAM 3",
    "BEAM 4",
    "BEAM 5",
    "BEAM 6",
    "BEAM 7",
    "BEAM 8",
    "BEAM 9",
    "BEAM 10",
    "BEAM 11",
    "BEAM 12"
  ],
  "description": "This crop is a pile schedule table for Bent 4 LEFT and Bent 4 RIGHT. It lists pile numbers 1 through 12 by beam location; the PILE TIP ELEVATION column contains no visible values."
}

p18_r04 elevation

done

gdot_drawing_83a3db2262b94086918a1e232d2b9607_p18_r04_elevation

Table3 objects · 16 labels

This crop is a pile schedule table for Bent 4 LEFT and Bent 4 RIGHT. It lists pile numbers 1 through 12 by beam location; the PILE TIP ELEVATION column contains no visible values.

Objects · 3

MarkObjectNo.Note
4 LEFTBent1Six listed pile locations, BEAM 1 through BEAM 6.
4 RIGHTBent1Six listed pile locations, BEAM 7 through BEAM 12.
PILE NO. 1-12Pile12Pile tip elevation cells are blank in this crop.

Measurements · 0

No measurements read. Edit to add one.

Labels

BENTPILE LOCATIONPILE NO.PILE TIP ELEVATIONBEAM 1BEAM 2BEAM 3BEAM 4BEAM 5BEAM 6BEAM 7BEAM 8BEAM 9BEAM 10BEAM 11BEAM 12

openai/gpt-5.6-terra-pro · 11118 tokens · 12.2s

crop · 1089 × 321

p18_r05 notes

page 18 · gdot_drawing_83a3db2262b94086918a1e232d2b9607_p18_r05_notes
Original
p18_r05 notes
{
  "view": "Notes",
  "objects": [
    {
      "name": "Piles",
      "tag": "",
      "shape": "",
      "material": "",
      "count": null,
      "note": "Referenced in the note; no pile details are shown."
    },
    {
      "name": "Footings",
      "tag": "",
      "shape": "",
      "material": "",
      "count": null,
      "note": "Referenced in the note; no footing details are shown."
    }
  ],
  "measurements": [],
  "notes": [
    "THIS “AS-BUILT FOUNDATION INFORMATION” SHEET SHALL BE FILLED IN BY THE PROJECT ENGINEER AND THE COMPLETED PDF FORWARDED TO BRIDGEOFFICE@DOT.GA.GOV AFTER INSTALLATION OF ALL PILES AND FOOTINGS FOR POSTING TO THE PLANS AS A PERMANENT RECORD OF THE BRIDGE CONSTRUCTION."
  ],
  "labels": [
    "NOTE:"
  ],
  "description": "This crop is a general note concerning completion and submission of an as-built foundation information sheet. It requires the completed PDF to be forwarded after installation of all piles and footings for posting as a permanent bridge construction record."
}

p18_r05 notes

done

gdot_drawing_83a3db2262b94086918a1e232d2b9607_p18_r05_notesNotes

Notes2 objects · 1 note · 1 label

This crop is a general note concerning completion and submission of an as-built foundation information sheet. It requires the completed PDF to be forwarded after installation of all piles and footings for posting as a permanent bridge construction record.

Objects · 2

ObjectNote
PilesReferenced in the note; no pile details are shown.
FootingsReferenced in the note; no footing details are shown.

Measurements · 0

No measurements read. Edit to add one.

Labels

NOTE:

Notes

  • THIS “AS-BUILT FOUNDATION INFORMATION” SHEET SHALL BE FILLED IN BY THE PROJECT ENGINEER AND THE COMPLETED PDF FORWARDED TO BRIDGEOFFICE@DOT.GA.GOV AFTER INSTALLATION OF ALL PILES AND FOOTINGS FOR POSTING TO THE PLANS AS A PERMANENT RECORD OF THE BRIDGE CONSTRUCTION.

openai/gpt-5.6-terra-pro · 8467 tokens · 14.3s

crop · 879 × 1021

p18_r06 elevation

page 18 · gdot_drawing_83a3db2262b94086918a1e232d2b9607_p18_r06_elevation
Original
p18_r06 elevation
{
  "view": "Table",
  "objects": [
    {
      "name": "Pile",
      "tag": "1 LEFT",
      "shape": "",
      "material": "",
      "count": 6,
      "note": "Pile locations BEAM 1 through BEAM 6; pile numbers 1 through 6. Pile tip elevation cells are blank."
    },
    {
      "name": "Pile",
      "tag": "1 RIGHT",
      "shape": "",
      "material": "",
      "count": 6,
      "note": "Pile locations BEAM 7 through BEAM 12; pile numbers 7 through 12. Pile tip elevation cells are blank."
    }
  ],
  "measurements": [],
  "notes": [],
  "labels": [
    "BENT",
    "PILE LOCATION",
    "PILE NO.",
    "PILE TIP ELEVATION",
    "BEAM 1",
    "BEAM 2",
    "BEAM 3",
    "BEAM 4",
    "BEAM 5",
    "BEAM 6",
    "BEAM 7",
    "BEAM 8",
    "BEAM 9",
    "BEAM 10",
    "BEAM 11",
    "BEAM 12"
  ],
  "description": "This crop is a pile schedule table for Bent 1. It lists twelve pile locations by beam number, divided into 1 LEFT for Beams 1–6 and 1 RIGHT for Beams 7–12; the pile tip elevation column contains no values in this crop."
}

p18_r06 elevation

done

gdot_drawing_83a3db2262b94086918a1e232d2b9607_p18_r06_elevation

Table2 objects · 16 labels

This crop is a pile schedule table for Bent 1. It lists twelve pile locations by beam number, divided into 1 LEFT for Beams 1–6 and 1 RIGHT for Beams 7–12; the pile tip elevation column contains no values in this crop.

Objects · 2

MarkObjectNo.Note
1 LEFTPile6Pile locations BEAM 1 through BEAM 6; pile numbers 1 through 6. Pile tip elevation cells are blank.
1 RIGHTPile6Pile locations BEAM 7 through BEAM 12; pile numbers 7 through 12. Pile tip elevation cells are blank.

Measurements · 0

No measurements read. Edit to add one.

Labels

BENTPILE LOCATIONPILE NO.PILE TIP ELEVATIONBEAM 1BEAM 2BEAM 3BEAM 4BEAM 5BEAM 6BEAM 7BEAM 8BEAM 9BEAM 10BEAM 11BEAM 12

openai/gpt-5.6-terra-pro · 10294 tokens · 23.2s

crop · 1128 × 1038

p18_r07 footing 1

page 18 · gdot_drawing_83a3db2262b94086918a1e232d2b9607_p18_r07_footing_1
Original
p18_r07 footing 1
{
  "view": "Table",
  "objects": [
    {
      "name": "Bent",
      "tag": "2 LEFT",
      "shape": "",
      "material": "",
      "count": 1,
      "note": "Bent identifier shown in the first column."
    },
    {
      "name": "Footing",
      "tag": "FOOTING 1",
      "shape": "",
      "material": "",
      "count": 1,
      "note": "Associated with Pile Nos. 1 through 6."
    },
    {
      "name": "Footing",
      "tag": "FOOTING 2",
      "shape": "",
      "material": "",
      "count": 1,
      "note": "Associated with Pile Nos. 7 through 12."
    },
    {
      "name": "Pile",
      "tag": "",
      "shape": "",
      "material": "",
      "count": 12,
      "note": "Pile numbers 1 through 12 are listed; pile tip elevation cells are blank in this crop."
    }
  ],
  "measurements": [],
  "notes": [],
  "labels": [
    "BENT",
    "PILE LOCATION",
    "PILE NO.",
    "PILE TIP ELEVATION",
    "BOTTOM OF FOOTING ELEVATION"
  ],
  "description": "This crop is a pile elevation table for Bent 2 Left. It lists two footing locations and pile numbers 1 through 12, with columns provided for pile tip elevations and bottom-of-footing elevations; the elevation fields are blank in this crop."
}

p18_r07 footing 1

done

gdot_drawing_83a3db2262b94086918a1e232d2b9607_p18_r07_footing_1

Table4 objects · 5 labels

This crop is a pile elevation table for Bent 2 Left. It lists two footing locations and pile numbers 1 through 12, with columns provided for pile tip elevations and bottom-of-footing elevations; the elevation fields are blank in this crop.

Objects · 4

MarkObjectNo.Note
2 LEFTBent1Bent identifier shown in the first column.
FOOTING 1Footing1Associated with Pile Nos. 1 through 6.
FOOTING 2Footing1Associated with Pile Nos. 7 through 12.
Pile12Pile numbers 1 through 12 are listed; pile tip elevation cells are blank in this crop.

Measurements · 0

No measurements read. Edit to add one.

Labels

BENTPILE LOCATIONPILE NO.PILE TIP ELEVATIONBOTTOM OF FOOTING ELEVATION

openai/gpt-5.6-terra-pro · 12347 tokens · 13.8s

crop · 1126 × 1038

p18_r08 footing 3

page 18 · gdot_drawing_83a3db2262b94086918a1e232d2b9607_p18_r08_footing_3
Original
p18_r08 footing 3
{
  "view": "Table",
  "objects": [
    {
      "name": "footing",
      "tag": "FOOTING 3",
      "shape": "",
      "material": "",
      "count": 1,
      "note": "Listed as the pile location for piles 1 through 6."
    },
    {
      "name": "footing",
      "tag": "FOOTING 4",
      "shape": "",
      "material": "",
      "count": 1,
      "note": "Listed as the pile location for piles 7 through 12."
    },
    {
      "name": "pile",
      "tag": "",
      "shape": "",
      "material": "",
      "count": 12,
      "note": "Pile numbers 1 through 12 are listed; pile tip elevation and bottom of footing elevation cells are blank."
    }
  ],
  "measurements": [],
  "notes": [],
  "labels": [
    "BENT",
    "PILE LOCATION",
    "PILE NO.",
    "PILE TIP ELEVATION",
    "BOTTOM OF FOOTING ELEVATION",
    "2 RIGHT"
  ],
  "description": "This crop is a pile information table for Bent 2 Right. It lists Footing 3 with piles 1 through 6 and Footing 4 with piles 7 through 12; the elevation columns contain no entered values in this crop."
}

p18_r08 footing 3

done

gdot_drawing_83a3db2262b94086918a1e232d2b9607_p18_r08_footing_3

Table3 objects · 6 labels

This crop is a pile information table for Bent 2 Right. It lists Footing 3 with piles 1 through 6 and Footing 4 with piles 7 through 12; the elevation columns contain no entered values in this crop.

Objects · 3

MarkObjectNo.Note
FOOTING 3footing1Listed as the pile location for piles 1 through 6.
FOOTING 4footing1Listed as the pile location for piles 7 through 12.
pile12Pile numbers 1 through 12 are listed; pile tip elevation and bottom of footing elevation cells are blank.

Measurements · 0

No measurements read. Edit to add one.

Labels

BENTPILE LOCATIONPILE NO.PILE TIP ELEVATIONBOTTOM OF FOOTING ELEVATION2 RIGHT

openai/gpt-5.6-terra-pro · 11106 tokens · 8.3s

crop · 1227 × 1038

p18_r09 footing 1

page 18 · gdot_drawing_83a3db2262b94086918a1e232d2b9607_p18_r09_footing_1
Original
p18_r09 footing 1
{
  "view": "Schedule",
  "objects": [
    {
      "name": "Bent",
      "tag": "3 LEFT",
      "shape": "",
      "material": "",
      "count": 1,
      "note": "Pile schedule entries are shown for this bent."
    },
    {
      "name": "Footing",
      "tag": "FOOTING 1",
      "shape": "",
      "material": "",
      "count": 1,
      "note": "Associated with Pile Nos. 1 through 6."
    },
    {
      "name": "Footing",
      "tag": "FOOTING 2",
      "shape": "",
      "material": "",
      "count": 1,
      "note": "Associated with Pile Nos. 7 through 12."
    },
    {
      "name": "Pile",
      "tag": "",
      "shape": "",
      "material": "",
      "count": 12,
      "note": "Listed as Pile Nos. 1 through 12; pile tip elevation cells are blank in this crop."
    }
  ],
  "measurements": [],
  "notes": [],
  "labels": [
    "BENT",
    "PILE LOCATION",
    "PILE NO.",
    "PILE TIP ELEVATION",
    "BOTTOM OF FOOTING ELEVATION"
  ],
  "description": "This crop shows a pile schedule table for Bent 3 Left. It assigns Pile Nos. 1 through 6 to Footing 1 and Pile Nos. 7 through 12 to Footing 2; the pile tip elevation and bottom-of-footing elevation columns contain no visible values."
}

p18_r09 footing 1

done

gdot_drawing_83a3db2262b94086918a1e232d2b9607_p18_r09_footing_1

Schedule4 objects · 5 labels

This crop shows a pile schedule table for Bent 3 Left. It assigns Pile Nos. 1 through 6 to Footing 1 and Pile Nos. 7 through 12 to Footing 2; the pile tip elevation and bottom-of-footing elevation columns contain no visible values.

Objects · 4

MarkObjectNo.Note
3 LEFTBent1Pile schedule entries are shown for this bent.
FOOTING 1Footing1Associated with Pile Nos. 1 through 6.
FOOTING 2Footing1Associated with Pile Nos. 7 through 12.
Pile12Listed as Pile Nos. 1 through 12; pile tip elevation cells are blank in this crop.

Measurements · 0

No measurements read. Edit to add one.

Labels

BENTPILE LOCATIONPILE NO.PILE TIP ELEVATIONBOTTOM OF FOOTING ELEVATION

openai/gpt-5.6-terra-pro · 13222 tokens · 21.0s

2Map the items100 items · 1338 readings · 50 on more than one pageconfigured openai/gpt-5.6-terra-pro · about 11¢ at the last run’s size · default

One set of distinct items across every page. The same bent read as “BENT”, “Interior bent” and “Bent No. 2” is one item here, carrying every page and crop it was seen in. One model call over all of step 1’s readings; the page mapping is resolved from its grouping rather than retyped by it.

100 items from 1338 readings · 6 the model left out, matched by name · 100 new.

100items1338readings50on 2+ pages40,739tokens in11,832tokens out
Reinforcing Barmaterial×7987 · bar · reinforcing steelp2, p4, p5, p7, p8, p9, p10, p11, p13, p14, p15, p16, p17, p19, p20, p21104 crops
Reinforcing Bar

also calledBar reinforcing steelSuperstructure reinforcing steelreinforcing steelReinforcementreinforcement barreinforcementMain slab reinforcementreinforcement barsmain slab reinforcement barsslab reinforcementbeam reinforcementplain barreinforcement / callout itemReinforcement barsreinforcement bar groupReinforcement barlongitudinal reinforcement barreinforcing barsreinforcement bar setreinforcing bar set+5 more

marks400A400B400C*500B400 BARS2-60050230-400A500A5016-400A14-400A58-600507A402A403AI-509I-508I-802I-801+207 more

Bentsubstructure×86 · straight transverse line · concretep1, p2, p3, p4, p5, p6, p7, p13, p14, p15, p16, p17, p18, p2036 crops
Bent

also calledbridge bentbent columnsconcrete intermediate bentsintermediate bentBent locationB.F.P.R. bentintermediate bentsreinforced concrete bent memberBridge bent plan layout

marksBENT 2LBENT 3LBENT 2RBENT 3RBENT 1BENT 2BENT 3BENT 4B.F.P.R. BENT 1B.F.P.R. BENT 4BENT 1LBENT 4LBENT 1RBENT 4RBENTS 2BRIDGE LEFT BENT 1 RIGHTBRIDGE LEFT BENT 3 LEFTBRIDGE RIGHT BENT 2 RIGHTBRIDGE RIGHT BENT 4 RIGHTB.F.P.R. BENT 1L+26 more

Beamsuperstructure×218 · I-girder · precast concretep2, p4, p5, p6, p7, p8, p9, p10, p11, p12, p13, p14, p15, p1864 crops
Beam

also calledPSC beams, AASHTO Type IIPSC beams, AASHTO Type IIIAASHTO Type III PSC beam spanAASHTO Type II PSC beam spansAASHTO Type II PSC beam spanBeamsbeamsgirdersI-girderprestressed concrete beamsbeam endsbridge beamsgirderprestressed concrete beambeam sectionprestressed beam

marks℄ BEAM 1 through ℄ BEAM 12℄ BEAM 1-12BEAM 1 through BEAM 12℄ BEAM 1–℄ BEAM 6CL BEAM 1–CL BEAM 6℄ BEAM 1–6BEAM 1 through BEAM 6℄ BEAMC BEAM 1 through C BEAM 12℄ BEAM 7–12℄ BEAM 1 through ℄ BEAM 6℄ BEAM 7 through ℄ BEAM 12BEAM 1–BEAM 12

Steel H-pilefoundation×352 · H-section · steelp1, p2, p13, p14, p15, p16, p17, p1853 crops
Steel H-pile

also calledpileSteel H-pilessteel H pile end bentspilesPilessteel H-pile end bentH-pilePilepile location

marksHP 12 X 53H-PILE℄ PILEPILE NO. 1–121-12PILE NO. 1-121 LEFT1 RIGHT1–12

Deck Slabdeck×28 · sloped slab with overhangs · reinforced concretep4, p5, p6, p7, p8, p9, p10, p1131 crops
Deck Slab

also calledBridge deck slabsbridge deckslabDeckdeckBridge deckbridge deck slab

marksSPAN 2SPAN 3

Smooth Dowel Bardeck×2 · circular bar · ASTM A709 Grade 50p2, p10, p11, p12, p13, p14, p15, p1710 crops
Smooth Dowel Bar

also calledSmooth dowel barssmooth dowelSmooth dowelsmooth dowelsSmooth dowels

Bent Capsubstructure×26 · rectangular · reinforced concretep7, p9, p13, p14, p15, p16, p1719 crops
Bent Cap

also calledcap beamsupport capcap

marksBENT 1CAPBENT 2 LEFT; BENT 2 RIGHTC BENTBENT 3 LEFT / BENT 3 RIGHTBENT 3BENT 3 LEFTBENT 3 RIGHTBENT 4 LEFTBENT 4 RIGHT

Concrete Barrierrailing×24 · tapered/trapezoidal · concretep2, p4, p5, p7, p8, p920 crops
Concrete Barrier

also calledbarrier transitionbarrierBarrieredge barrier / parapetbarrier/parapetparapet / barrierparapet/barrieredge barriersbarrier walledge barrier

Construction Jointother×8 · skewed linep5, p7, p8, p9, p14, p1513 crops
Construction Joint

also calledB.F.P.R. or construction joint

marksCONST. JT.

Endwallsubstructure×22 · rectangular vertical · reinforced concretep1, p4, p6, p8, p12, p1312 crops
Endwall

also calledend bent / wallEndwallsend wall

marksB.F.P.R. BENT 1B.F.P.R. BENT 4

Footingfoundation×54 · rectangular · reinforced concretep2, p14, p15, p16, p1824 crops
Footing

also calledFootings

marksBENT 3BENT 2FOOTING 1FOOTING 2FOOTING 3FOOTING 4FOOTING 1–FOOTING 4

Columnsubstructure×24 · rectangular · reinforced concretep13, p14, p15, p16, p1713 crops
Column

also calledvertical support membersvertical member

marksCOLUMN 1COLUMN 2COLUMN 3COLUMN 4℄ COLUMN 1℄ COLUMN 2COLUMN 1, COLUMN 2, COLUMN 3, COLUMN 4℄ COLUMN

Edge Beamsuperstructure×27 · longitudinal edge member · concretep4, p5, p6, p7, p914 crops
Edge Beam

also calledEdgebeamsedgebeamEdgebeamedge beam formsedge beam / concrete member portions

Preformed Joint Fillerother×8 · strip · foamp4, p5, p8, p9, p1212 crops
Preformed Joint Filler

also calledFiller materialfiller materialpreformed foam joint filler

marks*

Concrete Diaphragmsuperstructure×16 · rectangular · concretep4, p5, p6, p7, p910 crops
Concrete Diaphragm

also calledConcrete diaphragms

Bearingsuperstructure×29 · bearing symbolp1, p8, p11, p14, p167 crops
Bearing

also calledexpansion bearingfixed bearing

marksEXP.FIX℄ BEARING

Beam Centerlineother×72 · linep13, p14, p15, p17, p186 crops
Beam Centerline

also calledBeam centerline locationsbeam centerline locations

marksC BEAM 1 through C BEAM 12C BEAM 1–6C BEAM 7–12C BEAM 1–C BEAM 12℄ BEAM 1 through ℄ BEAM 12BEAM 1–6BEAM 7–12℄ BEAM 1–12

  • p13p13_r01 title block“beam centerline” · C BEAM 1 through C BEAM 12 · ×12
  • p14p14_r01“beam centerline” · C BEAM 1–6 · ×6p14_r01“beam centerline” · C BEAM 7–12 · ×6
  • p15p15_r01“beam centerline” · C BEAM 1–C BEAM 12 · ×12
  • p17p17_r01 title block“Beam centerline locations” · ℄ BEAM 1 through ℄ BEAM 12 · ×12p17_r01“beam centerline locations” · BEAM 1–6 · ×6p17_r01“beam centerline locations” · BEAM 7–12 · ×6
  • p18p18_r01 footing 3“beam centerline” · ℄ BEAM 1–12 · ×12
Chain Link Fenceancillary×9 · mesh panel · zinc coated chain link wirep1, p2, p7, p813 crops
Chain Link Fence

also calledChain link wire fencechain link wire fencefencezinc coated chain link security fencechain link security fence

Fence Postancillary×4 · circular plan symbol · zinc coatedp4, p5, p6, p810 crops
Fence Post

also calledFence postsend postfence postspull post

marksEND POST*; **; END POST* / ** / END POST

Bearing Padsuperstructure×6 · rectangularp7, p8, p9, p129 crops
Bearing Pad

also calledbearing pads

Dowel Holedeck×8 · circularp13, p14, p15, p176 crops
Dowel Hole

also calledformed dowel holeDowel holesdowel-bar holesmooth dowel bar holeDowel-bar holeSmooth dowel hole

Rectangular Structural Memberother×20 · rectangularp13, p16, p1717 crops
Rectangular Structural Member

also calledconnecting elementrectangular block at wallcentral supporting membercontinuous stepped wall/beamrectangular member outlineRectangular memberrectangular memberStructural member outlinehorizontal reinforced-concrete membervertical end memberhorizontal structural memberconnecting membercentral vertical memberlongitudinal rectangular memberlongitudinal pile-supported member

Reinforced Concrete Membersubstructure×19 · rectangular · reinforced concretep13, p16, p1718 crops
Reinforced Concrete Member

also calledend vertical concrete elementsconcrete memberreinforced concrete sectionrectangular reinforced-concrete memberrectangular concrete memberConcrete memberrectangular reinforced-concrete elementRectangular concrete member

Wallsubstructure×16 · skewed straightp1, p13, p1711 crops
Wall

marksWALL 1WALL 2WALL NO. 1WALL NO. 2

Triangular Drip Beaddeck×1 · triangularp7, p8, p96 crops
Triangular Drip Bead
Bearing Centerlineother×4 · linep14, p15, p163 crops
Bearing Centerline

marksC BEARING℄ BRNG.

Draped Prestressing Strandsuperstructure×104 · draped · prestressing steelp10, p1112 crops
Draped Prestressing Strand

also calleddraped strandsprestressed strandsPretension strandsPrestressing strandsprestressing strandsprestressed strandpretension stranddraped prestressing strands

marks8 - DRAPED STRANDS

Existing Railroad Trackancillary×14 · parallel linear tracksp1, p39 crops
Existing Railroad Track

also calledexisting trackCentral of Georgia Railroad Company existing tracktracktrack centerlineExisting railroad track alignment

marks℄ TRACK℄ EXIST. TRACK

Future Railroad Trackancillary×14 · dashed alignmentp1, p37 crops
Future Railroad Track

also calledFuture trackfuture track centerlinefuture track

marks℄ FUTURE TRACK

Diaphragm Barsuperstructure×4 · threaded straight bar · ASTM A 709 Grade 36p10, p116 crops
Diaphragm Bar
Holeother×3 · circularp10, p116 crops
Hole

also calledformed holes

Paving Restpavement×10 · rectangularp4, p66 crops
Paving Rest

also calledPaving rests

Future Access Roadancillary×12 · dashed alignmentp1, p35 crops
Future Access Road

also calledaccess road

marks℄ ACCESS RD.

Silicone Sealantmaterial×7 · recessed joint seal · siliconep4, p94 crops
Silicone Sealant

also calledSilicone adhesivesilicone adhesivejoint sealer

Deck Filletdeck×4 · linear filletp5, p64 crops
Deck Fillet

also calledFilletfillet

Diaphragm Bar Holesuperstructure×8 · circularp10, p114 crops
Diaphragm Bar Hole
Hex Nutmaterial×2 · hexagonal · ASTM A 709 Grade 36p10, p114 crops
Hex Nut
Low Friction Type Hold Downsuperstructure×3 · linearp10, p114 crops
Low Friction Type Hold Down
Mechanical Couplermaterial×2 · rectangularp14, p154 crops
Mechanical Coupler
Pile Capfoundation×5 · rectangular · reinforced concretep1, p134 crops
Pile Cap

also calledpile cap / continuous cap beam

Reinforcing Tiematerial×1 · diagonal · reinforcing steelp16, p173 crops
Reinforcing Tie

also calleddiagonal reinforcement tie legsperimeter reinforcement tiereinforcement tiereinforcing tie/stirrup

marks621 OR 631620 OR 630#4 B14I

Washermaterial×3 · circularp10, p114 crops
Washer
Pick-upsuperstructurep10, p113 crops
Pick-up

also calledPick-upspick-ups

Pile Connection Reinforcement Barfoundation×4 · U-shapedp14, p153 crops
Pile Connection Reinforcement Bar

also calledpile connection reinforcementPile connection reinforcement

marks#8 BAR

  • p14p14_r02“pile connection reinforcement” · #8 BAR · ×2
  • p15p15_r02 title block“Pile connection reinforcement” · #8 BAR · ×2p15_r02“Pile connection reinforcement bar” · #8 BAR
Recessmatched by name×2 · circularp10, p113 crops
Recess
Roadway Alignmentancillary×3 · centerlinep3, p73 crops
Roadway Alignment

also calledSR 21 roadway alignmentcenterline

marksSR 21℄ SR 21/MILLEN BYPASS

Class AA Concretematerialconcretep14, p152 crops
Class AA Concrete
End Upstandsubstructure×4 · rectangular vertical upstand · reinforced concretep13, p172 crops
End Upstand
Epoxy Mortarmaterialepoxy mortarp10, p112 crops
Epoxy Mortar
Expansion Jointdeck×1 · vertical jointp2, p52 crops
Expansion Joint
Beveled Shim Platesuperstructure×4 · beveled plate · ASTM A709 Grade 36 steel, galvanizedp126 crops
Beveled Shim Plate

also calledBeveled shim platesbeveled shim plates

Bridge Superstructuresuperstructure×6 · continuous rectangular longitudinal memberp14 crops
Bridge Superstructure

also calledBridge deck/superstructure outlineBridge deck / superstructure outlinebridge deck/superstructure

marksLEFT BRIDGERIGHT BRIDGE

  • p1p01_r01 plan“Bridge deck/superstructure outline” · LEFT BRIDGE · ×1p01_r01 plan“Bridge deck/superstructure outline” · RIGHT BRIDGE · ×1p01_r07 plan“bridge superstructure” · ×1p01_r01“Bridge deck / superstructure outline” · LEFT BRIDGE · ×1p01_r01“Bridge deck / superstructure outline” · RIGHT BRIDGE · ×1p01_r07“bridge deck/superstructure” · ×1
Bridge Limitsother×4 · rectangular dashed outlinep32 crops
Bridge Limits

marksLEFT BRIDGERIGHT BRIDGE

Sealing Ribother×6 · rectangular perimeter ribp124 crops
Sealing Rib
Internal Platesuperstructure×14 · rectangular plate · ASTM A709 Grade 36 or ASTM A1011 Grade 36p123 crops
Internal Plate

also calledinternal plate(s)internal plates

Load Platesuperstructure×4 · rectangular plate · ASTM A709 Grade 36 or ASTM A1011 Grade 36p123 crops
Load Plate

also calledload plates

Proposed Vertical Curveancillary×3 · crest vertical curvep12 crops
Proposed Vertical Curve

marksSR 21 PGL - WESTBOUNDSR 21 PGL - EASTBOUND

Approach Slabdeckrectangularp22 crops
Approach Slab
End Post And Guardrail Attachment Detailancillary×8p22 crops
End Post And Guardrail Attachment Detail
Endfillearthwork×2 · sloped, stepped profilep12 crops
Endfill
Endfill Control Pointother×2 · pointp12 crops
Endfill Control Point
Epoxy Groutmaterialapproved epoxy groutp102 crops
Epoxy Grout
Fence Railancillarycircular pipe · zinc coatedp82 crops
Fence Rail
Foundation Backfill Material Type IIearthworkp22 crops
Foundation Backfill Material Type II

also calledfoundation backfill material

marksTYPE II

  • p2p02_r09 notes“foundation backfill material” · TYPE IIp02_r01“Foundation backfill material, Type II”
Galvanized Nailmaterialgalvanizedp52 crops
Galvanized Nail

also calledgalvanized nailsGalvanized nails

marks10d

Galvanized Pipe Sleeveancillarycircular sleeve · galvanizedp82 crops
Galvanized Pipe Sleeve

also calledpipe sleeve

High Railancillary×2 · horizontal linep12 crops
High Rail

marksTOP OF HIGH RAIL

  • p1p01_r03“high rail” · ×1p01_r05“high rail” · TOP OF HIGH RAIL · ×1
Low Modulus Silicone Sealantmaterialnarrow joint seal · siliconep52 crops
Low Modulus Silicone Sealant

marksTYPE A

MSE Wall Abutmentsubstructure×2p22 crops
MSE Wall Abutment

also calledMSE wall abutments

Preformed Silicone Joint Sealmaterial×2 · profiled · siliconep42 crops
Preformed Silicone Joint Seal

marks*

Reinforcement Layout Boundaryother×2 · stepped rectangularp162 crops
Reinforcement Layout Boundary

also calledrectangular reinforcement layout

  • p16p16_r07“reinforcement layout boundary” · ×1p16_r10“rectangular reinforcement layout” · ×1
Steel Diaphragmsuperstructuresteelp22 crops
Steel Diaphragm

also calledSteel diaphragms

Superstructure Concrete Class Dmaterialconcretep42 crops
Superstructure Concrete Class D
Temporary Shoringancillary×1 · linearp12 crops
Temporary Shoring
Truss Bracingancillarydiagonal pipe · zinc coatedp82 crops
Truss Bracing
Waterproofingdeck×1 · layerp82 crops
Waterproofing
Abutment Soil Reinforcing Device Insertsubstructurep21 crop
Abutment Soil Reinforcing Device Insert

also calledAbutment soil reinforcing device inserts

  • p2p02_r01“Abutment soil reinforcing device inserts”
Bearing Pad Holesuperstructure×1 · circularp121 crop
Bearing Pad Hole
Bridge Excavationearthworkp21 crop
Bridge Excavation

also calledBridge excavation, grade separation

  • p2p02_r01“Bridge excavation, grade separation”
Chamferotherchamfered edgep51 crop
Chamfer
Construction Clearance Envelopeother×1 · rectangularp11 crop
Construction Clearance Envelope
  • p1p01_r05“construction clearance envelope” · ×1
cross-section profile linematched by name×8 · irregular dashed/solid horizontal profilep31 crop
cross-section profile line
end upright wall/postmatched by name×2 · rectangularp131 crop
end upright wall/post
  • p13p13_r03“end upright wall/post” · ×2
end vertical blockmatched by name×2 · rectangularp171 crop
end vertical block
  • p17p17_r02“end vertical block” · ×2
end vertical membermatched by name×2 · rectangularp171 crop
end vertical member
Existing Railroad Right-Of-Way Limitsancillary×16 · vertical dashed linesp31 crop
Existing Railroad Right-Of-Way Limits
Exposed Concrete Edgesotherconcretep21 crop
Exposed Concrete Edges
Grooved Concretepavementconcretep21 crop
Grooved Concrete
Gutterdrainage×2 · linearp11 crop
Gutter
Pile Connectionfoundationp141 crop
Pile Connection
Point Of Vertical Intersectionancillary×1 · pointp11 crop
Point Of Vertical Intersection

marksPVI

Protective Platformancillaryp21 crop
Protective Platform

also calledProtective platforms

Shim Plate Holesuperstructure×1 · circularp121 crop
Shim Plate Hole
Slotsuperstructurerectangularp101 crop
Slot
Spansuperstructurep201 crop
Span

marksSPAN 2 RIGHT

Special Protective Coatingmaterialp101 crop
Special Protective Coating

marksNO. 2 P

  • p10p10_r08“Special protective coating” · NO. 2 P
Superstructure concretematched by nameconcretep21 crop
Superstructure concrete
  • p2p02_r01“Superstructure concrete”
Tension Barancillaryflat bar · zinc coatedp81 crop
Tension Bar
Tension Bar Bandancillarybandp81 crop
Tension Bar Band

also calledtension bar bands

Unidentified Partial Outlined Elementother×1 · tapered quadrilateralp71 crop
Unidentified Partial Outlined Element
  • p7p07_r02“unidentified partial outlined element” · ×1
3Match the ontology35 of 100 matched · 2 to check · 65 unmatchedconfigured openai/gpt-5.6-terra-pro · about $3.48 for a full pass · default

Every item from step 2 compared against the project’s engineering ontology, and then, for each one that lands in a class, a take-off of what that class asks for. The class list goes up as a closed vocabulary, so regional wording resolves without a synonym table — BENT to a pier system, PSC BEAM to a prestressed girder. Any class id that is not in the ontology is rejected rather than stored. The take-off reads every crop behind an item, derives what the drawings imply, shows its arithmetic, and says plainly when a number is not there. Matching against bridge v1.0.0, 133 classes.

35% of items placed. The 65 below fit no class — add one to the ontology and match again.

33matched2to check65unmatched35% covered50values70gaps2,833,309tokens in107,196tokens out

⚠ 65 items the bridge ontology has no class forAdd a class

  • Smooth Dowel Barp2, p10, p11, p12, p13, p14, p15, p17 · 10 crops · ×2The ontology would need a smooth dowel bar component class.
  • Construction Jointp5, p7, p8, p9, p14, p15 · 13 crops · ×8The ontology would need a construction joint component class.
  • Edge Beamp4, p5, p6, p7, p9 · 14 crops · ×27The ontology would need an edge beam component class.
  • Preformed Joint Fillerp4, p5, p8, p9, p12 · 12 crops · ×8The ontology would need a preformed joint filler material class.
  • Beam Centerlinep13, p14, p15, p17, p18 · 6 crops · ×72The ontology would need a beam centerline reference class.
  • Chain Link Fencep1, p2, p7, p8 · 13 crops · ×9The ontology would need a chain-link fence component class.
  • Fence Postp4, p5, p6, p8 · 10 crops · ×4The ontology would need a fence post component class.
  • Bearing Padp7, p8, p9, p12 · 9 crops · ×6The ontology would need a bearing pad component class.
  • Dowel Holep13, p14, p15, p17 · 6 crops · ×8The ontology would need a dowel hole component class.
  • Reinforced Concrete Memberp13, p16, p17 · 18 crops · ×19The item does not identify a specific bridge component; the ontology would need a generic reinforced-concrete member class.
  • Rectangular Structural Memberp13, p16, p17 · 17 crops · ×20The item is too generic; the ontology would need a generic reinforced-concrete structural member class.
  • Wallp1, p13, p17 · 11 crops · ×16The ontology would need a generic structural wall component class.
  • Triangular Drip Beadp7, p8, p9 · 6 crops · ×1The ontology would need a deck drip bead component class.
  • Bearing Centerlinep14, p15, p16 · 3 crops · ×4The ontology would need a bearing centerline reference class.
  • Diaphragm Barp10, p11 · 6 crops · ×4The ontology would need a diaphragm bar component class.
  • Holep10, p11 · 6 crops · ×3The ontology would need a generic formed hole component class.
  • Paving Restp4, p6 · 6 crops · ×10The ontology would need a paving rest component class.
  • Deck Filletp5, p6 · 4 crops · ×4The ontology would need a deck fillet component class.
  • Diaphragm Bar Holep10, p11 · 4 crops · ×8The ontology would need a diaphragm bar hole component class.
  • Hex Nutp10, p11 · 4 crops · ×2The ontology would need a structural nut component class.
  • Low Friction Type Hold Downp10, p11 · 4 crops · ×3The ontology would need a low-friction hold-down device component class.
  • Mechanical Couplerp14, p15 · 4 crops · ×2The ontology would need a mechanical reinforcing-bar coupler component class.
  • Silicone Sealantp4, p9 · 4 crops · ×7The ontology would need a silicone joint sealant material class.
  • Washerp10, p11 · 4 crops · ×3The ontology would need a structural washer component class.
  • Pick-upp10, p11 · 3 cropsThe ontology would need a precast-member lifting pickup component class.
  • Recessp10, p11 · 3 crops · ×2The ontology would need a structural recess component class.
  • Class AA Concretep14, p15 · 2 cropsThe ontology would need a structural concrete material/specification class.
  • End Upstandp13, p17 · 2 crops · ×4The ontology would need an end upstand component class.
  • Epoxy Mortarp10, p11 · 2 cropsThe ontology would need an epoxy mortar material class.
  • Beveled Shim Platep12 · 6 crops · ×4The ontology would need a shim plate component class.
  • Sealing Ribp12 · 4 crops · ×6The ontology would need a sealing rib component class.
  • Internal Platep12 · 3 crops · ×14The ontology would need an internal structural plate component class.
  • Load Platep12 · 3 crops · ×4The ontology would need a load plate component class.
  • Bridge Limitsp3 · 2 crops · ×4The ontology would need a bridge limits reference-boundary class.
  • End Post And Guardrail Attachment Detailp2 · 2 crops · ×8The ontology would need a guardrail attachment component class.
  • Endfill Control Pointp1 · 2 crops · ×2The ontology would need an endfill control-point reference class.
  • Epoxy Groutp10 · 2 cropsThe ontology would need an epoxy grout material class.
  • Fence Railp8 · 2 cropsThe ontology would need a fence rail component class.
  • Galvanized Nailp5 · 2 cropsThe ontology would need a galvanized nail material/component class.
  • Galvanized Pipe Sleevep8 · 2 cropsThe ontology would need a pipe sleeve component class.
  • High Railp1 · 2 crops · ×2The ontology would need a high-rail fence component class.
  • Low Modulus Silicone Sealantp5 · 2 cropsThe ontology would need a low-modulus silicone sealant material class.
  • Preformed Silicone Joint Sealp4 · 2 crops · ×2The ontology would need a preformed silicone joint seal component class.
  • Reinforcement Layout Boundaryp16 · 2 crops · ×2The ontology would need a reinforcement layout boundary reference class.
  • Superstructure Concrete Class Dp4 · 2 cropsThe ontology would need a structural concrete material/specification class.
  • Truss Bracingp8 · 2 cropsThe ontology would need a fence truss-bracing component class.
  • Abutment Soil Reinforcing Device Insertp2 · 1 cropThe ontology would need an abutment soil-reinforcing device insert component class.
  • Bearing Pad Holep12 · 1 crop · ×1The ontology would need a bearing pad hole component class.
  • Chamferp5 · 1 cropThe ontology would need a concrete chamfer feature class.
  • Construction Clearance Envelopep1 · 1 crop · ×1The ontology would need a construction clearance envelope reference class.
  • cross-section profile linep3 · 1 crop · ×8The ontology would need a cross-section profile reference-line class.
  • end upright wall/postp13 · 1 crop · ×2The ontology would need an end upright wall post component class.
  • end vertical blockp17 · 1 crop · ×2The ontology would need an end vertical block component class.
  • end vertical memberp17 · 1 crop · ×2The ontology would need an end vertical member component class.
  • Existing Railroad Right-Of-Way Limitsp3 · 1 crop · ×16The ontology would need a railroad right-of-way boundary reference class.
  • Exposed Concrete Edgesp2 · 1 cropThe ontology would need an exposed concrete edge finish class.
  • Gutterp1 · 1 crop · ×2The ontology would need a bridge gutter drainage component class.
  • Pile Connectionp14 · 1 cropThe ontology would need a pile connection component class.
  • Protective Platformp2 · 1 cropThe ontology would need a protective platform component class.
  • Shim Plate Holep12 · 1 crop · ×1The ontology would need a shim plate hole component class.
  • Slotp10 · 1 cropThe ontology would need a structural slot component class.
  • Superstructure concretep2 · 1 cropThe ontology would need a structural concrete material class.
  • Tension Barp8 · 1 cropThe ontology would need a fence tension bar component class.
  • Tension Bar Bandp8 · 1 cropThe ontology would need a tension bar band component class.
  • Unidentified Partial Outlined Elementp7 · 1 crop · ×1The item is unidentified and cannot be assigned to a defined ontology class.

superstructure9

  • Beam→Prestressed Concrete Girderbridge.superstructure.main_load_system.psc_girderp2, p4, p5, p6, p7, p8, p9, p10, p11, p12, p13, p14, p15, p18 · 64 crops · ×2181 read · 1 derived · 2 gapson “PSC beams”
  • Deck Slab→Deck Slabbridge.superstructure.deck_system.deck_slabp4, p5, p6, p7, p8, p9, p10, p11 · 31 crops · ×282 read · 1 derived · 2 gapson “Deck Slab”
  • Concrete Diaphragm→Diaphragmbridge.superstructure.secondary_member_system.diaphragmp4, p5, p6, p7, p9 · 10 crops · ×161 read · 4 gapson “Concrete diaphragms”
  • Bearing→Bridge Bearing Systemgroupingbridge.superstructure.bearing_systemp1, p8, p11, p14, p16 · 7 crops · ×29on “bearing”
  • Expansion Joint→Expansion Joint Systemgroupingbridge.superstructure.expansion_joint_systemp2, p5 · 2 crops · ×1on “Expansion Joint”
  • Bridge Superstructure→Bridge Superstructuregroupingbridge.superstructurep1 · 4 crops · ×6on “Bridge Superstructure”
  • Steel Diaphragm→Diaphragmbridge.superstructure.secondary_member_system.diaphragmp2 · 2 crops1 read · 4 gapson “Steel diaphragms”
  • Waterproofing→Deck Waterproofingbridge.superstructure.deck_system.waterproofingp8 · 2 crops · ×11 read · 3 gapson “Waterproofing”
  • Grooved Concretecheck→Wearing Coursebridge.superstructure.deck_system.wearing_coursep2 · 1 crop1 read · 3 gapson “Grooved Concrete”

alignment system7

ancillary system6

approach earthwork system5

substructure4

  • Bent→Pier Systemgroupingbridge.substructure.pier_systemp1, p2, p3, p4, p5, p6, p7, p13, p14, p15, p16, p17, p18, p20 · 36 crops · ×86on “Bent”
  • Bent Cap→Pier Capbridge.substructure.pier_system.pier_capp7, p9, p13, p14, p15, p16, p17 · 19 crops · ×263 read · 1 derived · 1 gapon “Bent Cap”
  • Endwallcheck→Abutment Systemgroupingbridge.substructure.abutment_systemp1, p4, p6, p8, p12, p13 · 12 crops · ×22on “end bent / wall”
  • Column→Rectangular Pier Shaftbridge.substructure.pier_system.pier_shaft.rectangularp13, p14, p15, p16, p17 · 13 crops · ×242 read · 1 derived · 2 gapson “COLUMN”

foundation system3

  • Steel H-pile→Steel H Pilebridge.foundation_system.deep_foundation.pile.steel_hp1, p2, p13, p14, p15, p16, p17, p18 · 53 crops · ×3521 read · 2 derived · 2 gapson “Steel H-piles”
  • Footing→Spread Footingbridge.foundation_system.shallow_foundation.spread_footingp2, p14, p15, p16, p18 · 24 crops · ×543 read · 1 derived · 2 gapson “Footings”
  • Pile Cap→Pile Capbridge.foundation_system.deep_foundation.pile_capp1, p13 · 4 crops · ×51 read · 1 derived · 4 gapson “pile cap”

construction system1

◈Index for the agent7010 points · 304 crops · 100 itemsopenai/text-embedding-3-small

Everything steps 1 and 2 know, written to the vector store for a chat agent to answer from. Cut fine — a point for each object, each measurement and each note, not one per crop — with the page, the crop and the drawing written into every one, so a retrieved number arrives with enough context to be an answer. The readings as a whole and step 2’s items are indexed too, for the questions that are about a drawing rather than a figure.

Re-runnable at any time: each point is keyed to the record it came from, so re-indexing replaces what changed, adds what is new, and drops what the drawings no longer support. Re-read a crop or correct one by hand, then press this.

7010 points indexed and up to date, 15 dropped last run.

7,010points stored7,010points ready304crops100items501,248tokens embedded

Collection mindmap_vectors, filtered on projectId = gdot_drawing-83a3db2262b94086918a1e232d2b9607.
